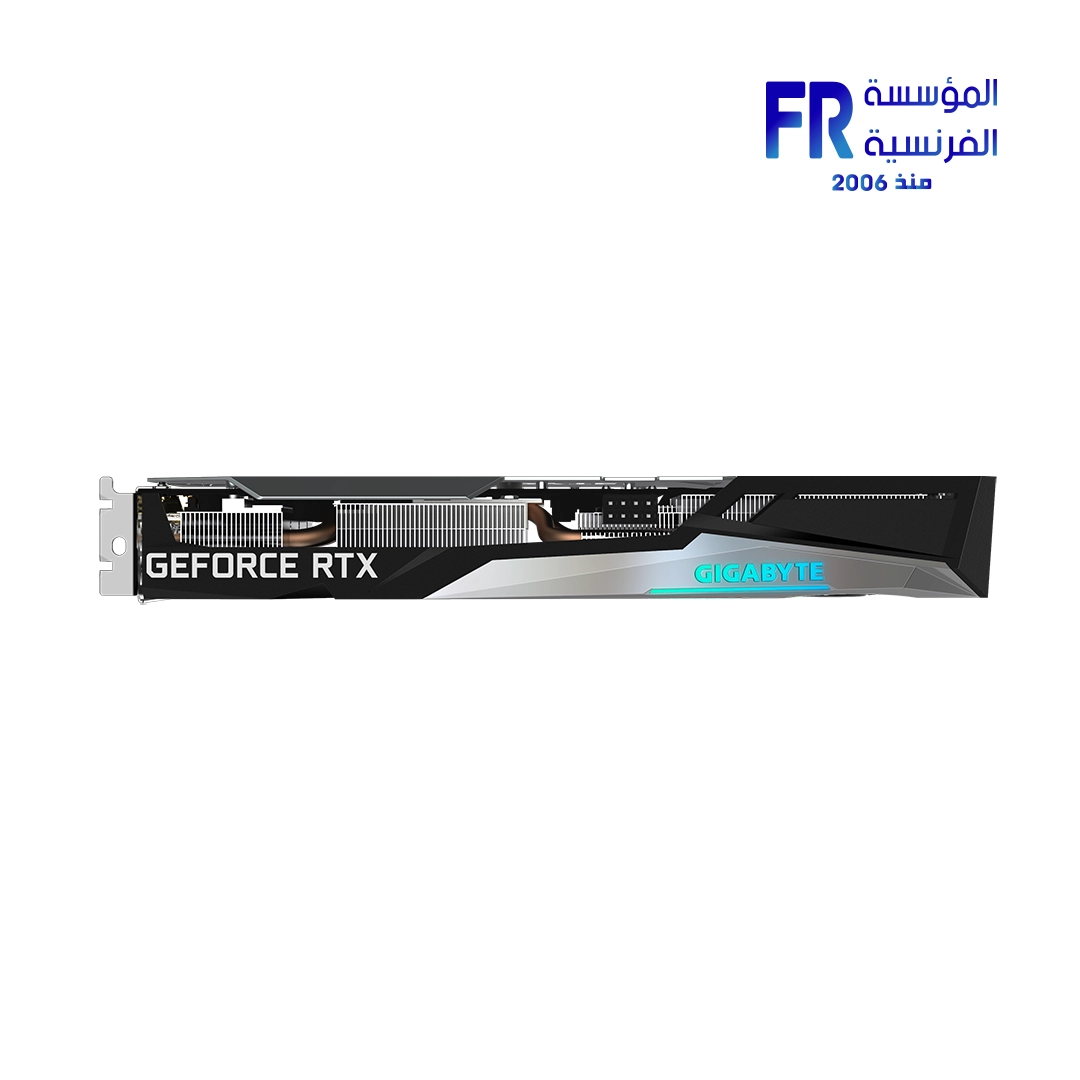

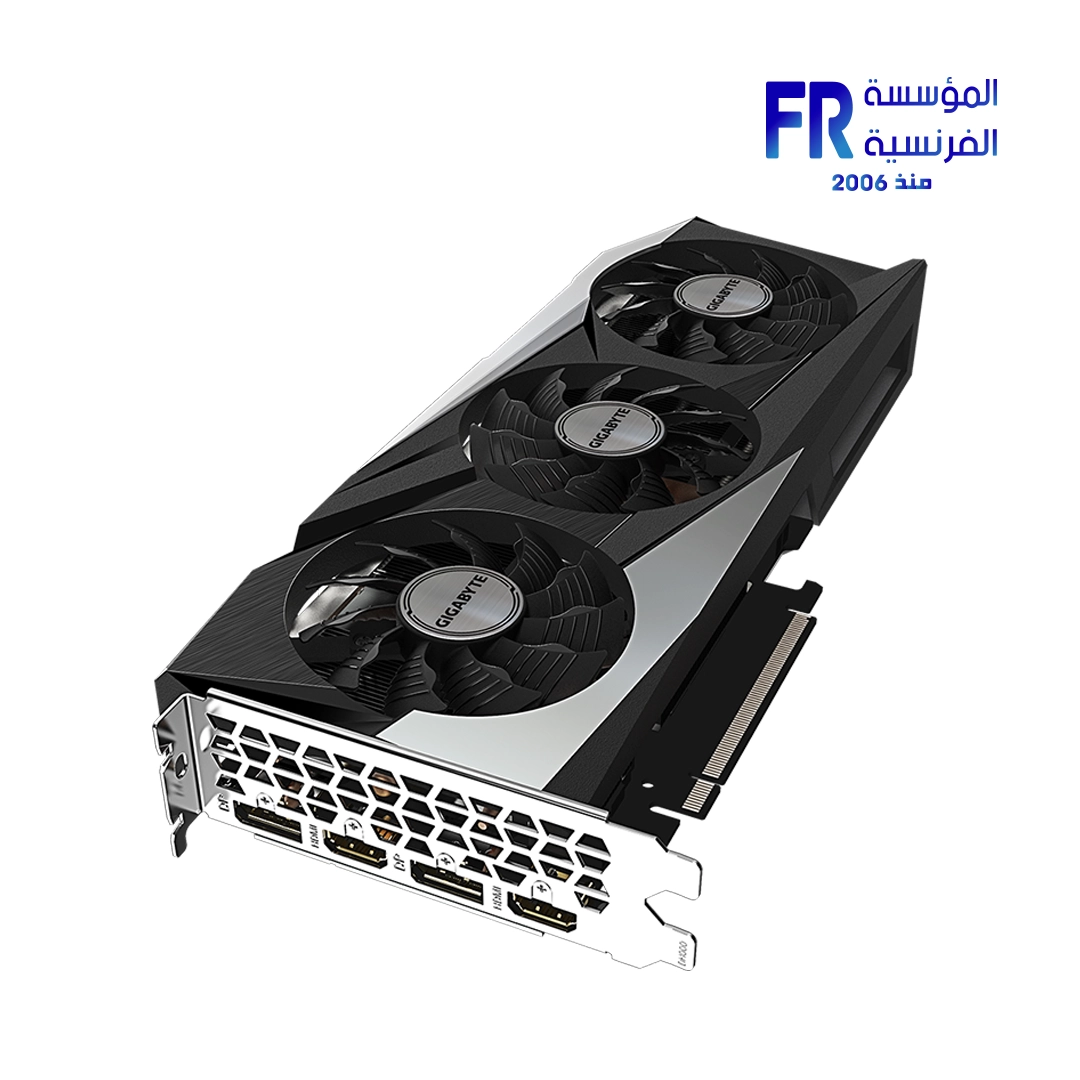

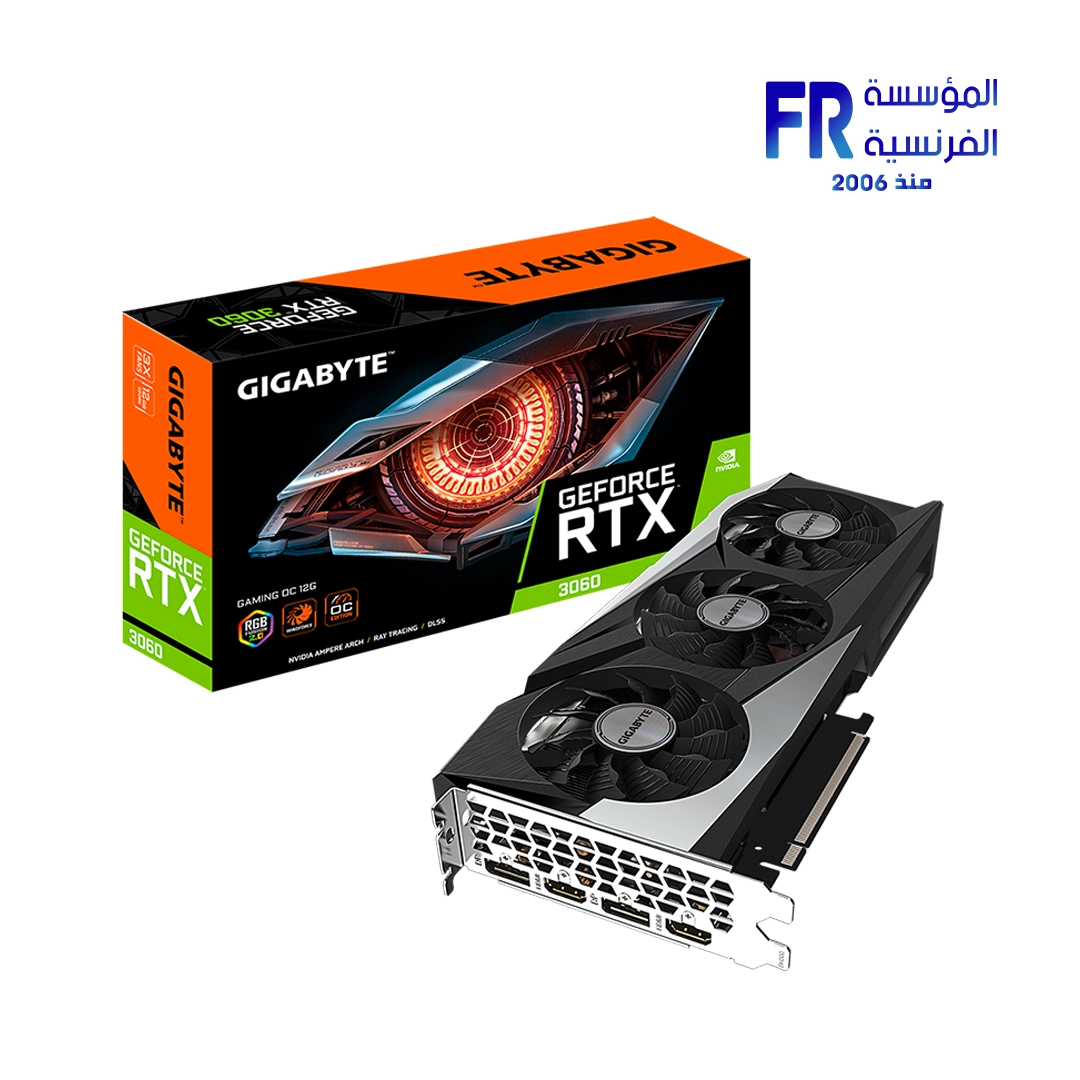

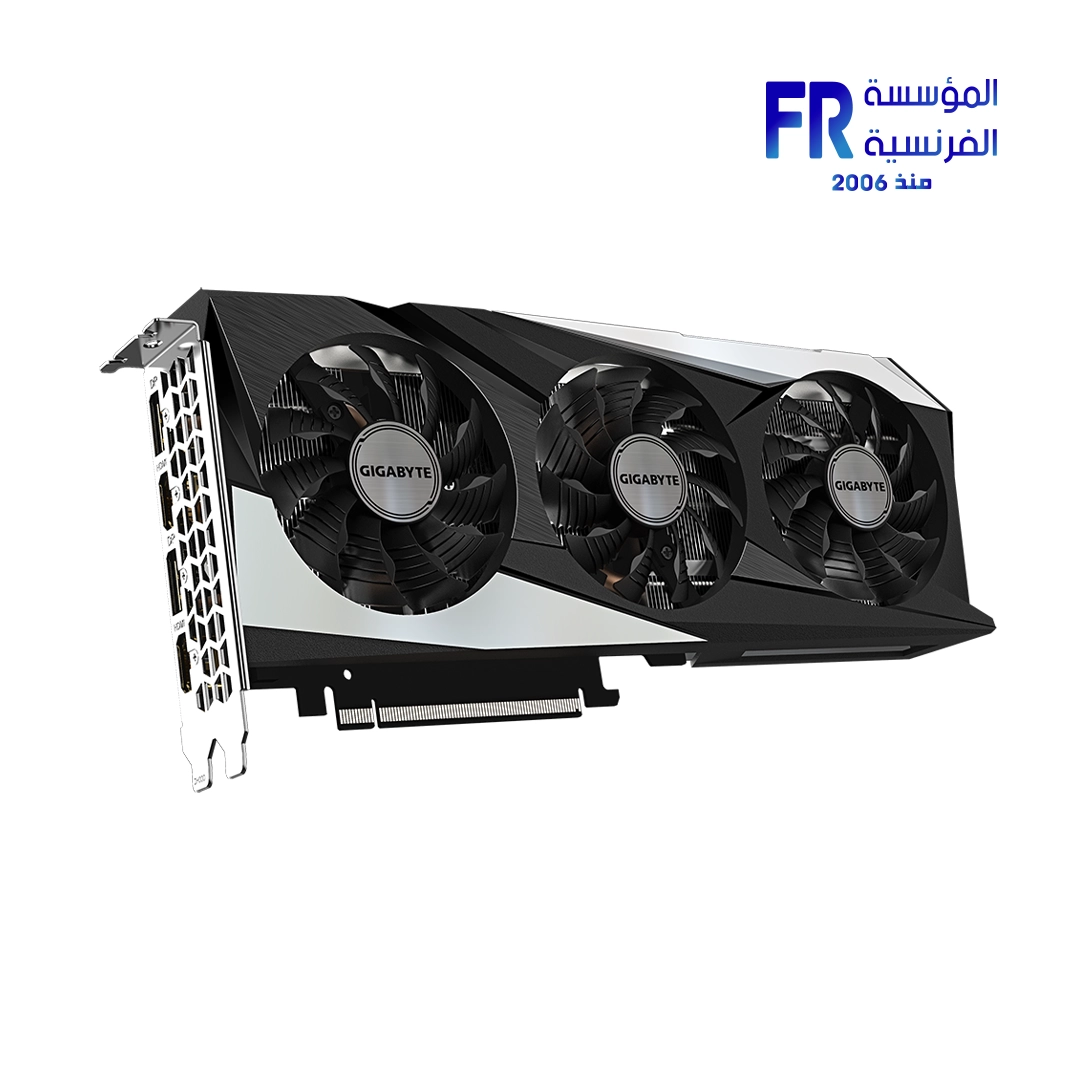

Gigabyte RTX 3060 Gaming OC 12Gb Graphic Card

Gigabyte RTX 3060 Gaming OC 12Gb Graphic Card

The Gigabyte RTX 3060 Gaming OC 12Gb Graphic Card is powered by NVIDIA’s Ampere architecture, delivering the ultimate play with advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores for greater throughput. Furthermore, it’s integrated with 12GB GDDR6 192-bit memory interface, offering a high-performance gaming experience.

Advanced Cooling & Customization

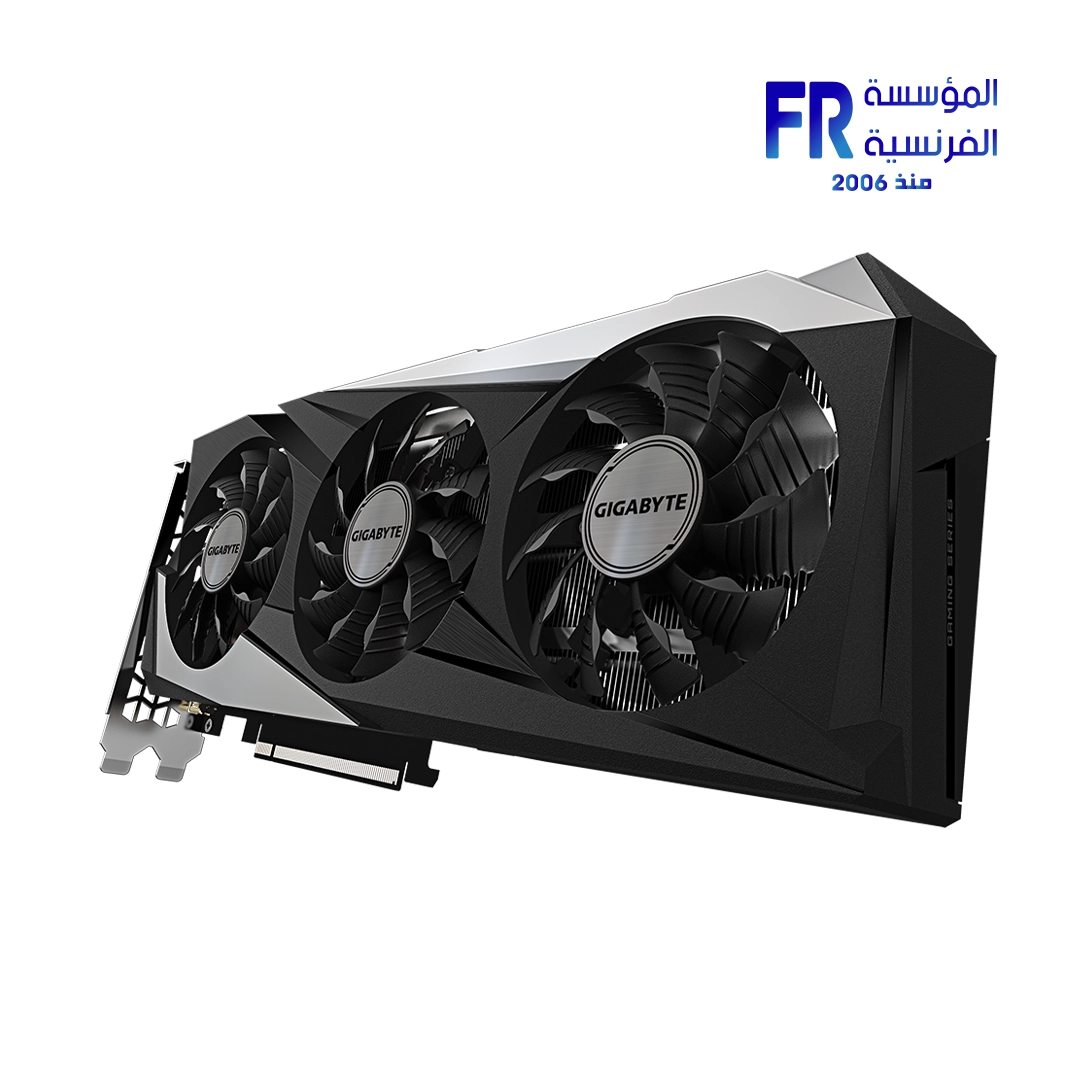

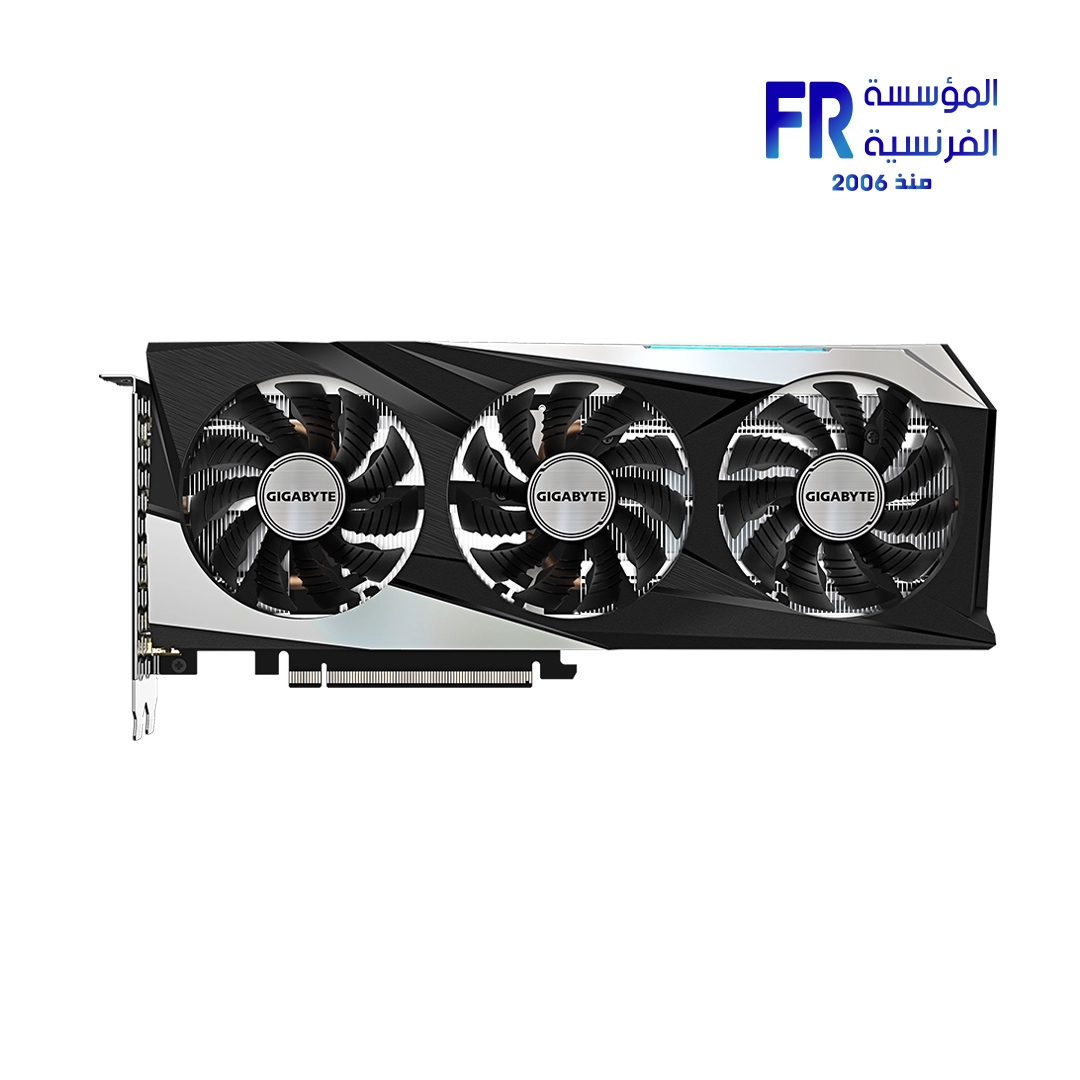

This graphics card features the WINDFORCE 3X cooling system, which includes 3x 80mm unique blade fans with alternate spinning to reduce turbulence and increase air pressure. Specifically, the 3D Active Fan provides semi-passive cooling, keeping the fans off during low-load or low-power games for silent operation. Additionally, graphene nano lubricant extends fan life and ensures quieter performance.

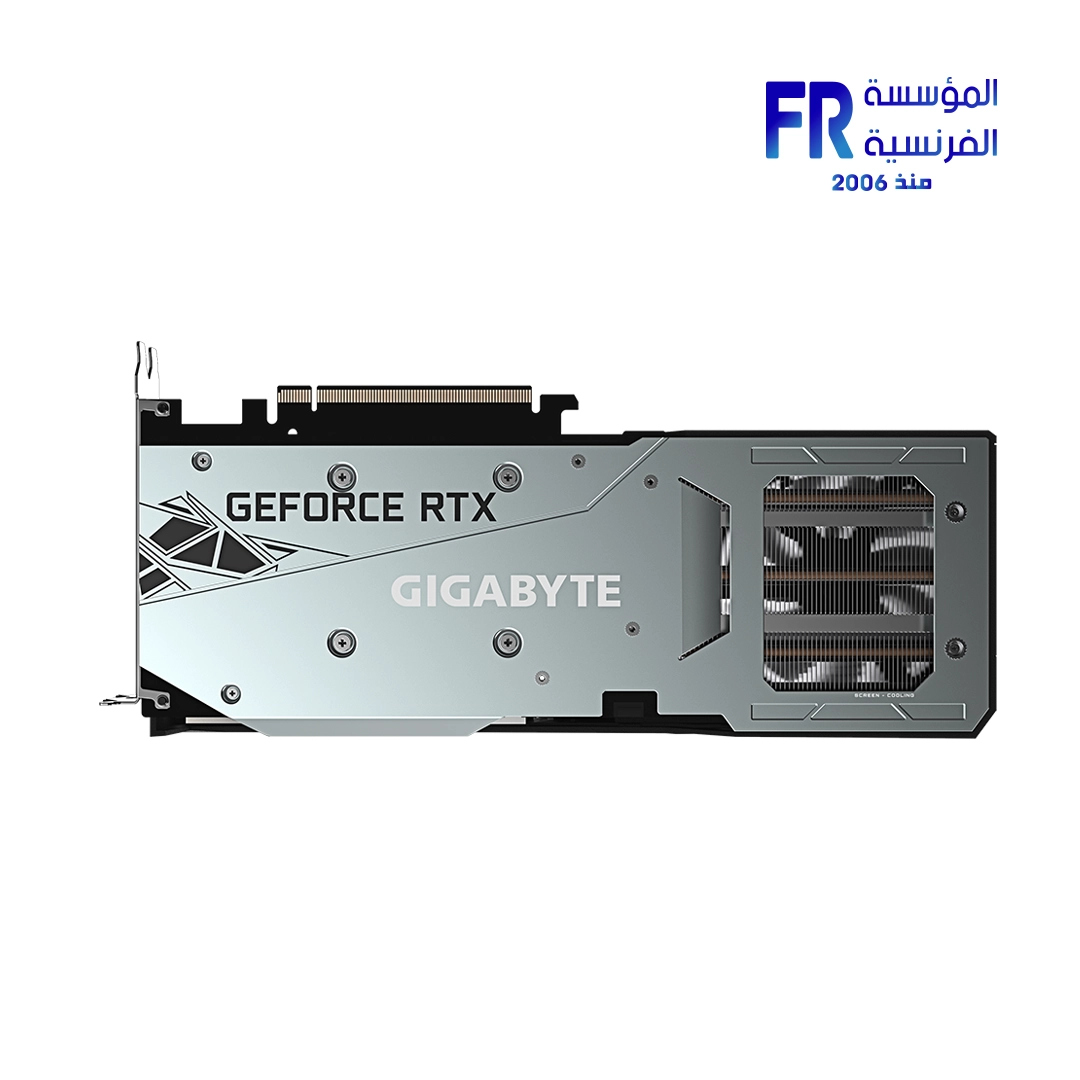

The design incorporates an extended heatsink for screen cooling, allowing air to pass through for better heat dissipation, and heat pipes with direct GPU touch for maximum heat transfer. Moreover, personalize your setup with RGB Fusion 2.0, offering 16.7M customizable color options and numerous lighting effects that can synchronize with other AORUS devices. The card is built strong with a protection metal back plate and uses a better power phase design for lower MOSFET operating temperatures and enhanced durability.

Explore compatible [Graphics Cards] or check [Gigabyte] Products for other options. Find full details on the official [Gigabyte RTX 3060 Gaming OC 12G] product page.

Specifications

• Graphics Processing: GeForce RTX™ 3060
• Core Clock: 1837 MHz (Reference Card: 1777 MHz)
• CUDA® Cores: 3584
• Memory Clock: 15000 MHz
• Memory Size: 12 GB
• Memory Type: GDDR6
• Memory Bus: 192 bit
• Memory Bandwidth: 360 GB/s
• Card Bus: PCI-E 4.0 x 16
• Digital Max Resolution: 7680×4320
• Multi-view: 4
• Card Size (LxWxH): 282 x 117 x 41 mm
• PCB Form: ATX
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Recommended PSU: 550W
• Power Connectors: 8 pin*1

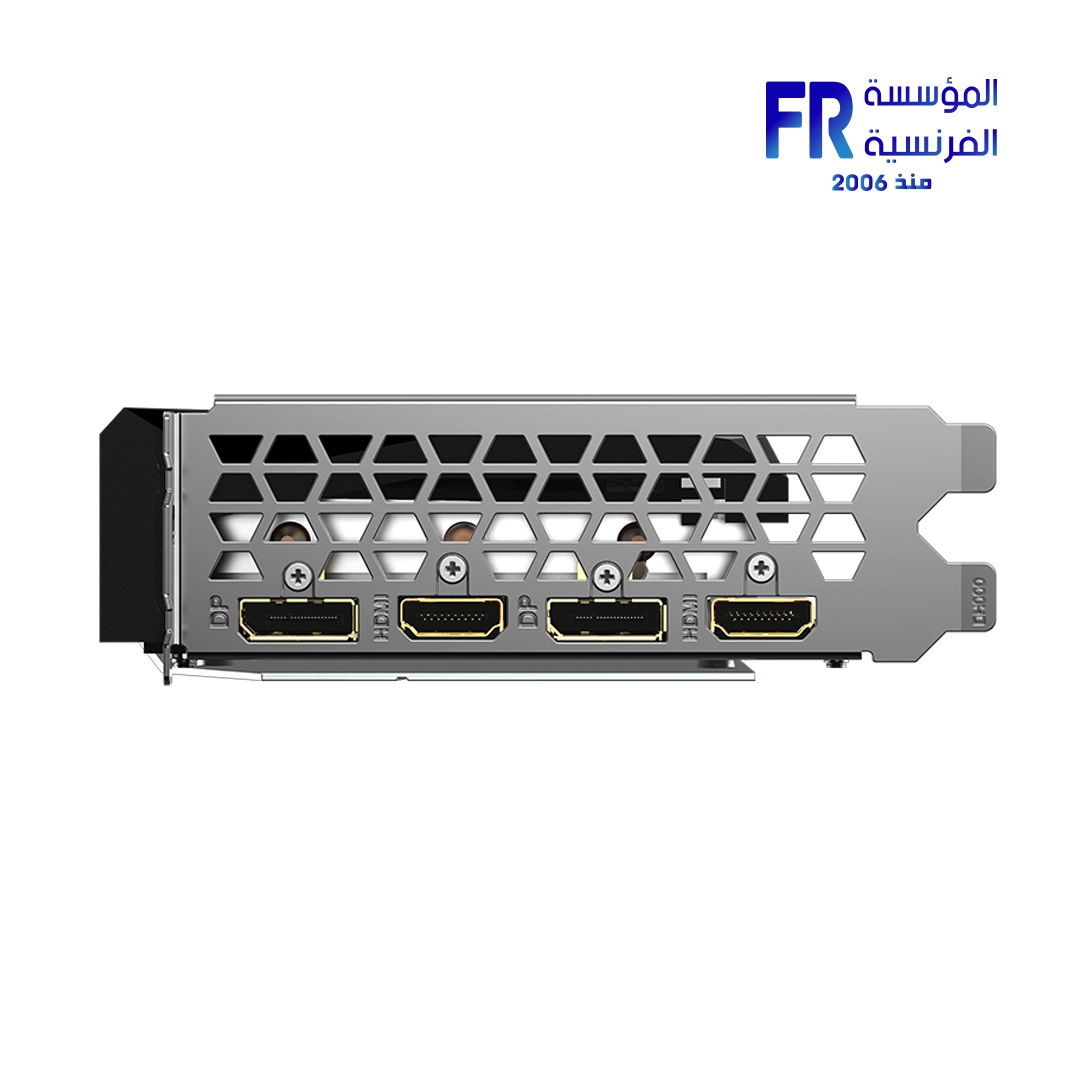

• Output: DisplayPort 1.4a *2, HDMI 2.1 *2
• SLI Support: N/A
• Accessories: Quick guide
• Model Number: GV-N3060GAMING OC-12GD (rev. 1.0)
• EAN/UPC: 889523028629
