Gigabyte UD850GM PG5W 850W 80 Plus Gold Full Modular ATX 3 PCIE 5 White Power Supply SPECIFICATION:

• Model : GP-UD850GM PG5W
• Type : Intel Form Factor ATX 12V v3.0
• PFC : Active PFC (>0.9 typical)
• Input Voltage : 100-240 VAC (full range)
• Input Current : 12-6 A
• Input Frequency : 60-50 Hz
• Output Capacity : 850W
• Dimensions : 150 x 140 x 86 mm
• Fan Type : 120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS Certification : Gold
• Efficiency : 90% at typical load
• MTBF : >100,000 hours
• Protection : OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal : 100-150 ms
• Hold-Up Time : >16 ms
• Cable Type : Flat, All White
• Connectors :
  • ATX/MB 20+4 Pin : 610mm × 1
  • CPU/EPS 4+4 Pin : 600mm + 200mm × 1
  • PCI-e 16 Pin : 700mm × 1
  • PCI-e 6+2 Pin : 600mm + 150mm × 2 (Total of 4 connectors)
  • SATA : 600mm + 150mm + 150mm + 150mm × 2 (Total of 8 ports)
  • 4-Pin Peripheral + 4-Pin Floppy : 500mm + 120mm + 120mm + 150mm × 1 (Total of 3 Peripheral + 1 Floppy)

• Ultra Durable
  •  Main Japanese capacitors
  •  Enhanced thermal solution

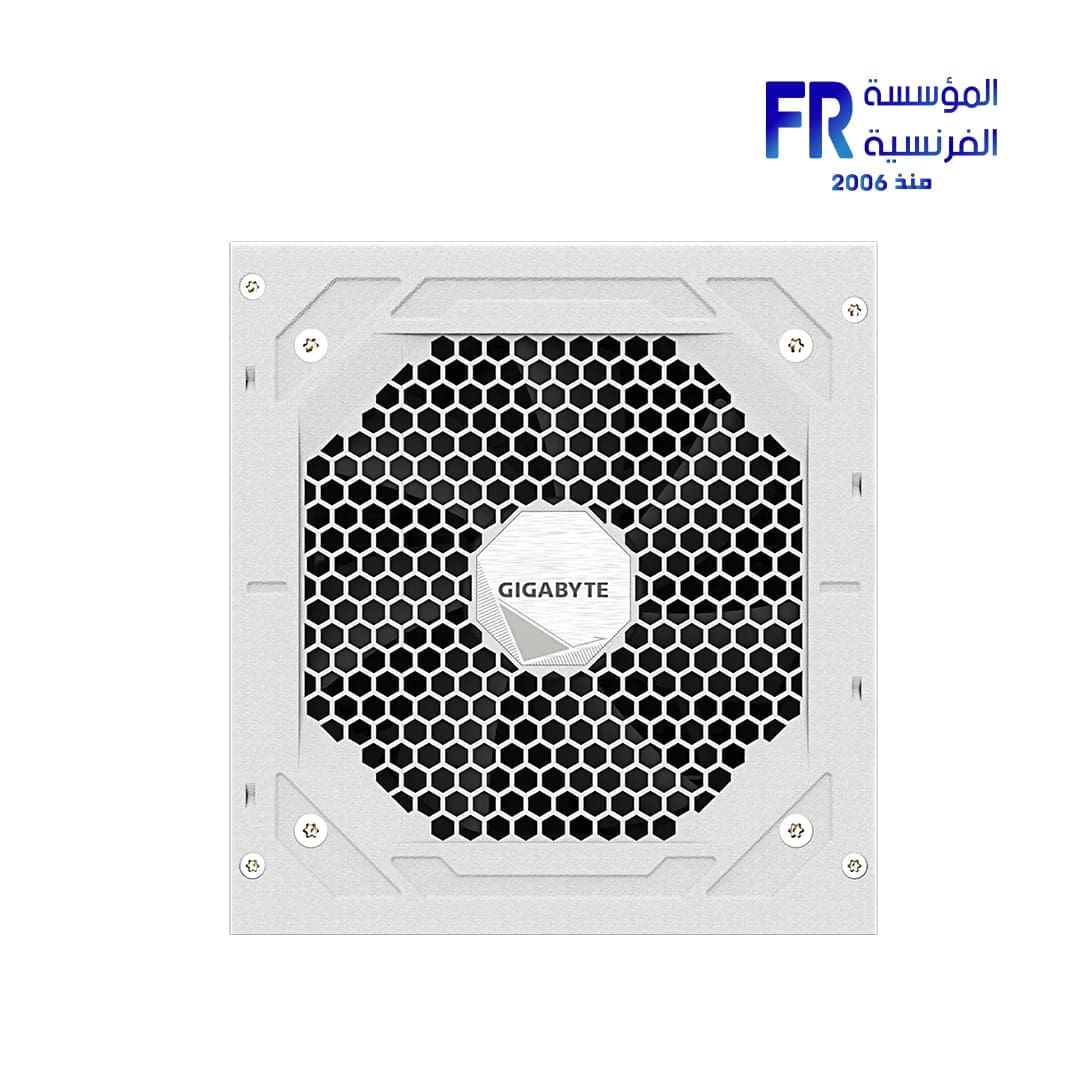

  •  120mm smart hydraulic bearing (HYB) fan
  •  OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics cards
• Support Intel ATX 3.0 standard
• 80 PLUS Gold certified
• Fully modular design
• Compact design

Support PCIe Gen 5.0 graphics cards

The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

Support Intel ATX 3.0 standard

The UD850GM PCIE 5.0 WHITE EDITION can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

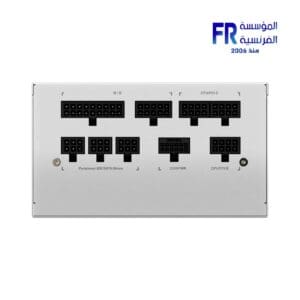

FULLY MODULAR DESIGN

All the white flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
