MODEL | |
---|---|
CHIPSET MANUFACTURERS | |
CPU SOCKET | |
MOTHERBOARD CHIPSET | |
Motherboard Tybe | |
CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
Technology | |
Memory Speed | 4400 MHz, 4800 MHZ, 4866 MHz, 5200MHZ, 5600 MHz, 6000MHz, 6200MHZ, 6400Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 8000MHZ |
MAX MEMORY SIZE | |
Memory Slot | |
PCI-E X16 | |
PCI-E GEN | |
PCI-E Slots (M.2) | |
SATAIII | |
Communication module | |
Part Number | |
Warranty |
Gigabyte X670 GAMING X AX V2 AM5 Motherboard
13500 EGP
- AMD Socket AM5:Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance:Twin 14*+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
* 7+7 phases parallel power design
Gigabyte X670 GAMING X AX V2 AM5 Motherboard
Gigabyte X670 GAMING X AX V2 AM5 Motherboard
CPU |
AMD Socket AM5, Support for Ryzen™ 7000 / Ryzen™ 8000 Series Processors. |
Chipset |
AMD X670 |
Memory |
DDR5 6000 to 8000(OC) MT/s, 4 x DDR5 DIMM sockets, up to 192 GB, Dual channel architecture. |
Onboard Graphics |
Integrated Graphics Processor, 1 x HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3). |
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
Wireless Communication |
Realtek® Wi-Fi 6E RTL8852CE, WIFI a, b, g, n, ac, ax, Bluetooth 5.3. |
Expansion Slots |
1 x PCIe 4.0 x16 (integrated in CPU), 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x2. |
Storage Interface |
3 x M.2 connectors, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 10 support. |
USB |
CPU: 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1. Chipset: 2 x USB Type-C® (Gen 2×2), 8 x USB 3.2 Gen 1, 4 x USB 2.0/1.1. |
Internal I/O Connectors |
ATX power connectors, fan headers, RGB LED strip headers, M.2 connectors, USB headers, etc. |

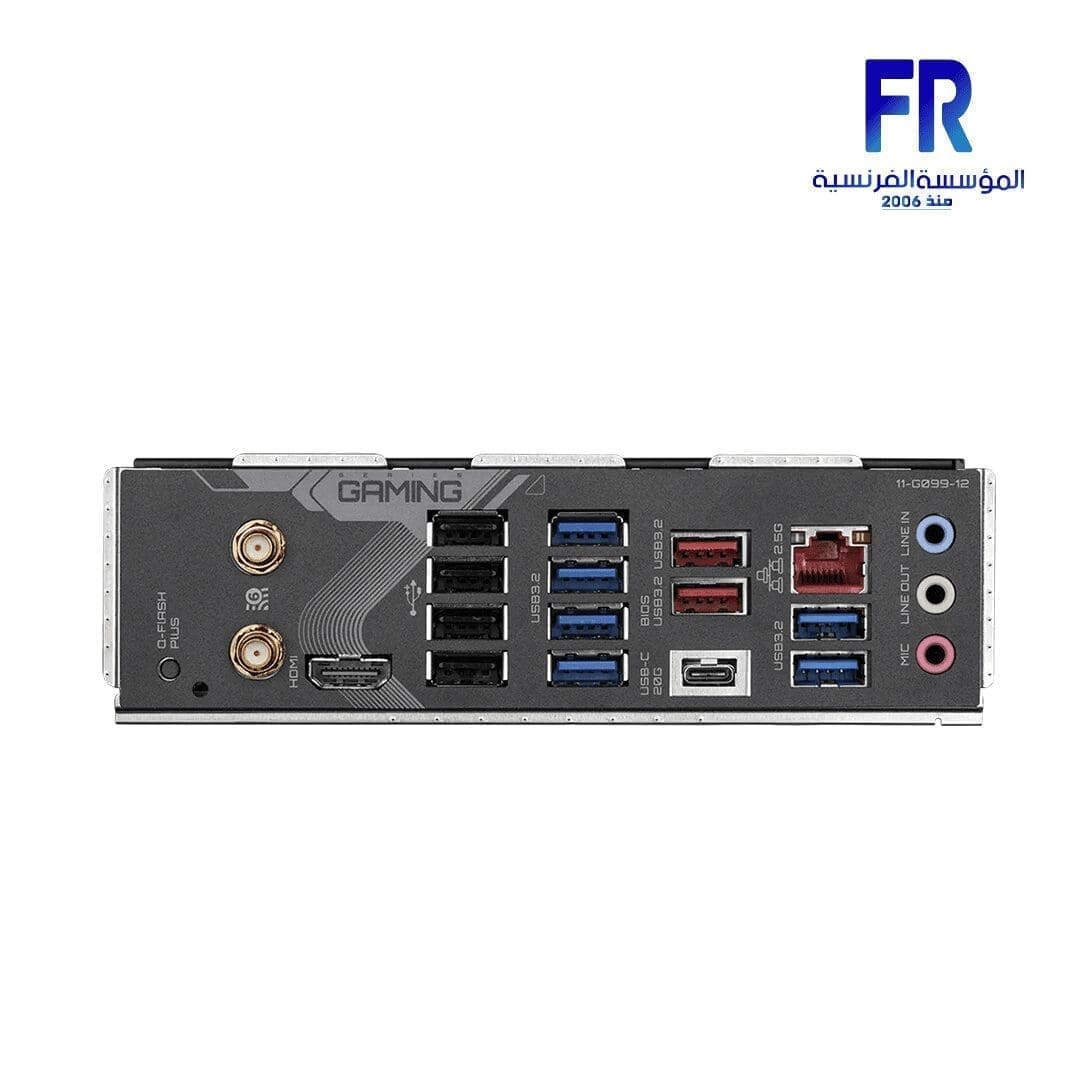

Back Panel Connectors |
Q-Flash Plus, SMA antenna connectors, HDMI, USB 3.2 Gen 1/Gen 2, USB Type-C®, RJ-45, audio jacks. |
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan speed control. |
BIOS |
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
Bundled Software |
Norton® Internet Security (OEM version), LAN bandwidth management software. |
Operating System |
Windows 11 64-bit, Windows 10 64-bit. |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm. |
- AMD Socket AM5:Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Unparalleled Performance:Twin 14*+2+2 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage:1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:HDMI, Dual USB-C® 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
* 7+7 phases parallel power design
