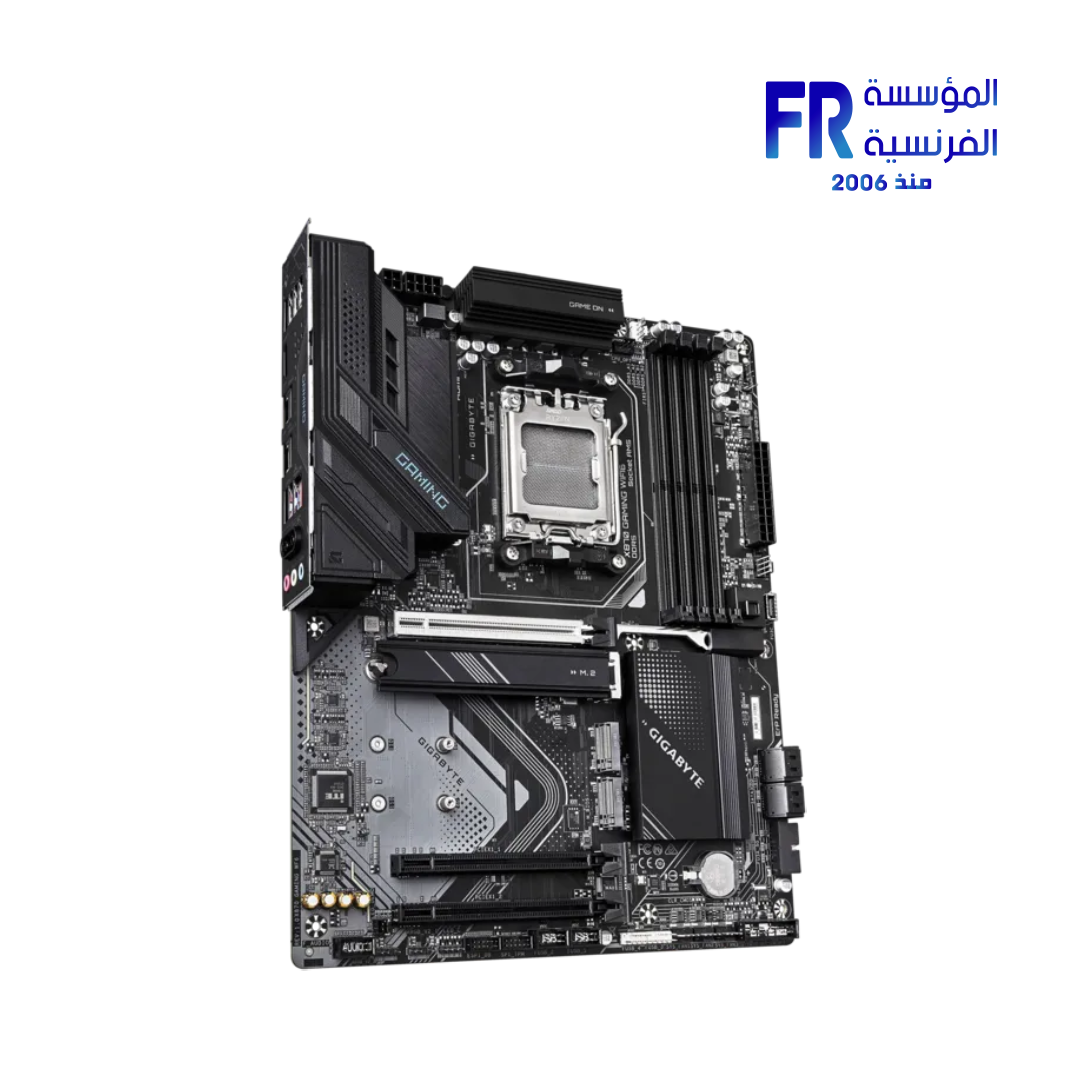

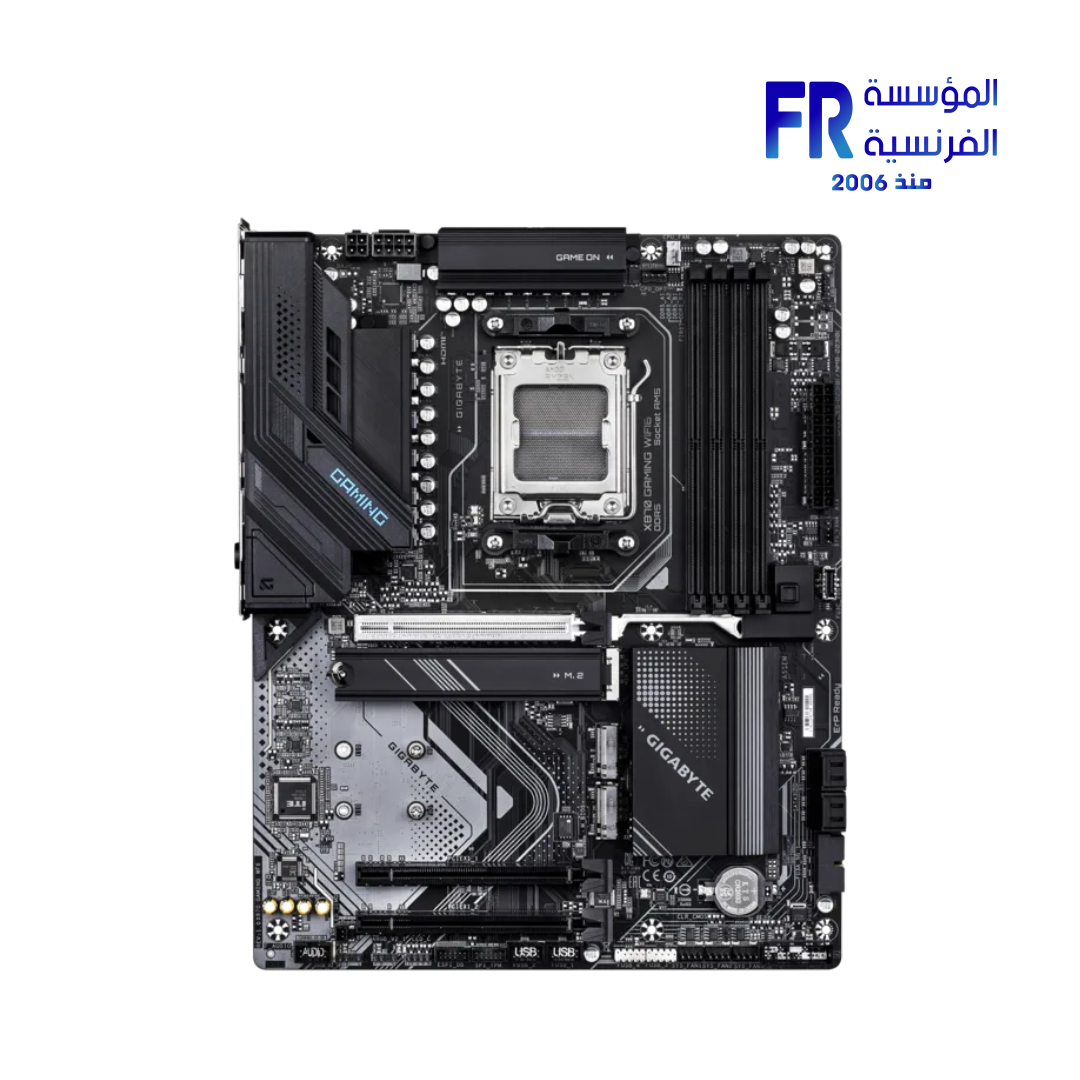

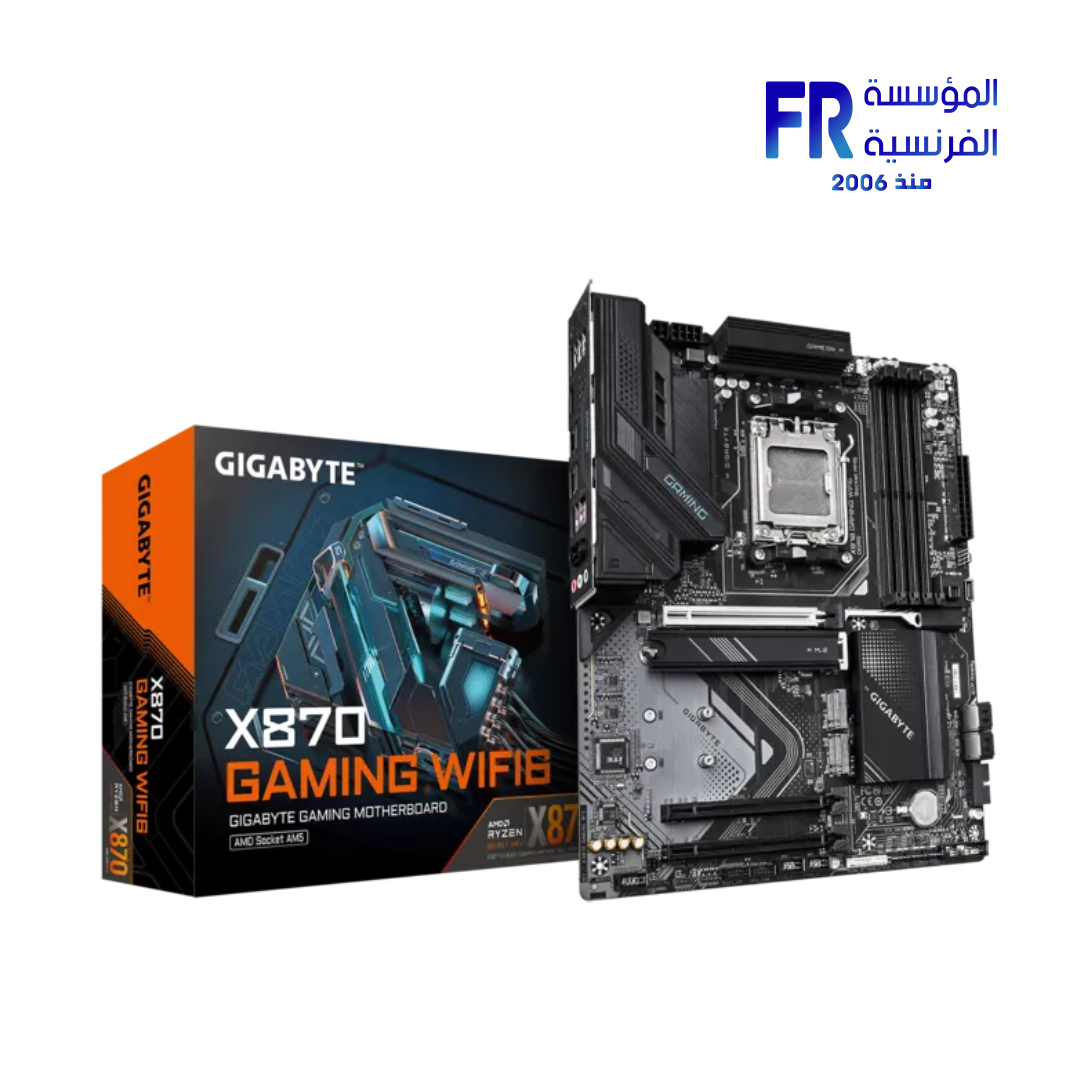

Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard

Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard - Image 3

Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard - Image 4

Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard

11200 EGP

Part Number 9MX87GW-00-G10
CPU Socket AM5 (Ryzen 9000 / 8000 / 7000 Series)
Memory Support 4x DDR5 DIMM, up to 8200(OC) MT/s (256GB Max)
Primary Expansion Slot 1x PCIe 5.0 x16 (CPU Dependent)
Storage Interface 3x M.2 Slots (1x Gen5 x4, 2x Gen4) & 4x SATA 6Gb/s
Networking Wi-Fi 6 (RTL8851BE) & 2.5GbE LAN
High-Speed I/O 2x USB4® Type-C (40Gbps / DP Video Out)
Warranty 3 Years

Out Of Stock.

SKU: 889523045619 Categories: MOTHERBOARD, AMD Motherboards Tags: HDMI 2.1, Bluetooth 5.3, gaming, AMD X870, GIGABYTE, USB4® Type-C, WIFI6, DESKTOP, Q-Flash Plus, Ryzen 9000 Ready, PCIe 5.0, X870, 9MX87GW-00-G10, DDR5 RAM, Socket AM5, 889523045619, 2.5GbE LAN, Gigabyte X870 series, motherboard, ATX, Wi-Fi 6 Brand: GIGABYTE

Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard

The Gigabyte X870 Gaming WIFI6 AM5 Gaming Motherboard facilitates extreme data throughput through its integrated dual USB4 Type-C architecture. Specifically engineered for professionals who demand 40Gbps bandwidth and PCIe 5.0 storage compatibility, it bridges the gap between high-end architectural rendering and reliable tournament-grade workstation stability.

USB4

Dual 40Gbps Ports

DDR5 8200

Extreme Overclock

PCIe 5.0

Next-Gen Storage

3 Years

Local Warranty

Why the X870 Gaming WIFI6 is the Elite Choice for Professionals

Next-Gen USB4 Connectivity Architecture

Specifically, the integrated ASMedia USB4 controller facilitates two Type-C ports capable of 40Gbps each. Furthermore, these ports support DisplayPort video output at resolutions up to 4K @ 240Hz. Consequently, this architecture allows for cinematic visual excursions and rapid professional file transfers with zero compromise.

Advanced DDR5 and PCIe 5.0 Scaling

The X870 chipset facilitates extreme memory speeds up to 8200(OC) MT/s and native PCIe 5.0 for the primary GPU and M.2 slots. Moreover, the 4-DIMM configuration supports up to 256GB of system memory. This massive overhead ensures your workstation remains technically relevant for future architectural software revisions.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	X870 Gaming WIFI6 (PN: 9MX87GW-00-G10 \| UPC: 889523045619)
Chipset & Socket	AMD X870 / AMD Socket AM5 (Ryzen 9000/8000/7000)
Memory Support	4x DDR5 DIMM (Max 256GB), Up to 8200(OC) MT/s
Storage Interface	1x M.2 (PCIe 5.0), 2x M.2 (PCIe 4.0), 4x SATA 6Gb/s
USB4 Controller	ASMedia USB4® (2x Type-C 40Gbps Ports)
Networking	Realtek® 2.5GbE LAN + Wi-Fi 6 RTL8851BE + BT 5.3
Expansion Slots	1x PCIe 5.0 x16, 2x PCIe 3.0 x1 (Running at x1)
Internal I/O	1x USB-C (20Gbps), 3x ARGB Gen2, 1x RGB LED
Audio Integration	Realtek® Audio CODEC (7.1-channel HD Audio)
Form Factor	ATX Form Factor (30.5cm x 24.4cm)
Warranty	3 Years Limited Warranty

💡 Technical Note: USB4 Multi-Functionality

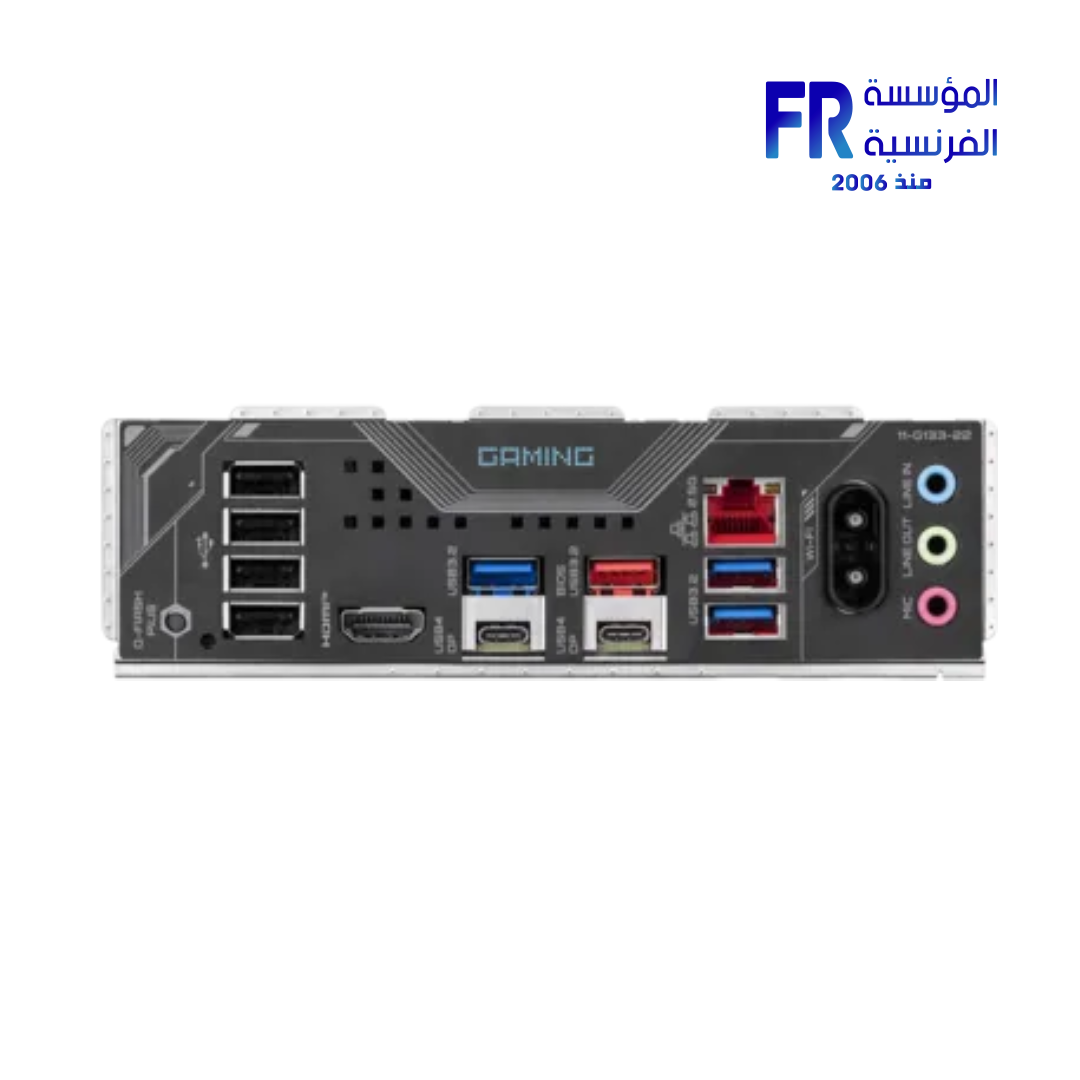

Specifically, the USB4 Type-C ports on the back panel facilitate both 40Gbps data transfer and DisplayPort Alt-Mode video output. Furthermore, to achieve the maximum 4K @ 240Hz refresh rate, ensure you are utilizing high-speed cables certified for USB4 or Thunderbolt 4 excursions. Note that PCIe 5.0 lane availability is technically dependent on the installed CPU (Ryzen 9000/7000 Series required for full bandwidth).

Expert FAQ & Insights

Does the X870 Gaming WIFI6 support the latest Ryzen 9000 series?

Specifically, the X870 chipset is natively engineered for AMD Ryzen 9000 series processors. Moreover, it maintains full architectural backward compatibility with Ryzen 8000 and 7000 series chips, facilitating a flexible upgrade path for professional workstations.

What are the benefits of the Q-Flash Plus button on this board?

The Q-Flash Plus feature allows you to update the BIOS without the requirement of installing a CPU, memory, or graphics card. This facilitates a technically seamless assembly process, ensuring your hardware is updated for the latest architectural revisions before the full system excursion begins.

How many NVMe SSDs can be installed simultaneously?

The board architecture includes three M.2 Socket 3 connectors. Specifically, the primary slot (M2A_CPU) facilitates PCIe 5.0 speeds, while the secondary slots (M2B_SB and M2C_SB) provide PCIe 4.0 bandwidth. This ensures massive storage scalability for professional 4K video editing and rendering suites.
