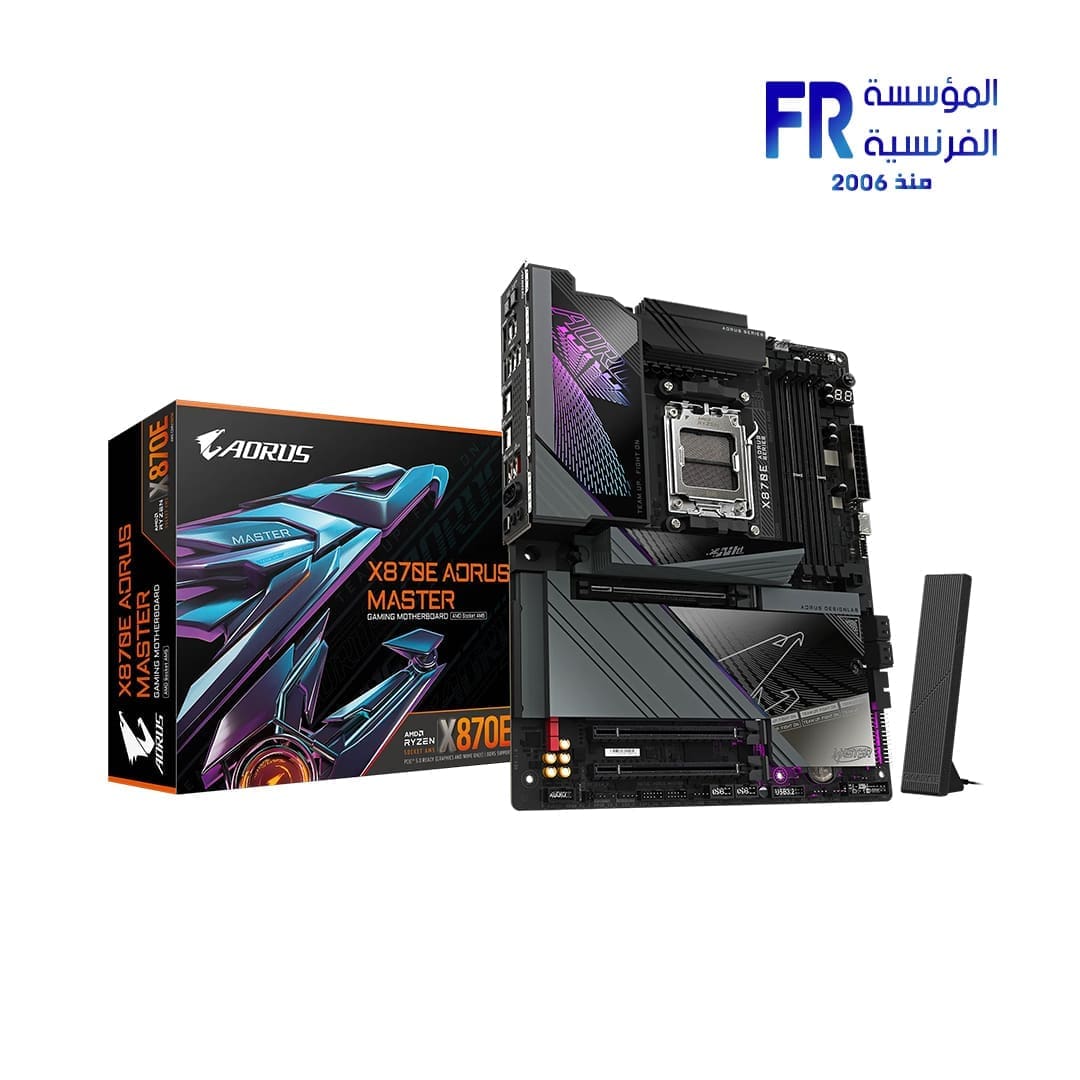

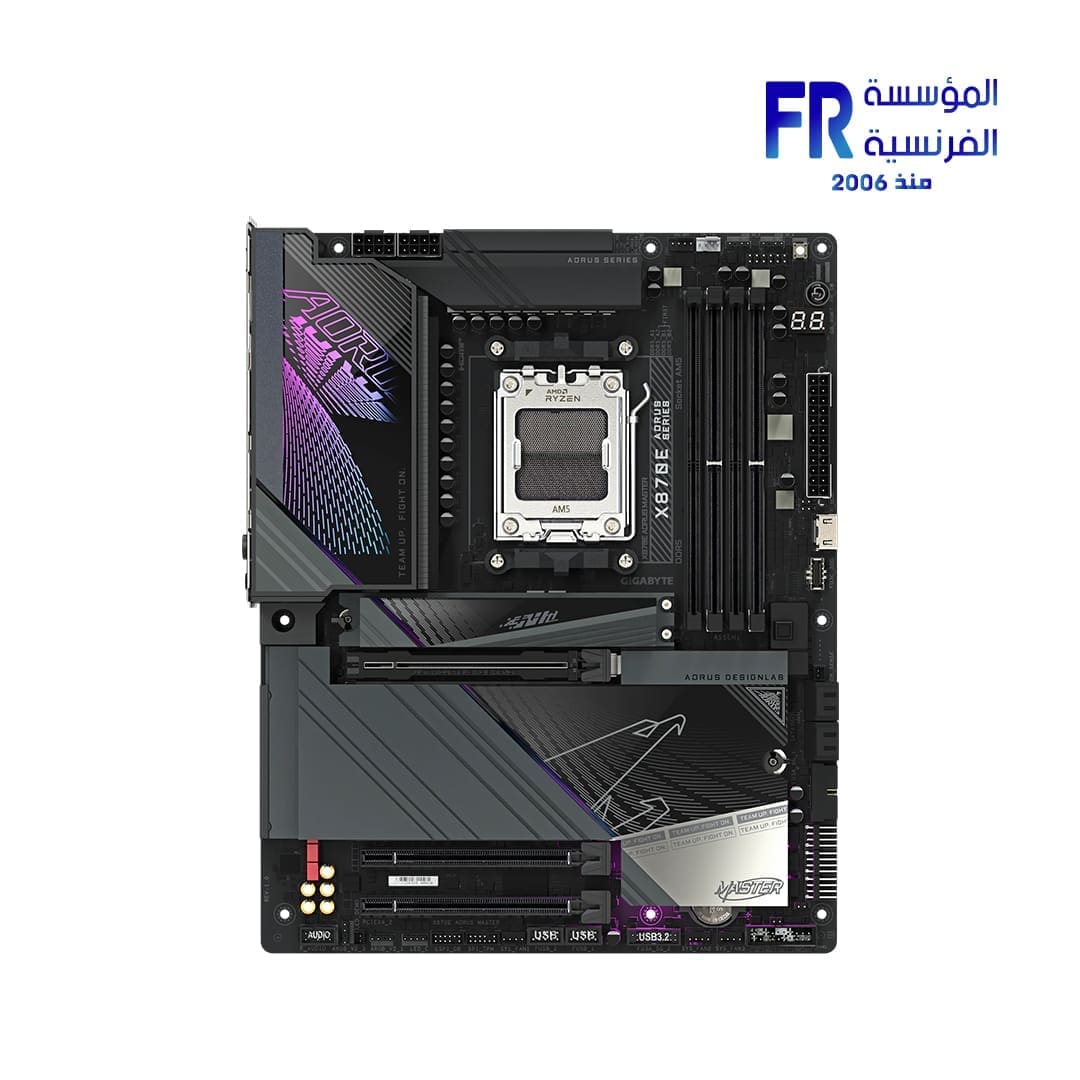

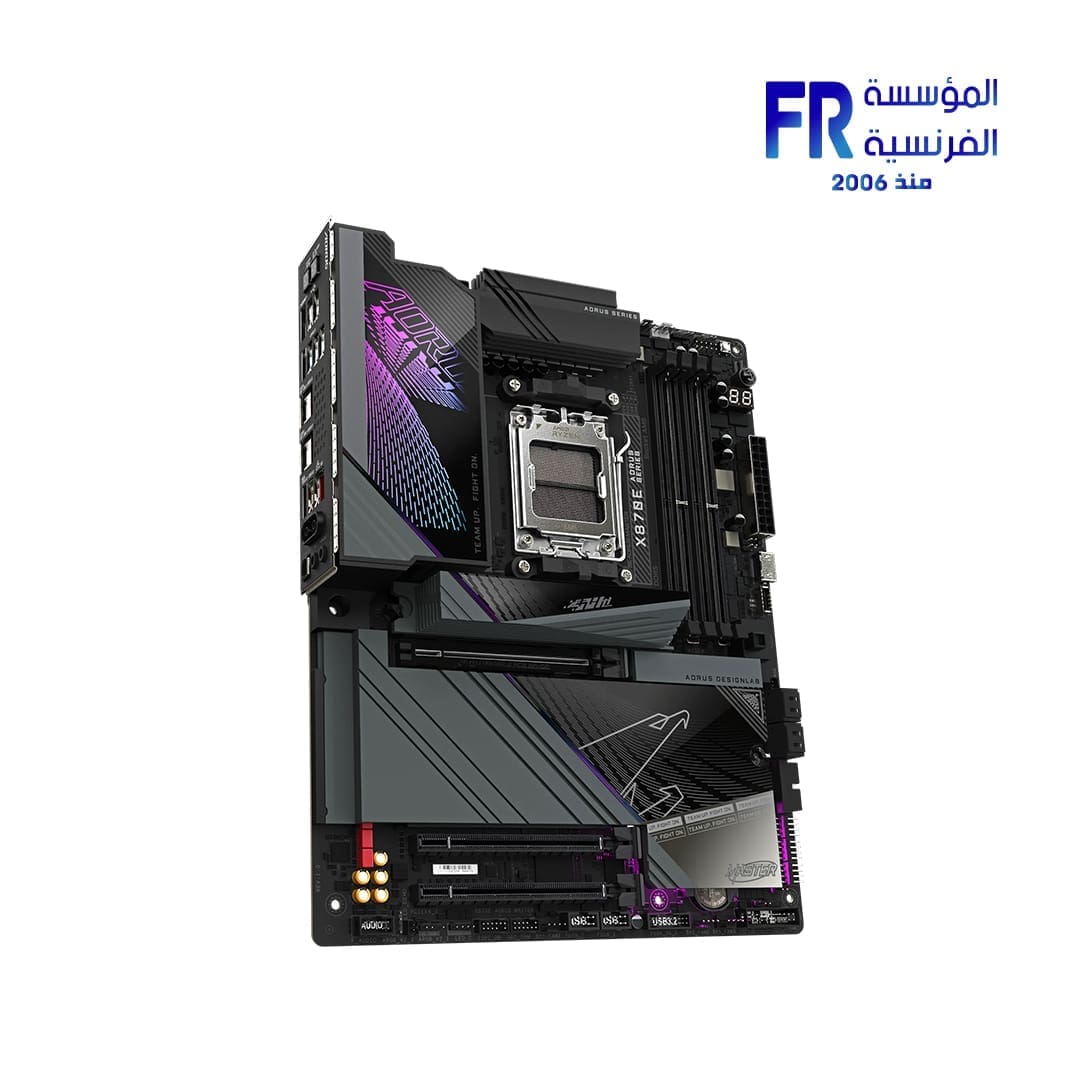

Gigabyte X870E Aorus Master AM5 Gaming Motherboard

Gigabyte X870E Aorus Master AM5 Gaming Motherboard

Gigabyte X870E Aorus Master AM5 Gaming Motherboard SPECIFICATIONS:

• CPU Support :
  • AMD Socket AM5
  • Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
• Chipset :
  • AMD X870E

• Memory :

  • DDR5: Up to 8600 MT/s (OC), supporting 4 x DDR5 DIMM slots
  • Max capacity: 256 GB (64 GB per DIMM)
  • Dual-channel architecture
  • Supports ECC and non-ECC Un-buffered DIMMs
  • AMD EXPO™ and XMP support
• Onboard Graphics :
  • AMD Radeon™ Graphics with DisplayPort and HDMI support
  • 2 x USB4® Type-C ports (DisplayPort 1.4, 3840×2160@240 Hz)
  • 1 x HDMI port (4096×2160@60 Hz, HDMI 2.1)
  • 1 x Front HDMI port (1920×1080@30 Hz, HDMI 1.4)
• Audio :
  • Realtek® ALC1220 Codec
  • DTS:X® Ultra support
  • High Definition Audio (2/4/5.1/7.1-channel)
  • S/PDIF Out support
• LAN & Wireless :
  • Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
  • Qualcomm® Wi-Fi 7 (802.11be, 2.4/5/6 GHz, Bluetooth 5.3)

• Expansion Slots :

  • 1 x PCIe 5.0 x16 slot (CPU-integrated)
  • 1 x PCIe 4.0 x4 slot (Chipset)
  • 1 x PCIe 3.0 x4 slot (Chipset)
• Storage Interface :
  • 1 x M.2 (PCIe 5.0 x4/x2, CPU-integrated)
  • 2 x M.2 (PCIe 5.0 x4/x2, CPU-integrated)
  • 1 x M.2 (PCIe 4.0 x4/x2, Chipset-integrated)
  • 4 x SATA 6Gb/s ports
  • RAID 0/1/5/10 support (RAID 5 only on Ryzen 9000 Series)

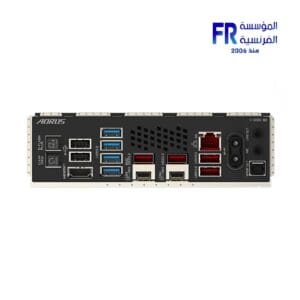

• USB Ports :
  • 2 x USB4® Type-C ports (Back panel)
  • 3 x USB 3.2 Gen 2 Type-A ports (Back panel)
  • 4 x USB 3.2 Gen 1 ports (Back panel)
  • 6 x USB 2.0/1.1 ports (2 Back panel, 4 internal headers)

• Internal Connectors :

  • 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 6 x Fan headers (1 CPU, 4 system, 1 water cooling)
  • 4 x Addressable RGB Gen2 headers
  • 1 x TPM header
• Unique Features :
  • GIGABYTE Control Center (GCC)
  • Q-Flash & Q-Flash Plus
  • Smart Backup

• Bundled Software :

  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
• BIOS :
  • 256 Mbit flash
  • AMI UEFI BIOS
• Operating System :
  • Windows 11 64-bit
• Form Factor :
  • ATX (30.5 cm x 24.4 cm)

• DDR5 OC up to 8600MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• DDR Wind Blade : Enhanced Active Cooling for Memory Modules

• M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks

• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

• New Power Monitor in HWinfo for real-time monitoring on CPU power phases

• Ultra-Fast Storage : 4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : Dual USB4 Type-C with DP-Alt, HDMI

• Reliable Audio : Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors

• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
