Gigabyte Z590 UD Motherboard

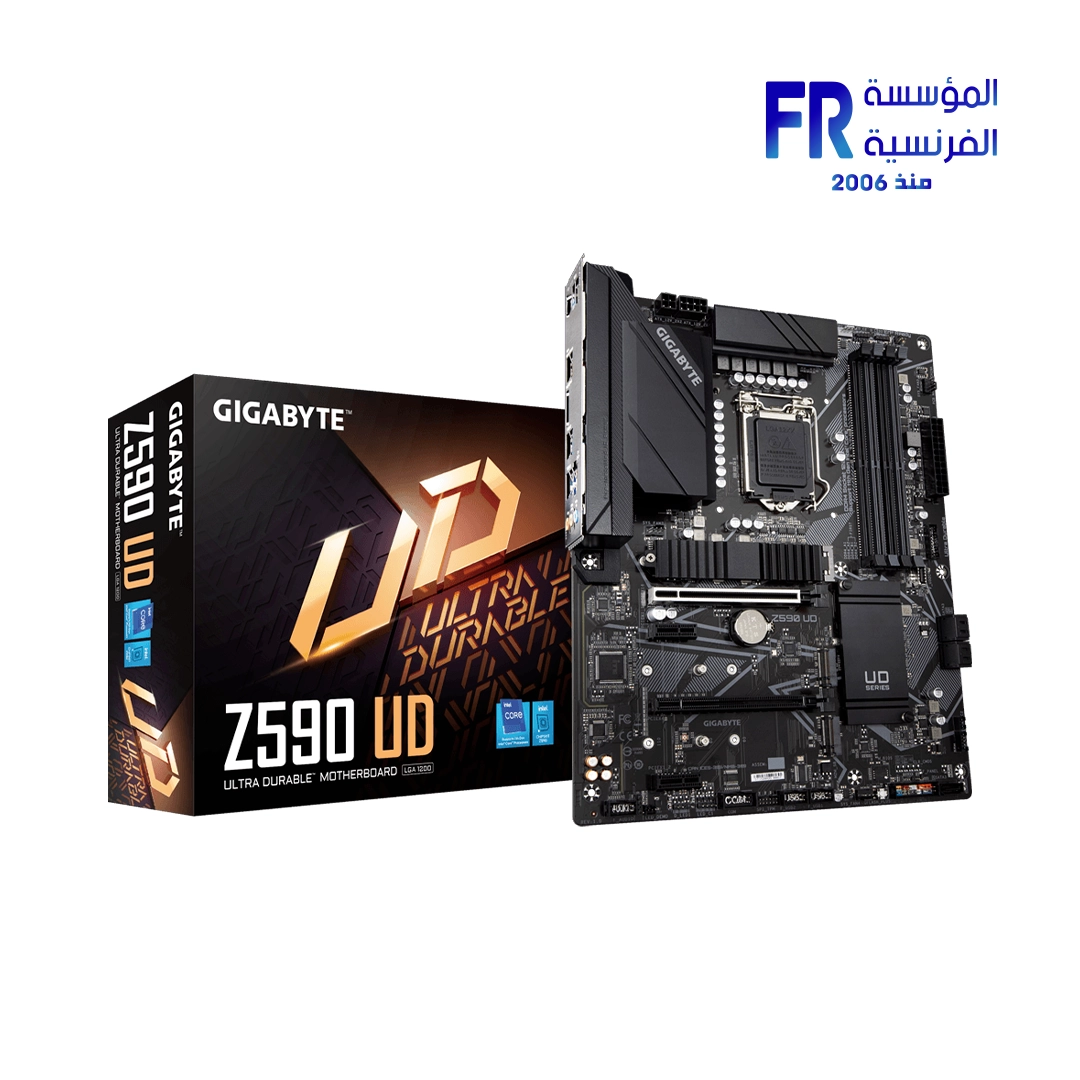

Gigabyte Z590 UD Intel Z590 Chipset ATX Motherboard

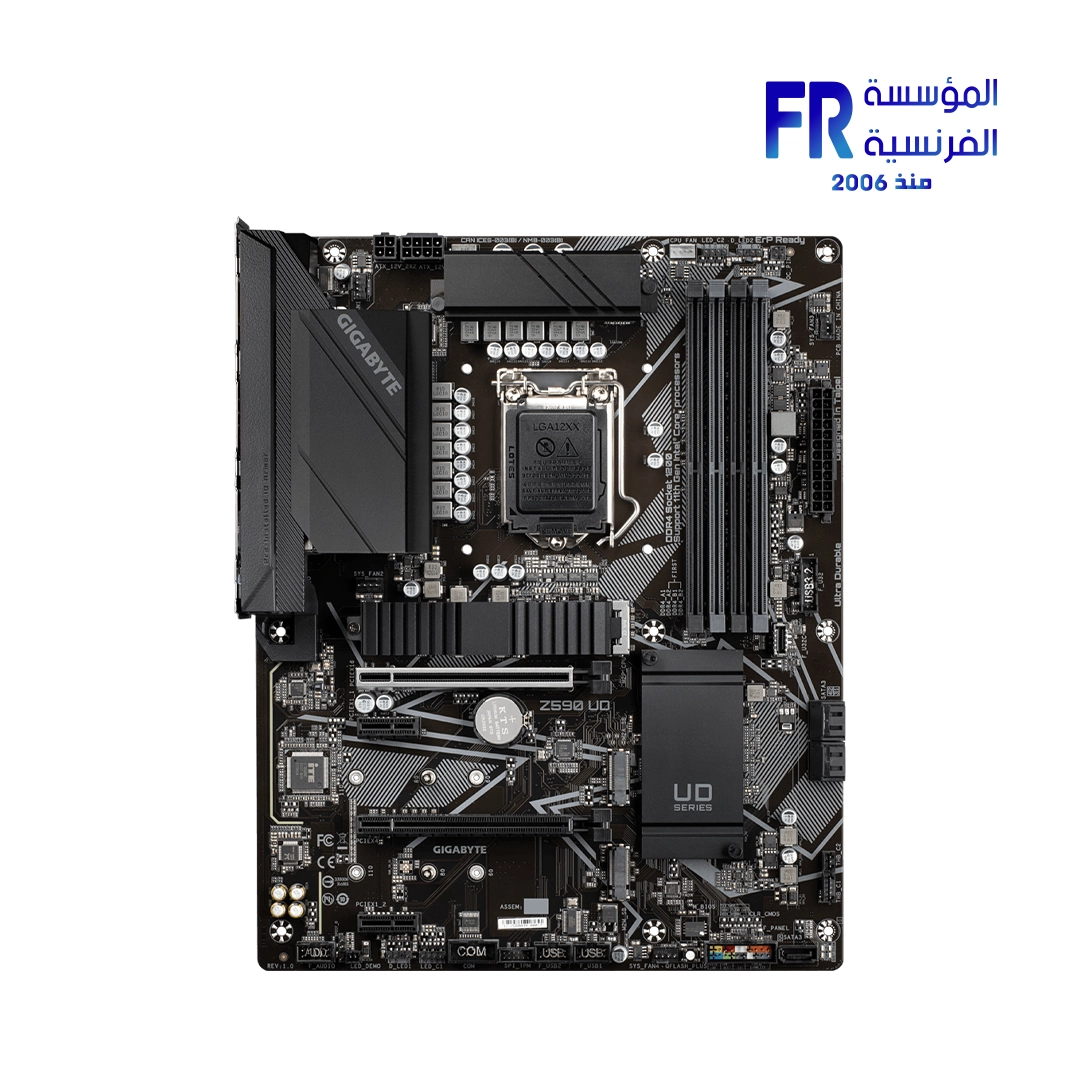

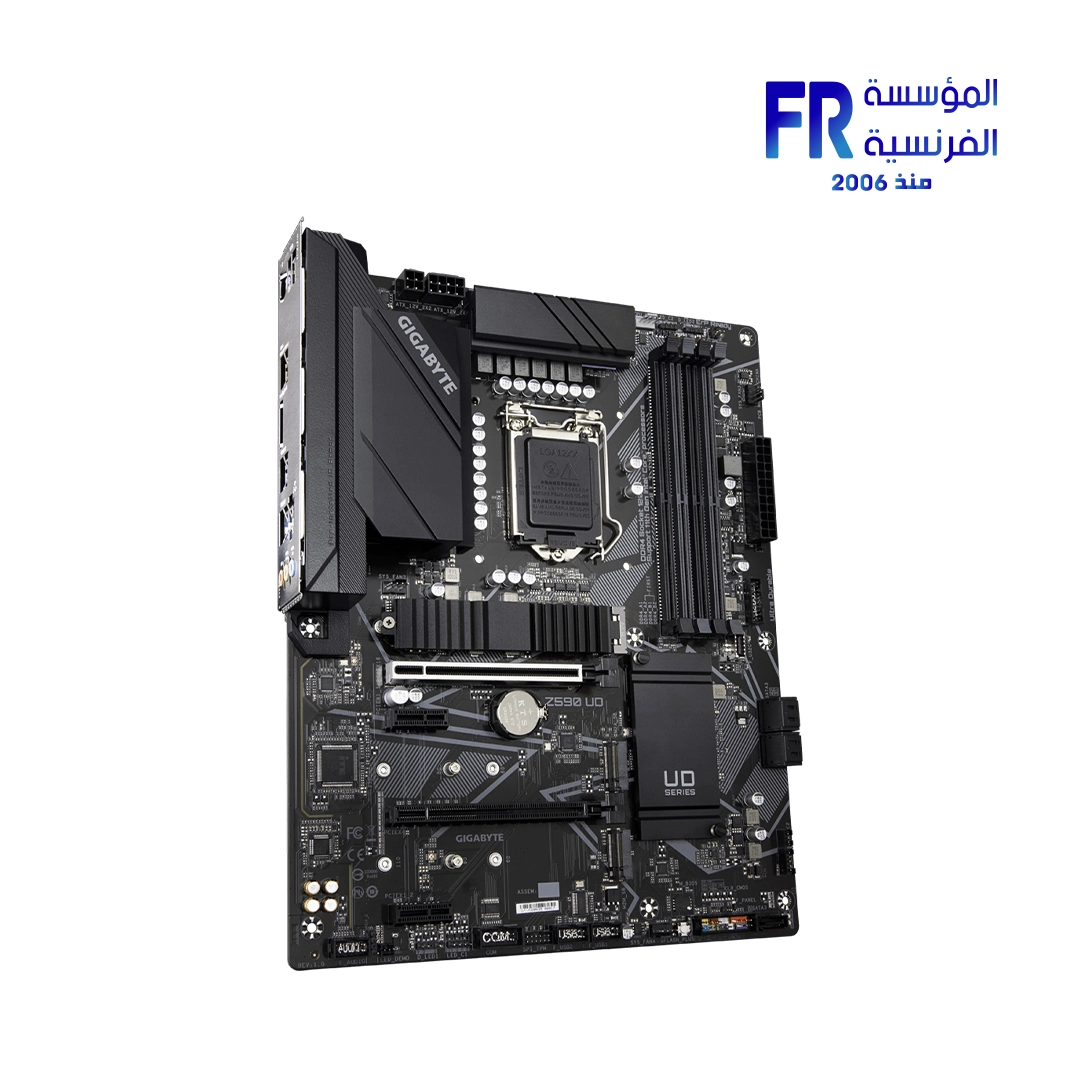

The Gigabyte Z590 UD Intel Z590 Chipset ATX Motherboard is an Ultra Durable motherboard. It features a Direct 12+1 Phases Digital VRM with DrMOS. This ensures stable and efficient power delivery. Designed for both 11th and 10th Gen Intel® Core™ Series Processors, it offers robust performance for demanding tasks.

Key Features:

Processor & Memory Support:

• CPU Socket: LGA1200, supporting 11th and 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® processors.
• Chipset: Intel® Z590 Express Chipset.
• Memory: 4 x DDR4 DIMM sockets, supporting up to 128 GB. It supports DDR4 speeds up to 5333(O.C.) MHz with 11th Gen Intel Core processors. Dual channel memory architecture is included.

Advanced Connectivity & Storage:

• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) for fast networking.
• USB: Features 2 x USB 3.2 Gen 2 Type-A ports (rear), 6 x USB 3.2 Gen 1 ports (4 rear, 2 internal), and 1 x USB Type-C® port with USB 3.2 Gen 1 support (internal). Also includes 6 x USB 2.0/1.1 ports.
• Storage: Supports 3 x M.2 connectors (1 x PCIe 4.0 x4 from CPU, 2 x PCIe 3.0 x4/x2 from Chipset) with Thermal Guard. Also includes 5 x SATA 6Gb/s connectors. Supports RAID 0, 1, 5, and 10.
• Expansion Slots: 1 x PCIe 4.0 x16 slot (from CPU), 1 x PCIe 3.0 x16 slot (running at x4, from Chipset), 2 x PCIe 3.0 x1 slots.

Enhanced Durability & Cooling:

• Power Design: Direct 12+1 Phases Digital VRM Solution with 50A DrMOS, premium chokes, and capacitors.
• Thermal Design: Enlarged VRM Heatsink with Air-Flow Grooving, PCIe 4.0 M.2 with Thermal Guard.
• PCB: 6 Layer PCB with 2X Copper PCB and PCIe 4.0 Ready Mid-Loss PCB.
• Smart Fan 6: Features multiple temperature sensors and Hybrid Fan Headers with FAN STOP for optimized cooling.

Integrated Graphics & Audio:

• Onboard Graphics: 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz (depends on CPU support).
• Audio: Realtek® audio CODEC, 2/4/5.1/7.1-channel High Definition Audio with S/PDIF Out support.

User-Friendly Features:

• Q-Flash Plus: Update BIOS without installing the CPU, memory, and graphics card.
• Pre-installed IO Shield: For easy and quick installation.
• RGB FUSION 2.0: Multi-Zone Addressable LED Light Show Design, supporting Addressable LED & RGB LED Strips.

Explore compatible Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte Z590 UD product page.

Specifications:

• Model: Z590 UD (rev. 1.0)
• CPU Socket: LGA1200
• Chipset: Intel® Z590 Express Chipset
• Memory Slots: 4 x DDR4 DIMM, Max. 128 GB
• Memory Type: DDR4, up to 5333(O.C.) MHz (11th Gen Intel Core)
• Onboard Graphics: 1 x DisplayPort (max. 4096×2304@60 Hz)
• Audio: Realtek® CODEC, 2/4/5.1/7.1-channel HD Audio, S/PDIF Out
• LAN: Realtek® 2.5GbE LAN chip
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 2x PCIe 3.0 x1
• Multi-Graphics: AMD Quad-GPU CrossFire™, 2-Way AMD CrossFire™
• M.2 Connectors: 1x PCIe 4.0 x4 (CPU), 2x SATA/PCIe 3.0 x4/x2 (Chipset)
• SATA Connectors: 5 x SATA 6Gb/s

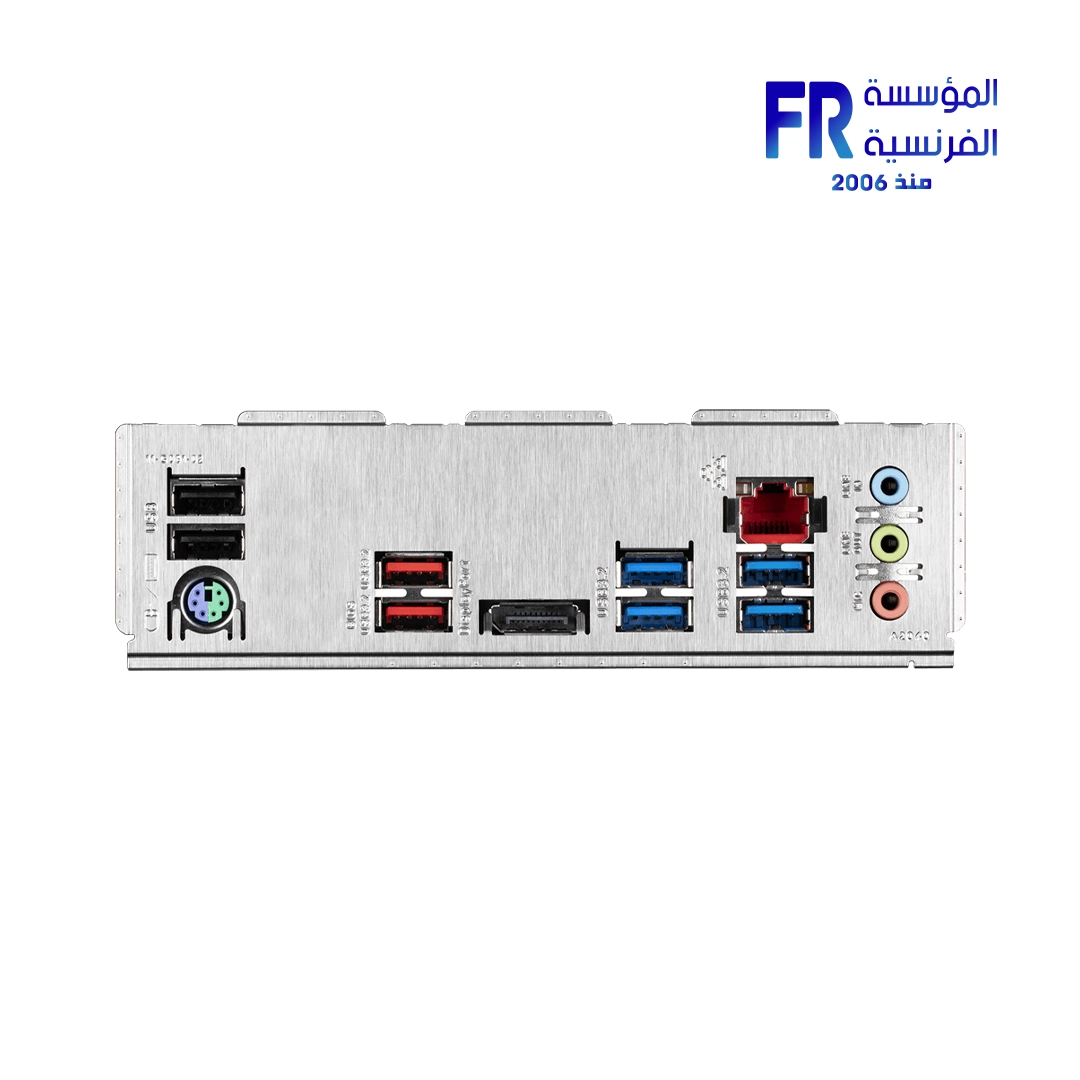

• USB Ports (Rear): 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0/1.1
• USB Ports (Internal Headers): 2x USB 3.2 Gen 1 (supports 4 ports), 1x USB Type-C® (USB 3.2 Gen 1), 2x USB 2.0/1.1 (supports 4 ports)
• Form Factor: ATX (30.5cm x 24.4cm)
• Operating System Support: Windows 10 64-bit
• Part Number: Z590-UD
• SKU: 22113010
