⚡ Engineering Highlights at a Glance:

• LGA1851 Socket: Supports Intel Core Ultra processors (Series 2) with Intel Z890 Express chipset.
• DDR5 Support up to 9466+ MT/s (OC): Four DIMM slots with Dual Channel and XMP support, max capacity 256GB.

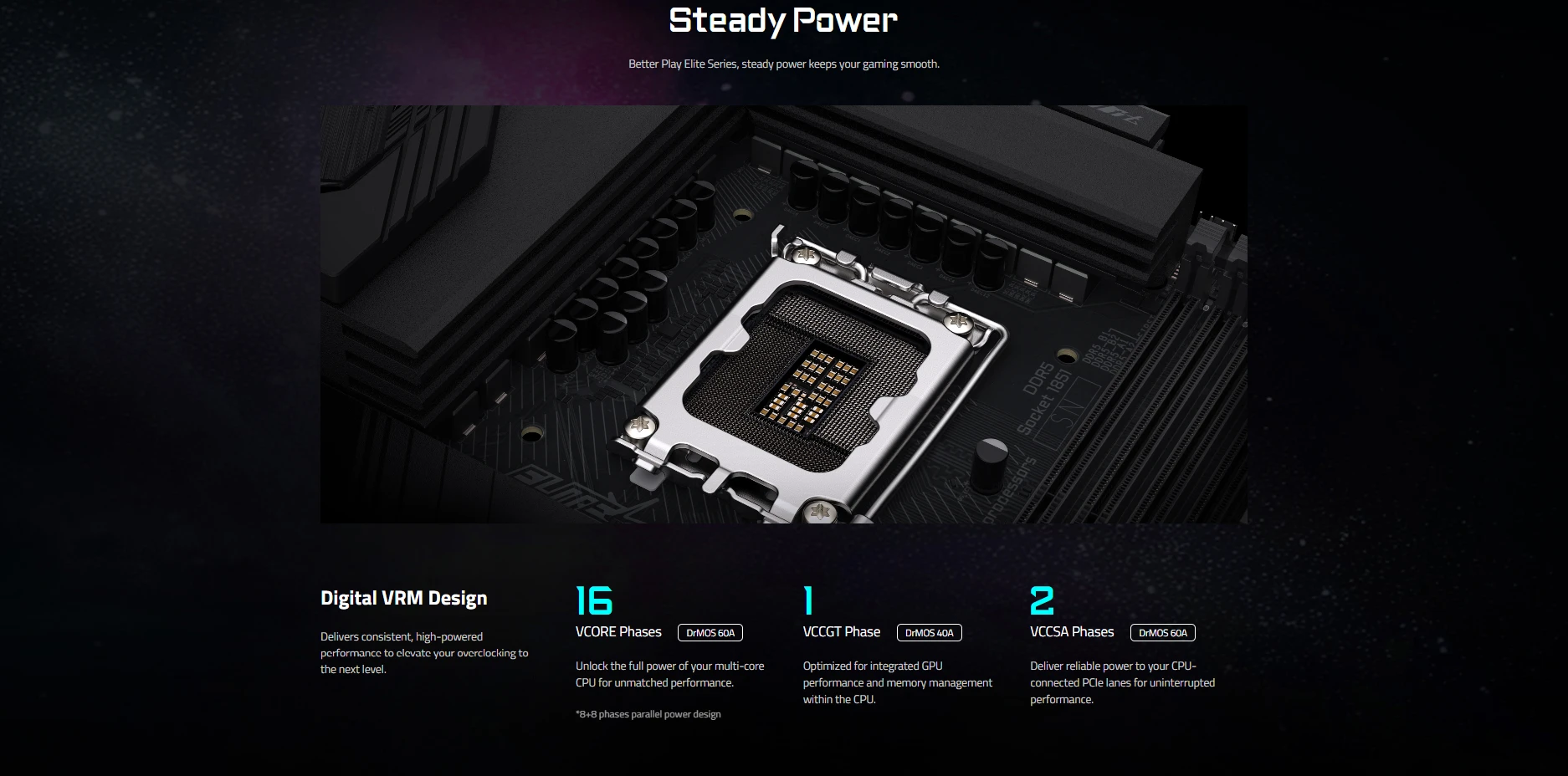

• Digital Twin 16+1+2 VRM: 60A DrMOS phases deliver consistent, high-powered performance for overclocking.
• PCIe 5.0 x16 Slot: Full-length PCIe 5.0 for next-gen graphics cards and NVMe SSDs.
• Four M.2 Connectors: One PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots with thermal guards.
• Wi-Fi 7 & 5GbE LAN: Intel Wi-Fi 7 BE200NGW with directional ultra-high gain antenna and Realtek 5GbE LAN.

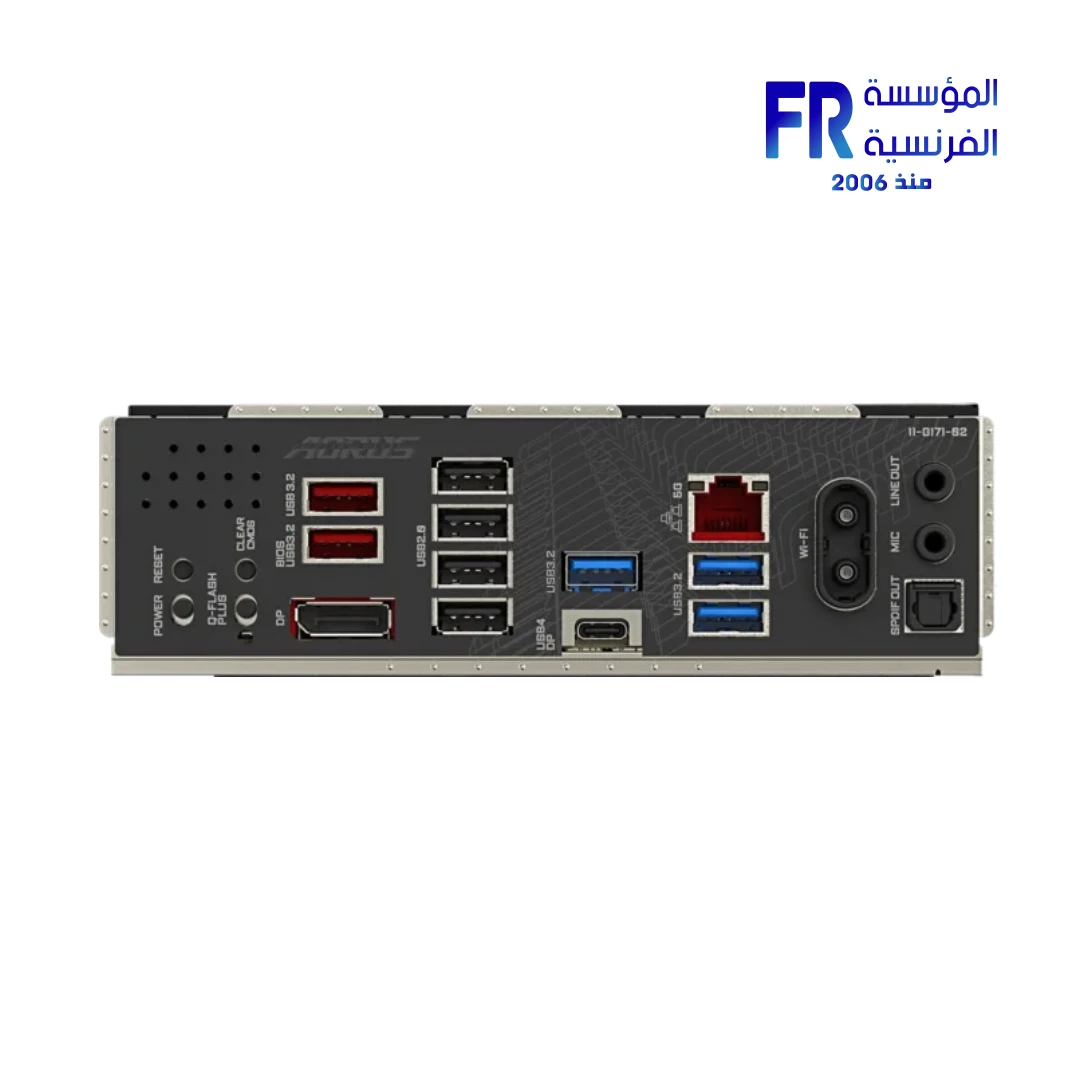

• USB4 Type-C: 40Gbps USB4 with DP-Alt for high-speed data transfer and video output.
• DIY-Friendly Features: WIFI EZ-Plug, EZ-Latch Plus for PCIe and M.2, EZ-Latch Click for M.2 heatsinks, Q-Flash Plus.

CPU and Memory Compatibility

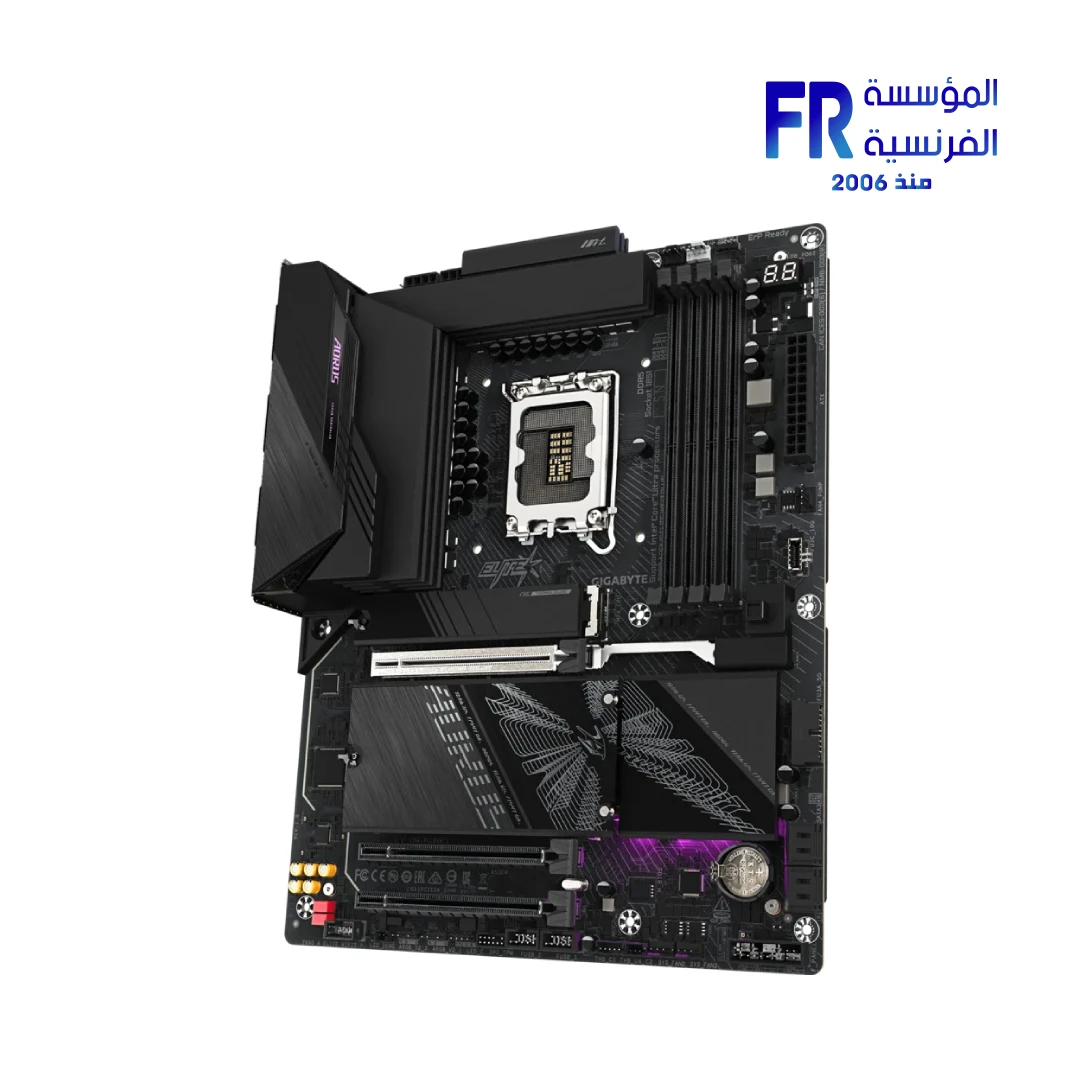

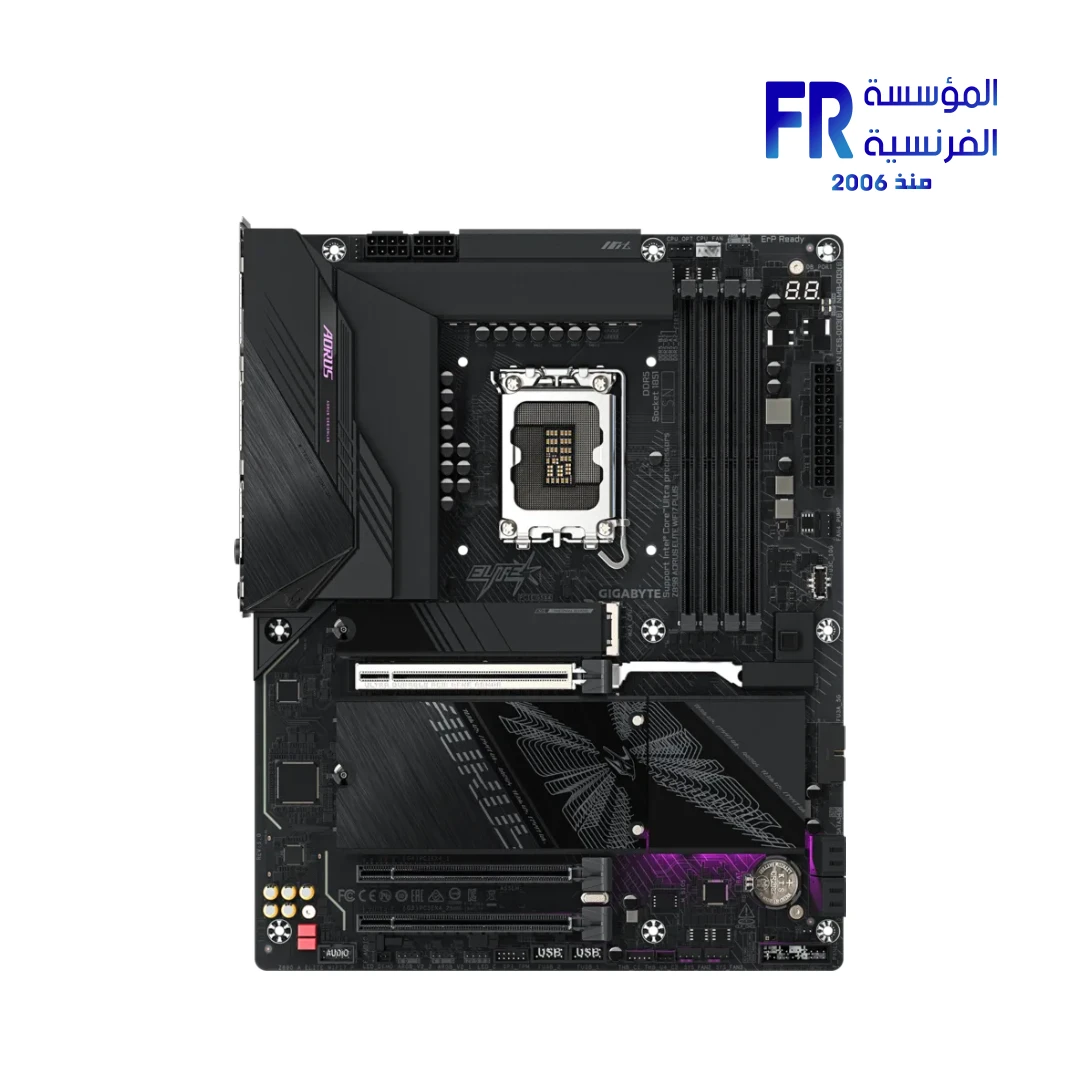

The Z890 AORUS ELITE WIFI7 PLUS supports Intel Core Ultra processors on the LGA1851 socket. It supports DDR5 memory up to 9466+ MT/s (OC) with four DIMM slots and a maximum capacity of 256GB. The motherboard supports Non-ECC, Un-buffered, and Clocked Unbuffered DIMM (CUDIMM) memory. Intel XMP is supported for easy memory overclocking. The CPU and memory configuration may affect supported memory types and speeds; refer to the Memory Support List on Gigabyte’s website.

🔌 Expansion and Storage

The motherboard features one PCIe 5.0 x16 slot for graphics cards or NVMe SSDs, plus two PCIe 4.0 x16 slots running at x4. For storage, there are four M.2 connectors: one PCIe 5.0 x4/x2 M.2, two PCIe 4.0 x4/x2 M.2, and one M.2 supporting both SATA and PCIe 4.0 x4/x2. Additionally, four SATA 6Gb/s connectors are available. RAID 0, 1, 5, and 10 are supported for both NVMe and SATA storage devices.

🌡️ Thermal Design and DIY Features

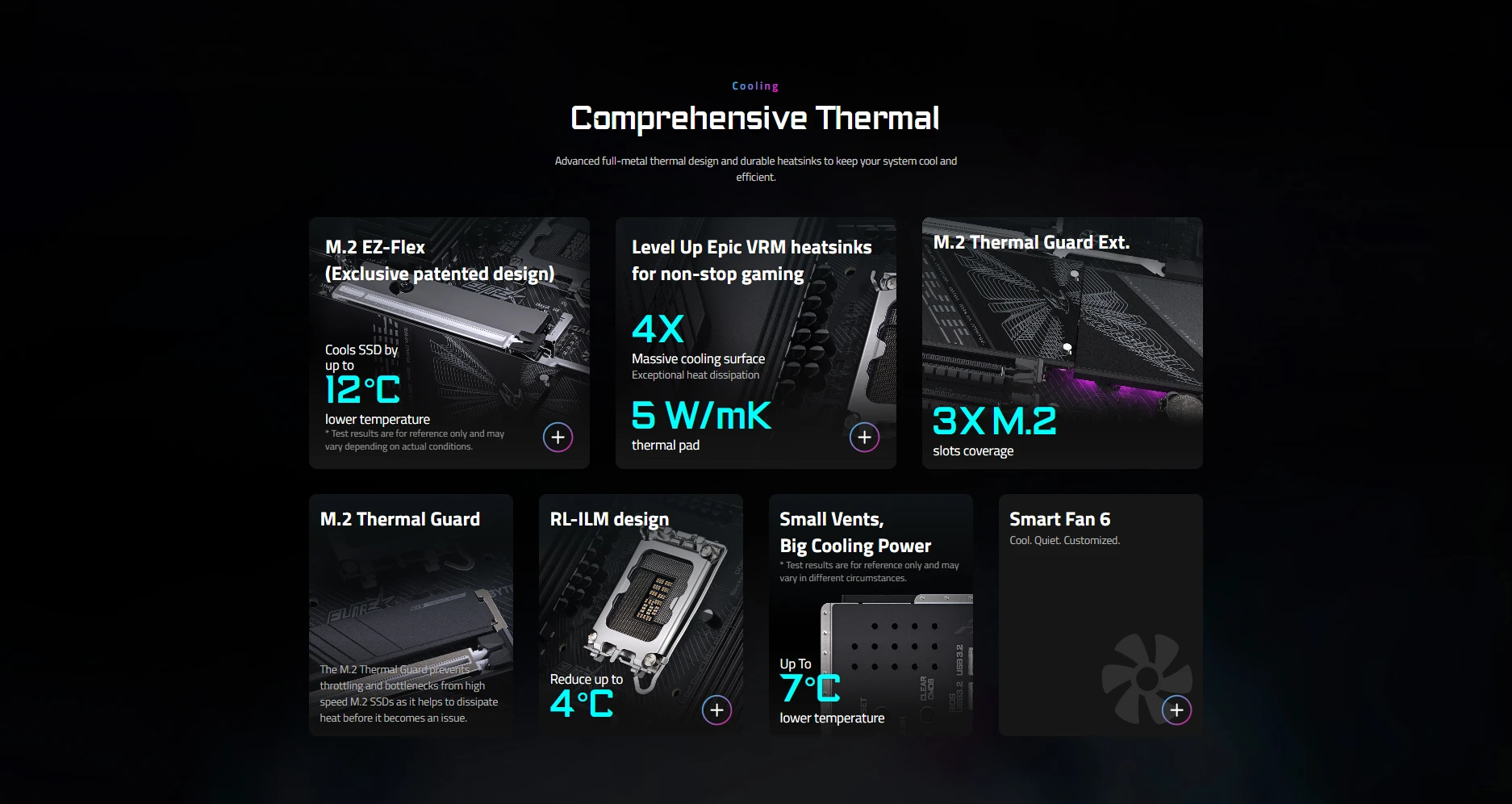

The motherboard features VRM Thermal Armor Advanced with 4x massive cooling surface and 5 W/mK thermal pad. M.2 Thermal Guard Ext. covers three M.2 slots, while M.2 Thermal Guard prevents throttling on high-speed SSDs. The RL-ILM design reduces CPU temperatures by up to 4°C. DIY-friendly features include WIFI EZ-Plug for easy antenna installation, EZ-Latch Plus for PCIe and M.2 slots with quick release and screwless design, EZ-Latch Click for M.2 heatsinks, and Q-Flash Plus for BIOS updates without CPU or memory installed.

Pair the Z890 AORUS ELITE WIFI7 PLUS with an Intel Core Ultra processor and DDR5 memory up to 9466+ MT/s for maximum performance. Use the PCIe 5.0 x16 slot for a high-end graphics card and take advantage of the four M.2 slots for fast NVMe storage. The WIFI EZ-Plug simplifies Wi-Fi antenna installation, while EZ-Latch Plus and EZ-Latch Click make component installation tool-free. Update the BIOS using Q-Flash Plus before building if needed. The VRM Thermal Armor Advanced and M.2 Thermal Guard ensure stable performance under load. Wi-Fi 7 and 5GbE LAN provide fast networking for online gaming and content creation. The USB4 Type-C port with DP-Alt supports high-speed data transfer and video output. This motherboard is well-suited for high-end gaming, content creation, and enthusiast builds that demand the latest connectivity and thermal performance.
