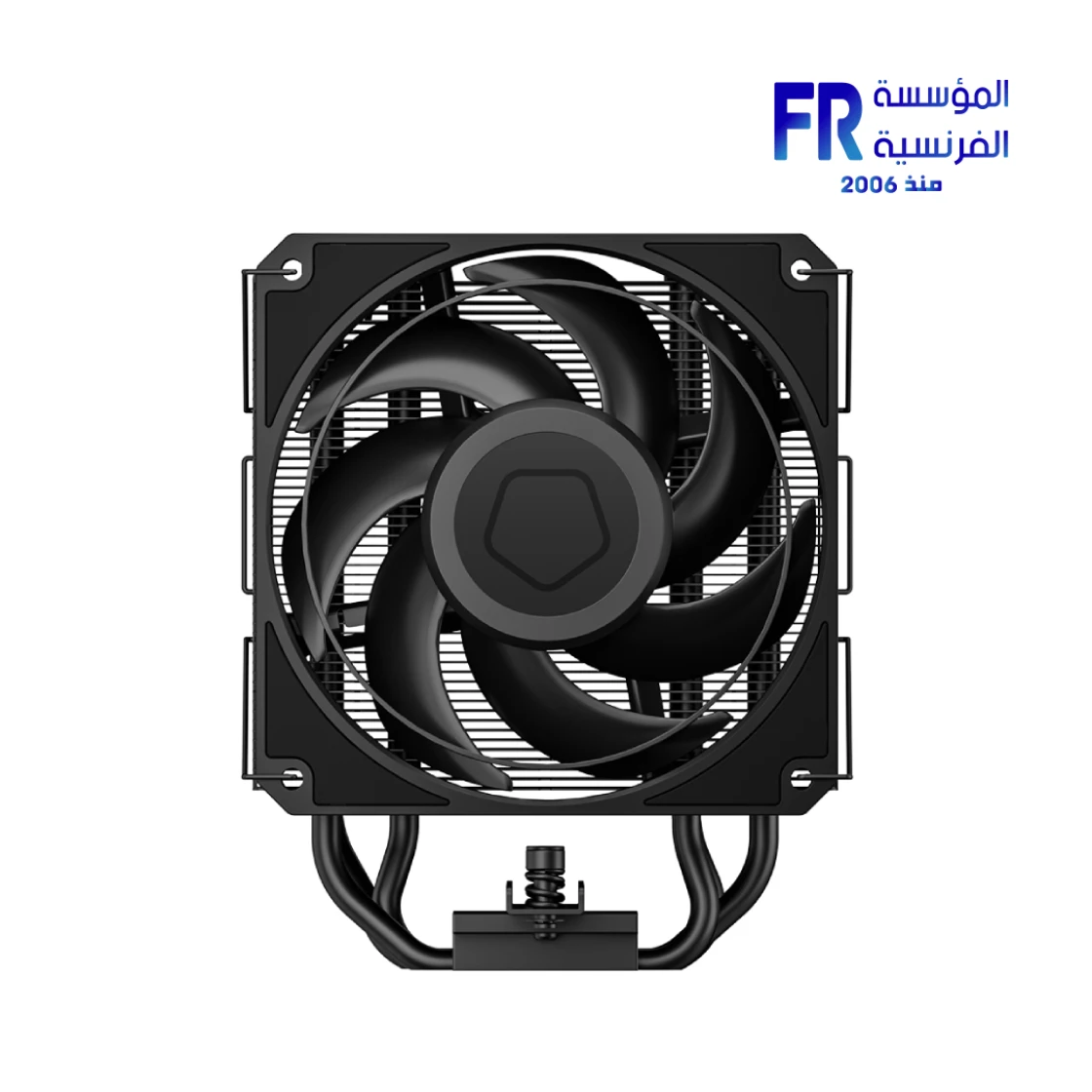

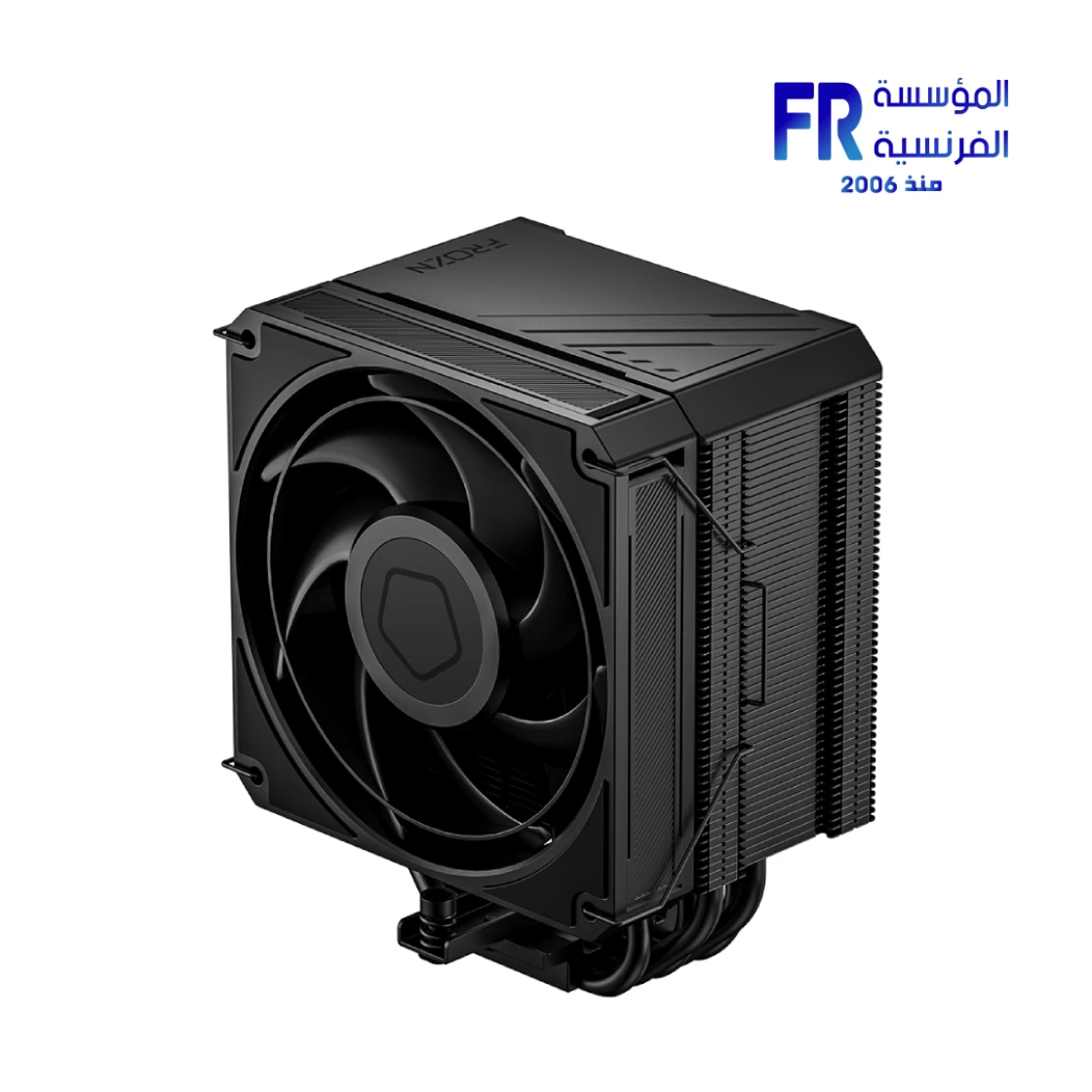

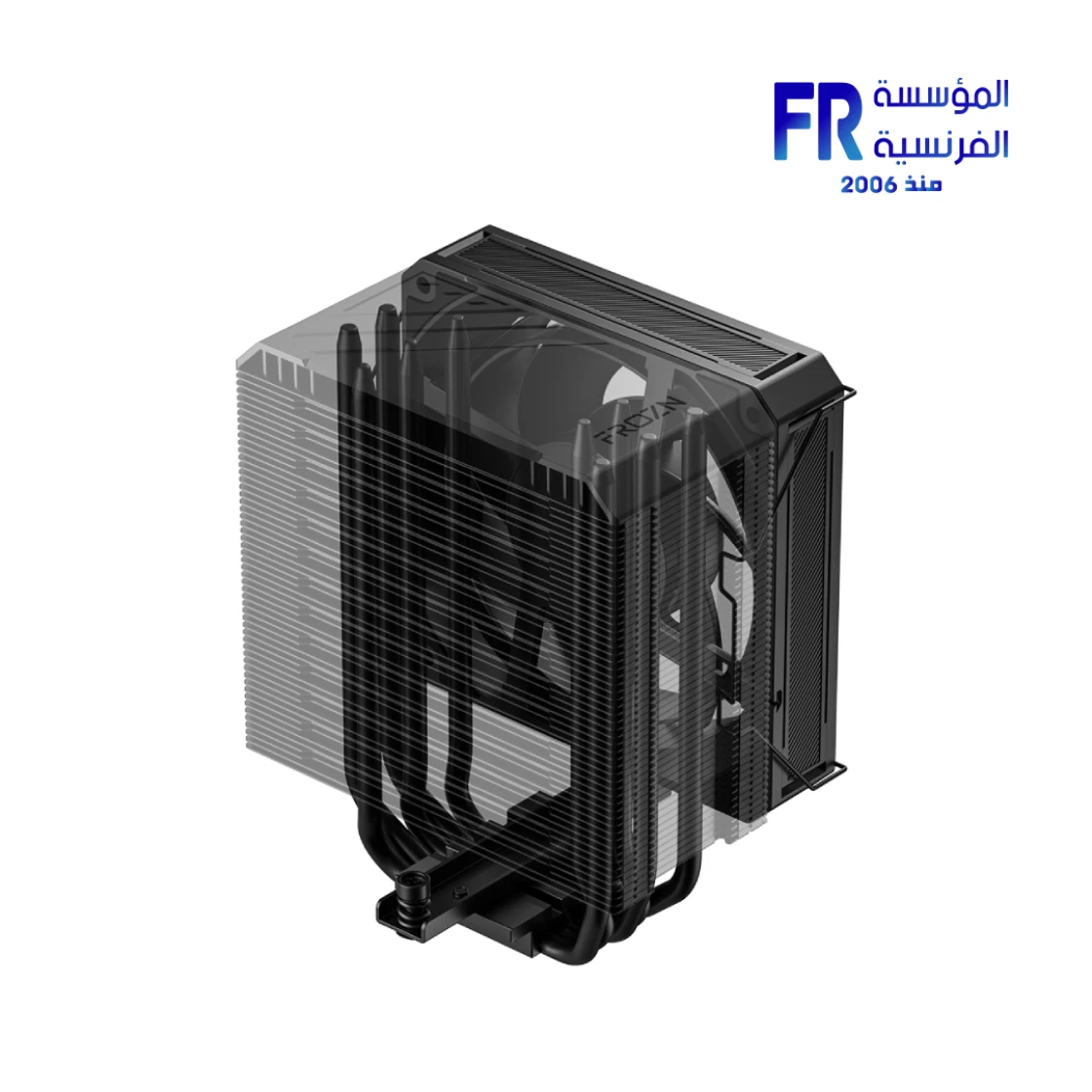

ID-COOLING FROZN A510 Turbo 5 Heatpipe Direct Touch With 120mm Dual Ball Bearing Fan Air Cpu Cooler
1900 EGP
- Part Number: FROZN A510 TURBO / 6931393309125
- Form Factor & Compatibility: Intel LGA1954/1851/1700/1200/115x Series | AMD AM5/AM4
- Cooling Performance: 240W TDP Support | 5× Ф6mm Direct-Touch Copper Heat Pipes | Aluminum Fin Stack | 128 x 86 x 151 mm Dimensions | 820g Weight
- Fan Specifications: 1x 120mm AT-120 Dual Ball Bearing Fan | 0 ~ 3000±10% RPM | 83 CFM Max Air Flow | 5.04 mmH₂O Max Static Pressure | 36.5 dB(A) Max Noise Level
- Power & Connectivity: 12VDC Rated Voltage | 4.2W Power Input | 4-Pin PWM Connector for precise speed control
- Warranty: 3 years
In stock
Price Match Guarantee
ID-COOLING FROZN A510 Turbo
5 Heatpipe Direct-Touch CPU Cooler
5× Φ6mm direct-touch copper heatpipes. AT-120 120mm dual ball bearing PWM fan up to 3000 RPM. 240W TDP. Intel LGA1954/1851/1700 · AMD AM5/AM4.
240W TDP
3000 RPM Fan
Dual Ball Bearing
240W TDP
3000 RPM
83 CFM
5.04 mmH₂O
High-pressure cooling. Built to last.
The FROZN A510 Turbo is built around five Φ6mm copper heatpipes with direct-touch technology paired to a dense aluminum fin stack. Its 240W TDP rating and 5.04 mmH₂O static pressure from the AT-120 fan put it in a class for high-performance desktop CPUs.
A single AT-120 120mm dual ball bearing PWM fan handles airflow, spinning from 0 up to 3000 RPM to push 83 CFM. Dual ball bearings are chosen for their long-term reliability, especially in continuous-use and higher-temperature environments. The cooler is ready for Intel LGA1954 / 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4.
240W
5× Φ6mm (Direct Touch)
AT-120 (1× 120mm PWM)
0 – 3000 ±10% RPM
2 Years

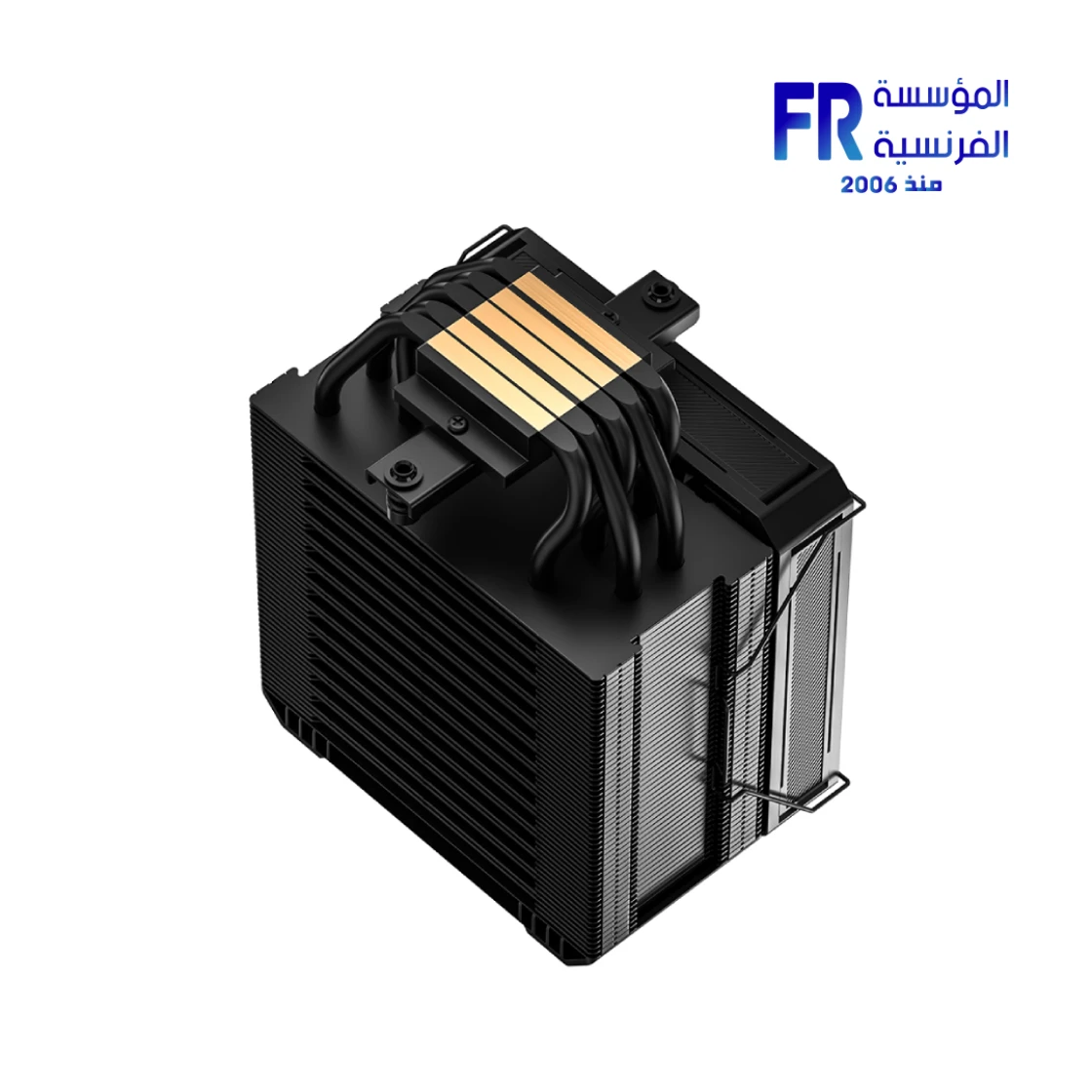

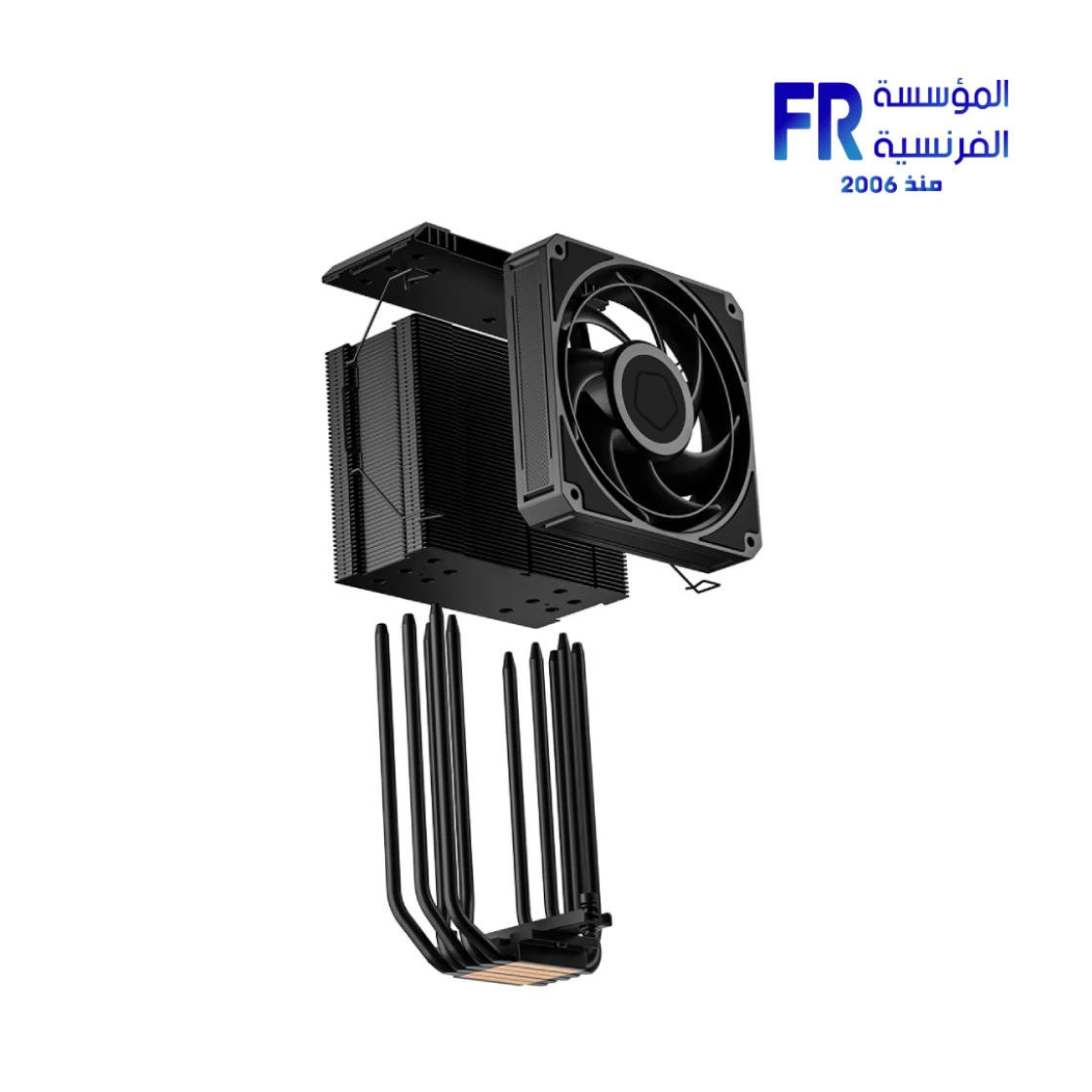

5× Φ6mm Direct-Touch Heatpipes
Five Φ6mm copper heatpipes sit in direct contact with the CPU surface, removing an extra thermal interface layer that would otherwise sit between CPU and cooler. Heat moves from die to heatpipe to a dense aluminum fin stack — a 240W TDP-rated path designed for high-performance desktop CPUs.
Engineered for Demanding CPUs
240W TDP Support
Built for demanding mainstream-to-high-end desktop CPUs.
Dual Ball Bearing
Long-life bearing design suited to continuous use and warmer environments.
3000 RPM Fan Speed
High-pressure airflow for dense fin stacks and tight thermal budgets.
83 CFM Airflow
Class-leading airflow paired with 5.04 mmH₂O static pressure.
4-Pin PWM Control
Speed adjusts automatically to system load via motherboard PWM.
Compact Single-Tower
128 × 86 × 151 mm footprint keeps the tower clear of RAM slots.
Intel LGA1954 / 1851 / 1700 · AMD AM5 / AM4
Intel: LGA1954 · 1851 · 1700 · 1200 · 1151 · 1150 · 1155 · 1156
AMD: AM5 · AM4
Whether you’re building a current-generation LGA1954 or LGA1851 system, an AM5 rig, or refreshing an older AM4 or LGA1200 build, the FROZN A510 Turbo is designed to mount cleanly with the included hardware.
Up To 3000 RPM When It Counts
The AT-120 fan scales from 0 RPM at idle to a full 3000 RPM under load. Combined with the 5.04 mmH₂O static pressure rating, the fan can push air through a dense fin stack when sustained thermal load demands it — while still allowing quiet operation at lighter workloads through PWM control.

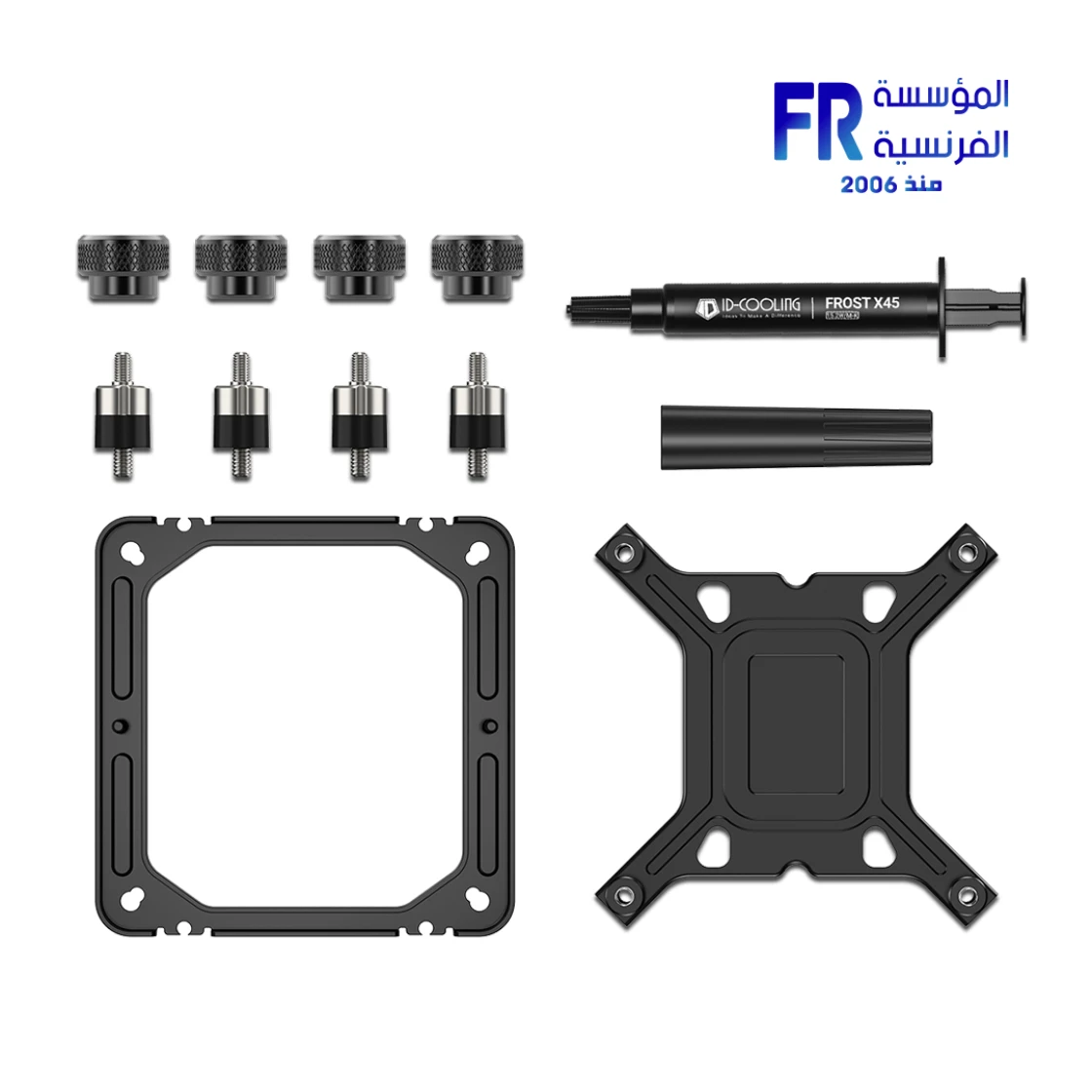

What’s in the Box
5 direct-touch heatpipes
120mm dual ball bearing PWM
Intel & AMD brackets
Installation guide
Technical Specifications
| Model | ID-COOLING FROZN A510 Turbo |
|---|---|
| Compatibility | Intel LGA1954/1851/1700/1200/1151/1150/1155/1156 · AMD AM5/AM4 |
| TDP | 240W |
| Overall Dimensions | 128 × 86 × 151 mm (L×W×H) |
| Heatsink Material | 5× Φ6mm Heatpipe (Direct Touch) + Aluminum Fin |
| Weight | 820 g (heatsink + fan) |
| Fan Model | AT-120 (1 unit) |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Speed | 0 – 3000 ±10% RPM |
| Max. Air Flow | 83 CFM |
| Max. Static Pressure | 5.04 mmH₂O |
| Noise | 36.5 dB(A) Max. |
| Rated Voltage | 12 VDC |
| Operating Voltage | 10.8 – 13.2 VDC |
| Started Voltage | 7 VDC |
| Rated Current | 0.35 A |
| Power Input | 4.2 W |
| Bearing Type | 2-Ball Bearing |
| Connector | 4-Pin PWM |
| Warranty | 2 Years |
Frequently Asked Questions
What CPU sockets does the FROZN A510 Turbo support?
+
The FROZN A510 Turbo supports Intel LGA1954, LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, and AMD AM5, AM4 sockets.
What makes this Turbo compared to other FROZN coolers?
+
The Turbo model uses a 5-heatpipe direct-touch heatsink with a 240W TDP rating and a high-speed AT-120 dual ball bearing fan that spins up to 3000 RPM, delivering 83 CFM and 5.04 mmH₂O — higher airflow and pressure than the standard-series coolers.
Why use a dual ball bearing fan?
+
Dual ball bearings are chosen for long-term reliability and durability, especially for continuous use and warm operating environments. They tolerate higher temperatures well and typically outlast sleeve-bearing designs.
Is the fan PWM-controlled?
+
Yes. The AT-120 uses a 4-pin PWM connector, so fan speed scales automatically from 0 to 3000 RPM based on motherboard PWM signal and workload.
What warranty is included?
+
The ID-COOLING FROZN A510 Turbo is covered by a 2-year warranty against manufacturing defects. Please contact your local retailer for warranty support.
Cool Your Build with Confidence
5 direct-touch heatpipes · 240W TDP · AT-120 dual ball bearing fan · up to 3000 RPM — backed by a 2-year warranty.
✓ 2-Year Warranty
✓ 240W TDP Support
