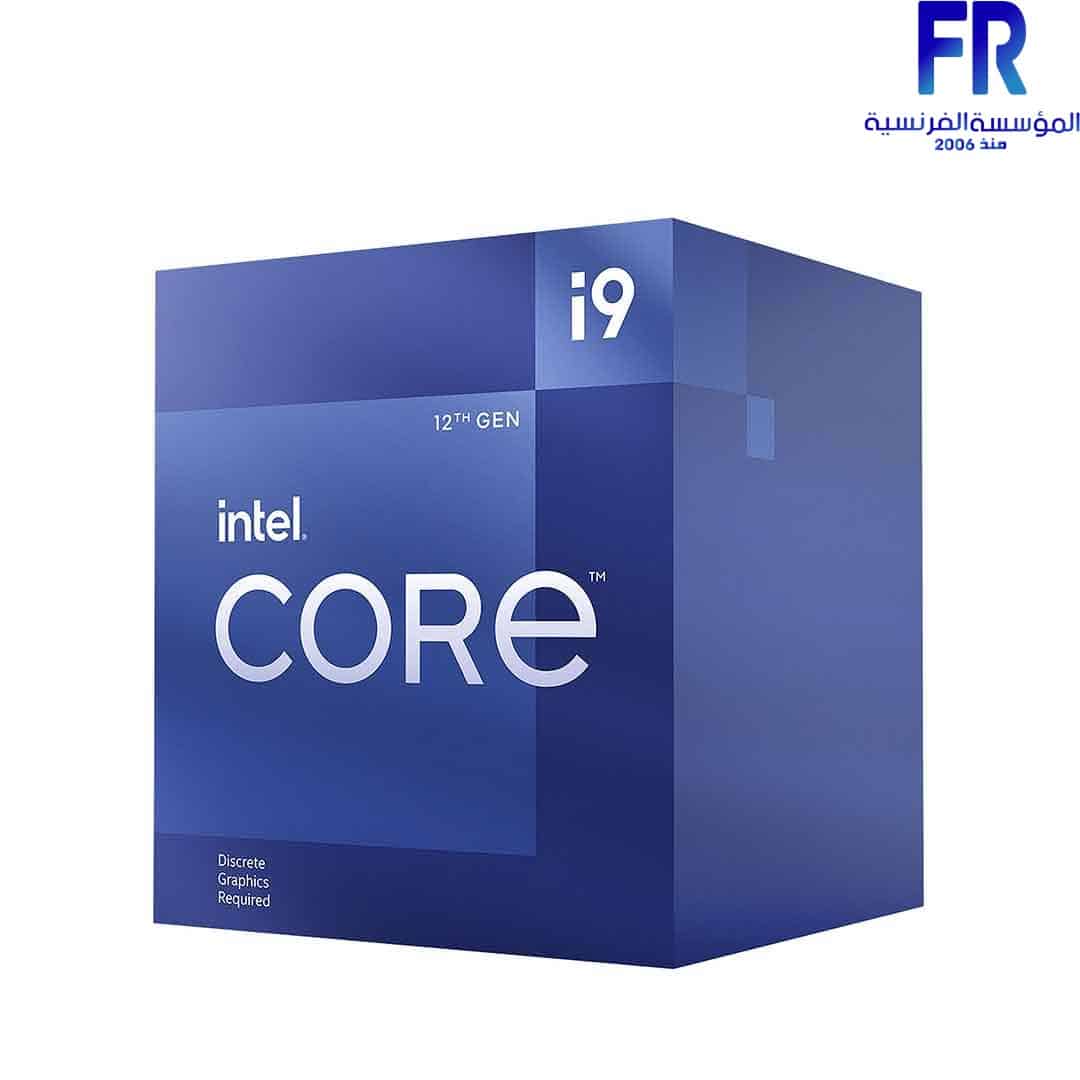

Intel Core I9 12900F Processor
14400 EGP
Product Collection12th Generation Intel® Core™ i9 Processors
Code NameProducts formerly Alder Lake
Vertical SegmentDesktop
Processor Number i9-12900F
Total Cores 16
# of Performance-cores8
# of Efficient-cores8
Total Threads 24
Out Of Stock.
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| Code Name | |
| CPU SERIES | |
| CPU Generation | |
| CPU SOCKET | |
| CORES | |
| THREADS | |
| OPERATING FREQUENCY | |
| MAX TURBO FREQUENCY | |
| L2 CACHE | |
| L3 CACHE | |
| Technology | |
| MEMORY CHANNEL | |
| MAX MEMORY SIZE | |
| INTEGRATED GRAPHICS | |
| Part Number | |
| Warranty |
Product Collection
Code Name Alder Lake
Vertical Segment Desktop
Processor Number i9-12900F
Status
Launched
Launch Date Q1’22
Lithography Intel 7
CPU Specifications
Total Cores 16
# of Performance-cores 8
# of Efficient-cores 8
Total Threads 24
Max Turbo Frequency 5.10 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.10 GHz
Performance-core Max Turbo Frequency 5.00 GHz
Efficient-core Max Turbo Frequency 3.80 GHz
Performance-core Base Frequency 2.40 GHz
Efficient-core Base Frequency 1.80 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache 14 MB
Processor Base Power 65 W
Maximum Turbo Power 202 W
Supplemental Information
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) Yes
Intel® Optane™ Memory Supported Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 Yes
Intel® Turbo Boost Technology 2.0
Intel® Hyper-Threading Technology Yes
Intel® 64 Yes
Instruction Set 64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® VT-x with Extended Page Tables (EPT) Yes
