How do I power the Lian Li Edge Hub?

The hub offers two power options: it can be attached directly to a Lian Li Edge series PSU via the dedicated connector, or powered independently using a standard 8-pin PCIe power cable.

How many devices can this hub support?

It supports up to 6 PWM fans (with speed feedback functionality) and provides 4 internal USB 2.0 headers, allowing for up to 8 downstream connections for RGB controllers and other devices.

Is it easy to mount inside a PC case?

Yes, the Edge Hub features an integrated magnetic design, allowing you to easily snap it onto any steel surface inside your case for quick placement and clean cable management.

Filter

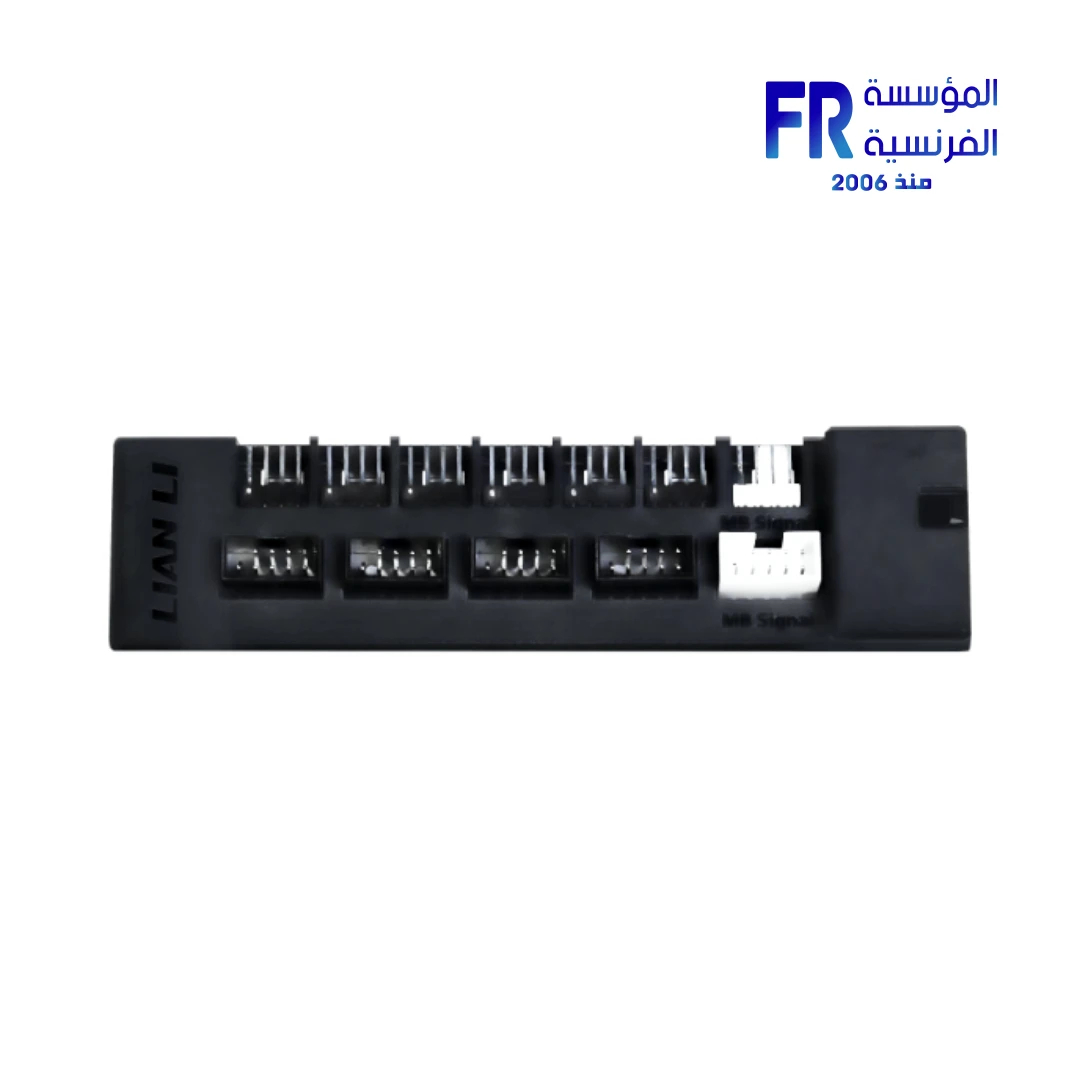

Lian Li Edge FAN PWM Hub Power Supply Hub

Lian Li Edge FAN PWM Hub Power Supply Hub

750 EGP

Part Number EG-HUB01B BLACK
Function 7-in-1 Hub (6x PWM Fan + 4x Internal USB Expansion)
Fan Headers 6x 4-Pin PWM (Rated 2A per port)
USB Expansion 4x Internal USB 2.0 Headers (Total 2.5A Max)
Power Input Direct Edge PSU Interface or PCIe 8-Pin
Mounting Magnetic Design
Warranty 2 Years

Out Of Stock.

SKU: 840353047976 Category: Fan Hub Tags: 840353047976, Supply, Lian Li Edge series, Edge Hub, Fan Controller, Pwm, PWM Hub, PC Accessory, Magnetic Design, 6 Fan Headers, PCIe Powered, Hub, Lian, Li, POWER, EG-HUB01B BLACK, Black Hub, EDGE, FAN, Usb Hub Brand: LIAN LI

Lian Li Edge FAN PWM Hub Power Supply Hub

Take control of your system’s expansion with the Lian Li Edge Hub. Designed to solve connectivity shortages, this sleek magnetic hub provides 6 high-current PWM fan headers and 4 internal USB 2.0 ports, powered either directly by an Edge PSU or via a standard 8-pin PCIe connector.

6 PWM

Fan Headers

4 Ports

Internal USB Hub

8-Pin

PCIe Power Option

Magnetic

Tool-less Mounting

The Ultimate Build Expansion Module

High-Output Fan Support

The fan PWM hub features 6 extended headers, each rated at 2A. This high-current capacity ensures you can support multi-fan setups or power-hungry industrial fans while maintaining full PWM speed control and feedback through the motherboard.

Vast USB Connectivity

Solve the “not enough USB headers” problem. The internal hub provides 4 ports (supporting up to 8 downstream connections) with 500mA per port. It’s the perfect solution for modern RGB controllers, AIO screens, and other internal USB peripherals.

Modular Power & Placement

Equipped with integrated magnets, the hub can be placed anywhere on the case’s steel frame. You can power it by attaching it directly to a Lian Li Edge PSU or via an 8-pin PCIe cable for compatibility with any standard power supply.

Technical Specifications

Feature	Details
Model	Edge HUB (EG-HUB01B Black)
Fan Headers	6x 4-Pin PWM (2A each)
USB Headers	4x internal USB 2.0 (500mA per port)
Power Source	Edge Gold PSU Connector / PCIe 8-PIN
Mounting	Integrated Magnetic Design
Dimensions (LxDxH)	132 x 35 x 17 mm
Input Ratings	Fan: 12V 12.5A / USB: 5V 2.5A
Warranty	2 Years Local Warranty

💡 Pro Tip:

The Edge Hub provides two options for motherboard USB signal connection: a standard internal USB-USB cable or a USB Type-A cable. Use the Type-A option if you want to route the signal through the case’s rear I/O, freeing up all internal motherboard headers for other devices.
