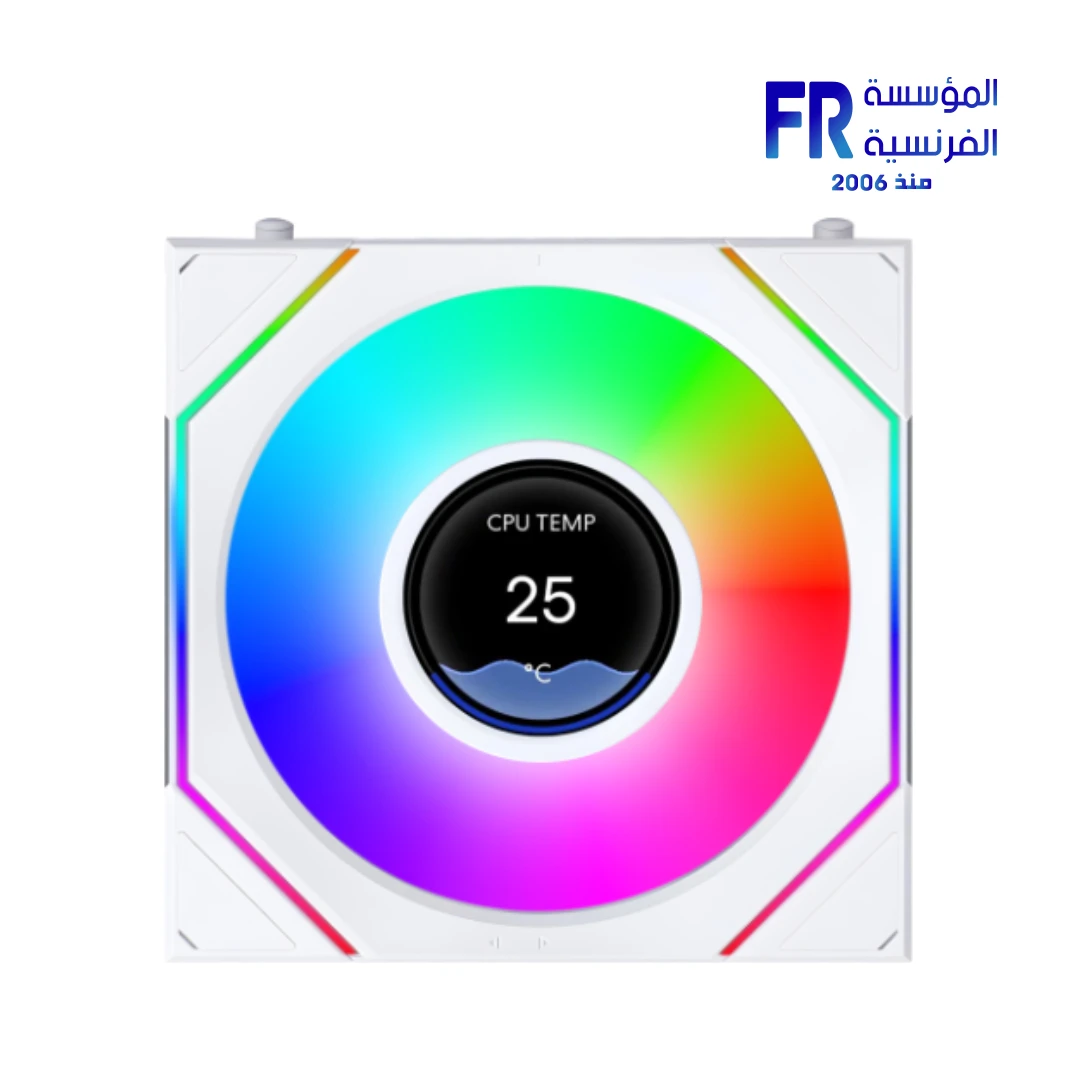

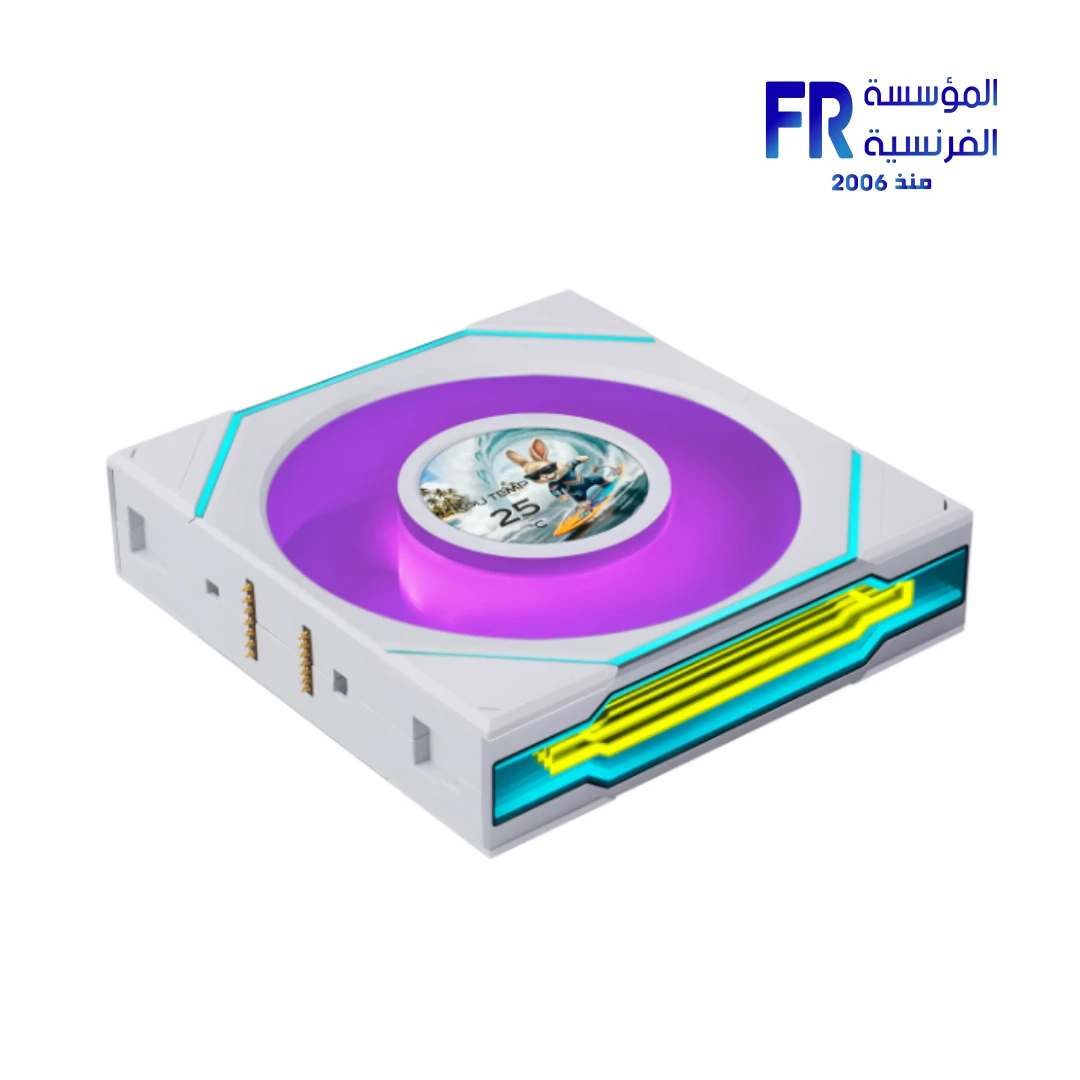

Lian Li UNI Fan SL INF Lcd Flex 120MM RGB White Black Fan
2399 EGP
- Part Number: 12SLIND1F1W (1-Pack, White, Standard Blade, LCD Version)
- Display Features: 1.8” LCD Screen | 400 × 400 Resolution | 60Hz Refresh Rate | Supports MP4, GIF, JPG, PNG, and Custom System Monitoring Layouts
- Lighting & Design: Three-Zone ARGB Lighting (Fan Blade, Side Infinity Mirror, Edge Lighting) | 64 LEDs | Dual-Sided Asymmetrical Frame Design | Modular Daisy-Chain Connection
- Performance Specifications: Fluid Dynamic Bearing (FDB) | 0 ~ 2000 RPM | 59.2 CFM Max Airflow | 2.34 mmH₂O Max Static Pressure | 29.5 dBA Acoustic Noise
- Power & Connectivity: 12V DC (0.67A / 8.04W) | PWM Fan Control | 5V 3-Pin ARGB Motherboard Sync | L-Connect 3 Software Support
- Included Accessories: LCD FLEX Receiver × 1 | 9-Pin USB Cable × 1 | 5V 3-Pin ARGB Cable × 1 (Note: L-Wireless Controller sold separately)
- Dimensions & Material: 120 × 124 × 28 mm | PBT / PC Construction
- Warranty: 3 Years
In stock
Price Match Guarantee
LIAN LI UNI FAN SL-INF LCD FLEX
120mm White · LCD Display · ARGB PWM
1.8″ 400×400 60Hz LCD · Three-zone ARGB · Infinity mirror · FDB bearing · 0,350–2000 RPM · 59.2 CFM · L-Connect 3.
400×400
3-Zone ARGB
FDB
400×400 · 60Hz
Three-Zone ARGB
FDB Bearing
L-Connect 3
LCD hub. Three-zone ARGB. Flexible control.
The LIAN LI UNI FAN SL-INF LCD FLEX combines a 1.8-inch 400 × 400 LCD hub with three-zone ARGB lighting and a dual-sided frame featuring an infinity mirror. The LCD runs at 60Hz and supports MP4, GIF, JPG and PNG content, so you can turn each fan hub into a small display for custom images, animations, or live system monitoring.
Cooling is handled by a Fluid Dynamic Bearing (FDB) fan with a redesigned oil retention groove for quieter, longer-lasting operation. Standard-blade white version runs 0,350–2000 RPM at 59.2 CFM airflow and 2.34 mmH₂O static pressure with 29.5 dBA maximum acoustic noise. Control is flexible — L-Connect 3, motherboard ARGB sync, or L-Wireless Sync with the optional L-Wireless Controller.
120mm · Standard Blade
1.8″ · 400×400 · 60Hz
0,350 – 2000 RPM
59.2 CFM · 2.34 mmH₂O
3 Years (Fan + Receiver)
400 × 400 Resolution. 60Hz Refresh.
The redesigned 1.8-inch LCD with a slimmer bezel and full blade coverage runs at 400 × 400 resolution with a 60Hz refresh rate. It supports MP4, GIF, JPG and PNG files, giving you full creative freedom to display custom imagery, animated visuals, or a live system monitoring dashboard directly on the hub. Personalize data sources, colors and sensor readings through L-Connect 3.
Modular Lighting & Cooling
1.8″ LCD Hub
400×400 · 60Hz · MP4 / GIF / JPG / PNG support.
Three Light Zones
Blade, side infinity mirror and edge lighting effects.
Dual-Sided Frame
Asymmetrical infinity-mirror styling on either side.
FDB Bearing
Redesigned oil retention groove for quieter, longer life.
Flexible Control
L-Connect 3, motherboard ARGB sync, or L-Wireless Sync.
Receiver Adapter
Frame can be reoriented without changing connection direction.
Three Zones. Endless Brilliance.
The SL-INF FLEX series features three independently controlled lighting zones, each producing its own visual effect. Combined with the dual-sided frame and central infinity mirror, it creates a full-range RGB showcase visible from every angle. Synchronize with your motherboard’s 5V 3-Pin ARGB header or control everything through L-Connect 3.
L-Connect 3 · MB Sync · L-Wireless
The FLEX series supports three control modes using the included cables. Use L-Connect 3 for full software control including LCD themes, use motherboard ARGB sync through the 5V 3-Pin cable to unify fan lighting with your existing RGB ecosystem, or pair with the optional L-Wireless Controller for cable-reduced wireless fan speed and lighting control. The single pack includes an LCD FLEX Receiver, a 9-Pin USB cable and a 5V 3-Pin ARGB cable.
What’s in the Box
White · Standard Blade
With receiver adapter
For L-Connect 3 LCD control
For motherboard ARGB sync
Technical Specifications
| Product Name | UNI FAN SL-INF LCD FLEX 1 PACK |
|---|---|
| Model | 12SLIND1F1W |
| Color | White |
| Fan Quantity | 1 |
| L-Wireless Controller | No (optional accessory) |
| Included Accessories | LCD FLEX Receiver ×1 · 9-Pin USB Cable ×1 · 5V 3-Pin ARGB Cable ×1 |
| Blade Type | Standard Blade |
| LCD Display | 1.8″ · 400 × 400 resolution · 60Hz refresh · MP4 / GIF / JPG / PNG support |
| Fan Dimensions | 120 × 124 × 28 mm |
| Material | PBT / PC |
| Rated Voltage | 12V DC |
| Operating Voltage | DC 12V |
| Fan Speed | 0, 350 – 2000 RPM |
| Static Pressure | 2.34 mmH₂O |
| Airflow | 59.2 CFM |
| Acoustic Noise | 29.5 dBA |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Input Power | 0.67A (8.04W) |
| LED Count | 64 LEDs |
| Warranty | 3 Years (Fan) · 3 Years (Receiver) |
Frequently Asked Questions
What is the LCD display used for?
+
The 1.8-inch LCD hub runs at 400 × 400 resolution with a 60Hz refresh rate and supports MP4, GIF, JPG and PNG files. It can display custom imagery, animations, or a live system monitoring dashboard configured through L-Connect 3.
What is included in this single pack?
+
The 1-pack includes one SL-INF LCD FLEX 120mm fan, an LCD FLEX Receiver with adapter, a 9-Pin USB cable, and a 5V 3-Pin ARGB cable. The L-Wireless Controller is not included and is sold separately.
How can I control the fan and lighting?
+
There are three control modes: L-Connect 3 software for full control including LCD themes; motherboard ARGB sync through the 5V 3-Pin cable; or L-Wireless Sync using the optional L-Wireless Controller. Fan speed can also be controlled via the motherboard BIOS or PWM fan control.
What are the fan performance specifications?
+
Standard Blade white version: 0,350 – 2000 RPM · 2.34 mmH₂O static pressure · 59.2 CFM airflow · 29.5 dBA maximum acoustic noise · Fluid Dynamic Bearing (FDB).
How many fans can the L-Wireless Controller handle?
+
One L-Wireless Controller can unify up to 10 groups of compatible LIAN LI devices via a rear I/O USB receiver and dedicated PWM receivers. It is compatible with UNI FAN Wireless Series products including TL FLEX, SL-INF FLEX, STRIMER WIRELESS, and UNI FAN SL Wireless.
What warranty is included?
+
The Lian Li UNI FAN SL-INF LCD FLEX comes with a 3-year warranty on both the fan and the receiver.
LCD Hub. Three-Zone ARGB. Flexible Control.
1.8″ 400×400 60Hz LCD · three-zone ARGB · infinity mirror · FDB bearing · 59.2 CFM · L-Connect 3 · L-Wireless Sync — backed by a 3-year warranty.
✓ 3-Year Warranty
✓ LCD + ARGB + PWM
| MODEL | |
|---|---|
| Fan Size (mm) | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Profiles | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Bearing Type | |
| Software | |
| Color | |
| Part Number | |
| Warranty |
