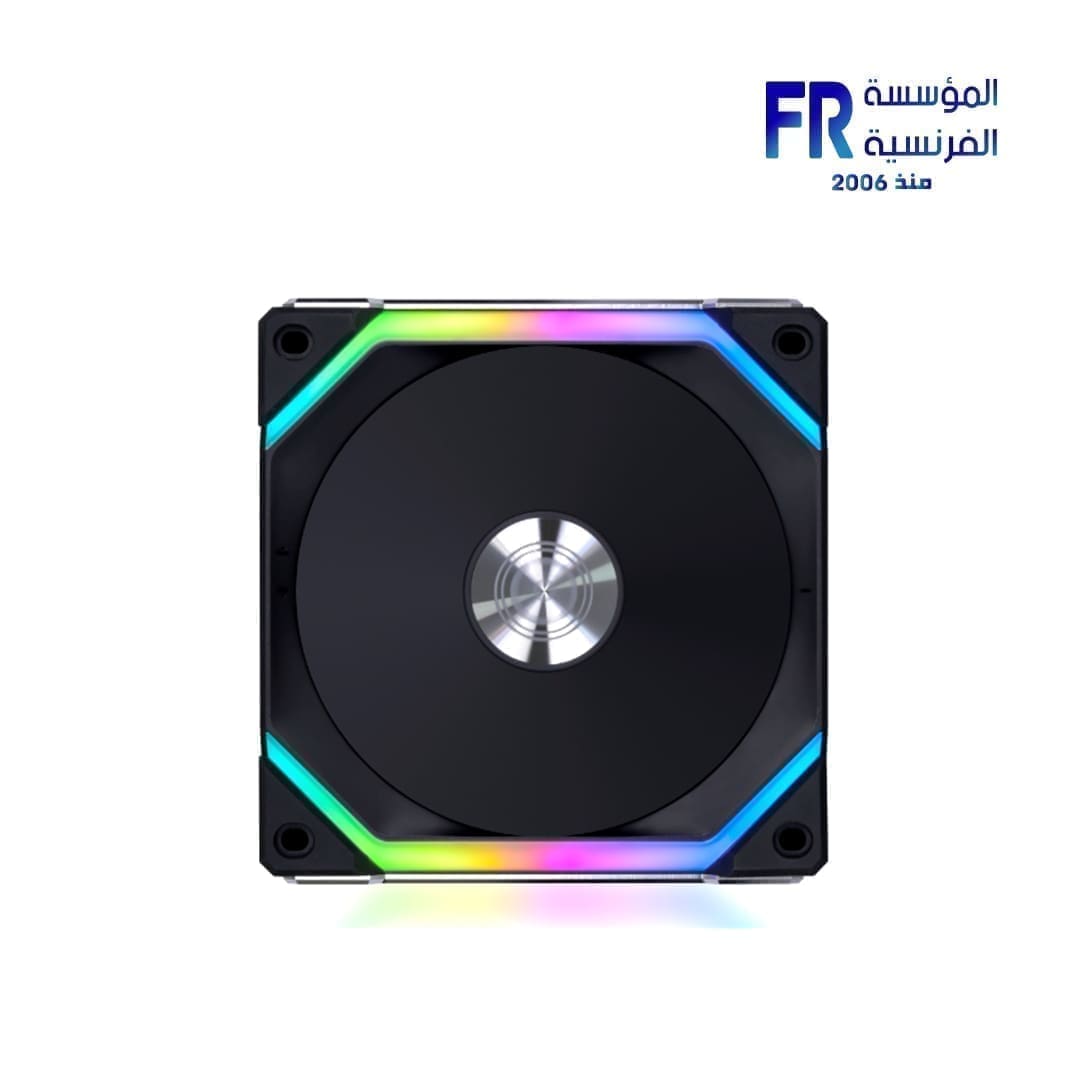

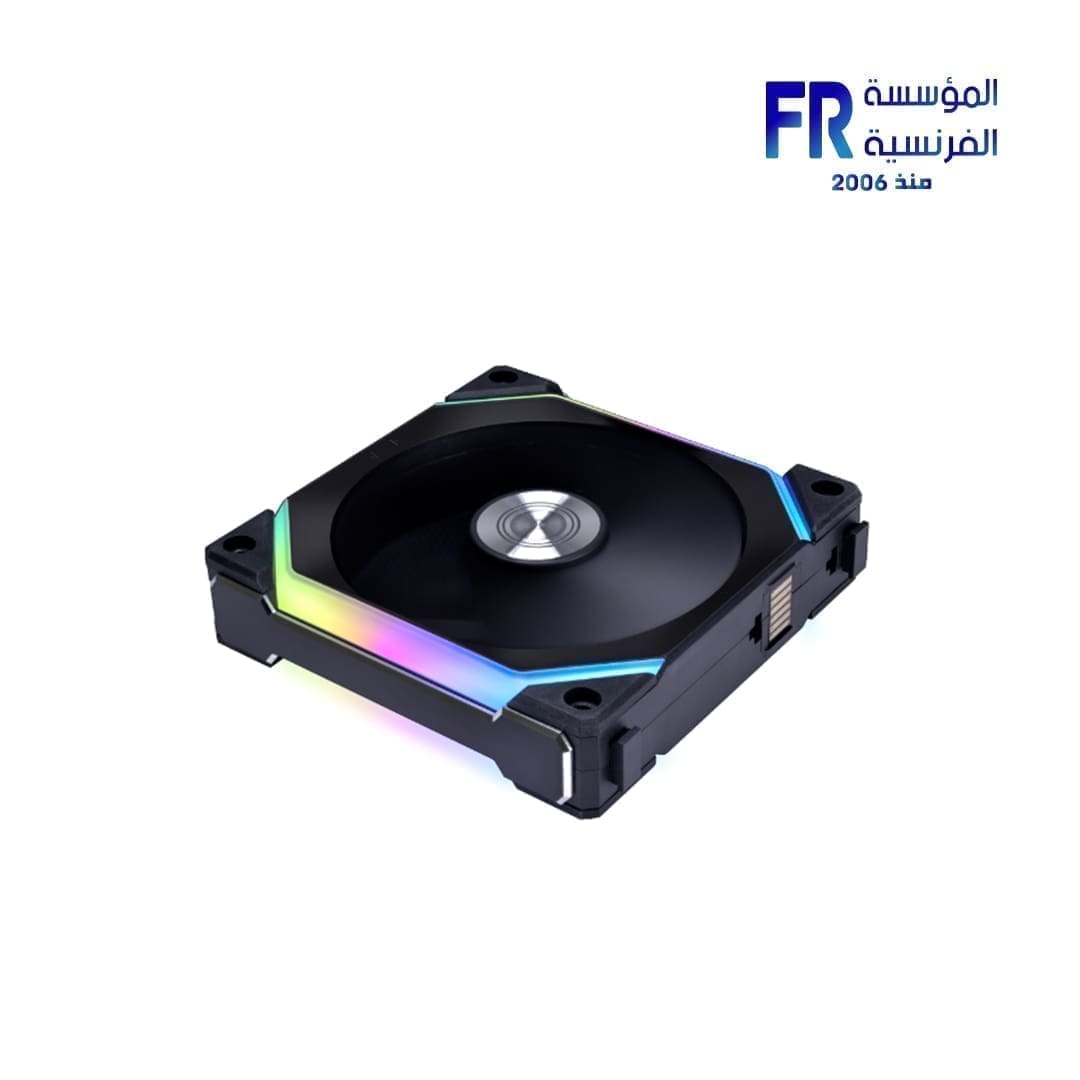

Lian Li UNI FAN SL120 V2 RGB 120mm Fan
1550 EGP
- Improved daisy chain design to connect 2 clusters of fans.
- SL120 V2 fan frame thickness is 28mm to provide 10% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- Smoother side lighting for a better aesthetic.
- Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
متوفر في المخزون
| MODEL | |
|---|---|
| Fan Size | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Profiles | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Bearing Type | |
| Software | |
| Color | |
| Part Number | |
| Warranty |
Lian Li UNI FAN SL120 V2 RGB 120mm Fan
UPGRADED MODULARITY
UNI FAN SL V2 revised its interlocking style to connect up to 6 fans in two clusters to a single controller port, making cable management simpler.
Extension Cable
With the new 18 cm extension cable, the ability to bridge two clusters of fans to create a 3+3 daisy-chained cluster is offered. These 6 fans can then be connected to a single port on the SL V2 UNI HUB controller. The new daisy-chaining solution reduces the number of cables needing to be managed at the back of the case and enables new lighting effects which can be continuous between the two bridged clusters.
Plug-in Power Cable Module
The cable module is designed to plug in and sit flush with the fan frame, which doesn’t require extra space for the module and reduces clearance issues with radiator fittings.
UNI FAN SL120 V2
UNI FAN SL120 V1
Removable Key
The interlocking keys on each fan are removable to improve compatibility with radiator fittings.
IMPROVED PERFORMANCE
Thanks to a slight increase to a 28mm thick frame, the SL120 V2 features a 10% airflow optimization compared to the SL120 V1, which creates a great balance of airflow and static pressure.
AIRFLOW
64.5 CFM
STATIC PRESSURE
2.59 mmH2O
NOISE
29.2 dBA
SPEED
0, 250-2000 RPM
Lian Li UNI FAN SL120 V2 RGB 120mm Fan
Key Specifications
General Information
- Model Name: UNI FAN SL V2 120
- Model Number: UF-SL120V2-1B BLACK
- Color: Black
- Number of Fans: 1
- Controller: No
Technical Specifications
- Connector Type:
- 1 x 4-PIN PWM + 3-PIN SM Type
- 1 x ARGB MB Adaptor
- Material: PBT/PC/Aluminum
- Rated Voltage: DC 12V (Fan) & 5V (LED)
- Fan Dimension: 120 x 120 x 28 mm
- Fan Speed: 0 – 2000 RPM
- Max. Air Pressure: 2.59 mmH2O (Maximum)
- Max. Airflow: 64.5 CFM (Maximum)
- Acoustic Noise: 29.2 dB(A) Max
- Locked Current: 0 (Automatic Protection)
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Operate Voltage: DC 12V & 5V
- Start-up Voltage: ≤5V
- Input Current: 0.17A
- Input Power: 2.04W
- Warranty: 2 years
