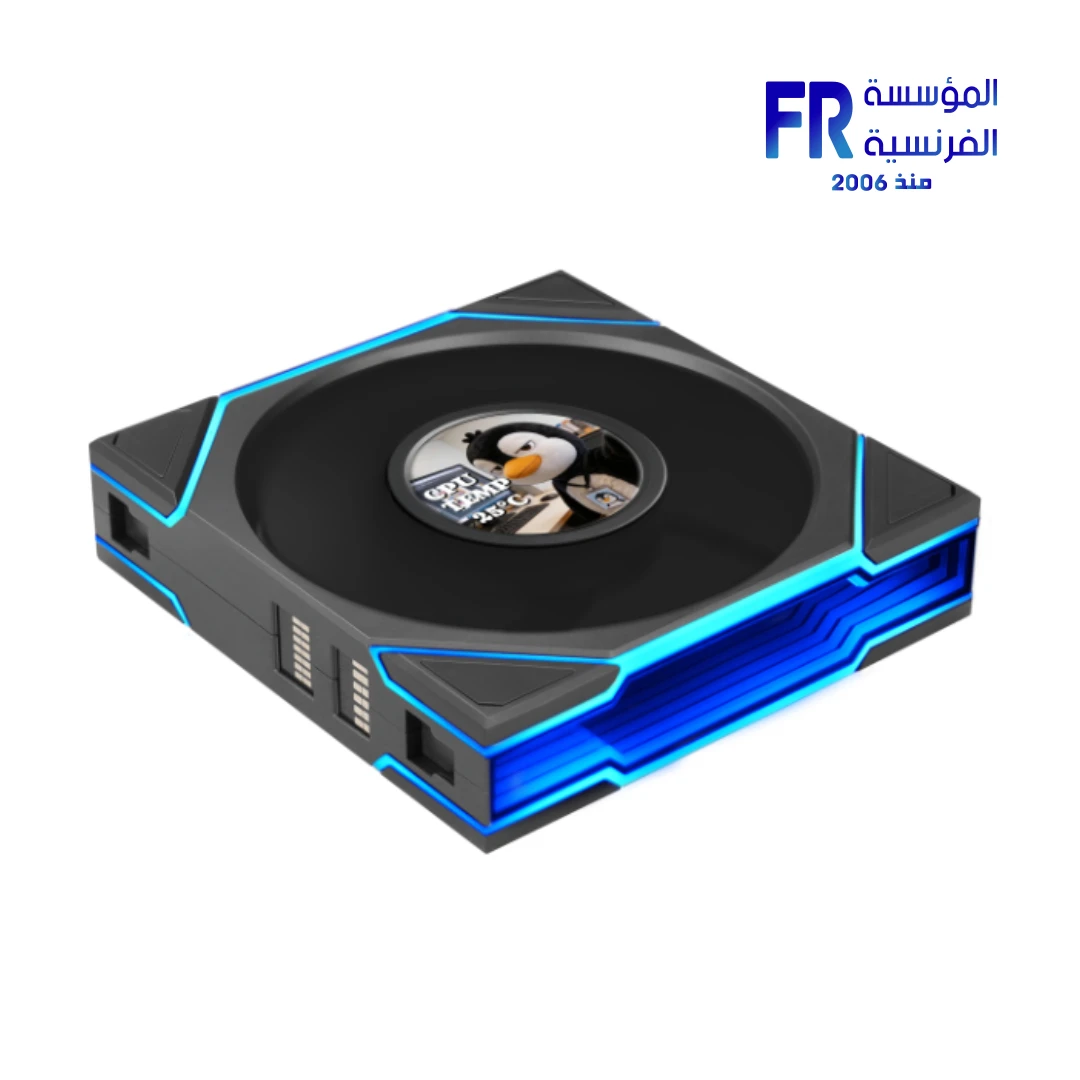

Lian Li UNI Fan TL Lcd Flex 120MM RGB Black Fan
2499 EGP
- Part Number: 12TLLCD1F1B
- Fan Specifications: 120mm x 124mm x 28mm | 350-1900 RPM | 66 CFM Airflow | 2.7 mmH₂O Static Pressure | 26 dBA Noise Level
- Design & Build: Black Finish | Standard Blade | FDB Bearing | 0.6mm Blade Clearance | PBT/PA66 Material | 26 LEDs
- Key Features: 1.8″ LCD Display (400×400 resolution, 60Hz refresh rate) | Infinity Mirror ARGB Lighting | Daisy-Chain Modular Design | L-Connect 3 & Motherboard ARGB Sync Support | PWM Control | Wireless & USB Control Modes
- Included Accessories: LCD FLEX Receiver | 9-Pin USB Cable | 5V 3-Pin ARGB Cable
- Power: 12V DC | 5.4W Input Power
- Warranty: 3 Years
In stock
Price Match Guarantee
Lian Li UNI Fan TL Lcd Flex 120MM RGB Black Fan
1.8″ LCD · Infinity Mirror ARGB · LCP Blades · FDB Bearing · L-Connect 3 · 3-Year Warranty
Black Edition
120mm
1900 RPM
Infinity Mirror
3-Year Warranty
Key Highlights
1.8″ LCD
400×400 · 60Hz
Infinity Mirror
26 LEDs · Unified
66 CFM
High airflow
FDB Bearing
Fluid Dynamic
Daisy-Chain
FLEX Receiver
L-Wireless
2.4GHz control
What’s Included
Everything you need for premium LCD cooling.
TL LCD Fan
120mm · Black
LCD FLEX Receiver
Wireless connection
USB & ARGB Cables
9-Pin USB · 5V 3-Pin
Mounting Screws
Installation kit

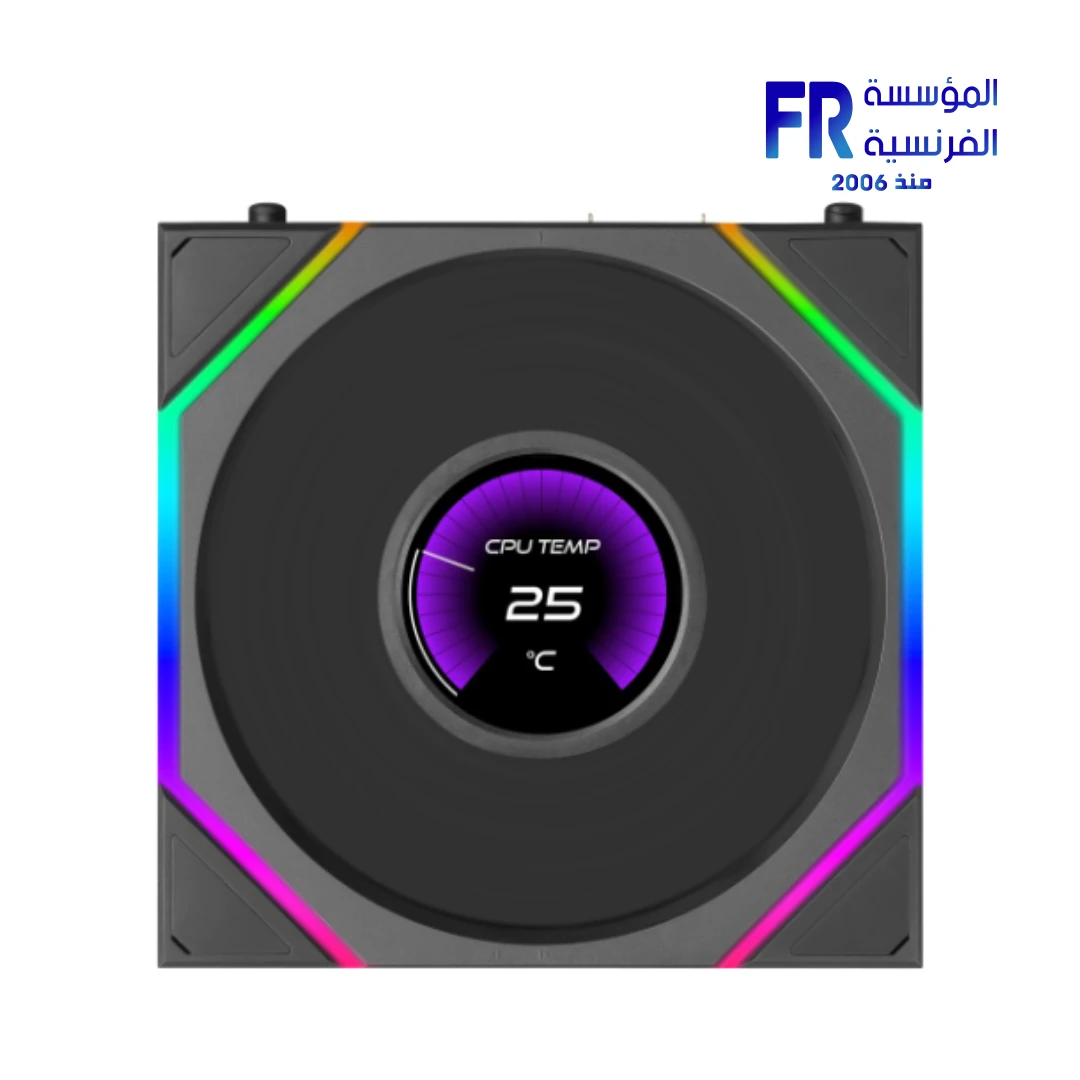

1.8″ LCD Display — Expanded Visuals
Featuring an upgraded 1.8″ LCD with slimmer bezel, 400×400 resolution, 60Hz refresh rate, and support for MP4, GIF, JPG, and PNG — delivering crisper visuals and greater creative freedom for personalized displays.
Infinity Mirror — Unified ARGB Design
Refined lighting with a seamless infinity mirror design. The ARGB light strip extends around the mounting screws for a cleaner, more unified look. 26 LEDs deliver vibrant, customizable lighting effects.
Maximize Your TL LCD FLEX Experience
Use L-Connect 3 to customize your 1.8″ LCD with custom images, GIFs, and system monitoring data. The daisy-chain design with FLEX receivers simplifies cable routing. For motherboard sync, connect the 5V ARGB cable to your motherboard for cohesive RGB integration.
Engineered Without Compromise
Designed for enthusiasts who demand maximum cooling. Features LCP fan blades, an ultra-tight 0.6mm blade clearance, and precision FDB bearings delivering 66 CFM airflow and 2.7 mmH₂O static pressure.
FLEX Receiver — Pairing Guide
Match the correct receiver to the correct fan model: TL LCD FLEX = LCD Marker. When attaching the FLEX receiver to the TL fan, make sure it is pushed in completely and securely locked into place. Improper contact may cause poor connection.
Best For & Considerations
✅ Best For
- ✔ Enthusiast PC builds demanding maximum cooling
- ✔ Users who love 1.8″ LCD customization
- ✔ Builders wanting daisy-chain cable management
- ✔ Those who value FDB bearing reliability
- ✔ Users who want L-Connect 3 control
❌ Considerations
- ✗ Users on a budget (premium LCD fan)
- ✗ Those who prefer non-RGB, minimalist builds
- ✗ Users wanting 140mm fans (120mm only)
- ✗ Those who don’t want to use L-Connect 3 software
Technical Specifications
Compatibility
ℹ️ Important Installation Notes
FLEX Receiver Installation: When attaching the FLEX receiver to the TL fan, make sure it is pushed in completely and securely locked into place. Improper contact may cause poor connection and prevent the fan from functioning properly.
Pairing Guide: Match the correct receiver to the correct fan model — TL LCD FLEX = LCD Marker. The L-Wireless Controller is optional for L-Connect 3 software control, but required for Wireless Mode.
LCD Customization: For LCD fans, first connect via USB to L-Connect 3 to set the default offline theme. Once saved, the content remains active, allowing users to switch to the 5V 3-Pin ARGB cable for independent lighting control.
Frequently Asked Questions
| MODEL | |
|---|---|
| Fan Size (mm) | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Profiles | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Bearing Type | |
| Software | |
| Color | |
| Part Number | |
| Warranty |
