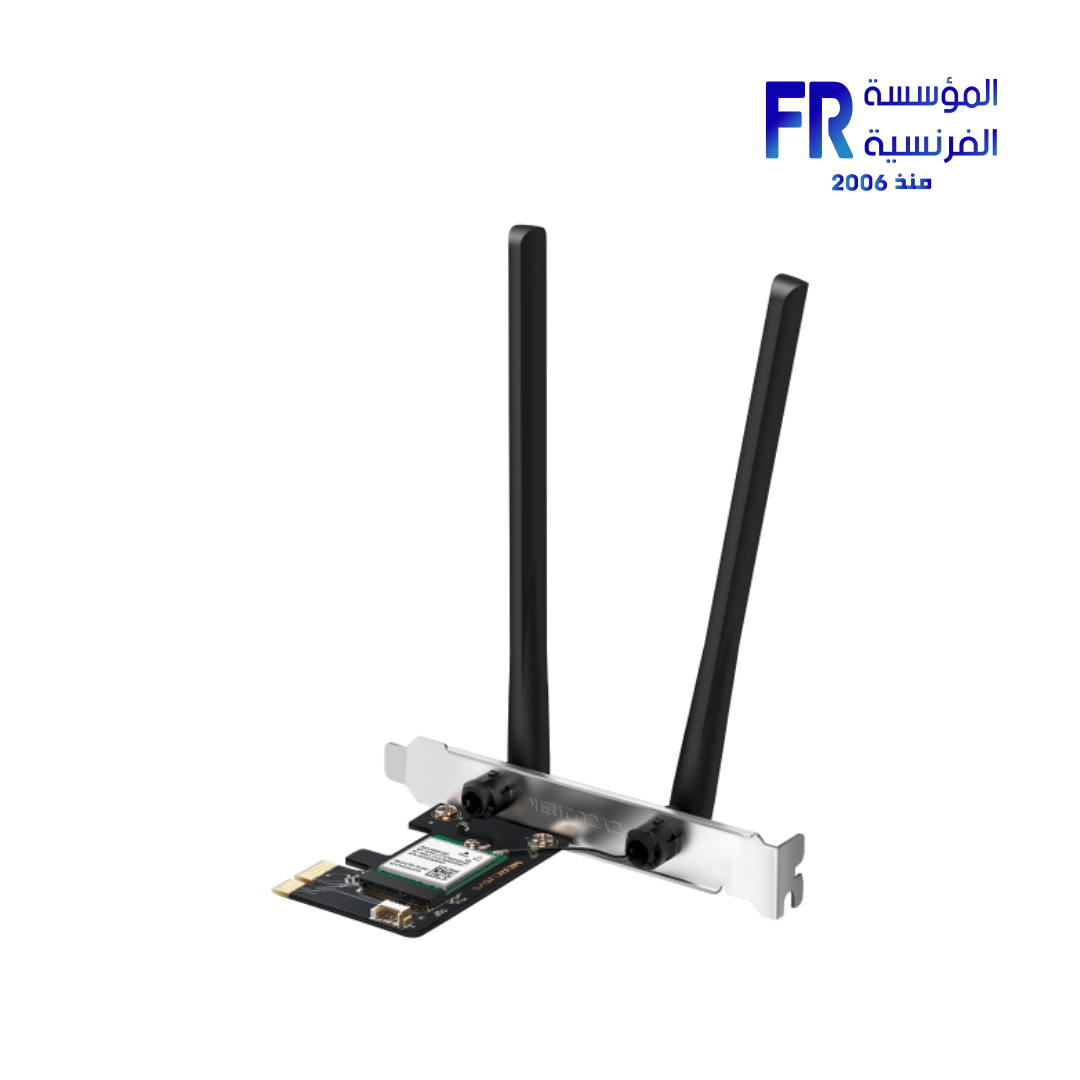

Mercusys AX3000 MA80XE Wi-Fi 6 Bluetooth 5.3 PCIe Adapter
The Mercusys AX3000 MA80XE delivers next-generation wireless connectivity with dual-band Wi-Fi 6 (802.11ax) and Bluetooth 5.3 technology. This PCIe adapter provides lightning-fast speeds up to 2.4Gbps, ultra-low latency, and expanded capacity for gaming, streaming, and productivity.
⚡ Key Features:
- Wi-Fi 6 (802.11ax) – Up to 3× faster than Wi-Fi 5
- Dual-Band AX3000 – 2402Mbps (5GHz) + 574Mbps (2.4GHz)
- Bluetooth 5.3 – Enhanced wireless peripheral connectivity
- OFDMA & MU-MIMO – Efficient multi-device handling
- PCIe x1 Interface – Easy desktop installation
- 160MHz Channel – Double the bandwidth of 80MHz
Next-Gen Wireless Performance
Wi-Fi 6 Efficiency
- 1024-QAM for higher data rates
- OFDMA reduces latency by 75%
- Target Wake Time (TWT) improves battery life
- BSS Color technology reduces interference
Bluetooth 5.3 Advantages
- 2× faster than Bluetooth 5.0
- 4× greater range than Bluetooth 4.2
- LE Audio and LC3 codec support
- Reduced power consumption
Technical Specifications
| Category | Specification |
|---|---|
| Model | MA80XE (0852500023) |
| Wireless Standard | IEEE 802.11ax Wi-Fi 6 |
| Speed | AX3000 (2402Mbps 5GHz + 574Mbps 2.4GHz) |
| Frequency Bands | 2.4GHz & 5GHz (dual-band concurrent) |
| Bluetooth | Version 5.3 |
| Interface | PCIe x1 (Gen 2.0) |
| Antennas | 2× external high-gain omnidirectional (5dBi) |
| Security | WPA3, WPA2, WPA, WEP |
| Operating Systems | Windows 10/11 (64-bit) |
| Dimensions | 120 × 110 × 20mm |
Package Contents
- MA80XE Wi-Fi 6 PCIe Adapter
- 2× 5dBi omnidirectional antennas
- Low-profile bracket
- Driver CD
- Quick installation guide
- Mounting screws
💡 Pro Tip:
For optimal performance, pair this adapter with a Wi-Fi 6 router to fully utilize the 160MHz channel bandwidth and OFDMA technology.
