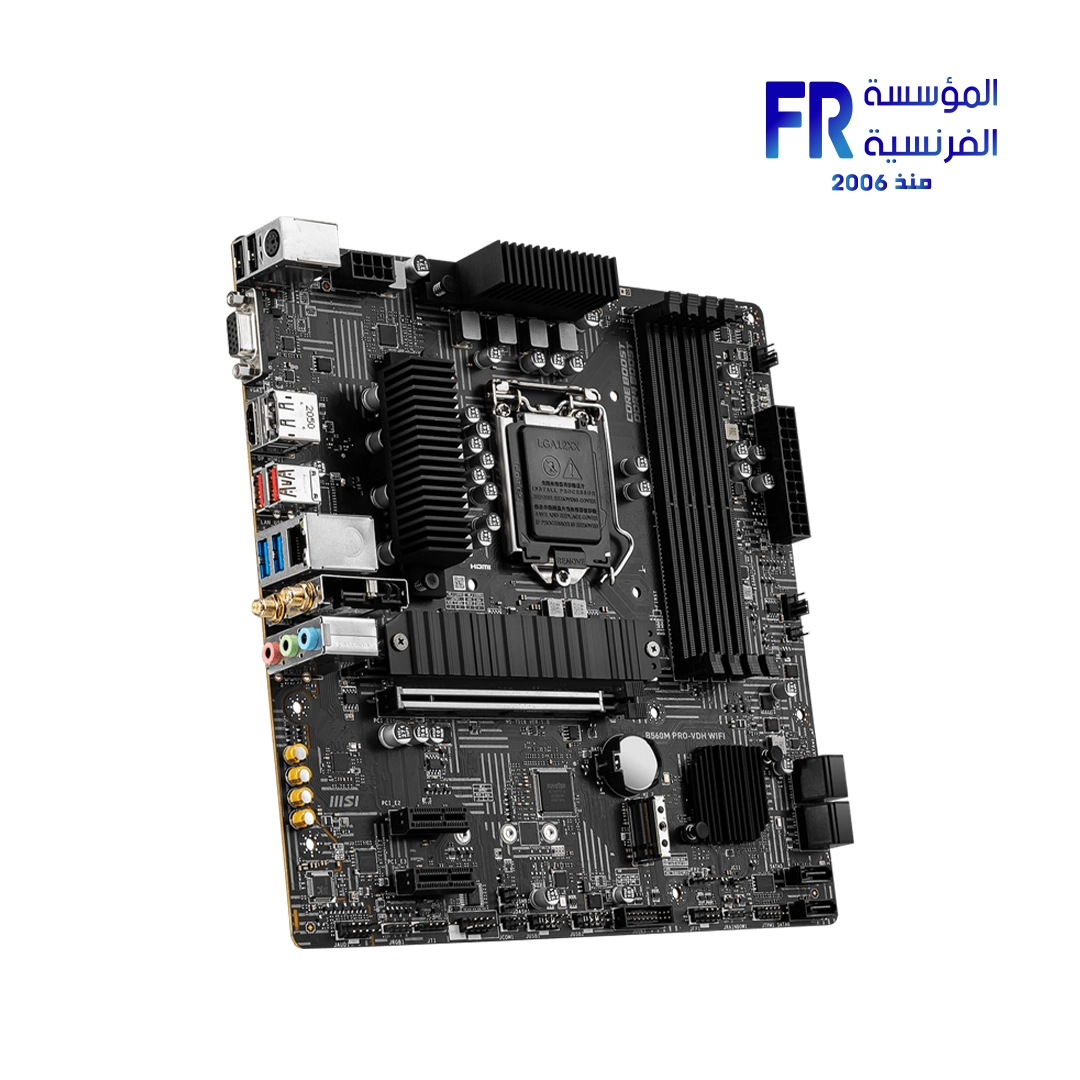

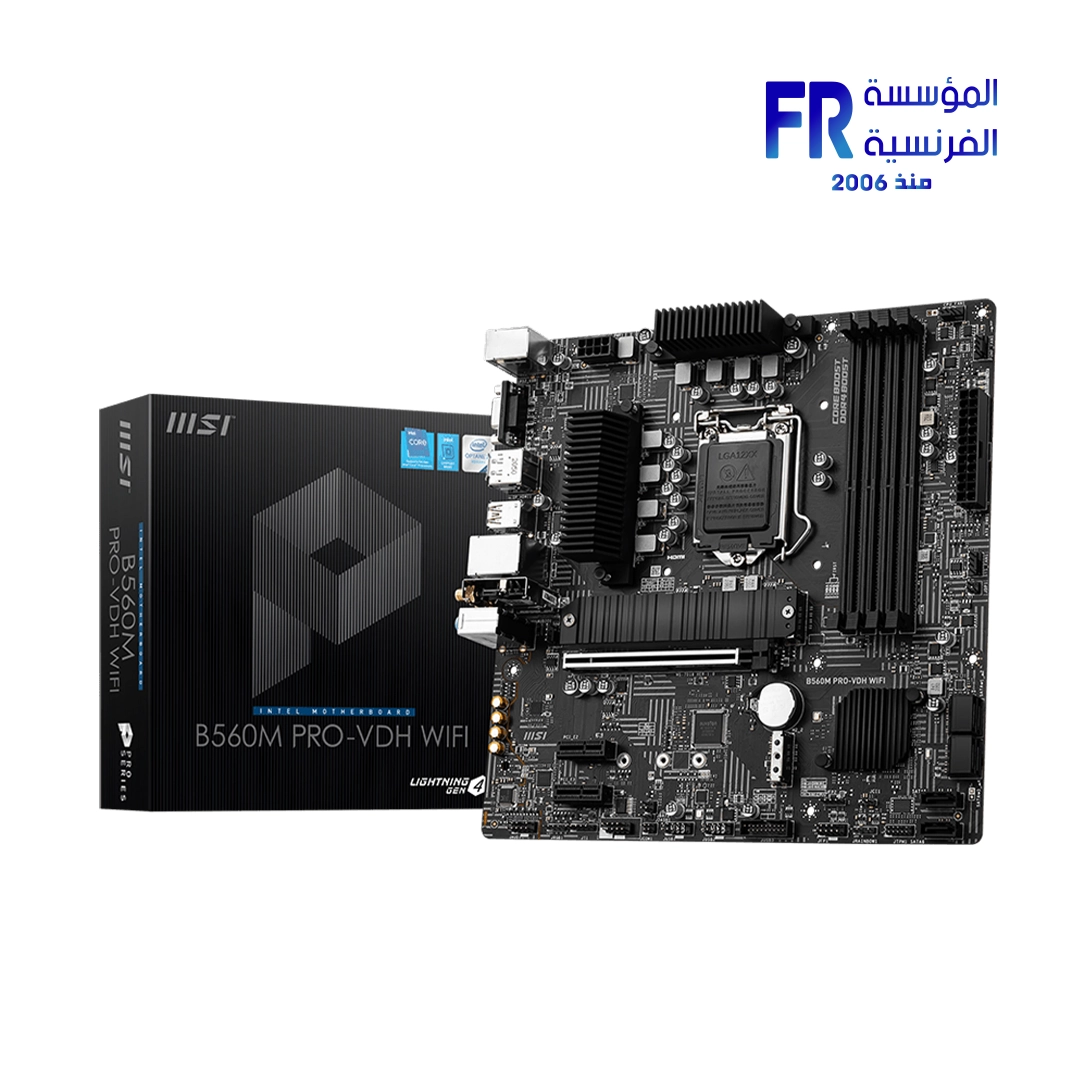

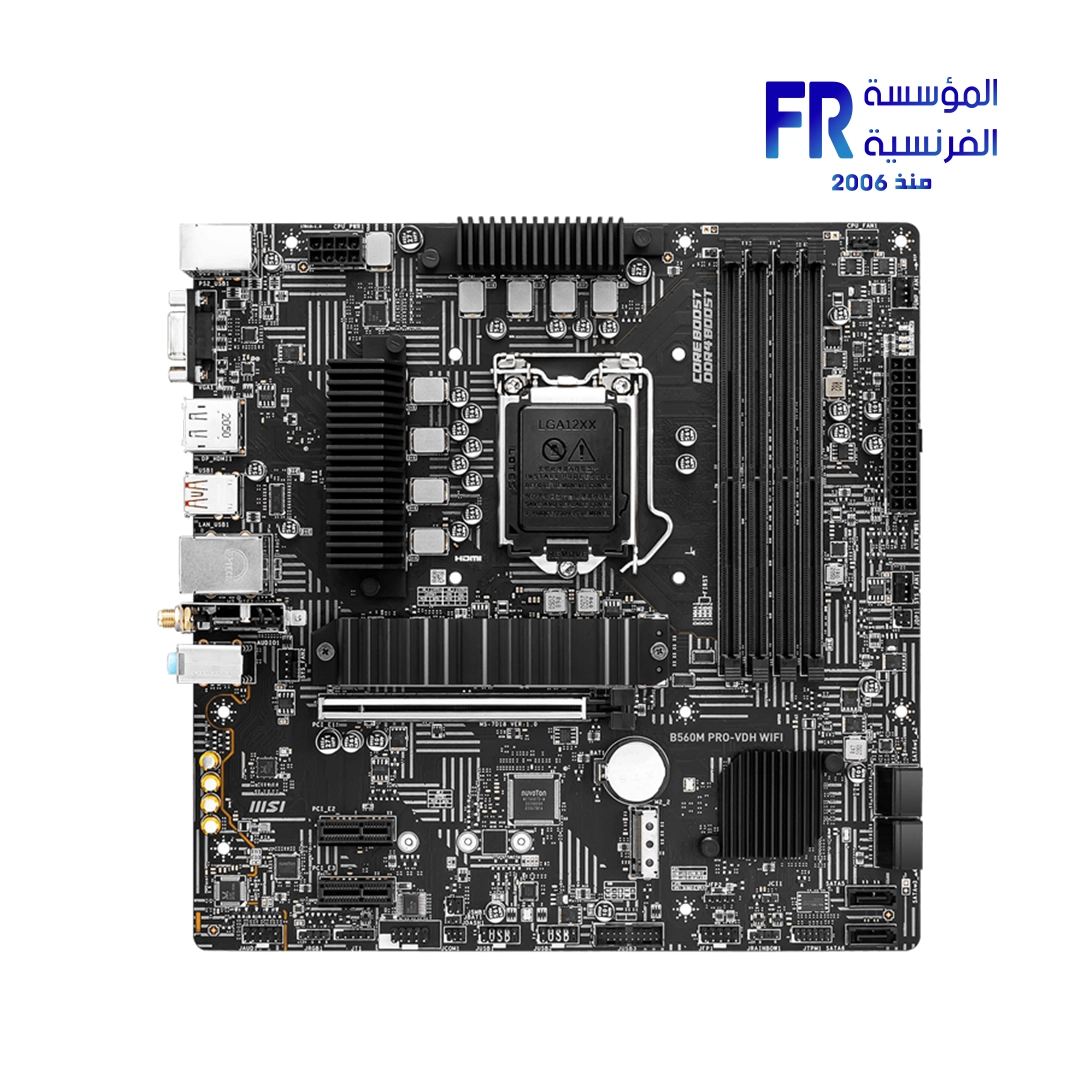

MSI B560M Pro VDH WiFi Motherboard

The MSI B560M Pro VDH WiFi Motherboard is a compact and feature-rich micro-ATX solution for Intel LGA 1200 processors. It offers robust power delivery, versatile connectivity, and integrated Wi-Fi. This motherboard is an excellent choice for building a stable, efficient, and connected desktop PC for various tasks.

---

Reliable Performance and Integrated Connectivity:

Support for Intel LGA 1200 Processors:

The MSI B560M Pro VDH WiFi motherboard supports Intel LGA 1200 socket CPUs, including 10th and 11th Generation Intel Core processors. It features a robust power design, ensuring stable and efficient power delivery to the CPU. This provides a reliable foundation for daily computing, office tasks, and light gaming. Consequently, your system will perform consistently.

Dual Channel DDR4 Memory Support:

Equipped with four DDR4 DIMM slots, this motherboard supports dual-channel DDR4 memory. It allows for a maximum memory capacity of 128GB. This ensures efficient multitasking and smooth operation for your applications. Furthermore, it supports various memory speeds, providing flexibility for your system build.

Integrated Wi-Fi 6 and Bluetooth 5.1:

Stay connected with the integrated Intel® Wi-Fi 6 AX201 module and Bluetooth 5.1. Wi-Fi 6 offers faster wireless speeds and improved network efficiency, especially in crowded environments. Bluetooth 5.1 provides reliable connections for your wireless peripherals. This ensures seamless online experiences and convenient device pairing.

---

Versatile Storage and Display Options:

Fast M.2 Slots and SATAIII Ports:

The B560M Pro VDH WiFi includes two M.2 slots for high-speed storage. One M.2 slot supports PCIe Gen4 for 11th Gen Intel CPUs, offering blazing-fast NVMe SSD performance. The second M.2 slot provides additional storage flexibility. Furthermore, six SATAIII ports are available for traditional hard drives and SSDs. This comprehensive array ensures ample space and rapid data access for all your files.

Multiple Display Outputs:

This motherboard offers versatile display connectivity with HDMI, DisplayPort, and VGA outputs. This allows you to connect to a variety of monitors and projectors directly from the motherboard, leveraging your CPU’s integrated graphics. It supports DirectX 12, providing crisp visuals for multimedia playback and casual gaming.

Comprehensive USB Connectivity:

The MSI B560M Pro VDH WiFi provides extensive USB connectivity. It includes two rear USB 3.2 Gen2 Type-A ports and two rear USB 3.2 Gen1 Type-A ports. For the front panel, it offers two USB 3.2 Gen1 Type-A ports and four USB 2.0 ports. Additionally, two rear USB 2.0 ports are available. This ensures ample connections for all your peripherals and devices.

---

Audio Quality and Essential Features:

7.1 CH HD Audio with Realtek ALC897 Codec:

Experience clear and immersive audio with 7.1 Channel HD Audio, powered by the Realtek ALC897 Codec. This integrated audio solution delivers high-quality sound for movies, music, and games. It provides a rich audio experience without the need for a dedicated sound card.

PCI-E Gen4 Support:

The motherboard features a PCI-E x16 slot that supports Gen4 speeds. This provides high bandwidth for the latest graphics cards, ensuring optimal performance for gaming and graphically intensive applications. It allows you to take full advantage of cutting-edge hardware.

Specifications:

• Socket: LGA 1200
• Chipset: Intel® B560
• Memory Channel: Dual Channel DDR4
• DIMM Slots: 4
• Max Memory (GB): 128GB
• PCI-E x16 Slots: 1 (Gen4 support)
• PCI-E x1 Slots: 2
• SATAIII Ports: 6
• M.2 Slots: 2 (1x Gen4, 1x Gen3)
• TPM (header): 1
• WiFi & Bluetooth: Intel® Wi-Fi 6 AX201, Bluetooth 5.1
• USB 3.2 Gen1 ports (Front): 2 (Type A)
• USB 3.2 Gen2 ports (Rear): 2 (Type A)
• USB 3.2 Gen1 ports (Rear): 2 (Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 2
• Serial ports (Front): 1
• Audio ports (Rear): Realtek® ALC897 Codec, HD Audio Jacks
• DisplayPort: 1
• VGA: 1
• HDMI: 1
• DirectX Support: 12
• CPU Support: Intel® 10th and 11th Gen Core Processors
• Form Factor: Micro-ATX
