What is a back-connect motherboard?

A back-connect (or MSI Project Zero 'PZ') motherboard moves power, SATA, and fan headers to the back of the board. This allows for significantly cleaner cable management in a compatible case like the MAG PANO 130R PZ, as most cables are hidden from view.

How many fans are included with the MAG PANO 130R PZ?

The MSI MAG PANO 130R PZ comes with 4 pre-installed ARGB fans. This includes one 120mm ARGB fan at the rear and three 120mm ARGB reverse-blade fans on the side, providing excellent airflow and aesthetics right out of the box.

What is the maximum GPU length for this case?

This case supports a maximum GPU length of 400mm (or 15.75 inches), providing ample space for even the largest and most powerful modern graphics cards.

Filter

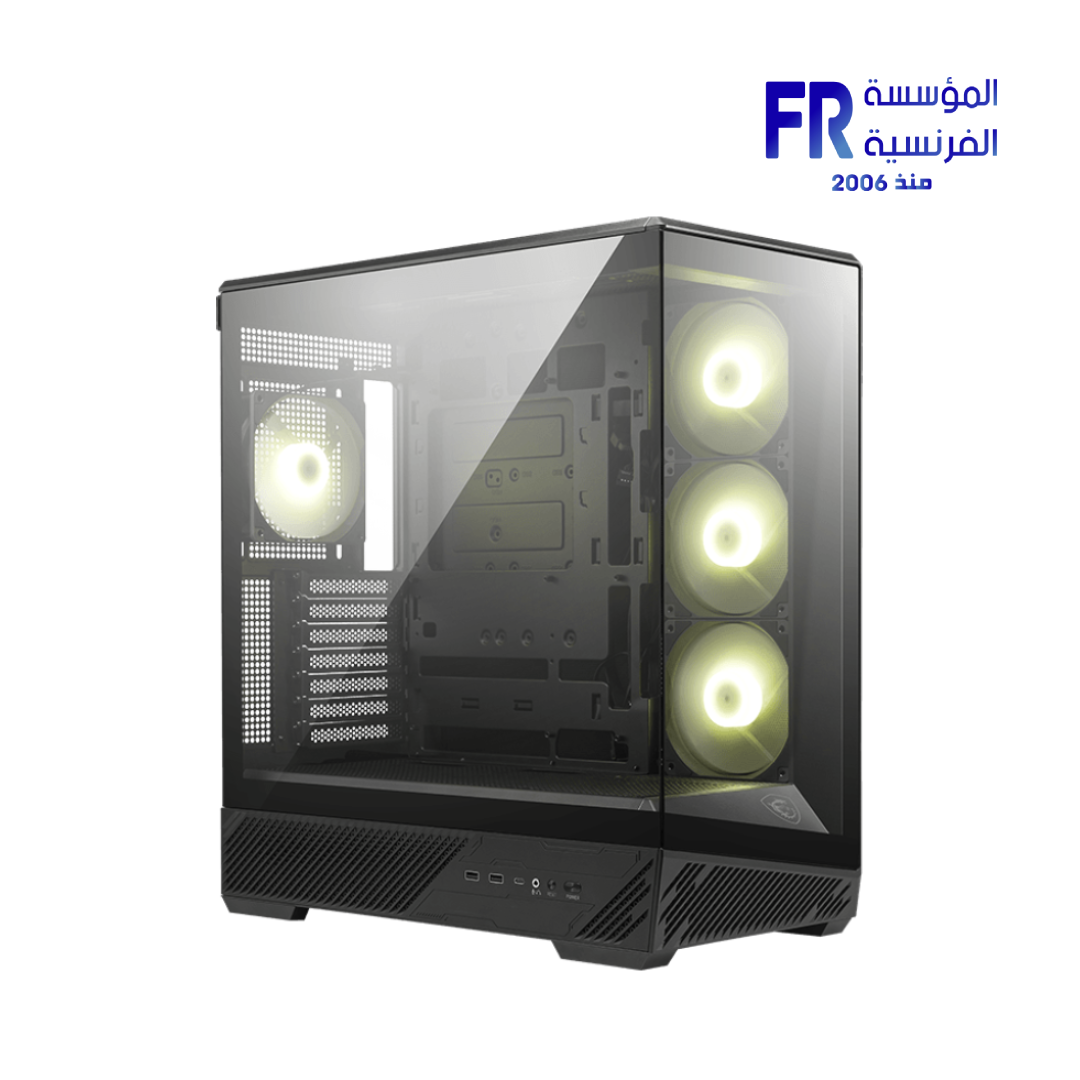

MSI MAG PANO 130R PZ Back Connect Support With 4 ARGB Fans Black Mid Tower Gaming Case

MSI MAG PANO 130R PZ Back Connect Support With 4 ARGB Fans Black Mid Tower Gaming Case

4999 EGP

Model Name: MAG PANO 130R PZ Mid Tower Gaming Case
Part Number: 306-7G32R21-HH9
Key Feature: Back-Connect (Project Zero) Motherboard Support
Cooling/Fans: Panoramic Glass View / 4x Pre-installed ARGB Fans (3 Reverse)
Compatibility: Up to 360mm Radiator / 400mm Max GPU Length / USB-C 20Gbps
Warranty: 1 Year

Only 1 left in stock

Price Match Guarantee

SKU: 824142433737 Category: CASES Tags: gaming, TOWER, 4, PZ, mid tower case under 5000 EGP, ARGB, MAG, Liquid Cooling Support, MAG PANO, ARGB case under 4999 EGP, cable management, tempered glass, ARGB Fans, back-connect support, computer case, DESKTOP, Support, 130R, gaming case, MID, Connect, Back, case, BLACK, fans, 306-7G32R21-HH9, pc case, msi, Computer Components, Panoramic Glass, 824142433737, MID TOWER, Gaming PC, PANO, Best Case under 5000 EGP Brand: MSI

MSI MAG PANO 130R PZ Back Connect Support With 4 ARGB Fans Mid Tower Gaming Case

Build a masterpiece with the MSI MAG PANO 130R PZ Case. This mid-tower case features a stunning panoramic view, 4 ARGB fans, and full support for back-connect motherboards. Ultimately, this is the best Back-Connect Case in Egypt under 5,000 EGP for a truly clean build.

Back-Connect

Project Zero Support

4 ARGB Fans

Pre-Installed

400mm GPU

Max Length

360mm Radiator

Top/Side Support

A New Era of Clean Builds with the MAG PANO 130R PZ

Project Zero Cable Management

To begin with, this case is built for the future with full support for MSI’s “PZ” (Project Zero) back-connect motherboards. This innovative design moves all major cable ports to the back, consequently allowing for an exceptionally clean, cable-free view from the front and side.

Panoramic View & High Airflow

Moreover, the MAG PANO 130R PZ features a stunning panoramic glass design for a full view of your components. In addition, it comes with four pre-installed ARGB fans, including three reverse-blade fans on the side, to pull in fresh air and ensure optimal cooling performance from the start.

Technical Specifications

Specification	Detail
Model	MAG PANO 130R PZ
Part Number	306-7G32R21-HH9
Form Factor	Mid-Tower
MB Support	Back-connect: ATX / Micro-ATX \| Regular: ATX / Micro-ATX / Mini-ITX
I/O Ports	1 x USB Type-C 20Gbps, 2 x USB 5Gbps (Type-A), 1 x Audio-Out / Mic-in
Fans Included	4 (1 x 120mm ARGB Rear, 3 x 120mm ARGB Side Reverse-Blade)
Radiator Support	Top: Up to 360mm, Side: Up to 360mm, Rear: 120mm
Max GPU Length	400 mm / 15.75 inches
Max CPU Cooler	165 mm / 6.50 inches
PSU Support	ATX, 180 mm length
Dimensions	460 x 232 x 490 mm

💡 Pro Tip:

This case is designed for MSI’s “PZ” back-connect motherboards, but it’s fully compatible with standard ATX boards too! For maximum cooling, install a 360mm radiator AIO in the top or side-mount position.
