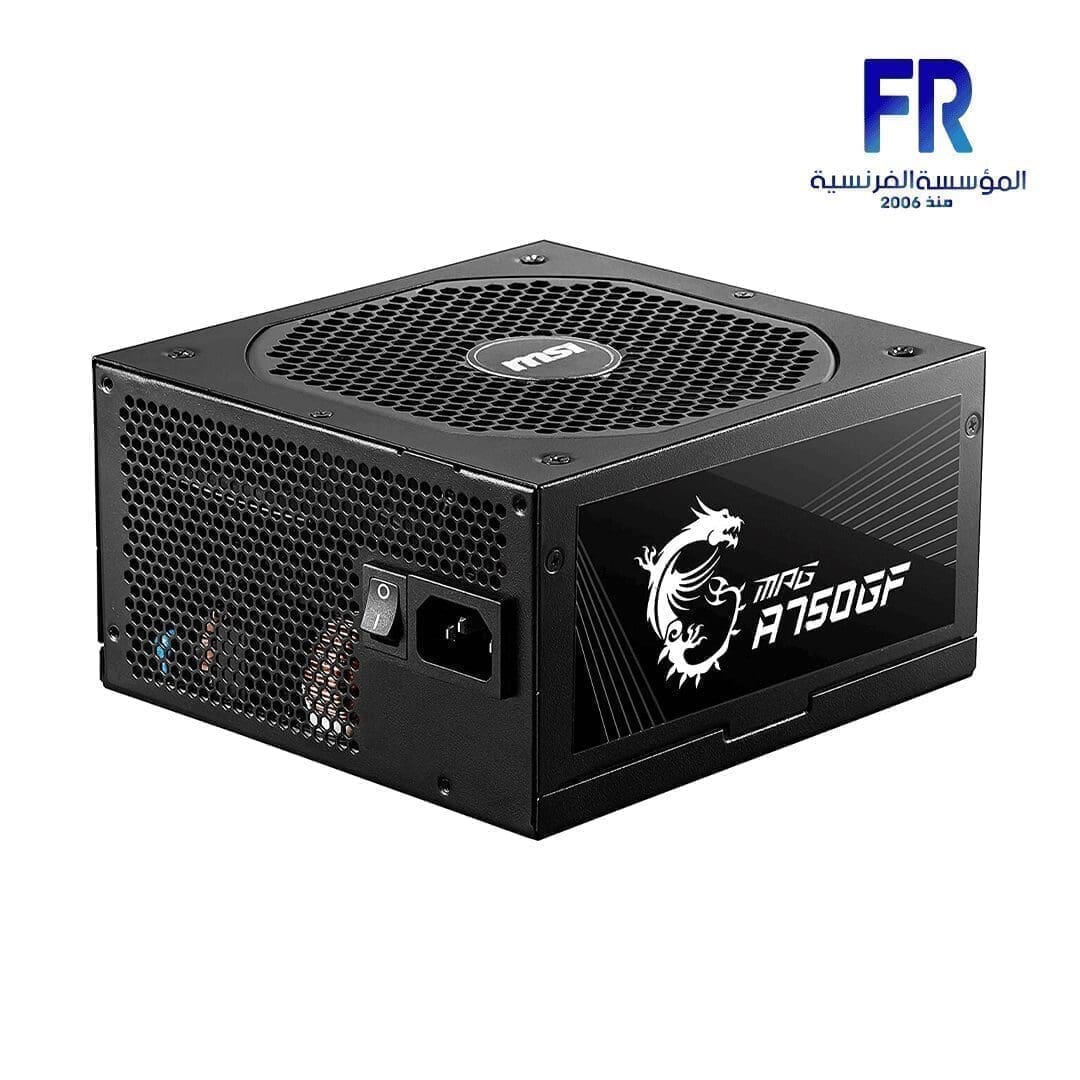

Msi Mpg A750Gf 750W Gold Fully Modular Power Supply
2839 EGP
- Supports the NVIDIA GeForce RTX™ 30 Series GPUs
- Full modular cable design
- Flat cable equipment
- 10-year warranty
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
Out Of Stock.
X1 ATX CONNECTOR
24-PIN
600mm ± 10mm
600mm ± 10mm
X6 PCI-E CONNECTOR
8-PIN (6+2)
500mm ± 10mm
500mm ± 10mm
X8 SATA CONNECTOR
(SATA)
950mm ± 10mm
950mm ± 10mm
X2 EPS CONNECTOR
8-PIN (4+4)
700mm ± 10mm
700mm ± 10mm
X5 PERIPHERAL /
FDD CONNECTOR
FDD CONNECTOR
4-PIN
1100mm ± 10mm
1100mm ± 10mm
| SPECIFICATION | ||||||||
|---|---|---|---|---|---|---|---|---|
| AC Input | 100V~240V | |||||||
| DC Output | +5V | +3.3V | +12VMBPH | +12VCPU | +12VVGA1 | +12VVGA2 | -12V | +5VSB |
| 22.0A | 22.0A | 25.0A | 25.0A | 35.0A | 35.0A | 0.3A | 2.5A | |
| Total Power | 120W | 750W | ||||||
| 750W | ||||||||
| PRODUCT NAME | MPG A750GF |
| FORM FACTOR | ATX |
| RATED WATTAGE | 750W |
| EFFICIENCY RATING | 80 PLUS Gold (up to 90%) |
| MODULAR | Yes (fully modular) |
| FAN SIZE | 140 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 160 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100~240 VAC |
| INPUT FREQUENCY RANGE | 47~63 Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) | 1 |
| EPS (8 PIN) | 2 |
| PCI-E (6+2 PIN) | 6 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
POWER SUPPLY
| Psu-Cable-Type | |
|---|---|
| PSU WATT | |
| ENERGY EFFICIENT |
