What processors does the MSI PRO B840M-P support?

This motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors for the Socket AM5 platform.

What is the maximum RAM speed supported?

The PRO B840M-P supports DDR5 RAM with overclocked (OC) speeds up to 8000+ MT/s. It also supports AMD EXPO™ profiles for easy memory overclocking.

Does this motherboard have Wi-Fi 6E?

Yes, it includes a pre-installed Wi-Fi 6E module, supporting 2.4GHz, 5GHz, and the 6GHz band for high-speed, low-latency wireless networking, along with Bluetooth® 5.3.

Filter

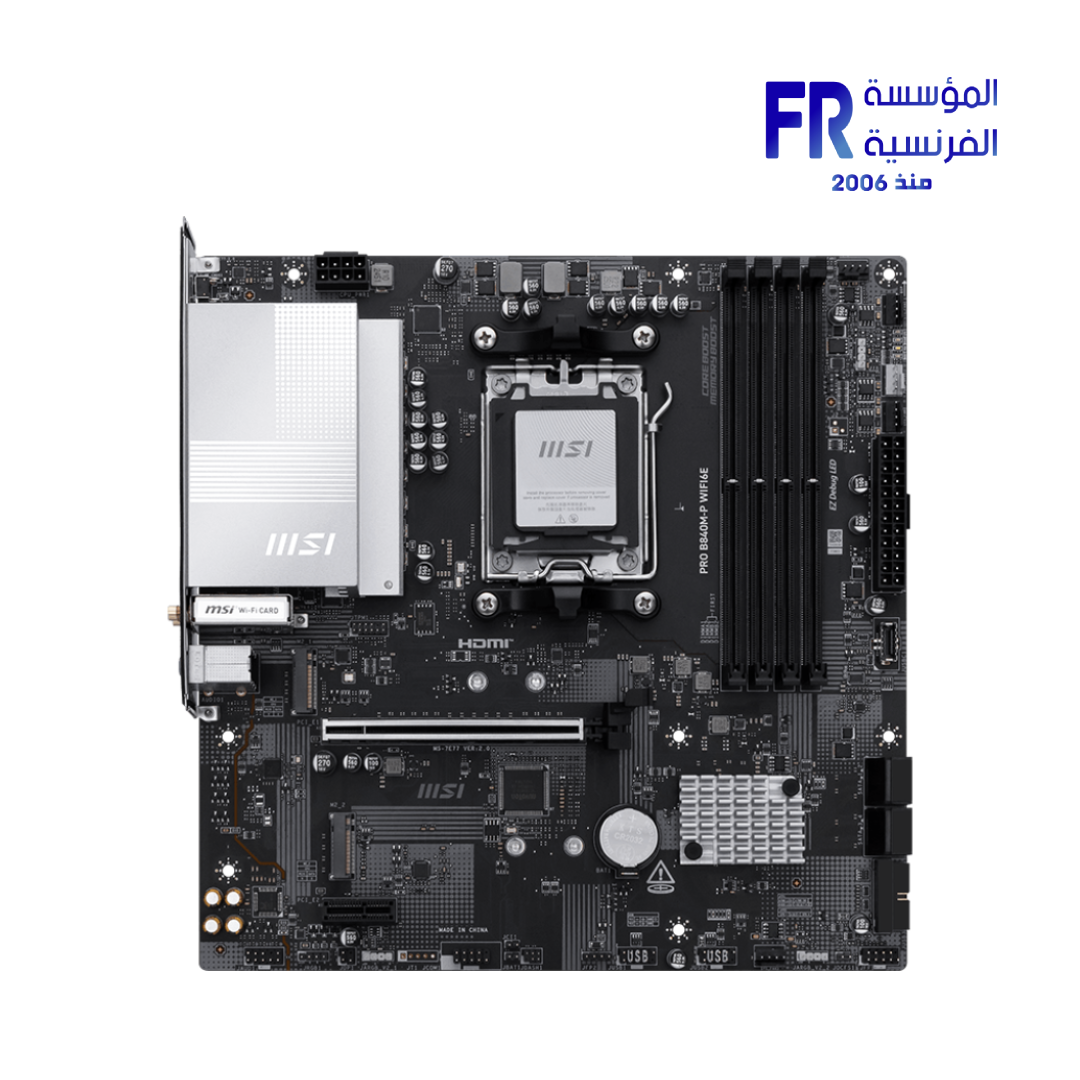

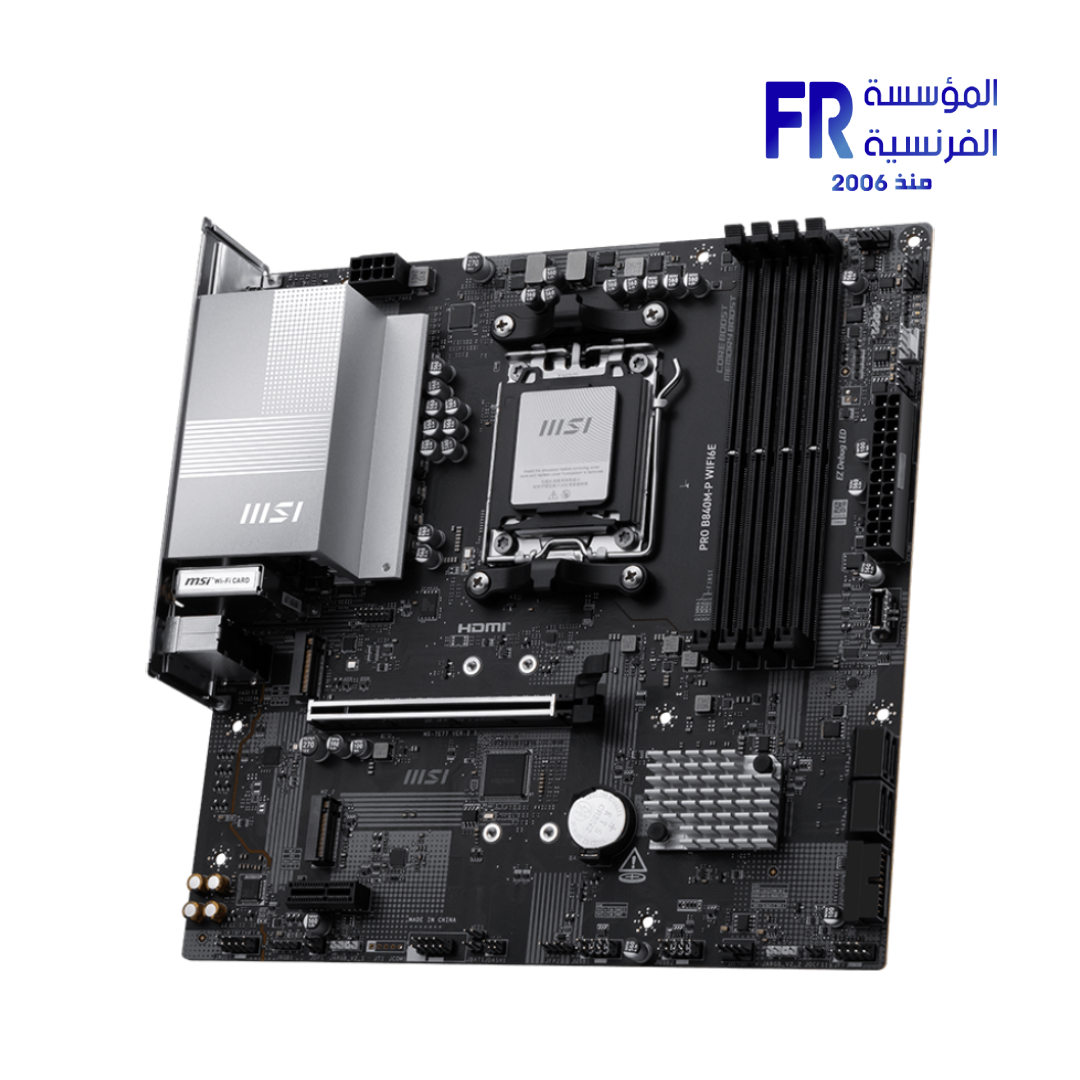

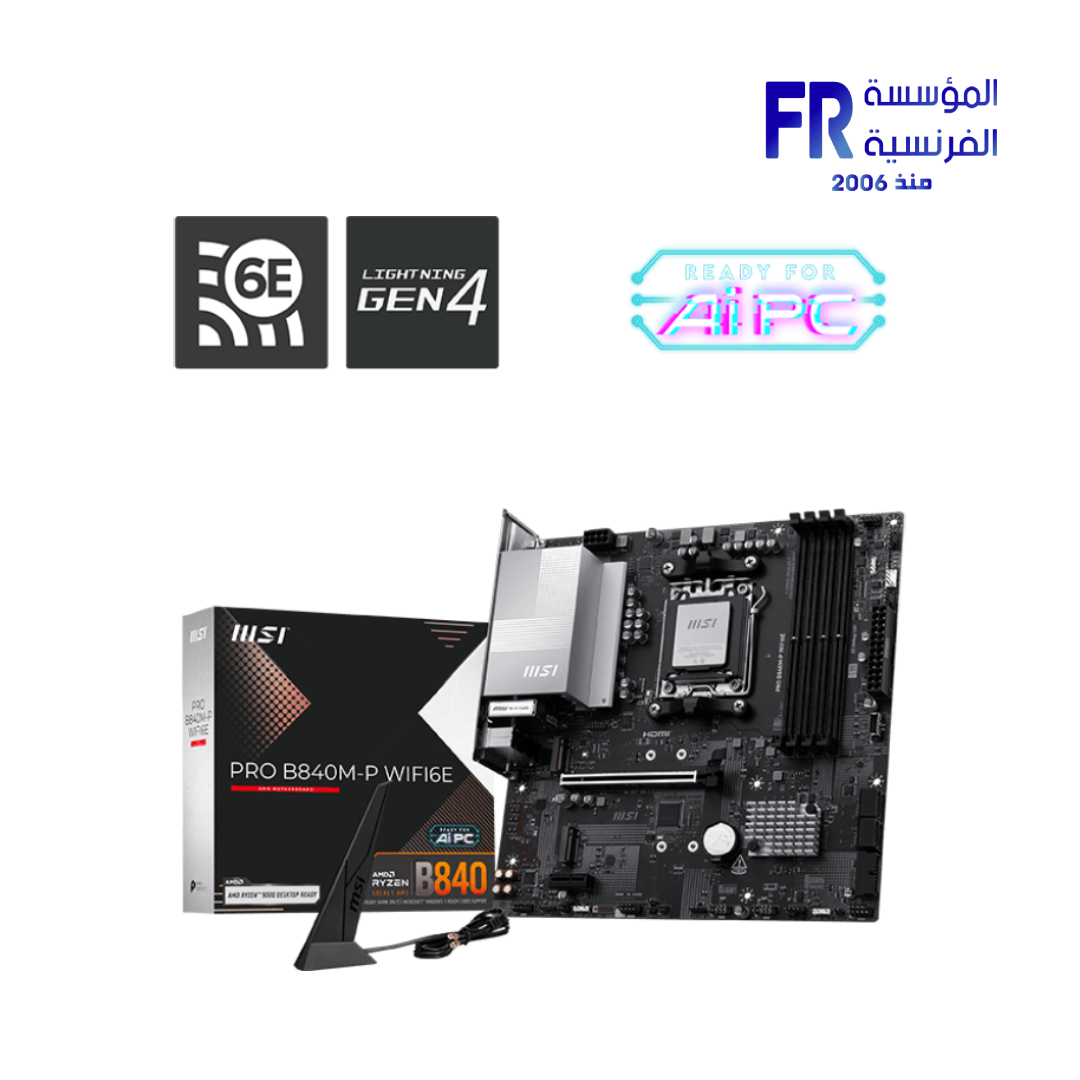

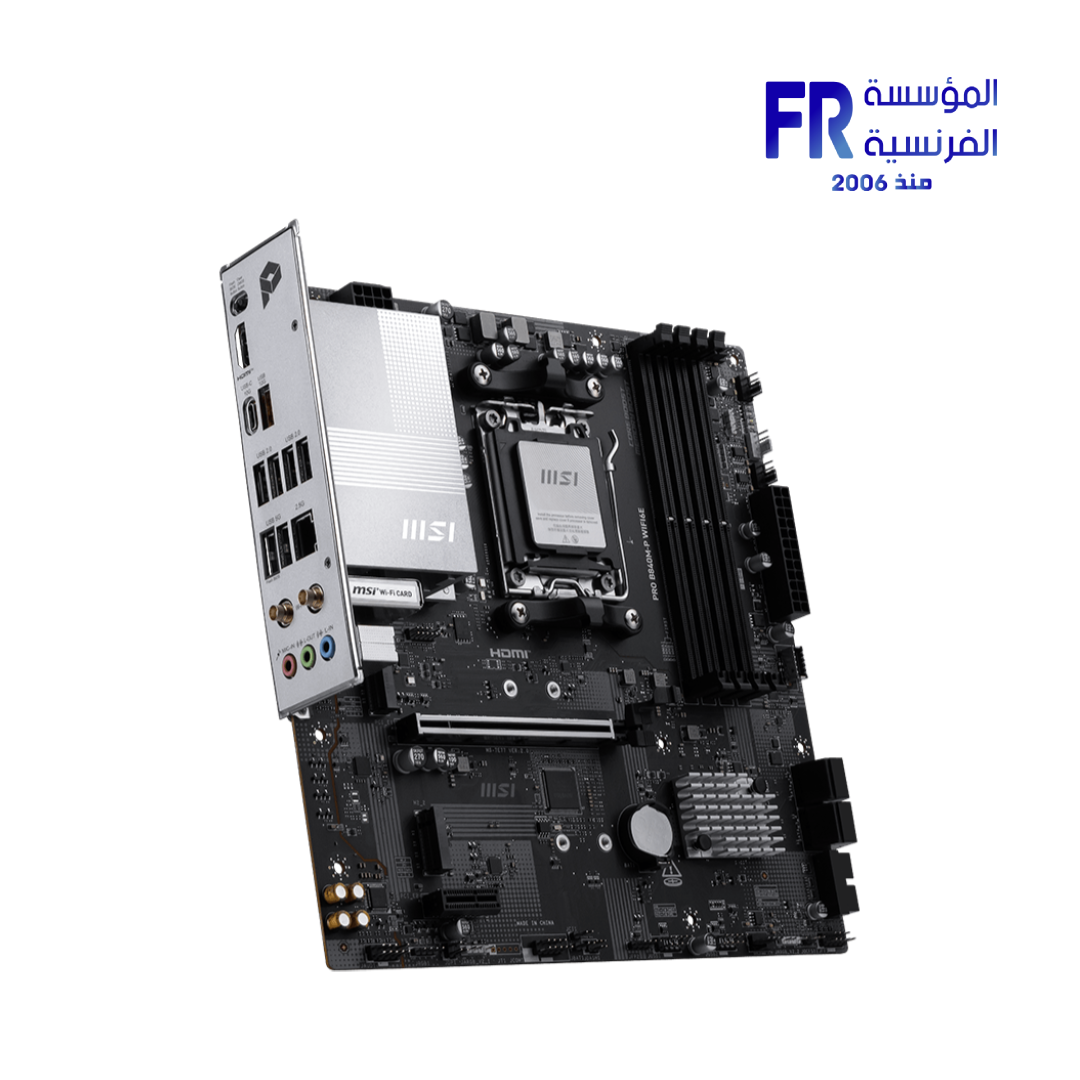

MSI PRO B840M P WIFI6E AM5 Motherboard

6950 EGP

Model Name: MSI PRO B840M P WIFI6E AM5 Motherboard
Part Number (Model): PRO B840M-P WIFI6E
CPU Socket: Socket AM5
Chipset: AMD B840
Memory Support: 4x DDR5 UDIMM, Max 256GB, up to 8000+ (OC) MT/s
Storage: 2x M.2 slots (PCIe 4.0 x4), 4x SATA 6G ports
Wireless Connectivity: Wi-Fi 6E (2.4/5/6GHz), Bluetooth® 5.3
LAN: Realtek® 8125D 2.5G LAN
Form Factor: mATX (243.84mm x 243.84mm)
Warranty: 3 Years

Only 2 left in stock

Price Match Guarantee

SKU: 824142431597 Categories: MOTHERBOARD, AMD Motherboards Tags: P, micro-ATX, B840M, 911-7E77-002, msi, wifi-6e, CPU Socket, 824142431597, Wireless Connectivity, PRO B840M P, AM5, m-ATX, WIFI6E, PRO, motherboard, Ryzen 7000 Series, MSI PRO series Brand: MSI

MSI PRO B840M P WIFI6E AM5 Motherboard

Build a powerful and reliable system with the MSI PRO B840M-P Motherboard. To begin with, this motherboard is engineered for professionals and creators, offering robust support for AMD Socket AM5 processors. Furthermore, it combines high-speed DDR5 memory support and advanced connectivity like Wi-Fi 6E.

AM5 Support

CPU Socket

DDR5 8000+ (OC)

Memory Support

Wi-Fi 6E

Connectivity

2.5G LAN

Networking

Engineered for Productivity and Performance

High-Speed Memory & Storage

Unlock ultimate performance with support for DDR5 memory up to 8000+ MT/s (OC) and AMD EXPO™ profiles. In addition, this motherboard features two M.2 slots (PCIe 4.0 x4) for lightning-fast NVMe SSDs, ensuring your system boots and loads applications in an instant.

Next-Gen Connectivity

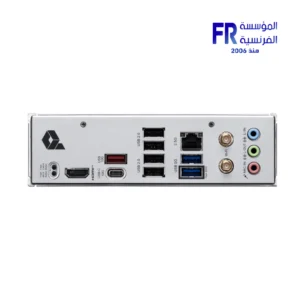

Stay connected with a full suite of options. This board is equipped with Wi-Fi 6E and Bluetooth 5.3 for high-speed, low-latency wireless. Moreover, a 2.5G LAN port provides stable, high-bandwidth wired networking, while rear USB 10Gbps Type-A and Type-C ports offer rapid data transfer for your external devices.

MSI PRO B840M-P Motherboard: Technical Specifications

Specification	Detail
Brand	MSI
Model	PRO B840M-P WIFI6E
Chipset	AMD B840
CPU Socket	Socket AM5
CPU Support	Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Memory	4x DDR5 UDIMM, Max 256GB, Supports up to 8000+ (OC) MT/s
Expansion Slots	1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Storage	2x M.2 slots (PCIe 4.0 x4), 4x SATA 6G ports
LAN	Realtek® 8125D 2.5G LAN
Wireless	Wi-Fi 6E (Supports 2.4/5/6GHz), Bluetooth® 5.3
Form Factor	mATX (243.84mm x 243.84mm)
Warranty	3 Years

💡 Pro Tip:

To get the most out of your Ryzen 9000 series processor, be sure to update to the latest BIOS from the MSI support page. This ensures maximum compatibility and unlocks the full potential of DDR5 8000+ (OC) memory speeds using AMD EXPO™ profiles in the BIOS.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

MOTHERBOARD

MODEL	PRO B840M P WIFI6E
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	B840
Motherboard Type	mATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	8000MHZ
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 4.0
PCI-E Slots (M.2)	2
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth, Wi-Fi
Part Number	911-7E77-002
Warranty	3 Years
