MODEL | |
---|---|
CHIPSET MANUFACTURERS | |
CPU SOCKET | |
MOTHERBOARD CHIPSET | |
Motherboard Tybe | |
CPU SERIES | |
Technology | |
Memory Speed | 4800 MHZ, 4866 MHz, 5200MHZ, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6800Mhz, 7000 MHz |
MAX MEMORY SIZE | |
Memory Slot | |
PCI-E X16 | |
PCI-E GEN | |
PCI-E Slots (M.2) | |
SATAIII | |
Communication module | |
Part Number | |
Warranty |

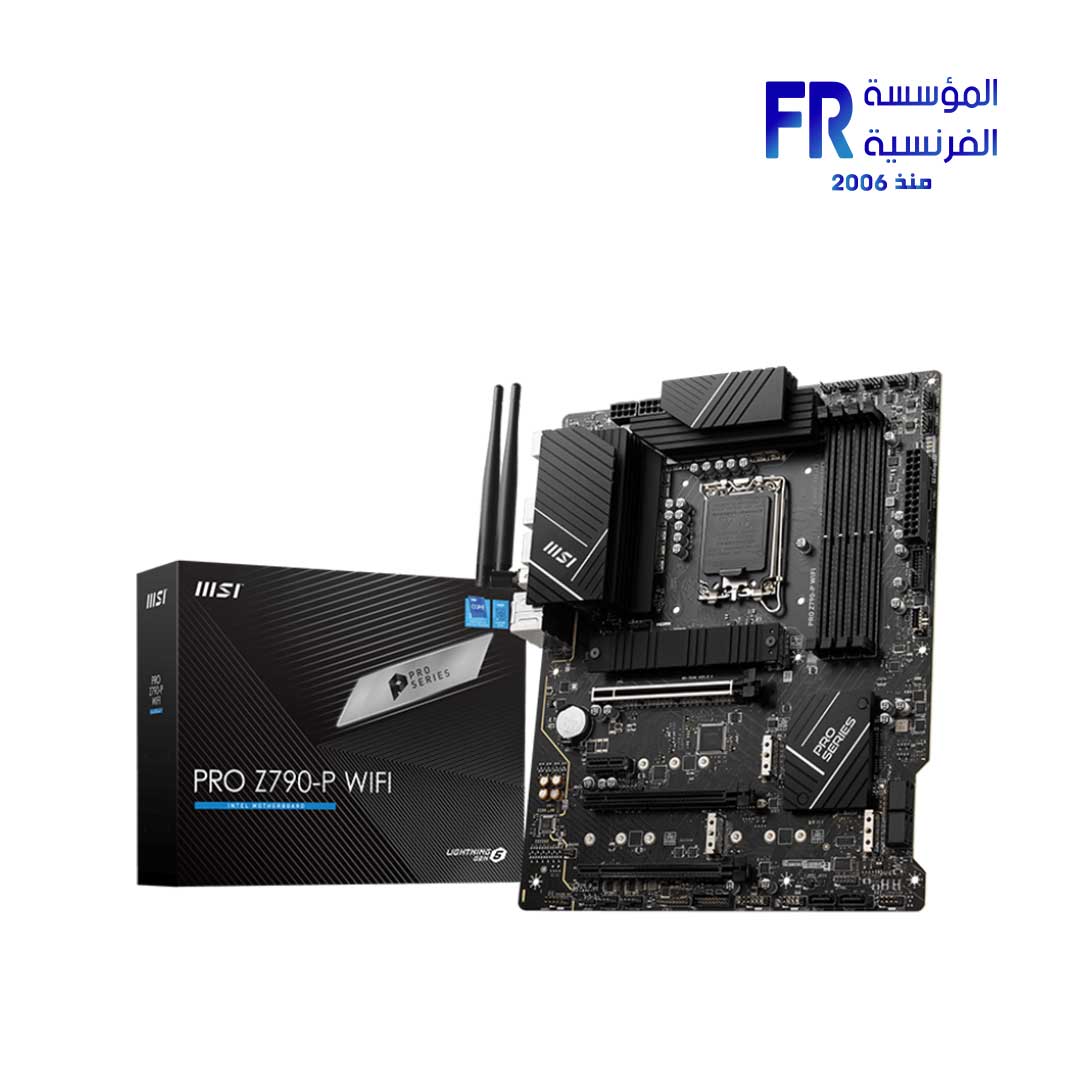

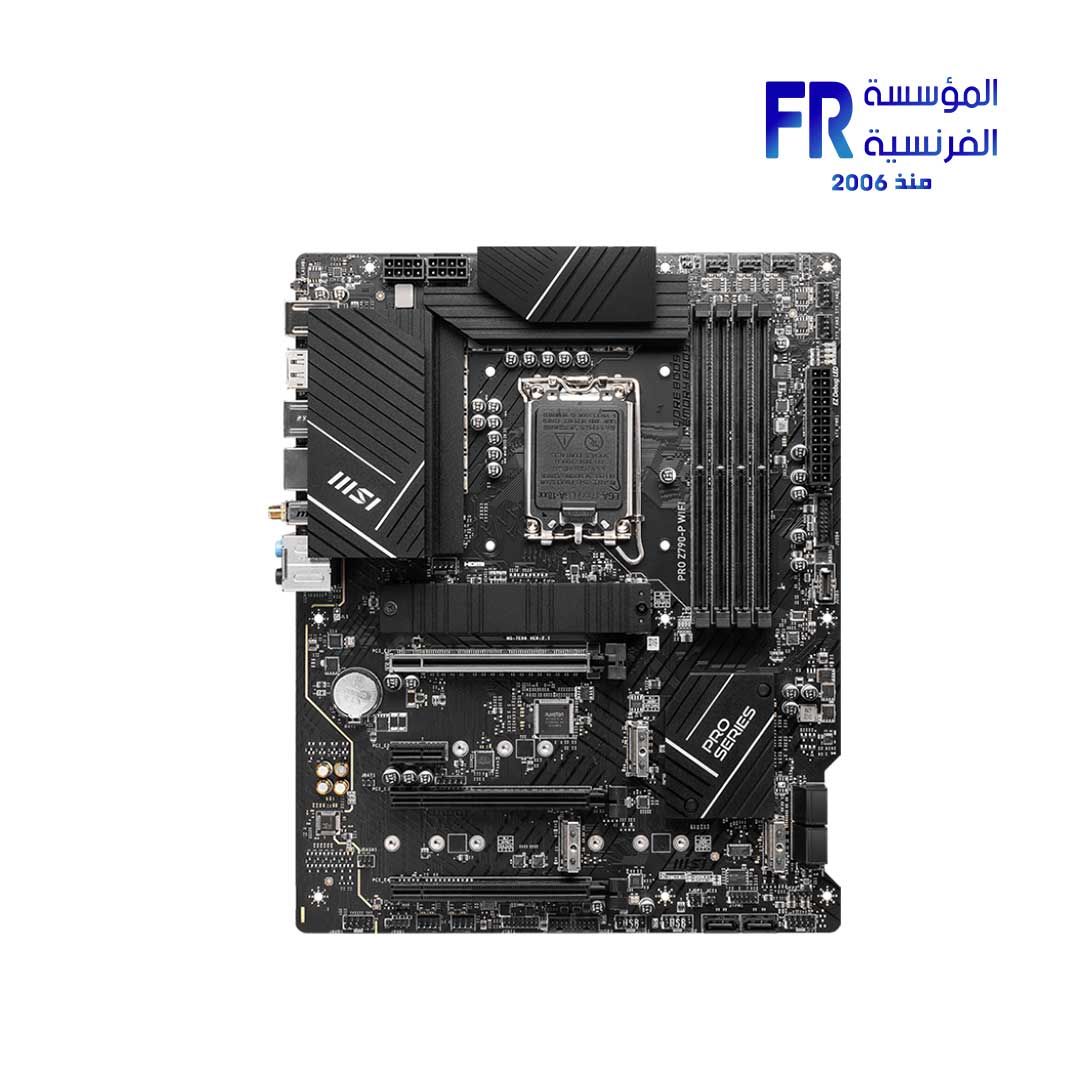

Msi Pro Z790-P Wifi DDR5 Motherboard
11800 EGP
- ATX Form Factor
- Intel Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR5-7000 (OC)
- 6 x SATA III, 4 x M.2
- PCIe 5.0, 4.0 & 3.0 x16 Slots
- 1 x PCIe 3.0 x1 Slot
- 7.1-Channel Realtek ALC897 Codec
- 2.5 GbE LAN, Wi-Fi 6E & Bluetooth 5.2
- USB 3.2 Gen 2×2 Type-C Port
Views: 103
In stock
SKU: 824142302125
Categories: Intel Motherboards, MOTHERBOARD
Tags: DDR5, motherboard, msi, PRO Z790 P, WIFI
Msi Pro Z790-P Wifi DDR5 Motherboard
Chipset |
INTEL Z790 |
---|---|
CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
Memory |
4x DDR5, Maximum Memory Capacity 256GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC |
Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot |
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Storage |
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
LAN |
Intel® 2.5Gbps LAN |
Internal IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
LED FEATURE |
4x EZ Debug LED |

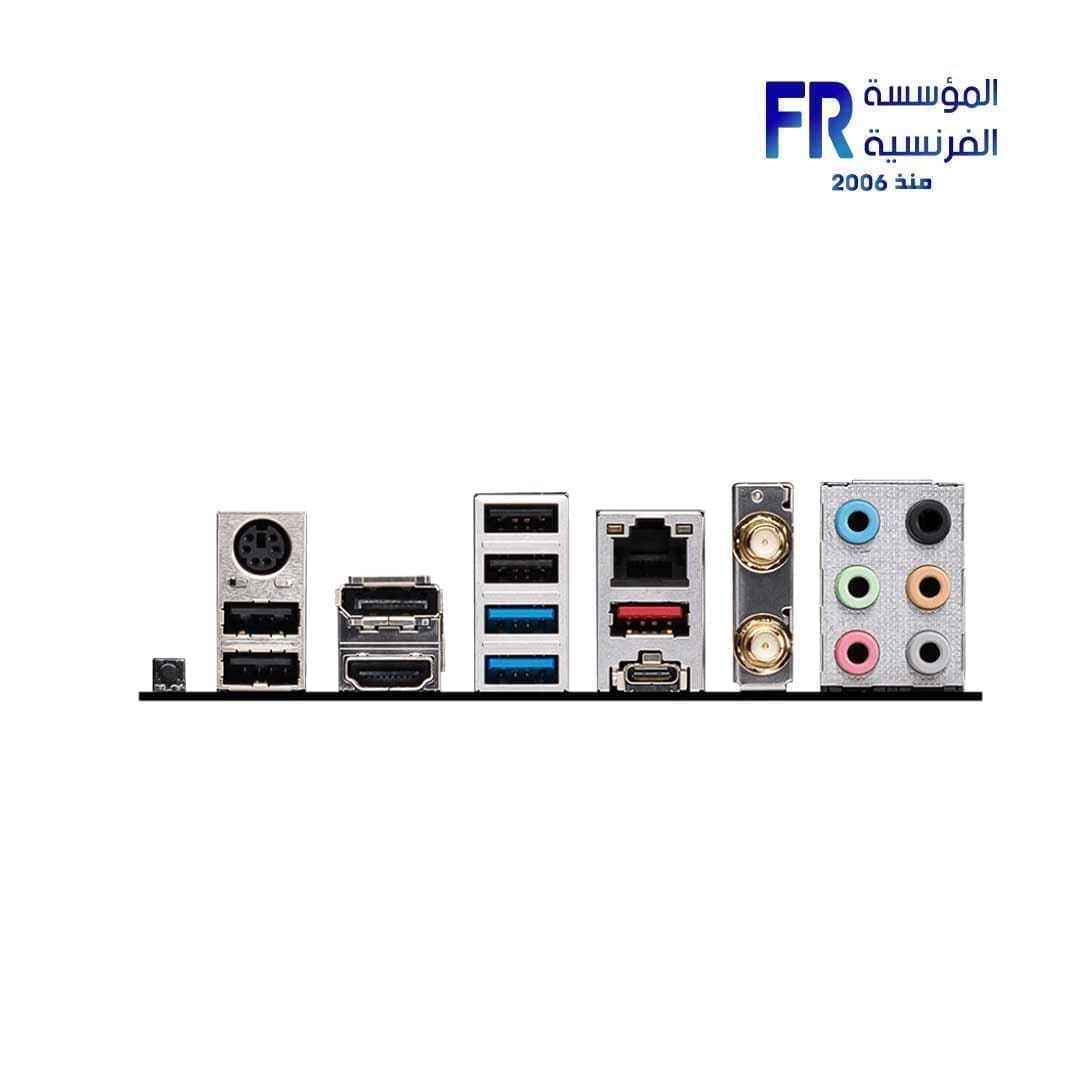

BACK PANEL PORTS |
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
BOX CONTENT |
|
PCB Info |
ATX 243.84mmx304.8mm |
