What is the maximum speed supported by the MSI PRO Z890-S WIFI DDR5 memory slots?

The motherboard supports DDR5 memory overclocking up to an impressive 8800+ MT/s (using 1DPC 1R configuration) and utilizes Intel XMP 3.0 for optimized performance.

Which networking technologies does the Z890-S WIFI include?

It features the latest Intel Wi-Fi 7 module, providing speeds up to 5.8Gbps (on the 6GHz band), 2.5Gbps LAN (Realtek 8125D), and Bluetooth 5.4, ensuring industry-leading connectivity.

What generation of PCIe does the primary GPU slot use?

The primary graphics card slot (PCI_E1) is PCIe 5.0 x16, providing maximum bandwidth for next-generation GPUs.

Filter

MSI PRO Z890 S WIFI Motherboard

12900 EGP

Model Name: PRO Z890-S WIFI Black Motherboard
Part Number: PRO Z890-S WIFI (Manufacturer Model ID)
Chipset/Socket: INTEL Z890 Chipset / LGA 1851 Socket (Core Ultra Ready)
Memory/Speed: 4x DDR5 Slots / Up to 8800+ MT/s (OC)
Connectivity: PCIe 5.0 x16 & M.2 / Wi-Fi 7 / Thunderbolt™ 4
Warranty: 3 Years

Only 1 left in stock

Price Match Guarantee

SKU: 824142386569 Categories: MOTHERBOARD, Intel Motherboards Tags: intel, ATX, S, msi, Wi-Fi, Productivity, WIFI, Content Creation, DDR5, Z890, 911-7e54-001, MSI PRO, LGA 1851, 824142386569, PRO, High-Speed Networking, Best Motherboard under 14000 EGP, motherboard, PCIe 5.0, Z890 Motherboard under 13500 EGP, M.2 Slots, DDR5 Motherboard under 13100 EGP Brand: MSI

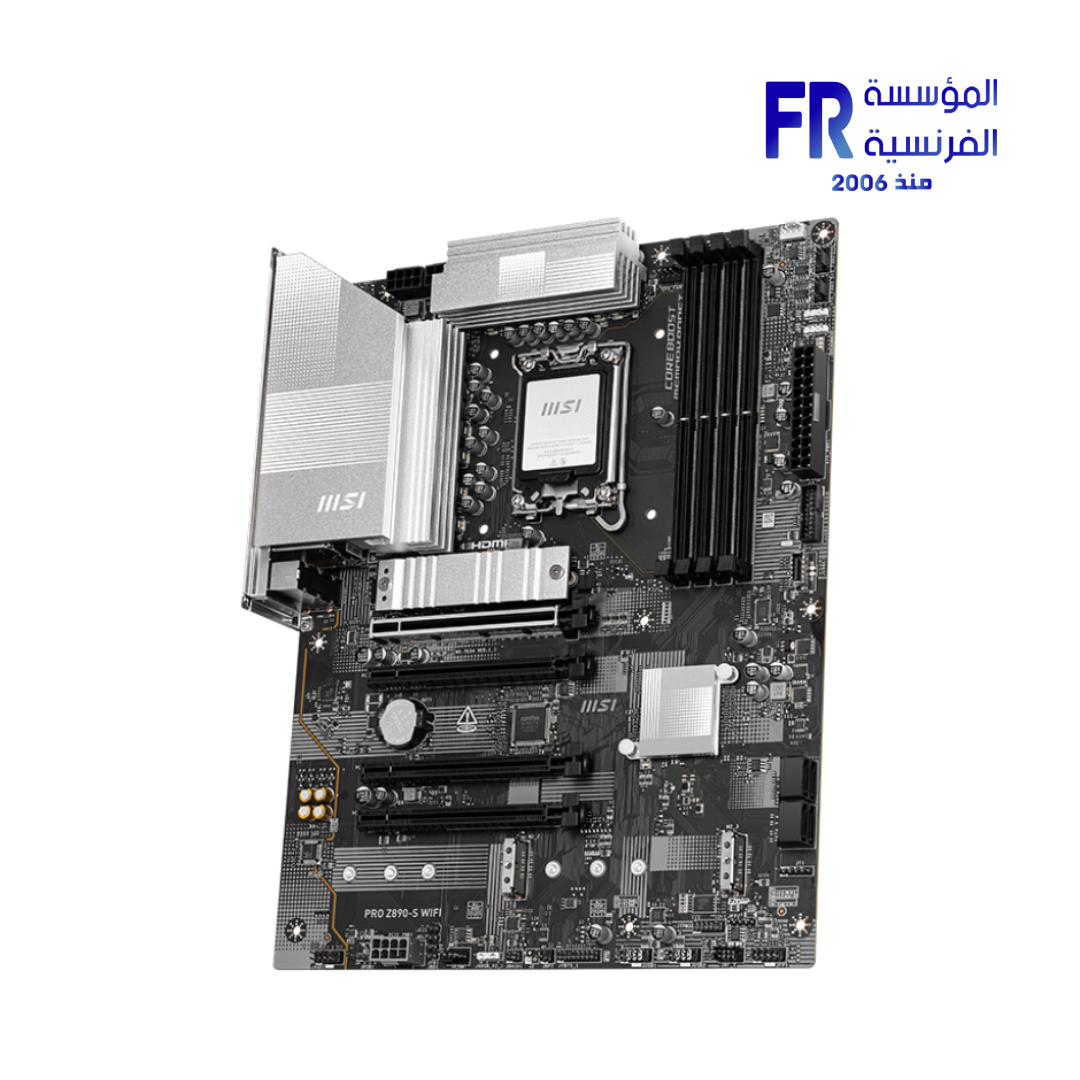

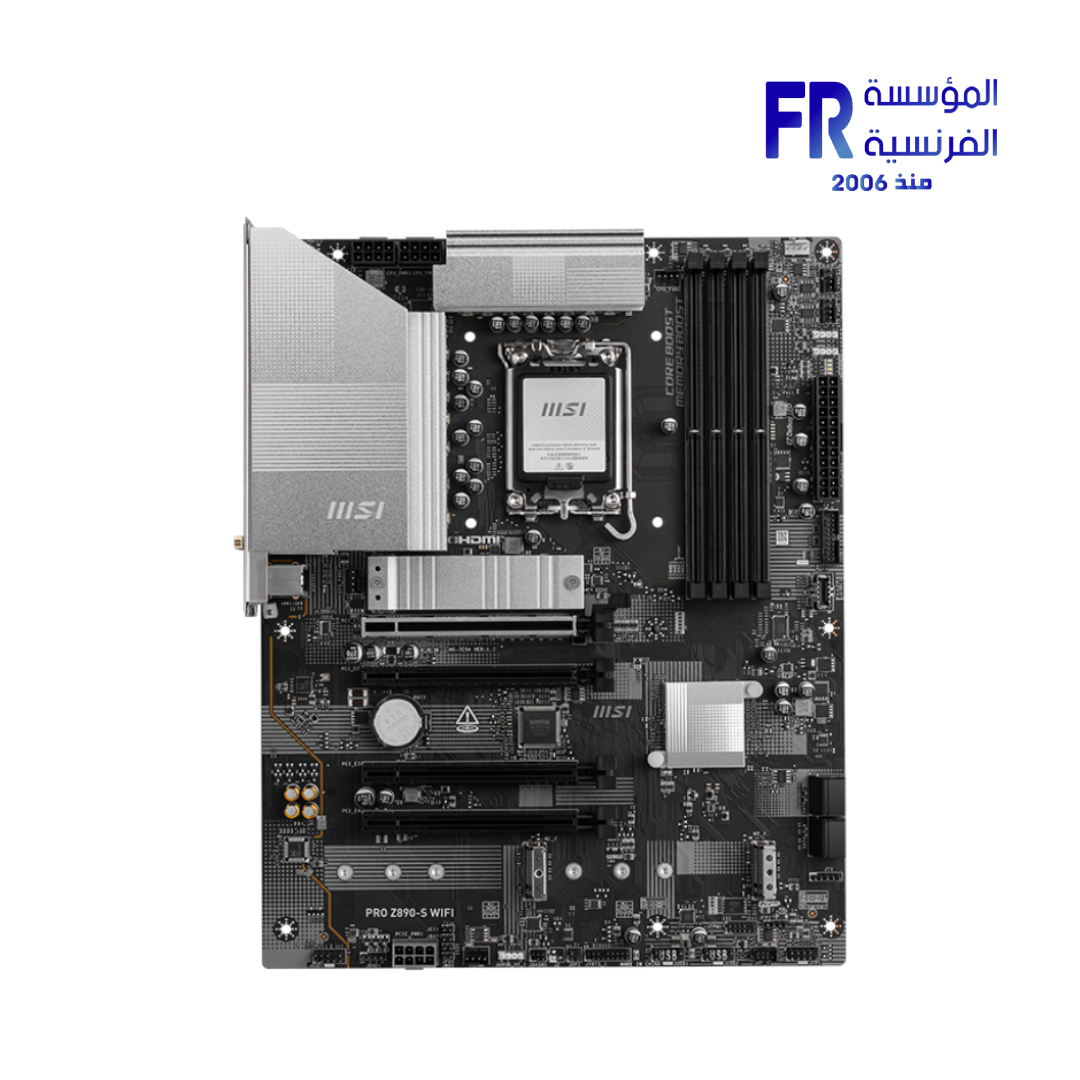

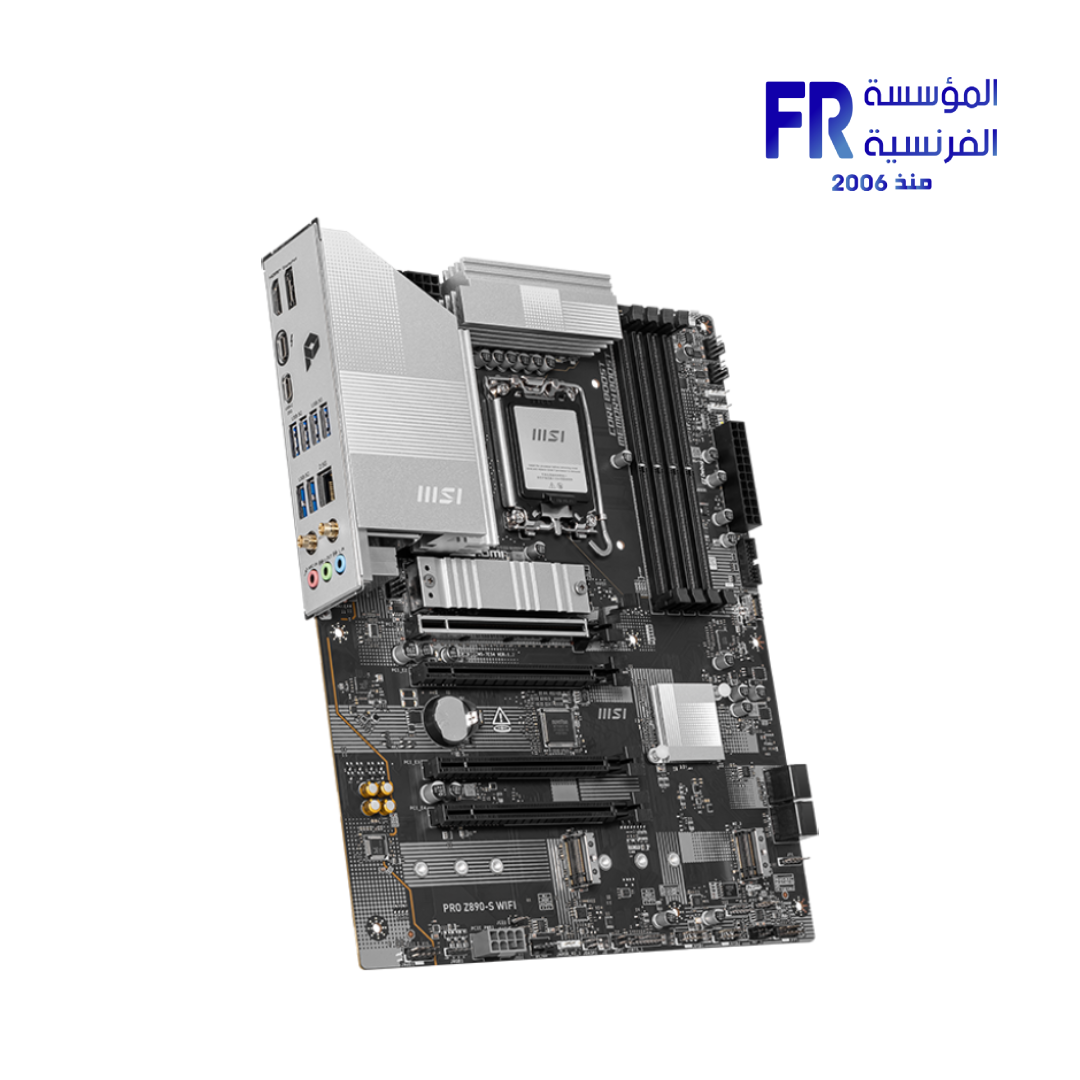

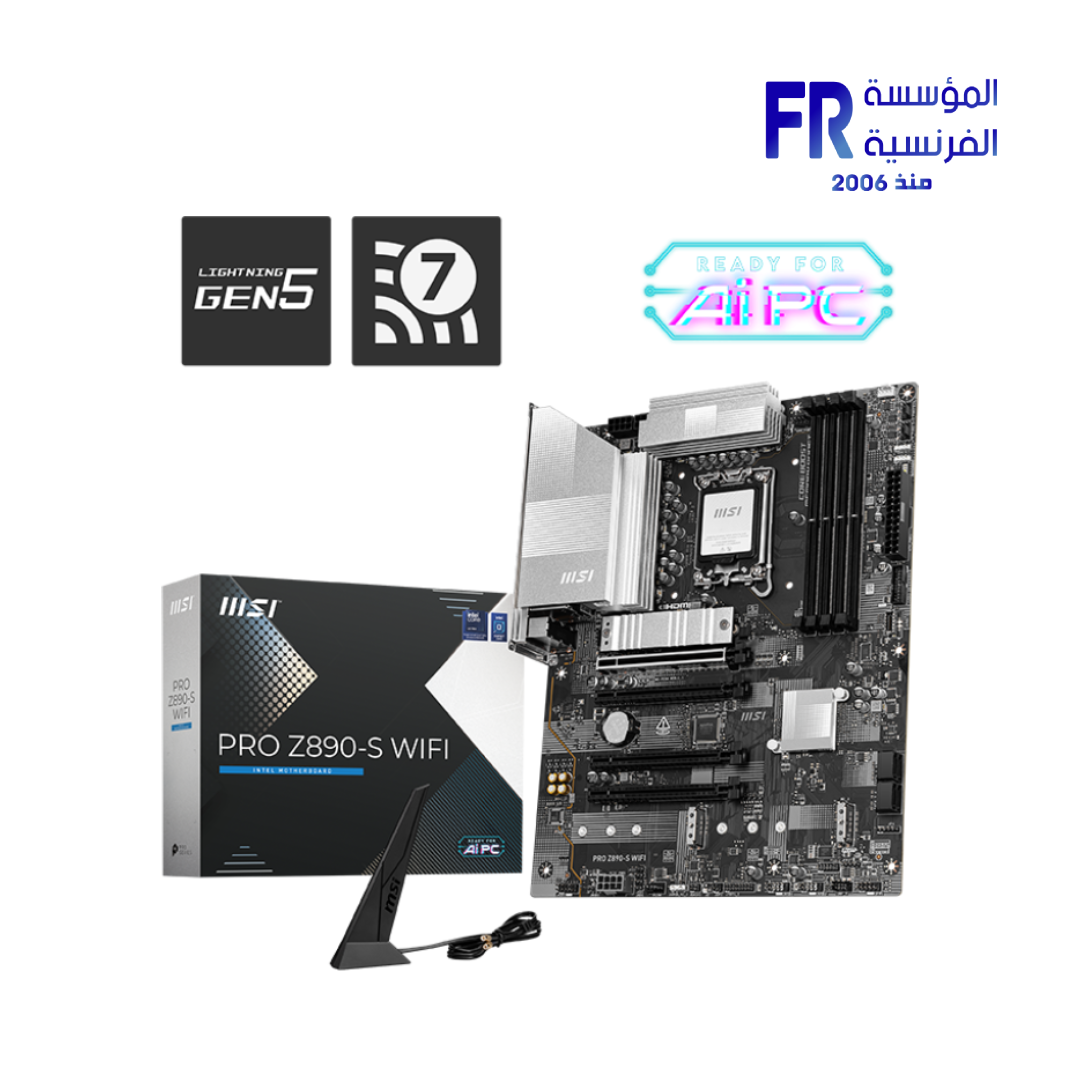

MSI PRO Z890-S WIFI Black Motherboard

The MSI PRO Z890-S WIFI Motherboard is the ultimate foundation for building a high-performance system utilizing Intel’s latest processors. Consequently, with support for blazing-fast DDR5 memory up to 8800+ MHz and next-gen Wi-Fi 7, this model is the best Intel Z890 motherboard in Egypt under 13,100 EGP. Moreover, it includes a robust power design and full LGA 1851 support for extreme overclocking and stability.

LGA 1851

Intel Core Ultra Support

PCIe 5.0

Primary GPU Slot

8800+ MT/s

DDR5 OC Speed

Wi-Fi 7

Next-Gen Wireless

Extreme Bandwidth and Connectivity with Intel Z890

Unrivaled PCIe 5.0 and M.2 Storage Capabilities

The Z890 platform is engineered for peak performance, supporting up to 256GB of DDR5 memory with speeds up to **8800+ MT/s** via Intel XMP 3.0. Furthermore, storage options are robust, featuring one ultra-fast PCIe 5.0 x4 M.2 slot and two additional PCIe 4.0 M.2 slots, ensuring blazing-fast load times for your operating system and games. This bandwidth ensures your high-end components perform without bottleneck.

Cutting-Edge Thunderbolt 4 and Wi-Fi 7 Integration

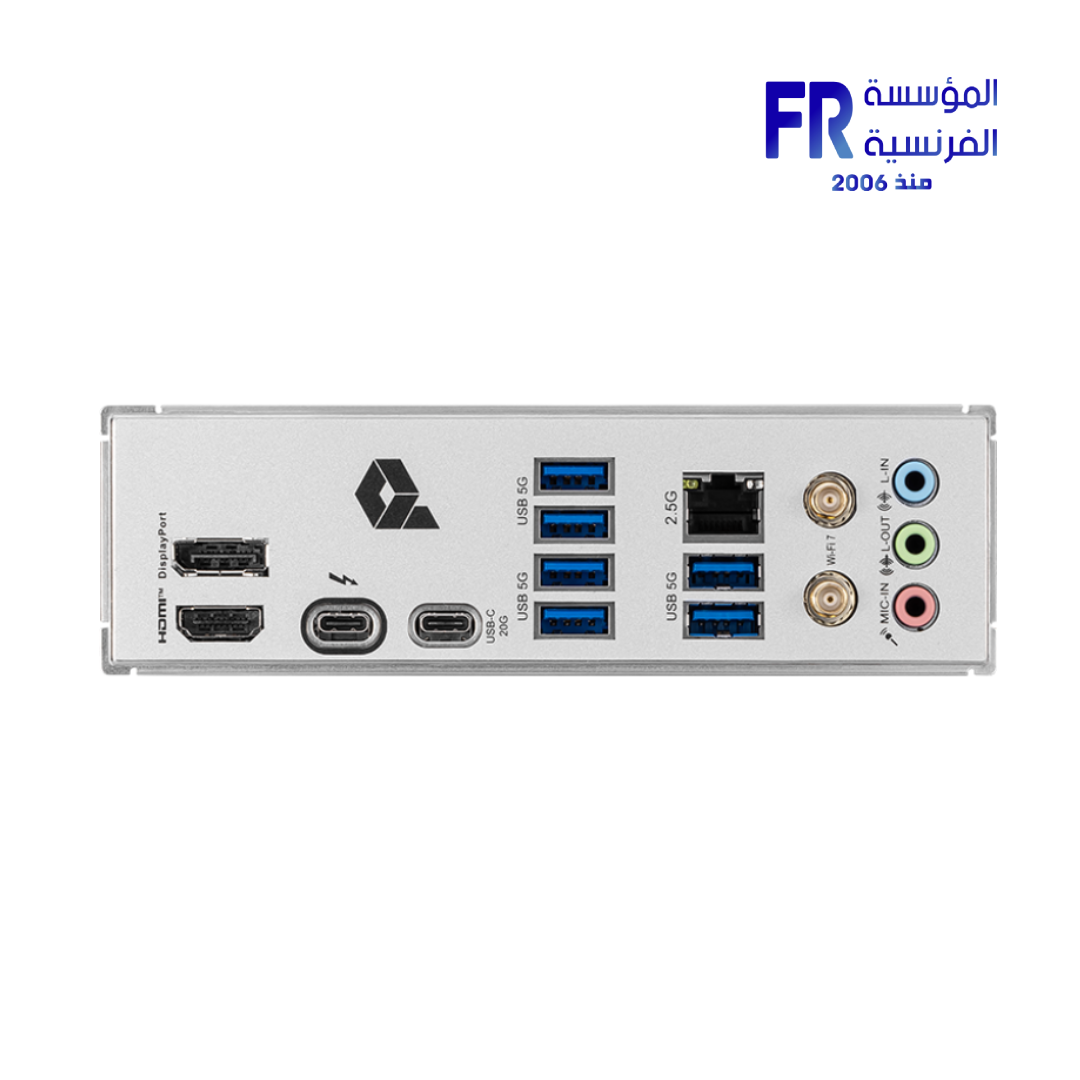

Connectivity is future-proofed with the inclusion of the cutting-edge **Intel Wi-Fi 7** module, capable of speeds up to 5.8Gbps on the 6GHz band. In addition, the rear I/O is highly capable, featuring a **Thunderbolt™ 4** port with up to 40Gbps transfer rate and DisplayPort 2.1 support, alongside dedicated **USB 20Gbps Type-C** and 2.5Gbps LAN, providing comprehensive high-speed options.

Detailed Technical Specifications (MSI PRO Z890-S WIFI)

Specification	Detail
Chipset	INTEL Z890
CPU Socket	LGA 1851 (Supports Core Ultra Series 2)
Memory Type / Slots	4x DDR5 UDIMM (Max 256GB, OC up to 8800+)
Primary PCI-E Slot	PCI_E1 Gen PCIe 5.0 x16 (From CPU)
Primary M.2 Slot	Supports up to PCIe 5.0 x4
Networking	Intel® Wi-Fi 7 / 2.5G LAN / Bluetooth® 5.4
Rear I/O (Key Ports)	Thunderbolt™ 4, USB 20Gbps Type-C
Form Factor	ATX

💡 Pro Tip:

When installing a high-speed NVMe SSD into the primary **PCIe 5.0** M.2 slot, ensure you use a dedicated thermal solution. The sheer speed and heat generated by PCIe 5.0 drives can cause thermal throttling if not adequately cooled, limiting the potential of the **MSI PRO Z890-S WIFI Motherboard**.
