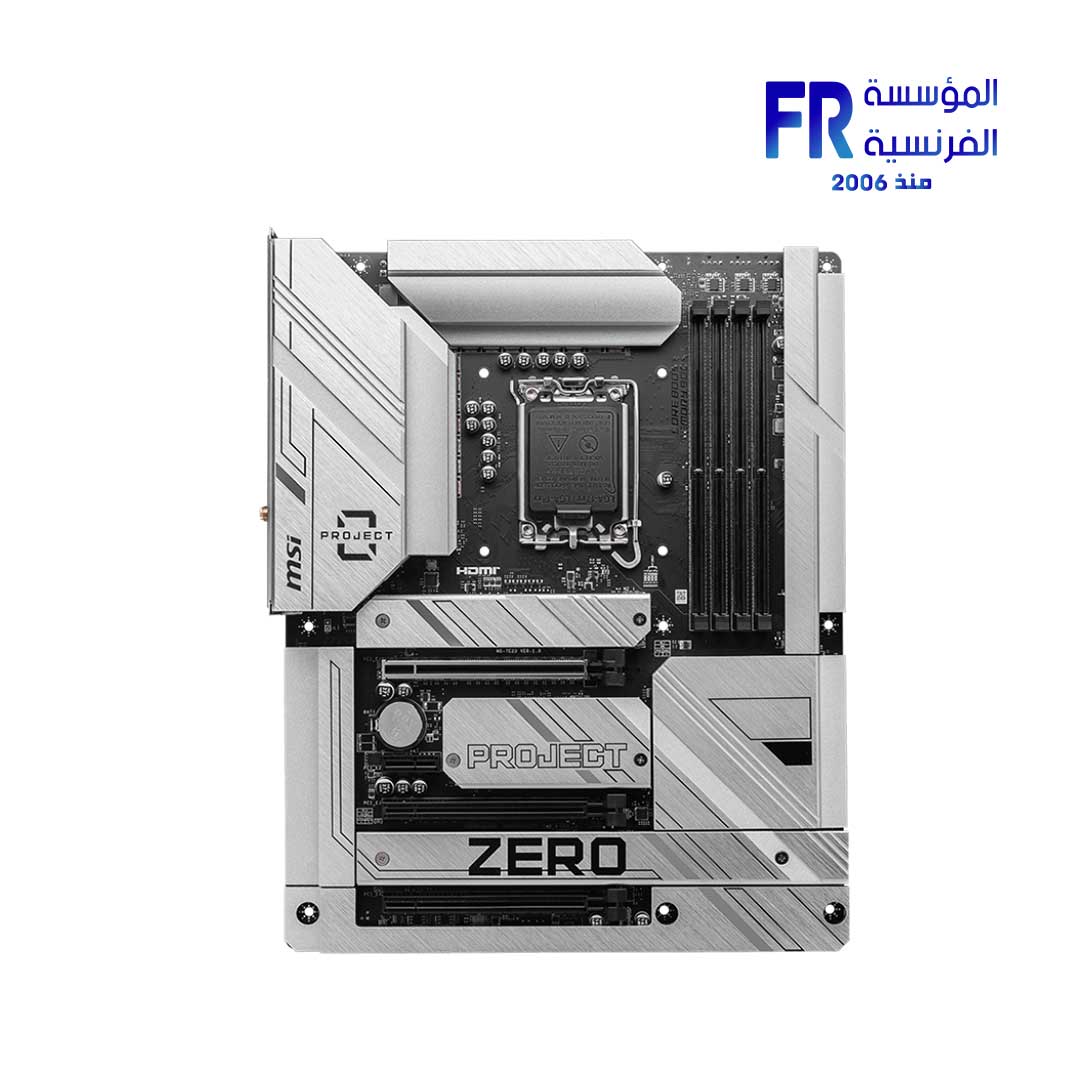

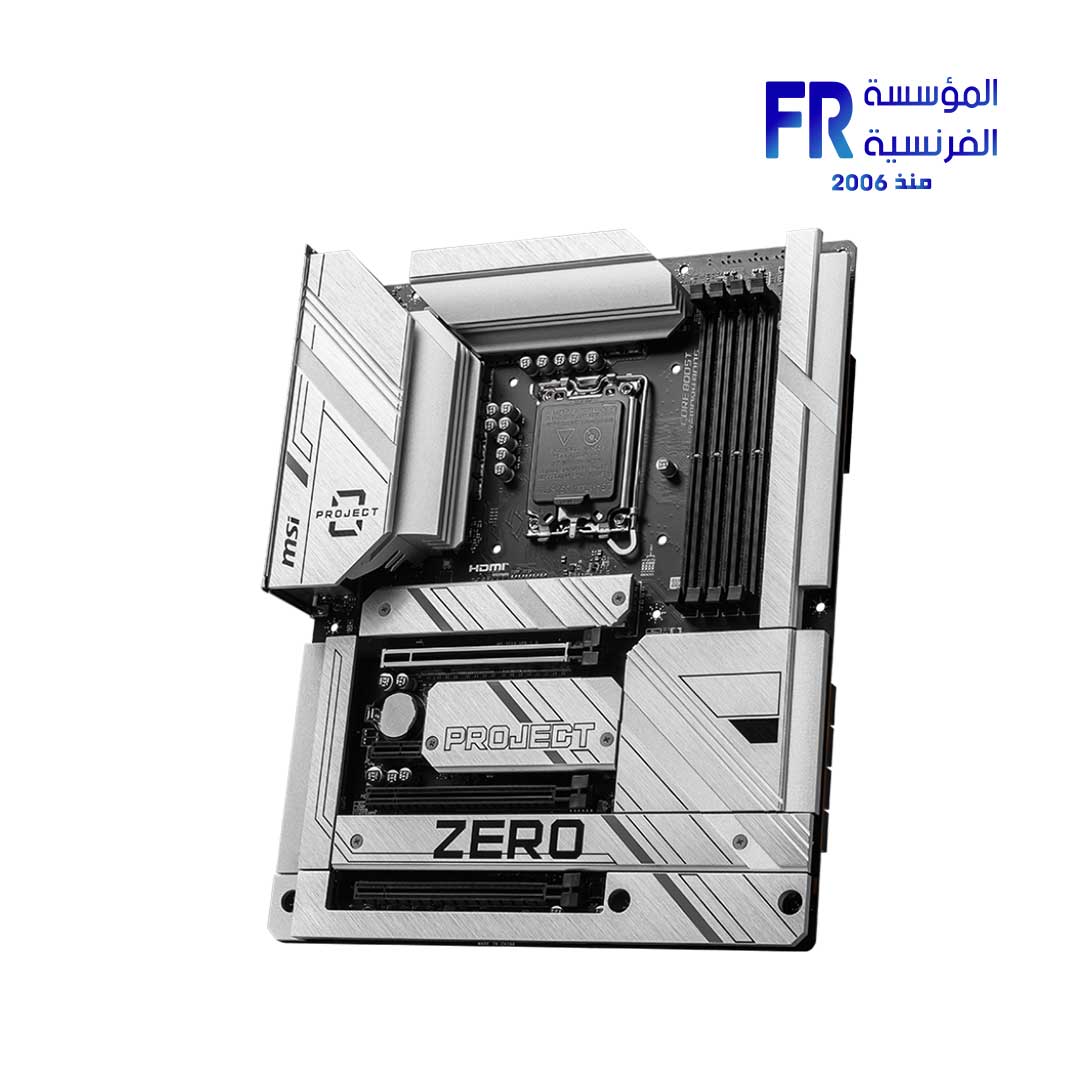

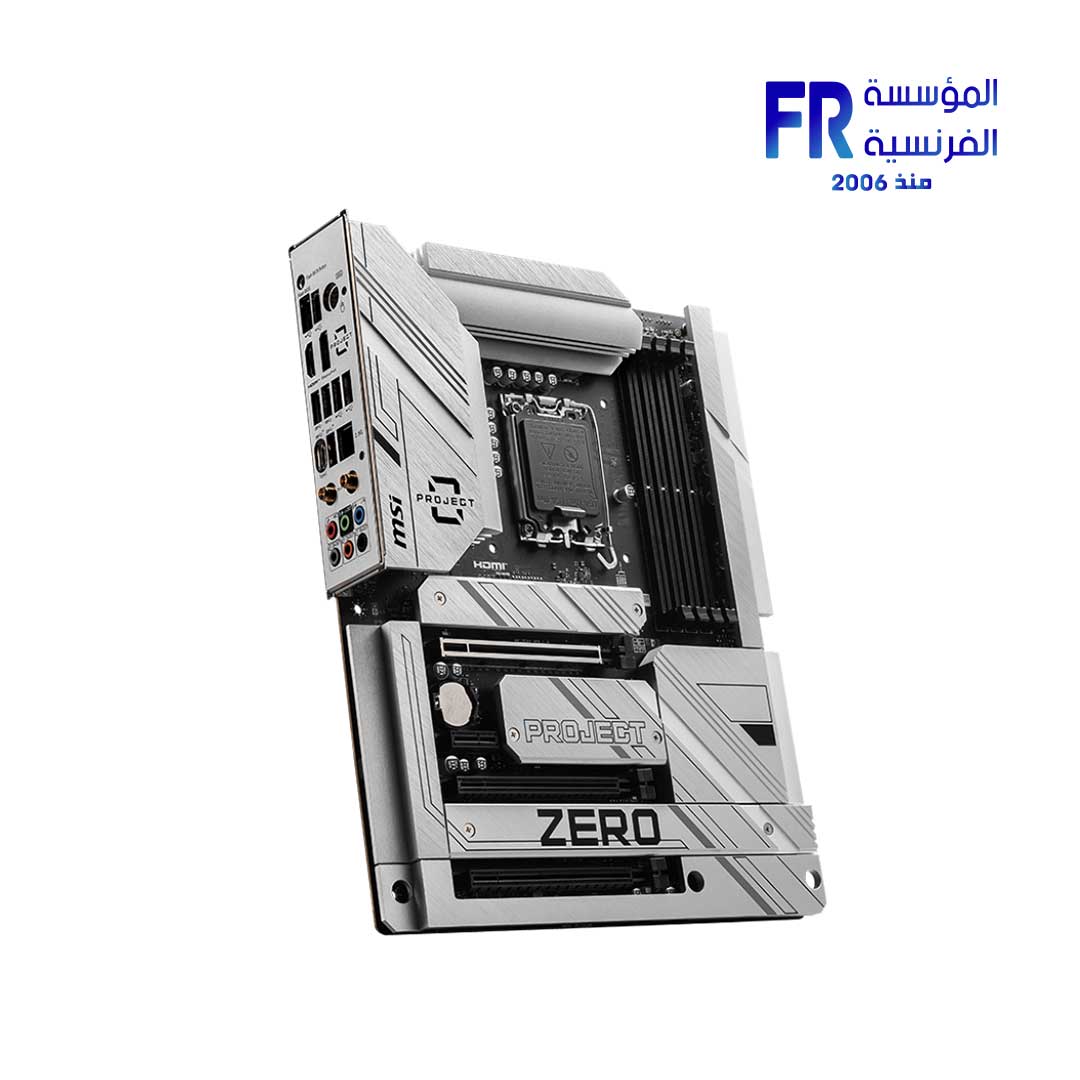

Msi Z790 Project Zero Motherboard
13000 EGP
- ATX Form Factor
- Intel Z790 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR5 RAM Slots
- 6 x SATA, 4 x M.2
- PCIe 5.0 x16 & PCIe 4.0 x16
- 2 x PCIe 3.0 x4
- Wi-Fi 7 | 2.5 GbE LAN | Bluetooth 5.4
- USB 2.0, 3.2 Gen 1, Gen 2, Gen 2×2
- Windows 11
Out Of Stock.
Msi Z790 Project Zero Motherboard
Chipset |
INTEL Z790 |
|---|---|
CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode |
Onboard Graphics |
1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Slot |
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Audio |
Realtek® ALC897 Codec 7.1-Channel High Performance Audio |
Storage |
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
LAN |
Intel® 2.5Gbps LAN |
Internal IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. |
LED FEATURE |
4x EZ Debug LED |

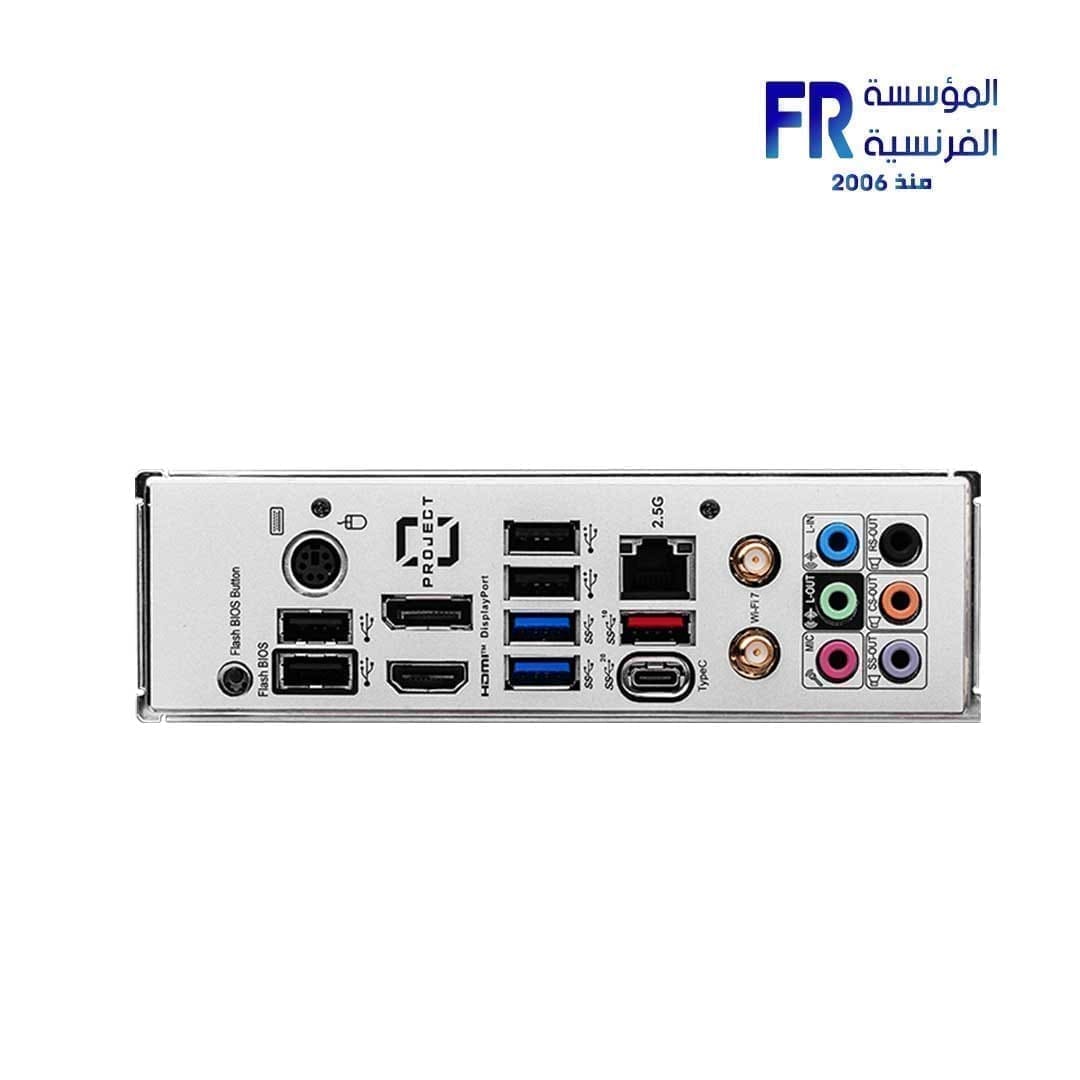

BACK PANEL PORTS |
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |

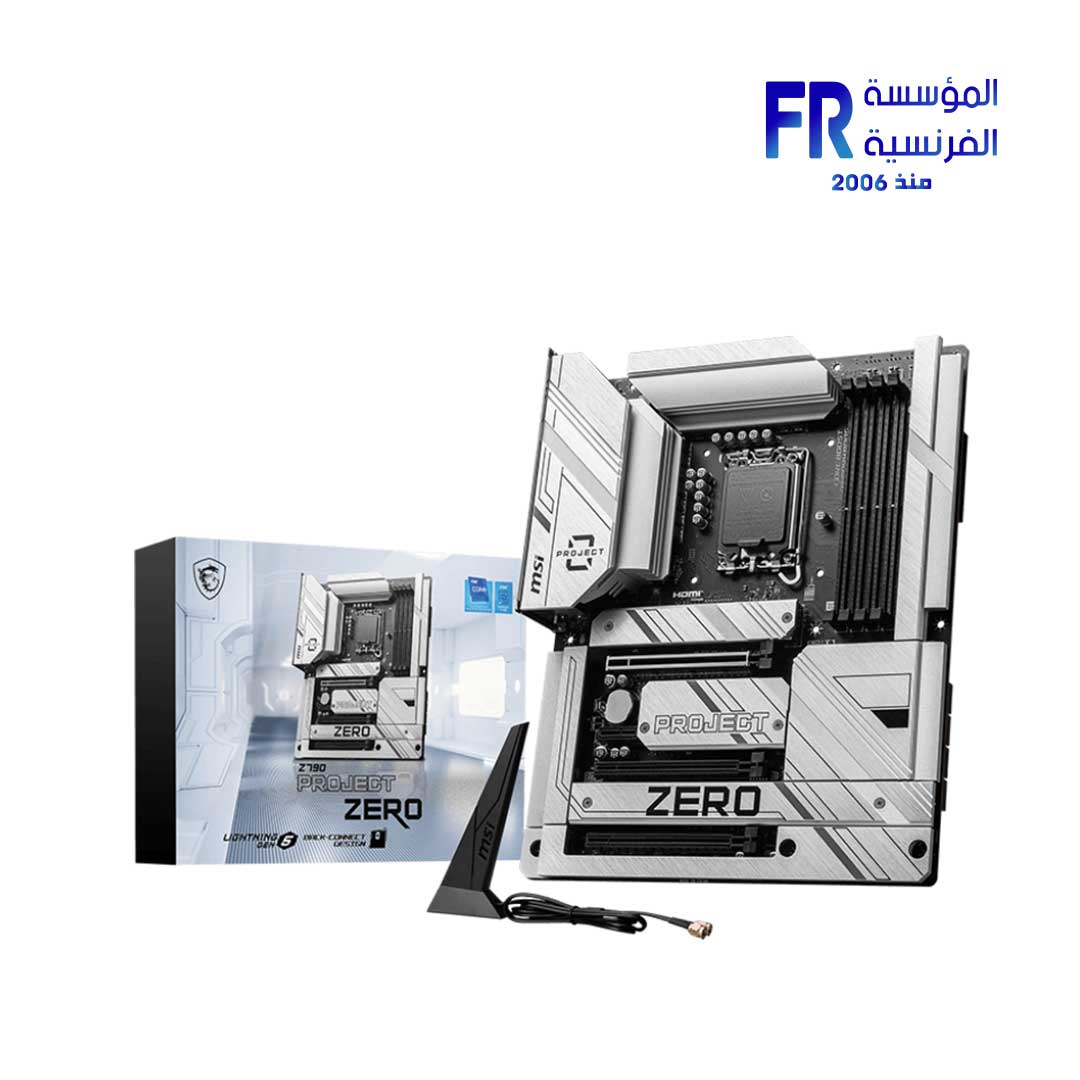

BOX CONTENT |
 |

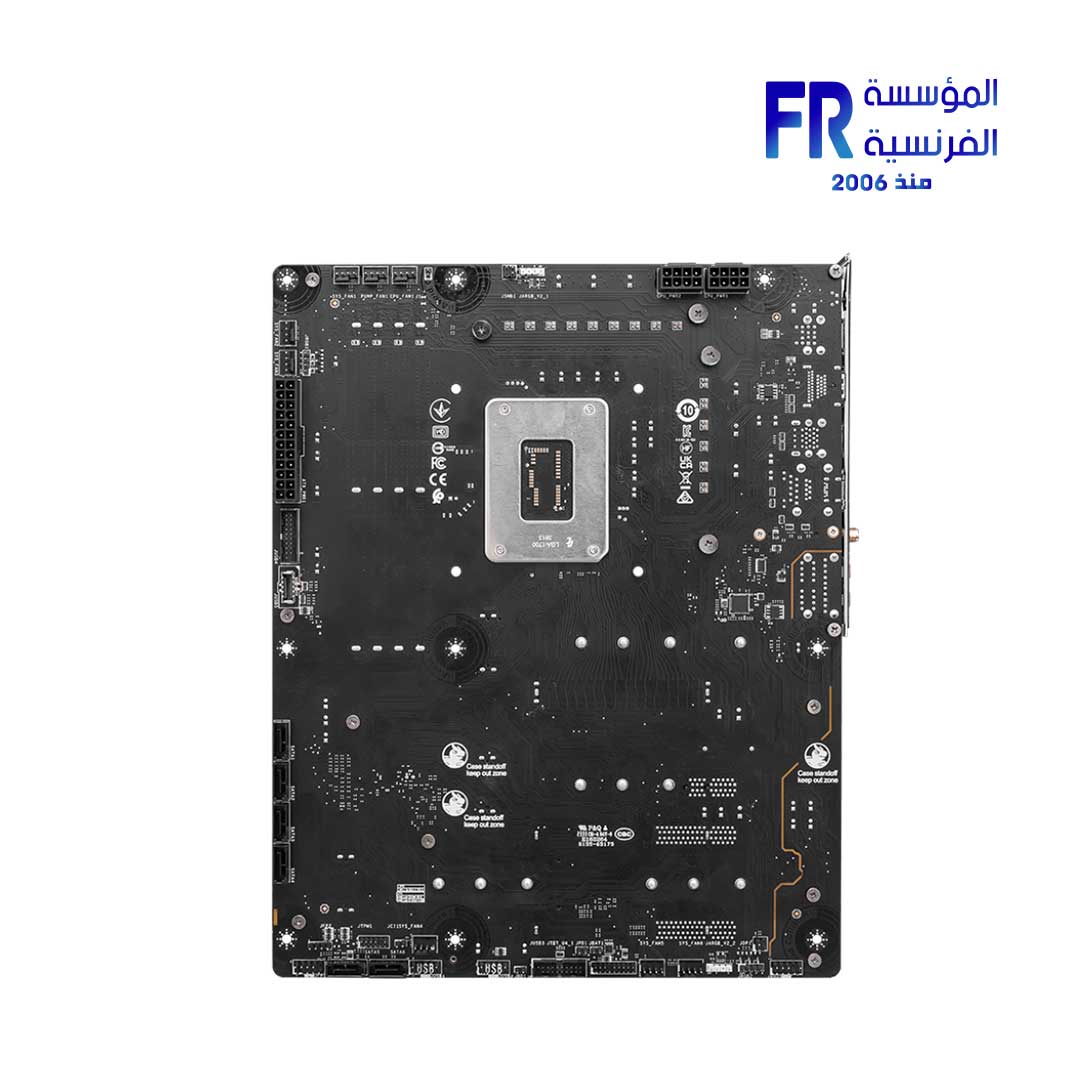

PCB Info |
ATX 243.84mmx304.8mm |
