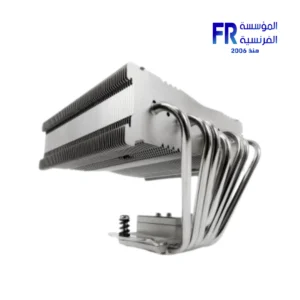

Noctua NH-C14S Top-Flow CPU Cooler

The Noctua NH-C14S redefines top-flow cooling with its dual-fan capable design, offering exceptional thermal performance for both standard and small form factor builds through its innovative downward-facing heatsink orientation.

Dual-Fan Top-Flow Architecture:

Versatile Cooling Configuration:

The NH-C14S supports both single 140mm fan (included) and dual 140mm/120mm fan setups (additional fan not included) for flexible cooling performance. The top-flow design directly cools motherboard components while efficiently exhausting heat.

NF-A14 PWM Fan:

Includes a premium NF-A14 140mm PWM fan with Noctua’s AAO frame technology and SSO2 bearing, delivering excellent airflow (140.2 m³/h max) at minimal noise levels (24.6 dB(A) max).

Technical Specifications:

• Model: NH-C14S
• Height: 115mm (with single fan)
• Width: 140mm
• Depth: 166mm
• Weight: 730g (with fan)
• Included Fan: NF-A14 PWM (140mm)
• Fan Speed: 300-1500 RPM (±10%)
• Max. Noise Level: 24.6 dB(A)
• Airflow: 140.2 m³/h
• Socket Compatibility: Intel LGA1851/1700/1200/115x, AMD AM5/AM4
• TDP Rating: Up to 140W (depending on configuration)

Unique Design Advantages:

VRM and RAM Cooling:

The downward airflow pattern actively cools voltage regulator modules and memory components, making it ideal for overclocking scenarios where motherboard component temperatures are critical.

Case Compatibility:

The 115mm height fits many small form factor cases that can’t accommodate tower coolers, while the top-flow design avoids interference with tall RAM modules or PCIe cards.

Premium Accessories:

• NT-H1 thermal compound
• Low-noise adapter (L.N.A.)
• SecuFirm2 mounting system
• 4-pin PWM y-cable
• Additional mounting hardware for dual-fan configuration
• Compatibility checkers for all supported sockets
