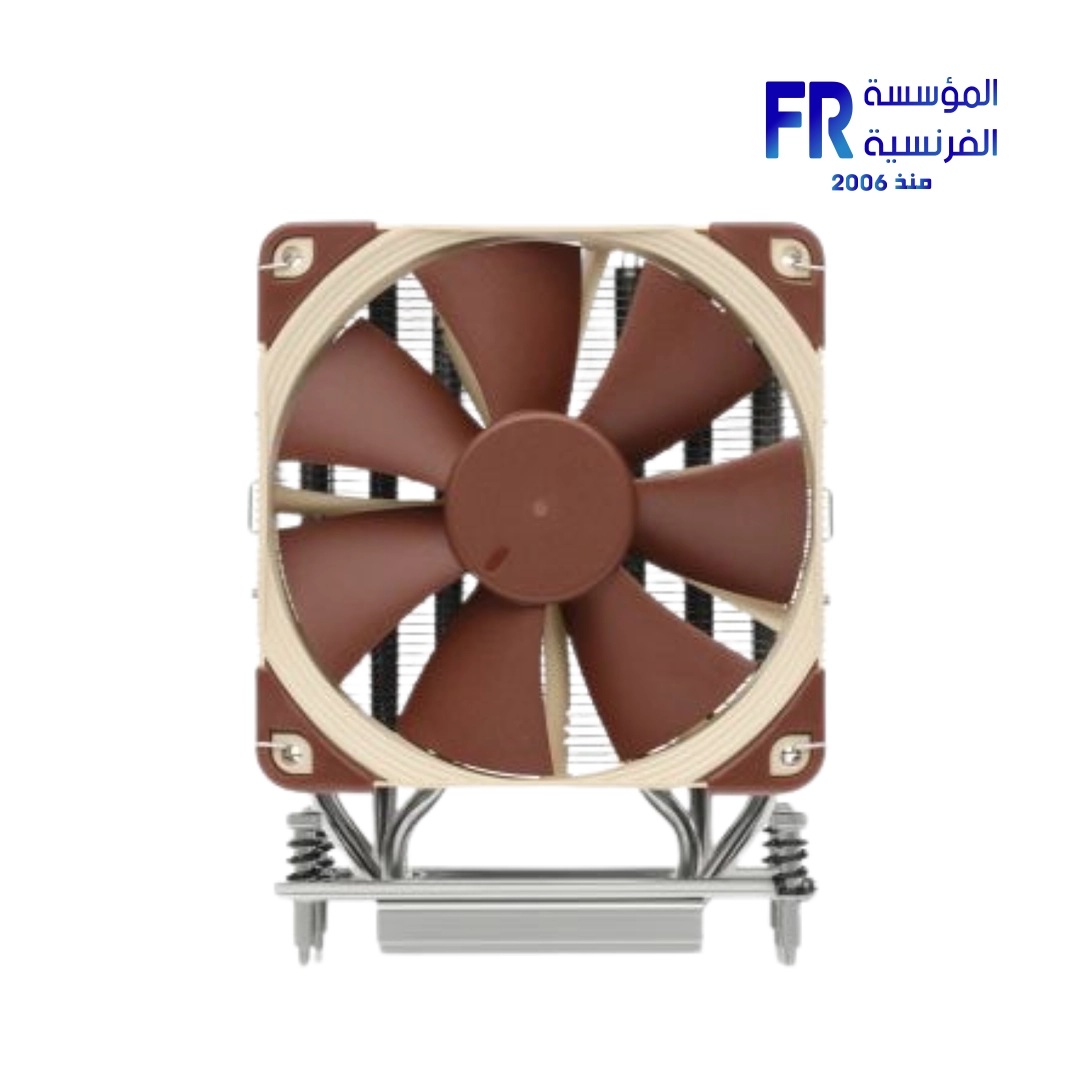

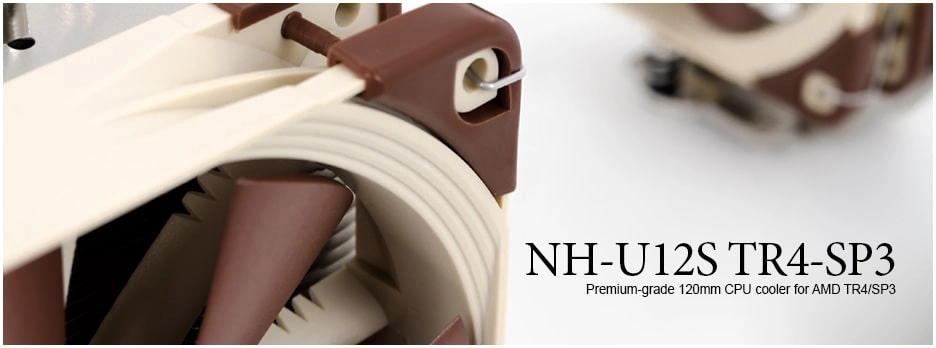

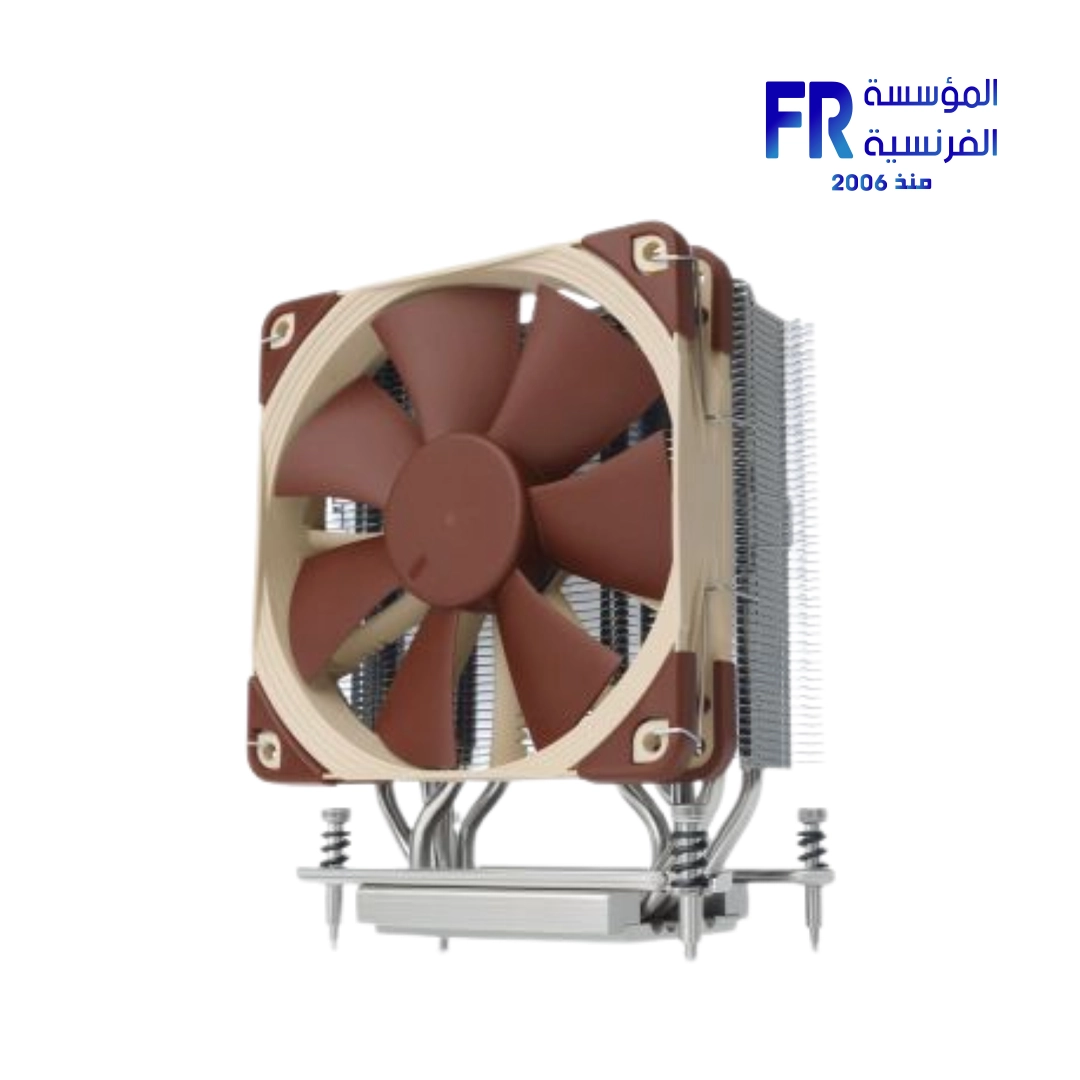

Noctua NH-U12S TR4-SP3 Air CPU Cooler

The Noctua NH-U12S TR4-SP3 Air CPU Cooler is a premium-grade cooling solution. It is specifically designed for AMD’s sTRX4/sWRX8/TR4/SP3 platforms (Ryzen Threadripper / Epyc). This cooler features a customized larger base. It delivers outstanding performance, superb acoustics, and excellent compatibility for high-end workstations and servers.

Key Features:

Tailored for AMD sTRX4/TR4/SP3:

• Dedicated version for AMD sTRX4, sWRX8, TR4, and SP3 sockets. It features a larger copper contact surface (70x56mm). This is optimized for the enormous integrated heat-spreaders (IHS) of these processors.
• Ensures optimal heat flow from the CPU over the base to the heatpipes and cooling fins.
• Incompatible with other sockets due to its specialized larger base.

Quiet Cooling Performance:

• Equipped with the renowned Noctua NF-F12 PWM 120mm fan. This combines superb static pressure with quiet operation.
• The fan operates at a maximum rotational speed of 1500 RPM. With the Low-Noise Adaptor (L.N.A.), it reduces to 1200 RPM.
• Maximum acoustical noise is 22.4 dB(A), further reduced to 18.6 dB(A) with L.N.A. for very quiet operation.
• Features SSO2 bearing for long-term stability and durability.

Excellent Compatibility & Easy Installation:

• The 120mm size (158mm height, 125mm width with fan) ensures excellent performance and compatibility with most modern tower cases. It stays clear of the top PCIe slot on most motherboards.
• Features the SecuFirm2™ mounting system. This is custom-designed for TR4/SP3 sockets, ensuring easy and secure installation.
• Includes NT-H1 high-grade thermal compound for optimal heat transfer.
• Offset mounting options are available for better PCIe clearance in multi-GPU setups.

Explore compatible Air Coolers or check Noctua Products for other options. Find full details on the official Noctua NH-U12S TR4-SP3 product page.

Specifications:

• Model: NH-U12S TR4-SP3
• Socket Compatibility: AMD sTRX4, sWRX8, TR4, SP3
• Height (with fan): 158 mm
• Width (with fan): 125 mm
• Depth (with fan): 71 mm
• Weight (with fan): 870 g
• Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
• Fan Model: Noctua NF-F12 PWM
• Fan Bearing: SSO2
• Fan Speed (Max): 1500 RPM (+/- 10%)
• Fan Speed with L.N.A. (Max): 1200 RPM (+/- 10%)
• Min. Rotational Speed @ 20% PWM: 300 RPM (+/-20%)
• Max. Airflow: 93.4 m³/h
• Max. Airflow with L.N.A.: 74.3 m³/h
• Max. Acoustical Noise: 22.4 dB(A)
• Max. Acoustical Noise with L.N.A.: 18.6 dB(A)
• Input Power (Max.): 0.6 W
• Voltage Range: 12 V
• MTTF: > 150,000 h
• Scope of Delivery: NF-F12 PWM premium fan, Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2™ sTRX4/TR4/SP3 mounting-kit, Anti-vibration pads and fan-clips for second NF-F12, Noctua metal case-badge
• Part Number: NH-U12S TR4-SP3
• EAN: 9010018000115
