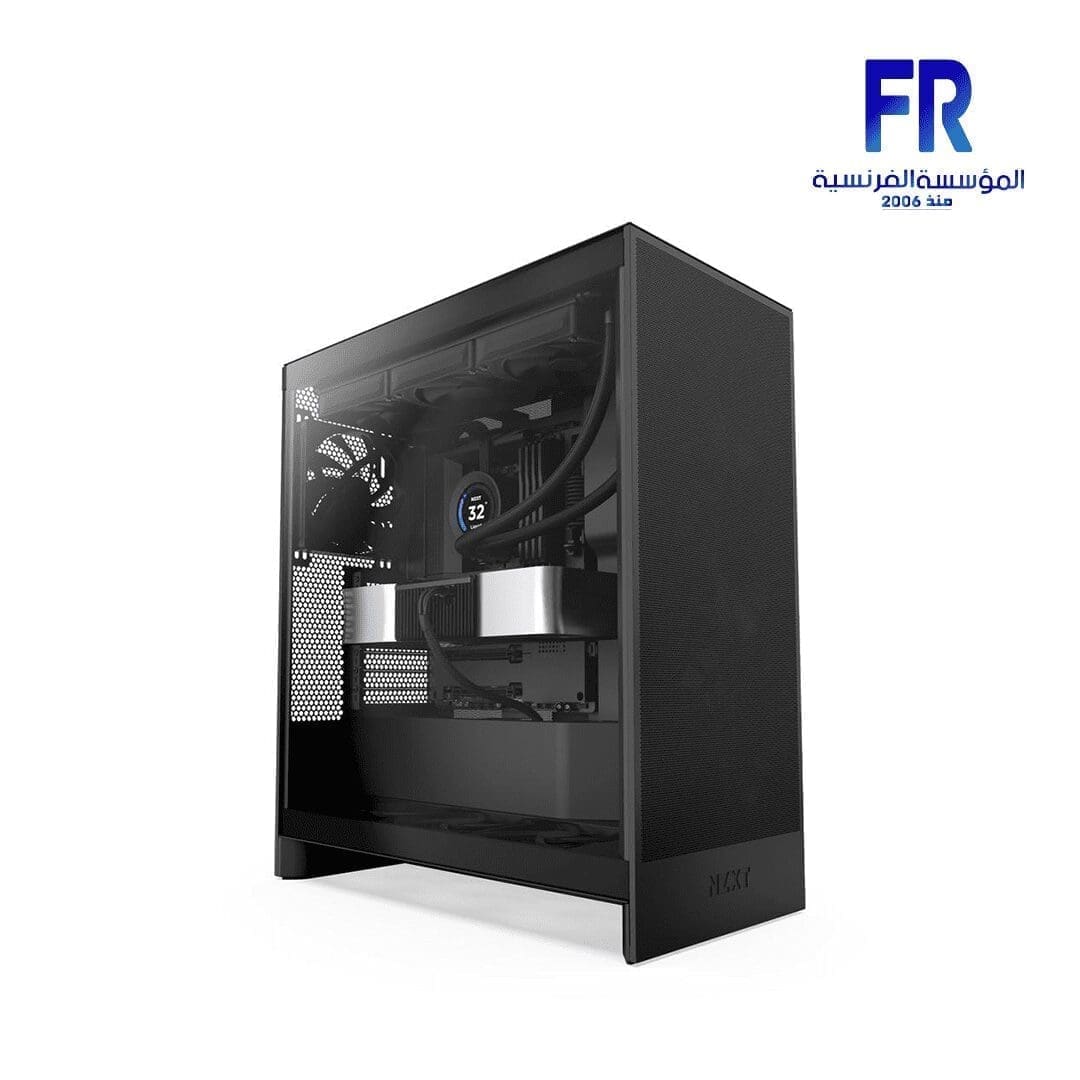

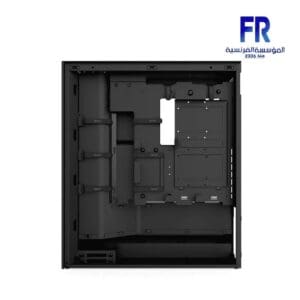

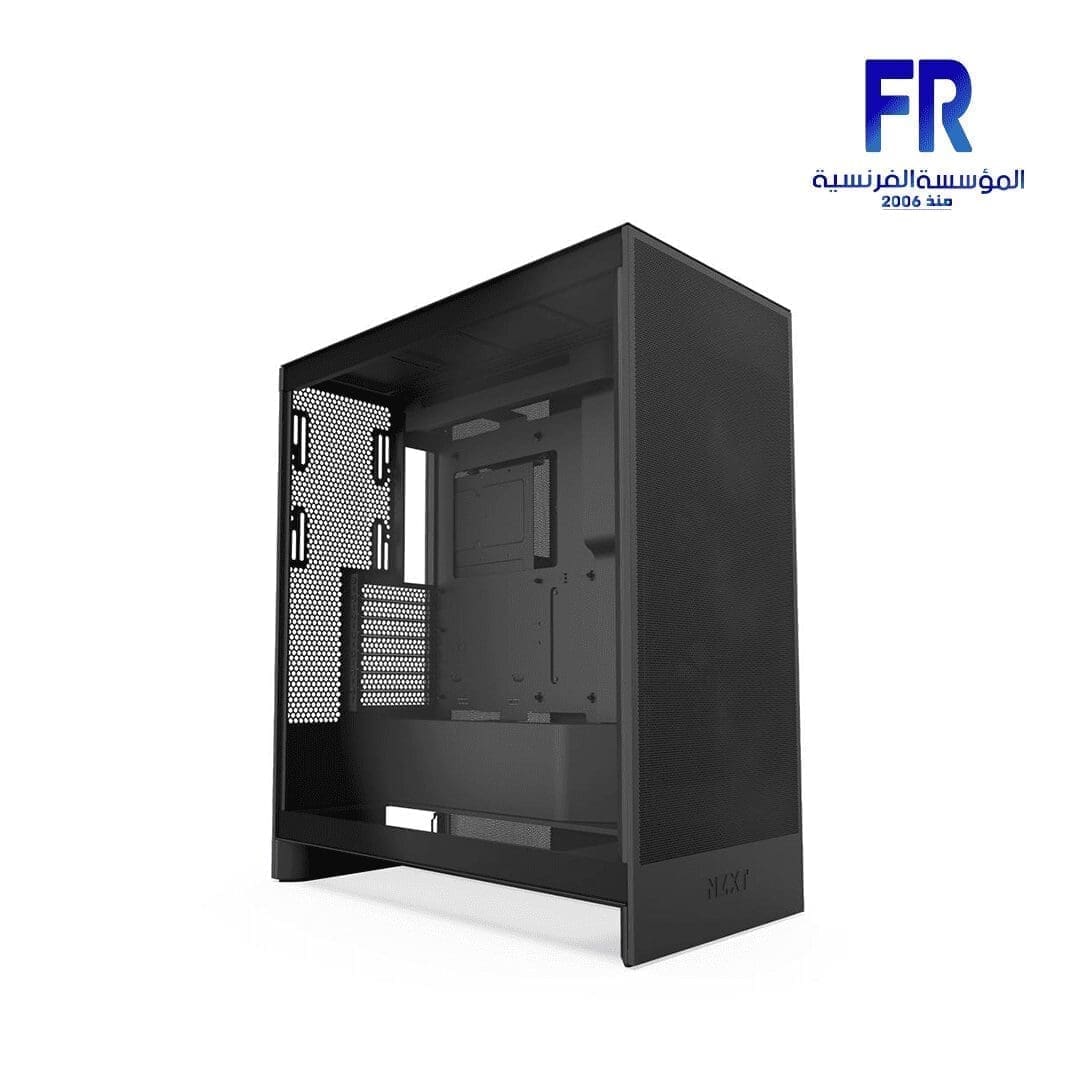

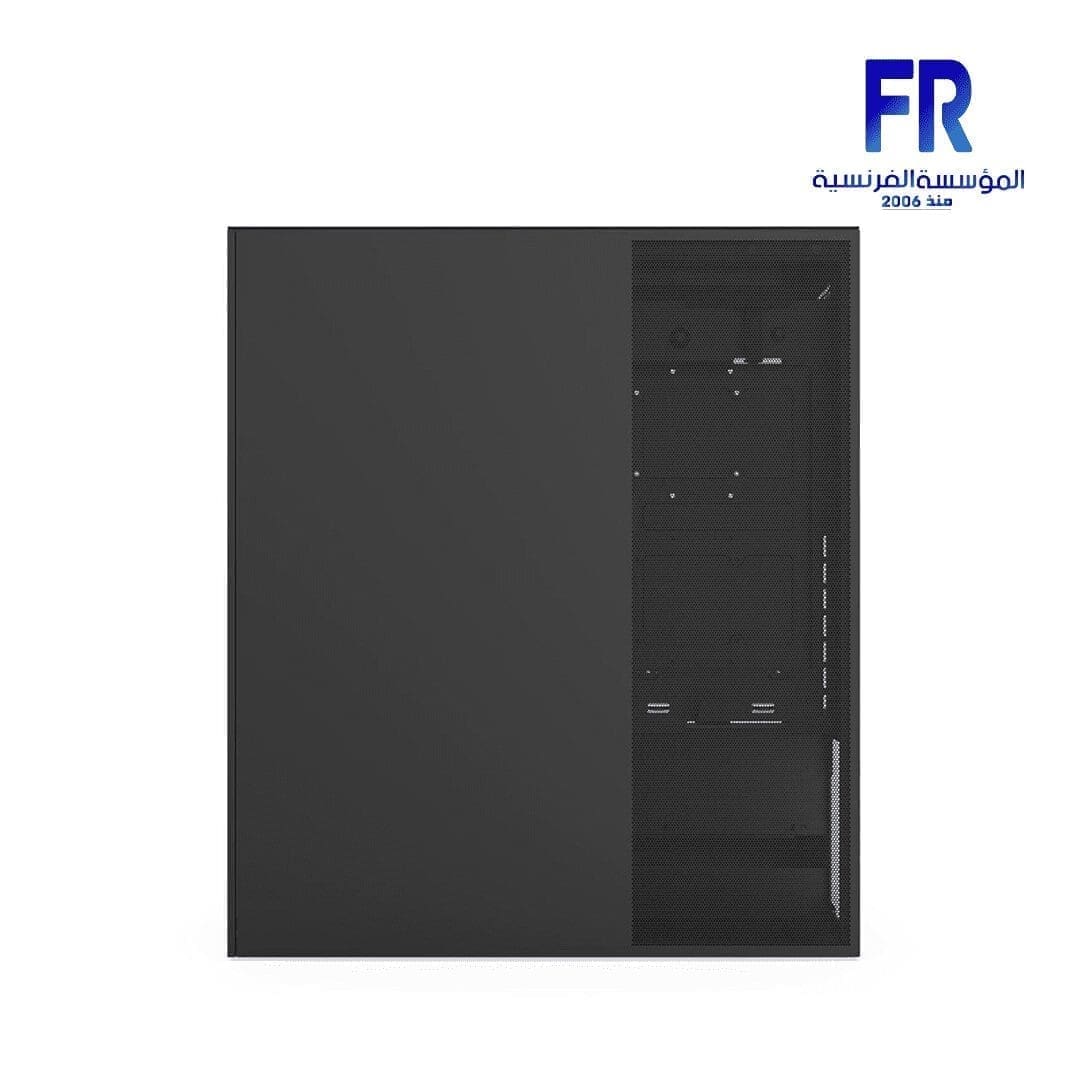

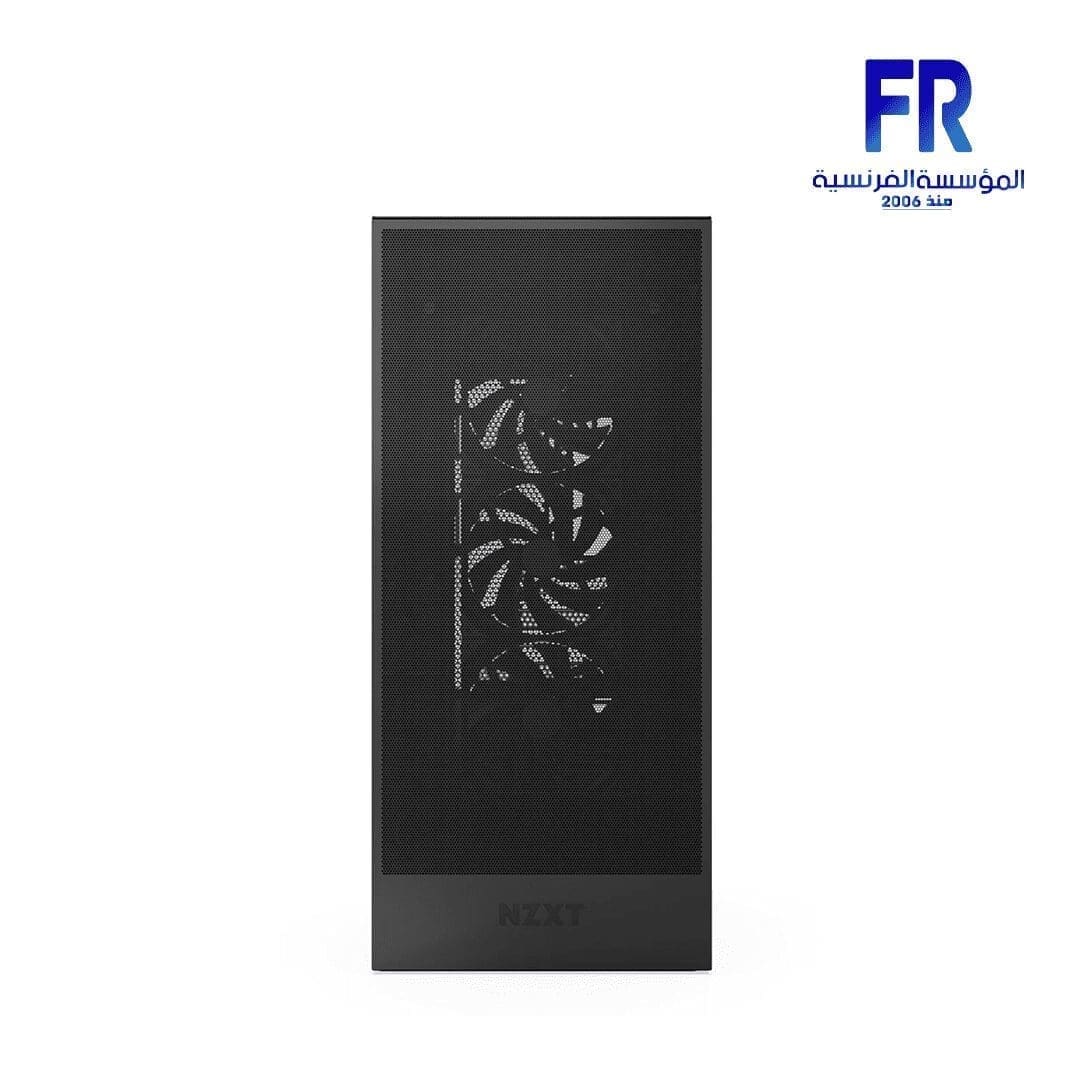

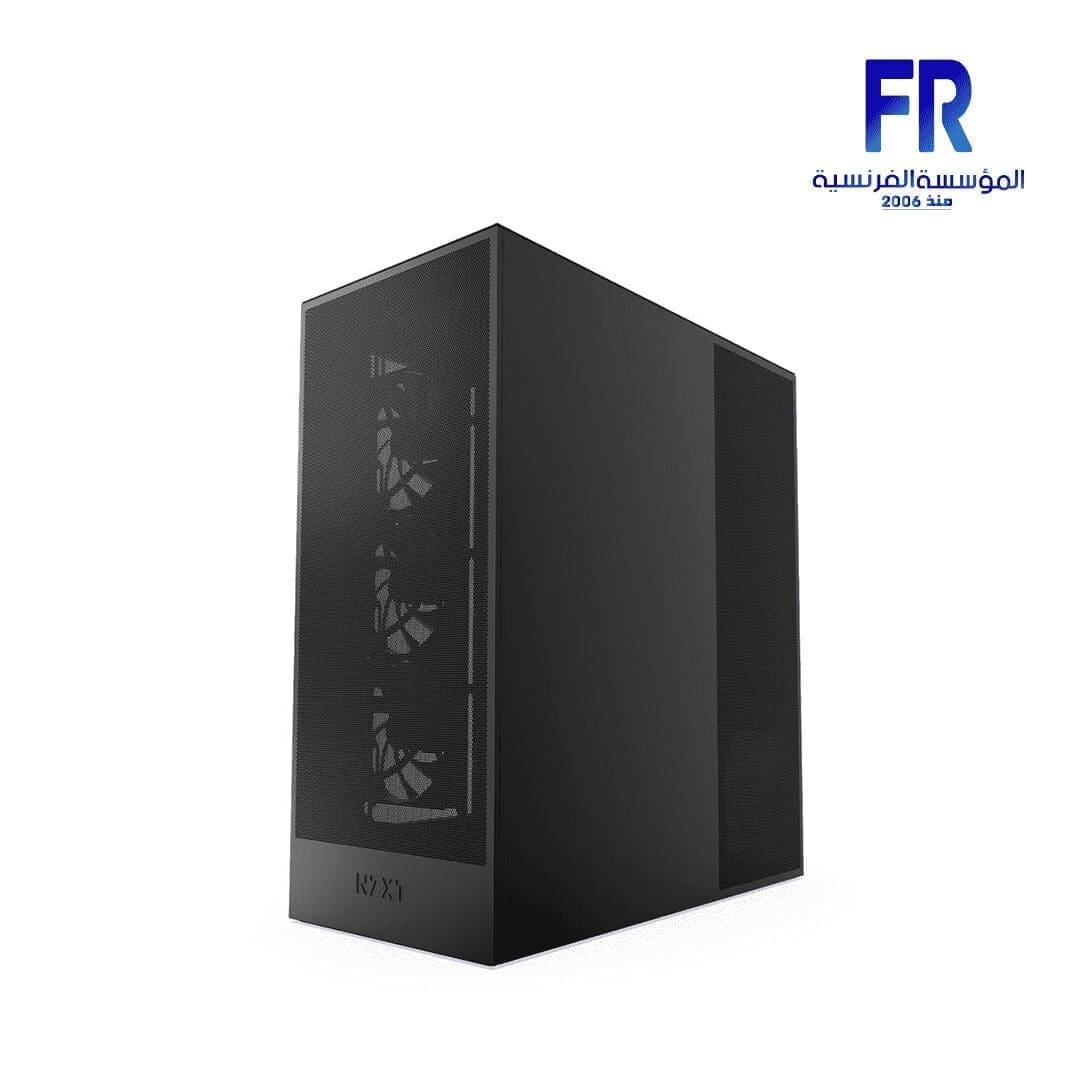

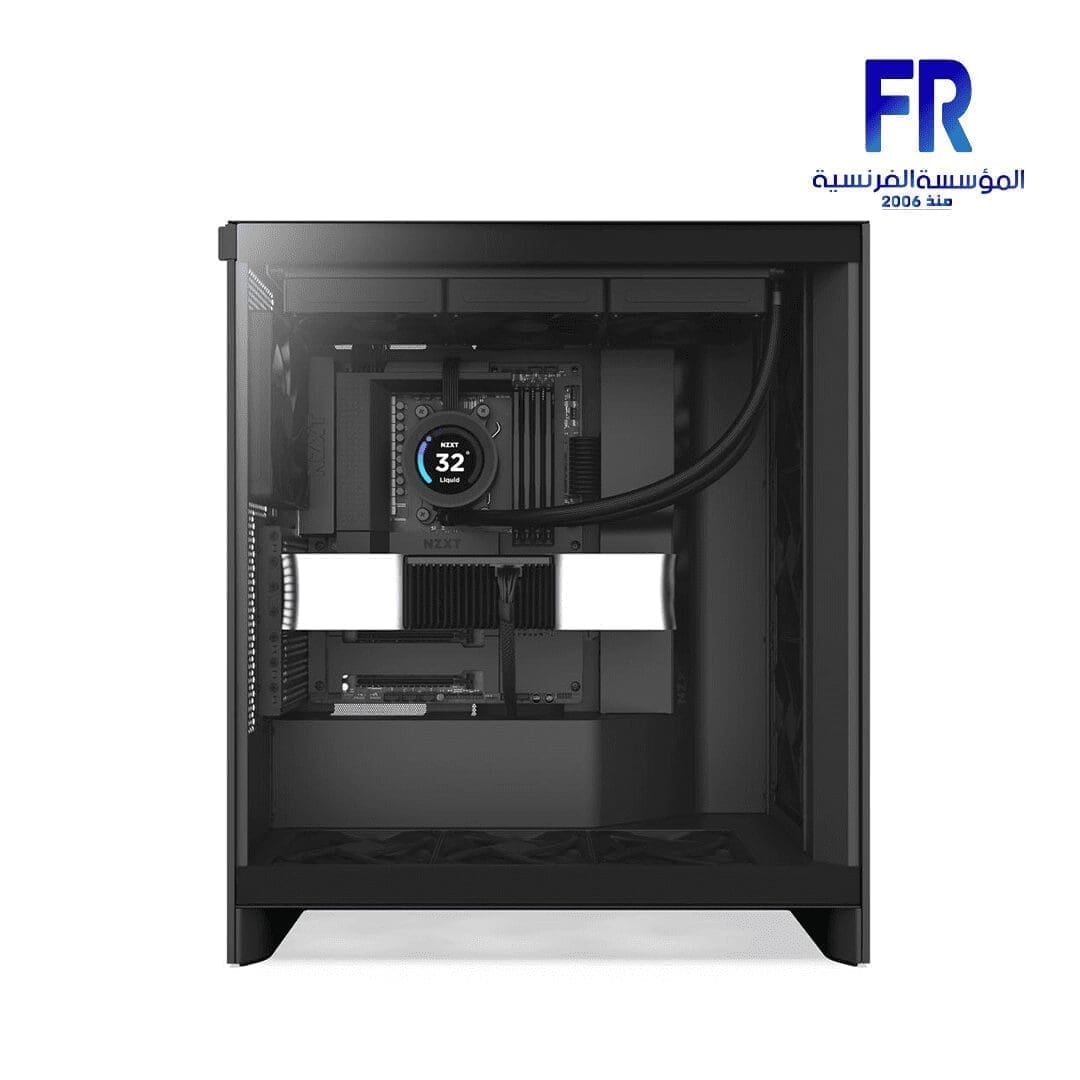

Nzxt H7 Flow Black Mid Tower Case

7600 EGP

Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Out Of Stock.

Price Match Guarantee

SKU: 810074845557 Categories: CASES Tags: case, BLACK MID TOWER Case, H7 Flow, MID, H7 Flow Black Mid Tower Case, MID TOWER CASE, TOWER CASE, BLACK, Nzxt, TOWER Brand: NZXT

In stock

On sale (51)

Nzxt H7 Flow Black Mid Tower Case

Motherboard Support	E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type	Mid-Tower
Case Material	SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet)	544 mm
Width	244 mm
Depth	468 mm
Weight	11.13 kg
Compatibility & Clearance
CPU Cooler Height	Up to 185 mm
GPU Length	Up to 410 mm
PSU Length	Up to 200 mm
Cable Management	Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness	Up to 57 mm
Front I/O Ports
USB 3.2 Gen 1 Type-A	2
USB 3.2 Gen 2 Type-C	1
Headset Audio Jack	1
Expansion Slots
Standard	7
Vertical	0
Drive Bays
2.5″	2+2
3.5″	2
Fan Support
Front	3 x 120 mm / 3 x 140 mm (3 x F120Q included)
Top	3 x 120 mm / 2 x 140 mm
Rear	1 x 120 mm / 1 x 140 mm
Filters	High-Performance Mesh
Radiator Support
Front	Up to 420 mm
Top	Up to 360 mm
Rear	Up to 140 mm
Fan Specs
Model	F120Q Airflow Fan (Case Version)
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static	1.05 mm – H2O
Noise	24.1 dBA
Fan Connector	3-pin

Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

MODEL	H7 Flow
CASE SIZE	MID TOWER
PANEL	Airflow, Tempered Glass
Motherboard Type	Mini ITX, Micro ATX, ATX, E-ATX
FANS INCLUDED	3 FAN
Expansion Slots	7
Fan Support	10x 120mm
Radiator Support	420mm
GPU Length	410mm
CPU Height	185 mm
PSU SUPPORT	200 mm
Pre-installed PSU	N/A
I/O Ports	HD Audio, USB 3.2 Gen 2 Type C, 2x USB 3.2 Gen 1
3.5“ Drive Bays	2
2.5" Drive Bays	4
Color	Black
Part Number	CM-H72FB-01
Warranty	1 Year

Nzxt H7 Flow Black Mid Tower Case

Nzxt H7 Flow Black Mid Tower Case

Nzxt H7 Flow Black Mid Tower Case

Motherboard Support

E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX

Enclosure Type

Mid-Tower

Case Material

SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (with feet)

544 mm

Width

244 mm

Depth

468 mm

Weight

11.13 kg

Compatibility & Clearance

CPU Cooler Height

Up to 185 mm

GPU Length

Up to 410 mm

PSU Length

Up to 200 mm

Cable Management

Up to 34.5 mm

Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness

Up to 57 mm

Front I/O Ports

USB 3.2 Gen 1 Type-A

2

USB 3.2 Gen 2 Type-C

1

Headset Audio Jack

1

Expansion Slots

Standard

7

Vertical

0

Drive Bays

2.5″

2+2

3.5″

2

Fan Support

Front

3 x 120 mm / 3 x 140 mm (3 x F120Q included)

Top

3 x 120 mm / 2 x 140 mm

Rear

1 x 120 mm / 1 x 140 mm

Filters

High-Performance Mesh

Radiator Support

Front

Up to 420 mm

Top

Up to 360 mm

Rear

Up to 140 mm

Fan Specs

Model

F120Q Airflow Fan (Case Version)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static

1.05 mm – H2O

Noise

24.1 dBA

Fan Connector

3-pin
