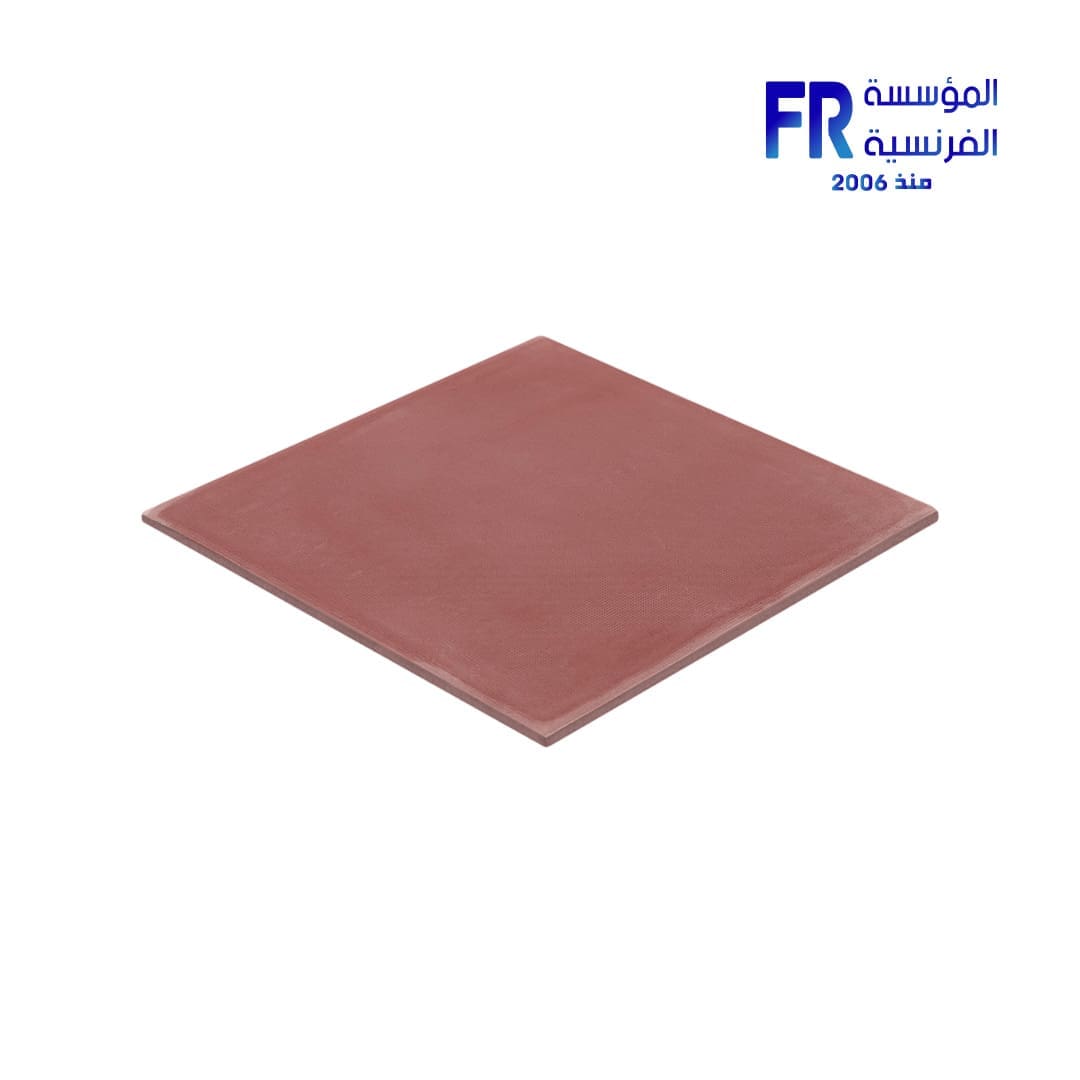

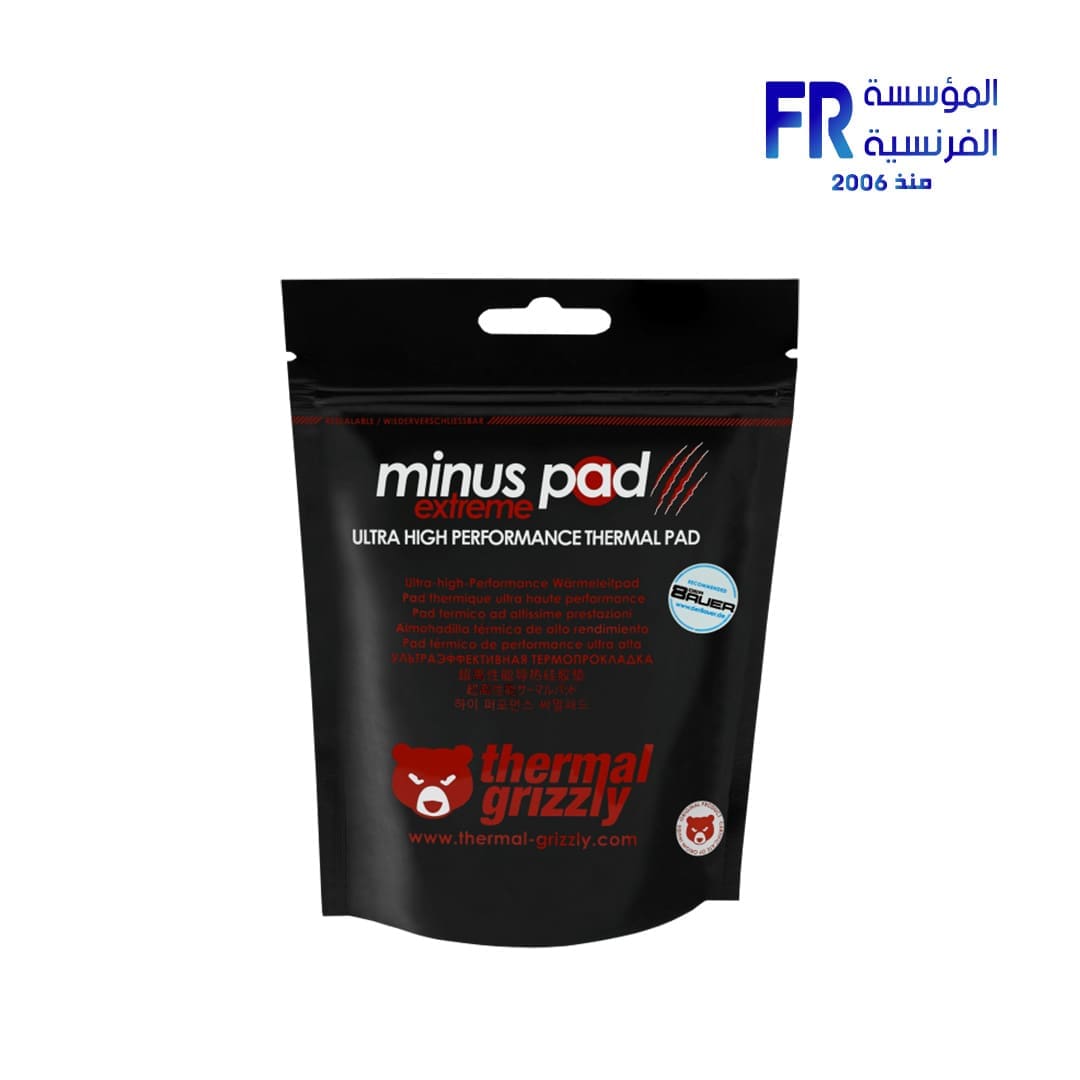

Thermal Grizzly Minus Pad Extreme 100x100x1.5mm Thermal Pad

The minus pad extreme thermal pad is silicone based with modelling clay like consistency. This allows a perfect surface shaping with maximum possible compression. The minus pad extreme is electrically insulating.

Due to the consistency only one-time use is recommended. The thermal conductivity was improved by about 260 % over the minus pad 8 which allows best cooling for tough cooling operations such as voltage regulators and memory ICs.

• Most excellent thermal conductivity

• No bleeding
• long-term stability
• high compression rate

The minus pad extreme is available in size 120 x 20 mm and 100 x 100 mm with thicknesses of 0,5mm, 1mm, 1,5mm, 2mm, 3mm.

1. Color:

• Colors Available: Blue, Pink.
  • The product is available in two vibrant colors, offering aesthetic versatility and visual distinction for various applications.

2. Degree of Hardness:

• Hardness: Shore 00-65.
  • Measured on the Shore scale, this indicates the material is very soft and highly flexible.
  • A Shore 00-65 rating ensures excellent elasticity, making it ideal for applications requiring comfort and adaptability.

3. Density:

• Density: 3.38 g/cm³.
  • The material has a relatively high density, contributing to its durability and robustness while maintaining flexibility.

4. Electrical Insulation:

• Insulation: Yes (8KV/mm ASTM D149).
  • The material is electrically insulating with a dielectric strength of up to 8 kilovolts per millimeter (8KV/mm) as per ASTM D149 standards.
  • This ensures reliable protection against electrical discharge, making it suitable for sensitive electronic or electrical applications.

5. Flammability:

• Flame Resistance Rating: V-0.
  • The V-0 rating (per UL94 standards) means the material is highly flame-resistant.
  • It will self-extinguish quickly when exposed to flames and does not drip molten particles, ensuring safety in fire-prone environments.

6. Operating Temperature:

• Temperature Range: -100°C to +200°C.
  • The material can withstand extreme temperatures, from freezing cold (-100°C) to intense heat (+200°C).
  • This thermal stability makes it suitable for use in harsh environmental conditions.

7. Size:

• Dimensions: 100 × 100 mm.
  • The sheet has a square shape with equal length and width of 100 mm, providing a compact yet functional size for precise applications.

8. Thickness:

• Thickness: 1.5 mm.
  • With a thickness of 1.5 mm, the material is thin yet durable, offering flexibility without compromising strength.

9. Typical Height Tolerance:

• Tolerance: ±0.1 mm.
  • The material is manufactured with strict precision, ensuring a consistent thickness within a tolerance of ±0.1 mm.
  • This level of accuracy is critical for applications requiring exact specifications.

Key Features:

• Vibrant Colors: Available in blue and pink for aesthetic appeal or color-coding purposes.
• Soft and Flexible: Shore 00-65 ensures high elasticity and adaptability.
• High Density: 3.38 g/cm³ provides durability and robustness.
• Electrically Insulating: Protects against electrical discharge with a dielectric strength of 8KV/mm.
• Flame-Resistant: V-0 rating ensures safety in fire-prone environments.
• Wide Temperature Range: Operates effectively from -100°C to +200°C.
• Compact Size: 100 × 100 mm dimensions make it versatile for small-scale applications.
• Precision Thickness: 1.5 mm with a tolerance of ±0.1 mm ensures accuracy and reliability.

Potential Applications:

1. Electrical Insulation: Ideal for protecting sensitive components in electronics and electrical equipment.
2. Industrial Uses: Suitable for machinery or tools that require flame resistance and thermal stability.
3. Medical Devices: Its softness and electrical insulation properties make it useful in medical or laboratory settings.
4. Gaskets and Seals: Can be used as a sealing material in small devices due to its flexibility and durability.
5. Creative Design: The vibrant colors (blue and pink) make it suitable for creative or decorative purposes in product design.
6. Precision Applications: The ±0.1 mm tolerance ensures suitability for applications requiring exact specifications.

Conclusion:

This blue and pink rubber sheet is a versatile, durable, and precisely manufactured material, combining softness, flame resistance, electrical insulation, and thermal stability. Its compact size (100 × 100 mm), 1.5 mm thickness, and tight tolerance (±0.1 mm) make it ideal for precision applications across industries such as electronics, medical, industrial manufacturing, and creative design.
