Xigmatek Aero DGT 360 Reverse Digital LCD 3 Fan ARGB and PWM Infinity Ring Four Side 360mm Standard Fan Blade
1249 EGP

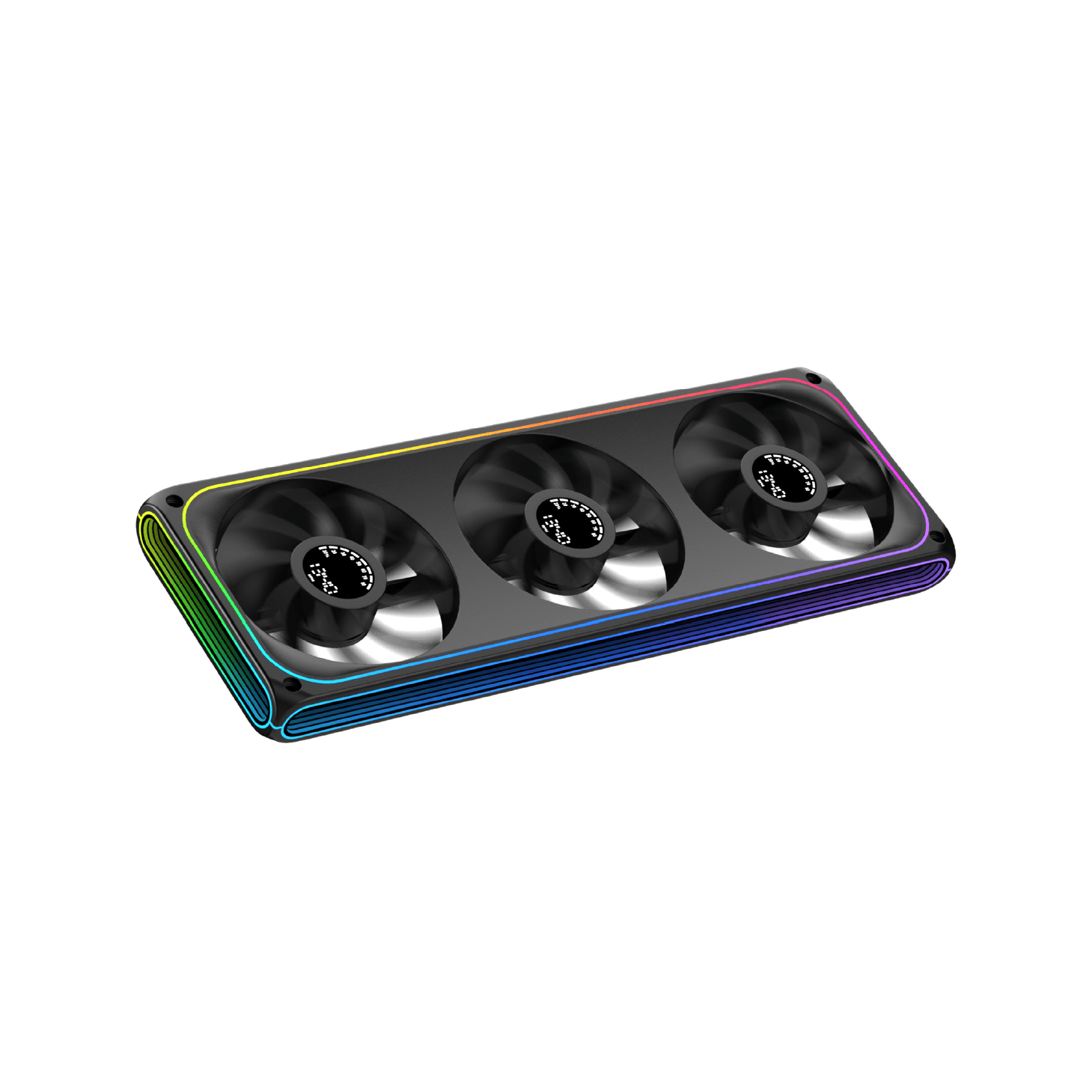

Xigmatek AERO DGT 360 Reverse
- Part Number: EN90229
- 360mm reverse-blade triple-fan assembly · 364 × 124 × 28.5mm
- Digital LED display for real-time fan-speed monitoring
- Four-sided Infinity LED lighting with motherboard ARGB sync
- PWM control · 600–1500 RPM · 42.74 CFM airflow
- Warranty: 1 year
In stock
Price Match GuaranteeXIGMATEK COOLING · ALFRENSIA PRODUCT GUIDE
AERO DGT 360 Reverse
Bring a clean, high-impact look to your PC build with a 360mm reverse-blade fan assembly, a built-in digital display, four-sided Infinity LED lighting, and ARGB/PWM motherboard connections.
Designed for a Distinctive Build
The Xigmatek AERO DGT 360 Reverse combines a three-fan layout with an illuminated frame and a digital readout for fan-speed monitoring. Its reverse-blade design is intended for builds where the visible side of the fans and the direction of airflow both matter. Check your case layout and desired airflow direction before installation.
DIGITAL DISPLAY
Live fan-speed readout
The built-in digital LED display monitors fan speed in real time.
INFINITY LIGHTING
Four-sided LED frame
Four-sided Infinity LED lighting with ARGB synchronization support for compatible motherboards.
REVERSE BLADE
360mm fan assembly
A three-fan layout in a 364mm-long assembly, designed for reverse-blade airflow arrangements.
PWM CONTROL
Adjustable fan speed
Manufacturer-rated speed range of 600–1500 RPM (±10%) through PWM control.
Technical Specifications
| Model Name | Xigmatek AERO DGT 360 Reverse |
|---|---|
| WooCommerce SKU | 883371030223 |
| Manufacturer part number | EN90229 |
| EAN | 4711726290229 |
| Dimensions | 364 × 124 × 28.5mm |
| Fan blade type | Reverse |
| Fan speed | 600–1500 RPM (±10%) |
| Airflow | 42.74 CFM (±10%) |
| Air pressure | 1.20 mmH₂O (±10%) |
| Noise level | Below 30.85 dBA (±10%) |
| Connections | 3-pin ARGB and 4-pin PWM |
| LED power draw | 5V, 0.9A, 4.5W |
| Fan power draw | 12V, 0.6A, 7.2W |
| Digital LED power draw | 12V, 0.3A, 3.6W |
| Rated lifespan | 40,000 hours |
| Operating voltage | DC 5V–13.8V |
Installation & Compatibility Notes
- Check the available mounting space and the intended airflow direction in your case before purchase.
- Confirm that your motherboard or controller has compatible 3-pin 5V ARGB and 4-pin PWM connections. Do not connect a 3-pin 5V ARGB plug to a 4-pin 12V RGB header.
- Xigmatek warns against daisy-chaining 120/240/360mm fan units on a single fan header because of potential current overload. Follow the motherboard and manufacturer connection instructions.
What’s in the Box
- Xigmatek AERO DGT 360 Reverse fan assembly × 1
- Long fan screws × 4
- Short fan screws × 4
ALFRENSIA WARRANTY NOTE
Warranty: 1 year.
Specifications and package contents are based on the official Xigmatek AERO DGT 360 Reverse product page. Product images are for illustration; confirm fitment and connector compatibility before installation.
| MODEL | |
|---|---|
| Fan Size (mm) | |
| Fan Quantity | |
| Fan Speed | |
| Fan Noise Level | |
| Fan Airflow | |
| Lighting | |
| Color | |
| Part Number | |
| Warranty |
| Cooling Type | |
|---|---|
| DIMENSIONS | |
| Fan Control | PWM |
| Lighting Standard | 5V ARGB |
| Display Type | Digital LED Display |
| Voltage |
