⚡ Engineering Highlights at a Glance:

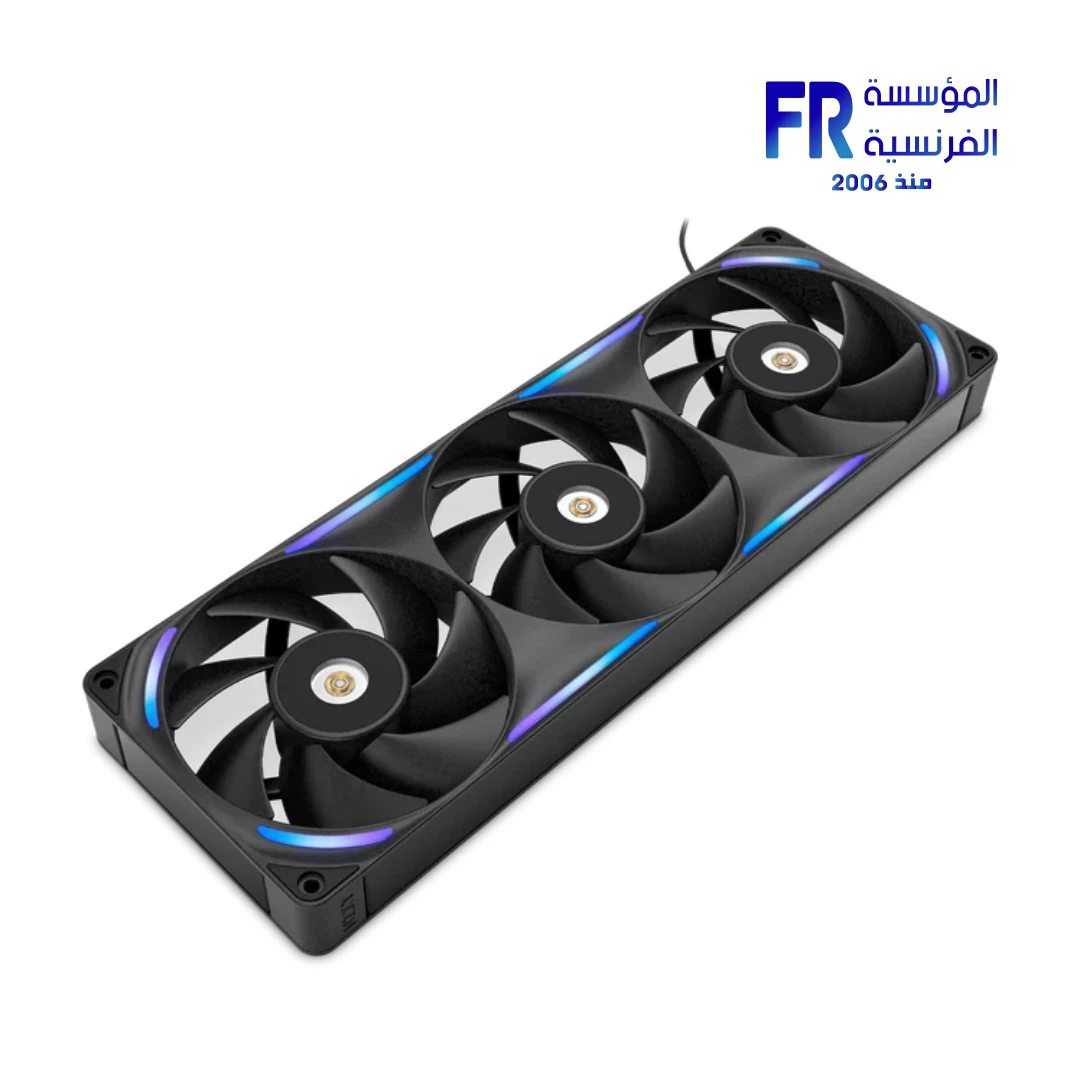

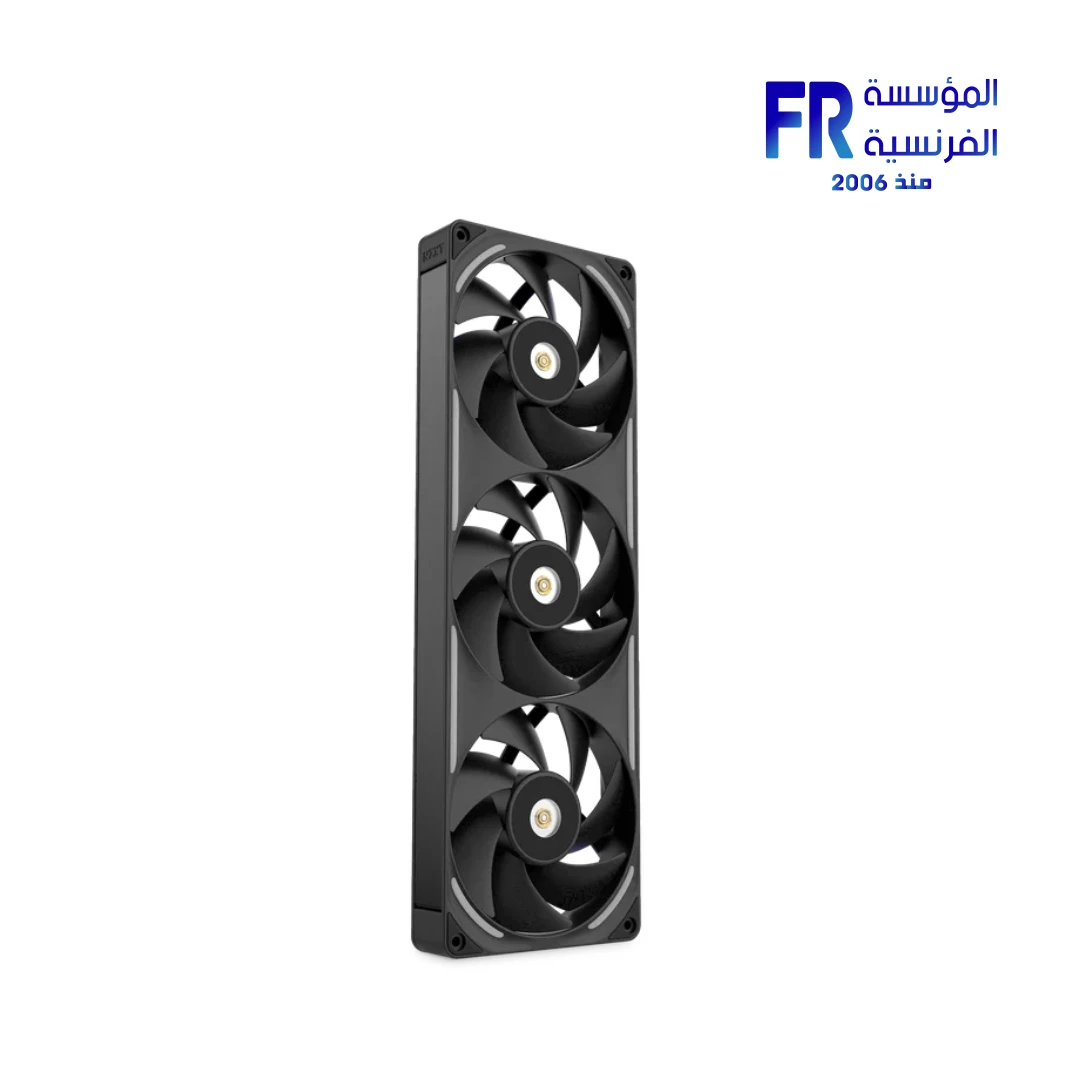

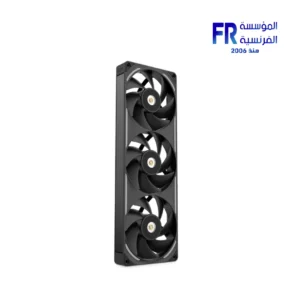

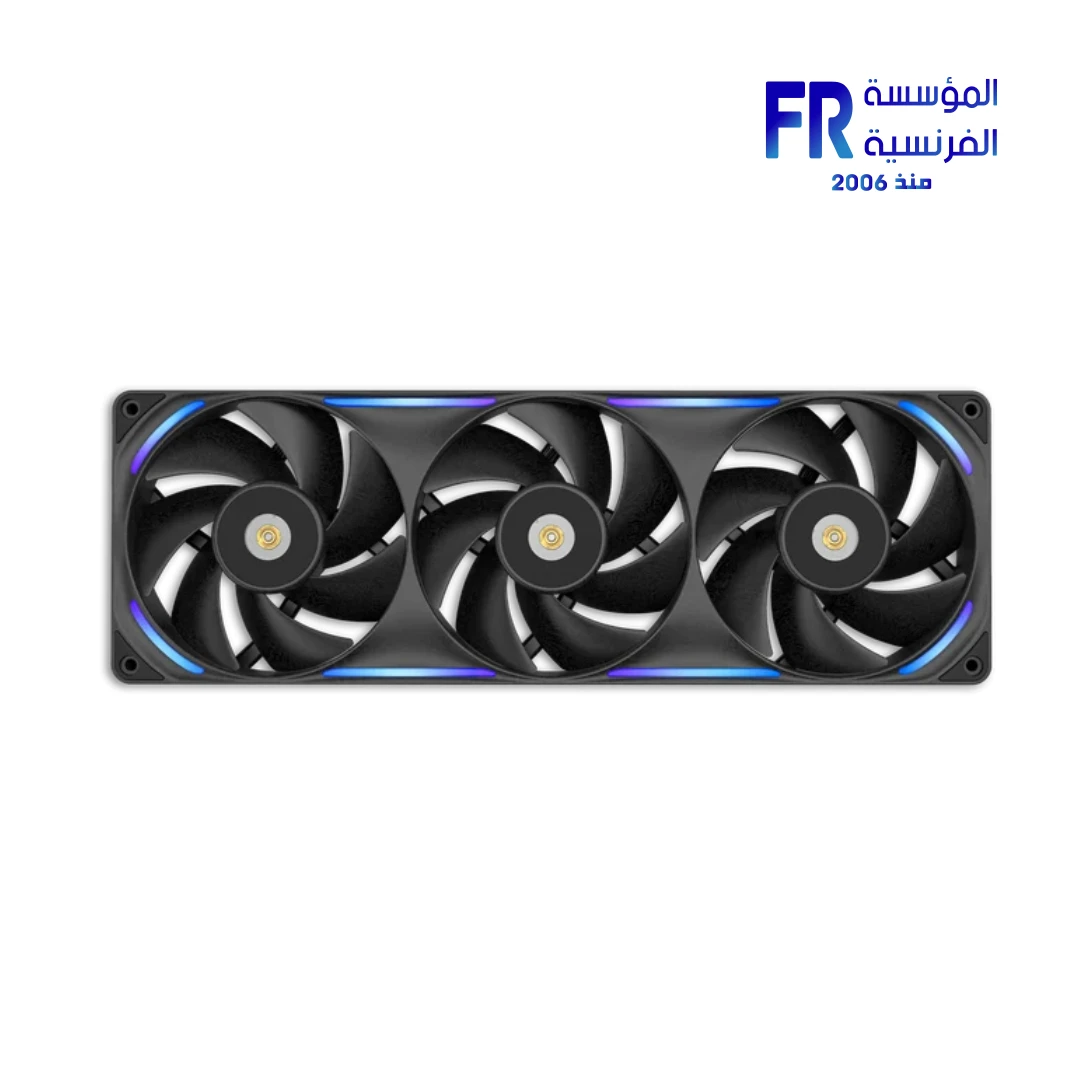

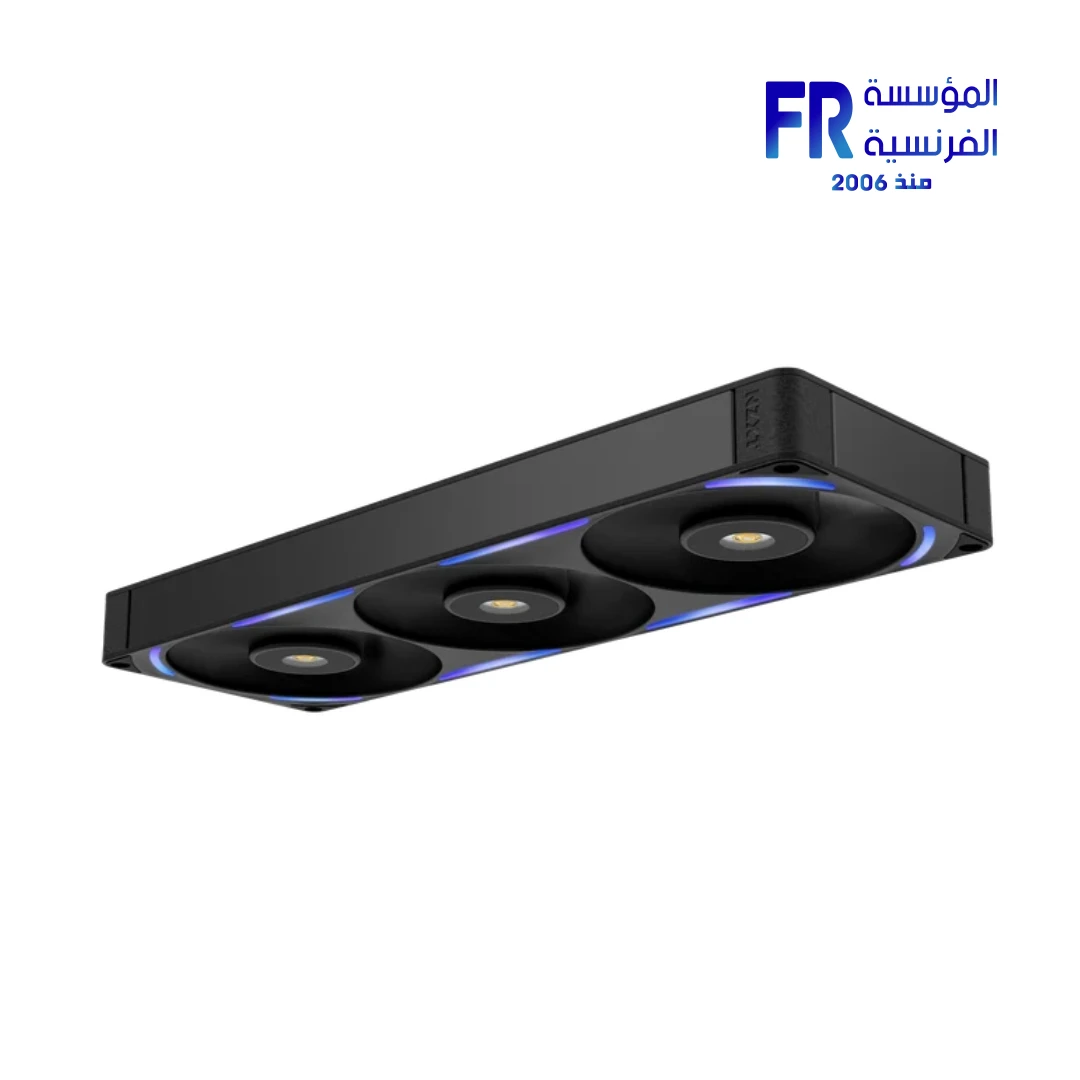

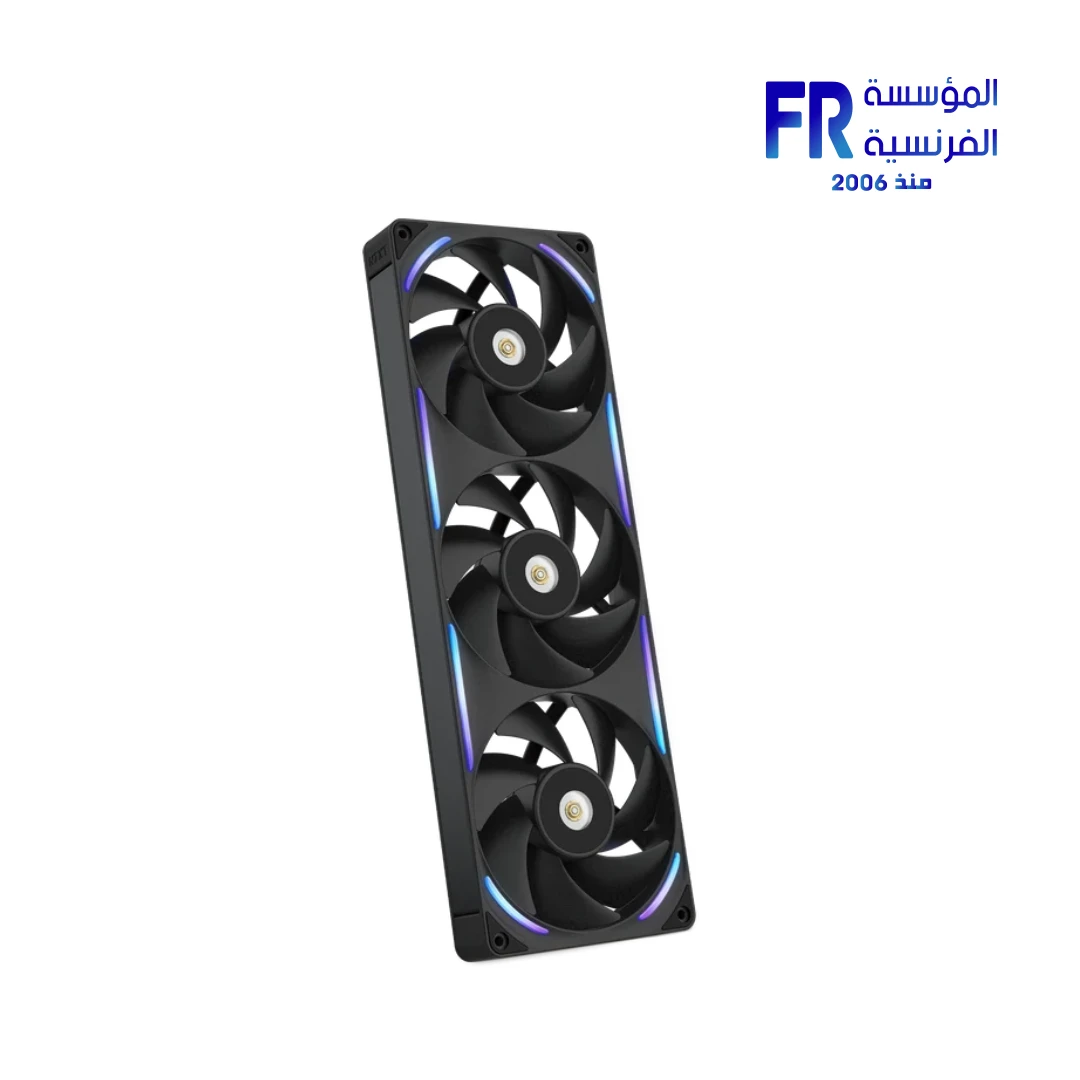

• Single-Frame 360mm Design: Three 120mm fans share one housing, which reduces screws and cables for simpler installation.
• High Airflow and Pressure: Up to 104.0 CFM and 7.53 mmH₂O per fan at 3,100 RPM, enough for radiators and heatsinks.
• LCP Construction: Liquid-crystal polymer blades and frame resist flex and vibration at high speeds.
• Optimized Blade Design: Tight tip-to-frame clearance reduces turbulence and air leakage for more consistent airflow.
• Hybrid Bearing: Magnetic levitation plus fluid dynamic lubrication reduces friction, vibration, and wear over a 60,000-hour rated lifespan.
• Subtle RGB Lighting: 32 LEDs across the frame with a brushed aluminum accent for a clean, modern look.
• Digital Control: Adjust fan speed and RGB through NZXT CAM or motherboard software, with an NZXT Control Hub or NZXT motherboard for CAM control.

Connector and Controller Compatibility

The F360X uses an NZXT 8-pin connector instead of standard 4-pin PWM headers. To control fan speed and RGB through NZXT CAM, you need an NZXT Control Hub or a compatible NZXT motherboard, which is not included in the box. Without a hub, the fans can still run through the motherboard, but CAM control and some lighting effects may be unavailable. Check your motherboard’s fan and RGB headers before purchase.

Case Fit and Mounting

The single-frame dimensions are 360 x 120 x 30mm, which is thicker than standard 25mm fans. Confirm that your case or radiator has at least 30mm of fan clearance in the mounting position. The pack mounts as a single 360mm unit, so your case needs a 360mm fan or radiator mount on the top, front, or side. The single 600mm cable runs from one end of the frame, so plan cable routing before you install the fans.

Noise and Fan Curves

At full speed, each fan reaches 41.0 dBA, which is audible under load. The specs show that at 30 dBA, each fan still delivers 75.5 CFM and 4.02 mmH₂O at 2,300 RPM, so a fan curve that caps around 2,300 RPM keeps noise lower while keeping strong airflow. Use NZXT CAM or your motherboard’s fan curve tool to set a curve that ramps up under sustained load and stays quiet at idle. Because the fans use LCP blades and a hybrid bearing, they are less prone to vibration noise than standard fans, but keep the frame firmly screwed down to avoid rattling.

Confirm that your case or radiator has a 360mm mount and at least 30mm of fan thickness clearance before ordering. The single-frame design mounts as one unit, so measure the mounting holes and the space above and below the frame.

Decide how you want to control the fans before you build. If you want CAM control for fan speed and RGB, plan to use an NZXT Control Hub or a compatible NZXT motherboard; otherwise, connect the NZXT 8-pin connector to your motherboard’s fan header and control speed through the BIOS.

Set a fan curve that caps around 2,300 RPM for a balance of noise and airflow; at that speed, each fan still delivers 75.5 CFM and 4.02 mmH₂O. Reserve the full 3,100 RPM for heavy loads or hot climates, since 41.0 dBA is audible at full speed.

Because the fans use a hybrid magnetic levitation and fluid dynamic bearing rated for 60,000 hours, keep the frame firmly screwed down to prevent rattling and check the blades periodically for dust buildup. Clean the blades with a soft brush or compressed air to maintain airflow and reduce noise over time.
