What is the maximum Boost Clock speed of the ASUS Dual GeForce RTX 5060 OC?

The graphics card reaches a maximum Boost Clock of 2602MHz in Default mode and up to 2632MHz in OC mode, offering superior performance for gaming .

Does this RTX 5060 card use the new PCIe 5.0 interface?

Yes, the ASUS Dual GeForce RTX 5060 uses the PCI Express 5.0 bus standard, providing massive bandwidth for next-generation systems.

What display outputs are available on the card?

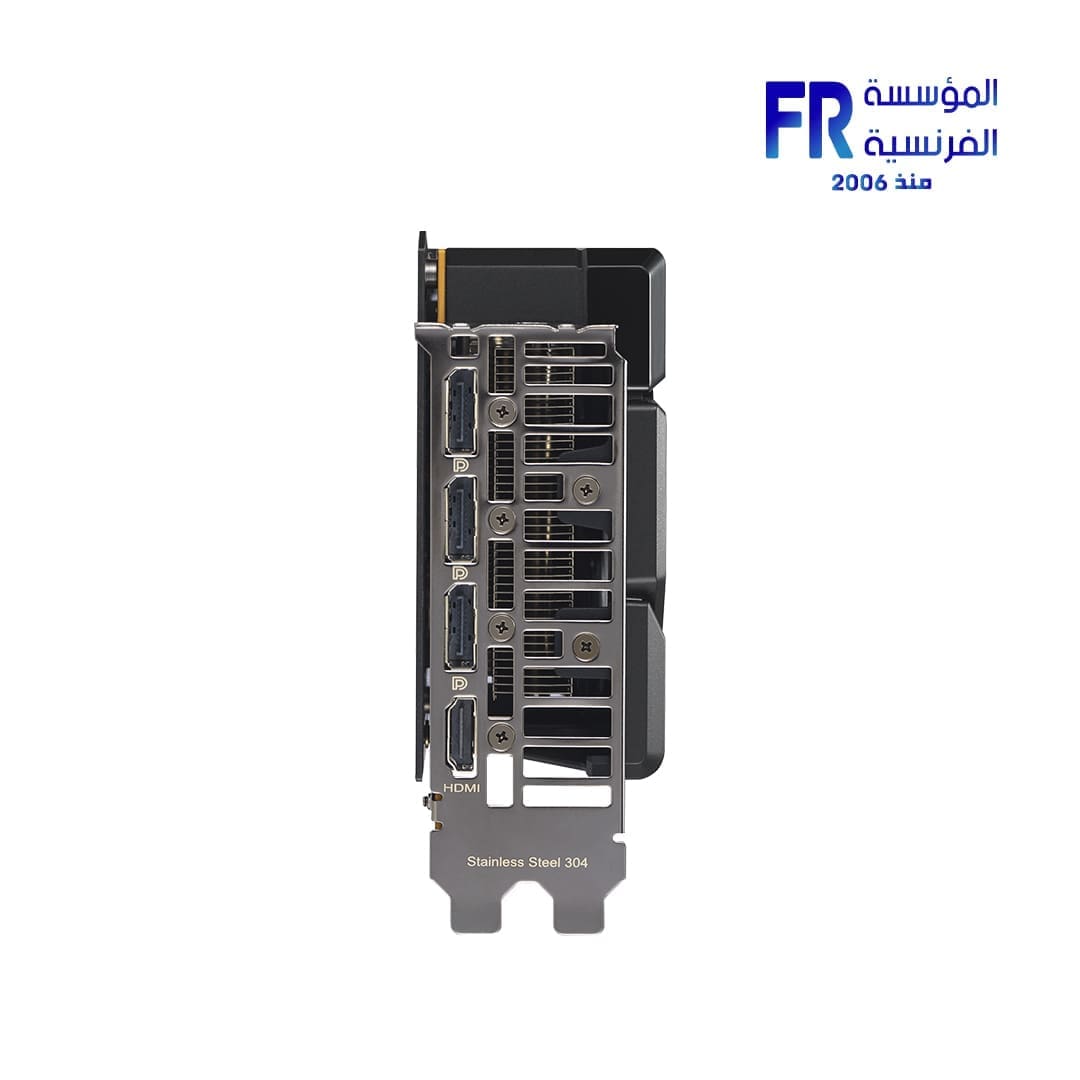

The card features three native DisplayPort 2.1b outputs and one native HDMI 2.1b output , supporting a maximum digital resolution of 7680 x 4320 across four displays .

Filter

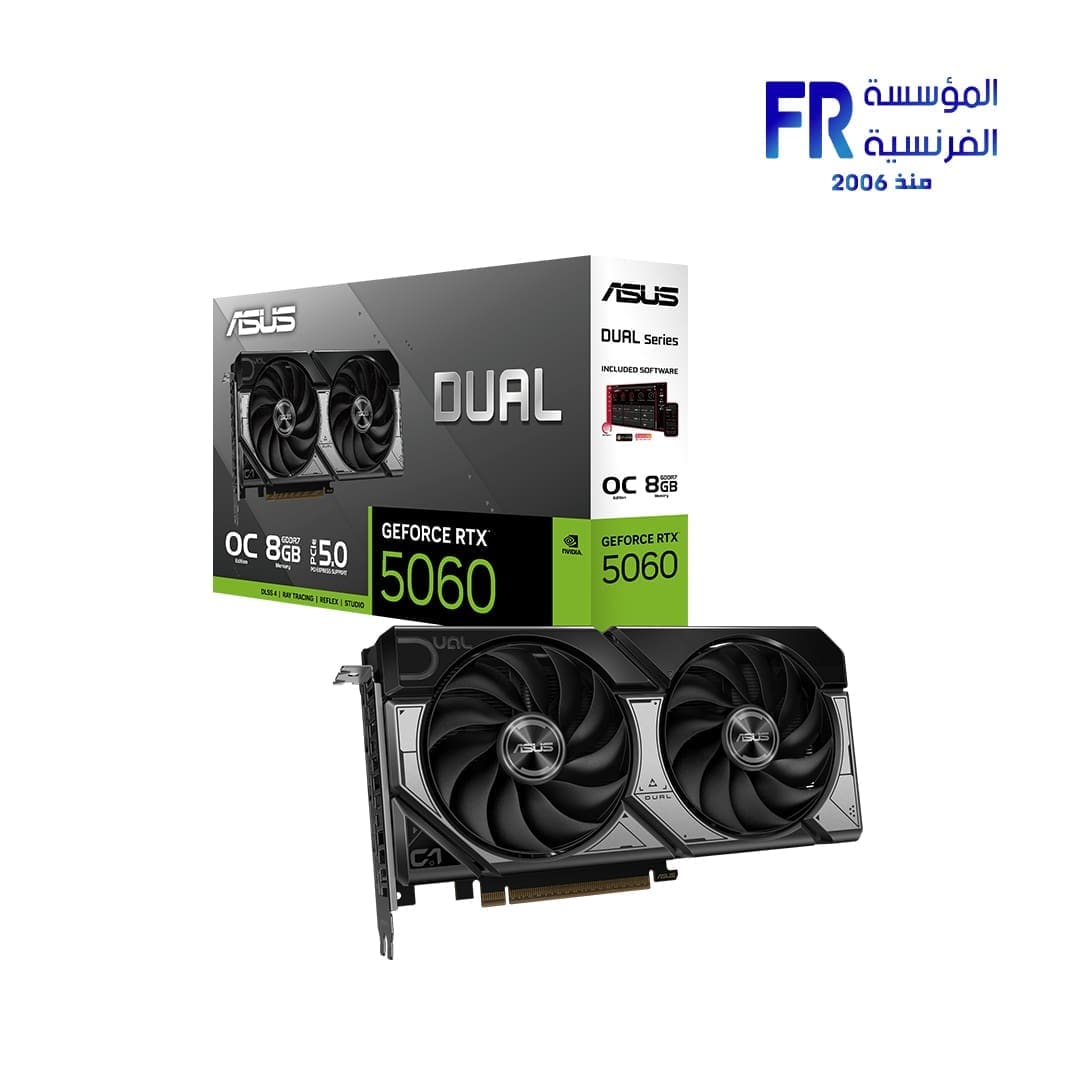

Asus GeForce RTX 5060 Dual 8GB GDDR7 OC Edition Graphic Card

Asus GeForce RTX 5060 Dual 8GB GDDR7 OC Edition Graphic Card

18000 EGP

Part Number: 90YV0N12-M0NA00
Graphic Engine: NVIDIA GeForce RTX 5060
Video Memory: 8GB GDDR7 / 128 bit
Core Clock (OC): Up to 2565MHz
CUDA Cores: 3840
Bus Standard: PCI Express 5.0
Warranty: 3 Years

In stock

Price Match Guarantee

Asus GeForce RTX 5060 Dual 8GB GDDR7 OC Edition Graphic Card

The Asus GeForce RTX 5060 Dual delivers outstanding performance with 8GB GDDR7 memory. The NVIDIA GeForce RTX 50 Series ushers in a new era of gaming and AI.

8GB GDDR7

Video Memory

2602MHz

Boost Clock

3840

CUDA Cores

PCIe 5.0

Bus Standard

Next-Gen Power and Efficiency in the RTX 5060

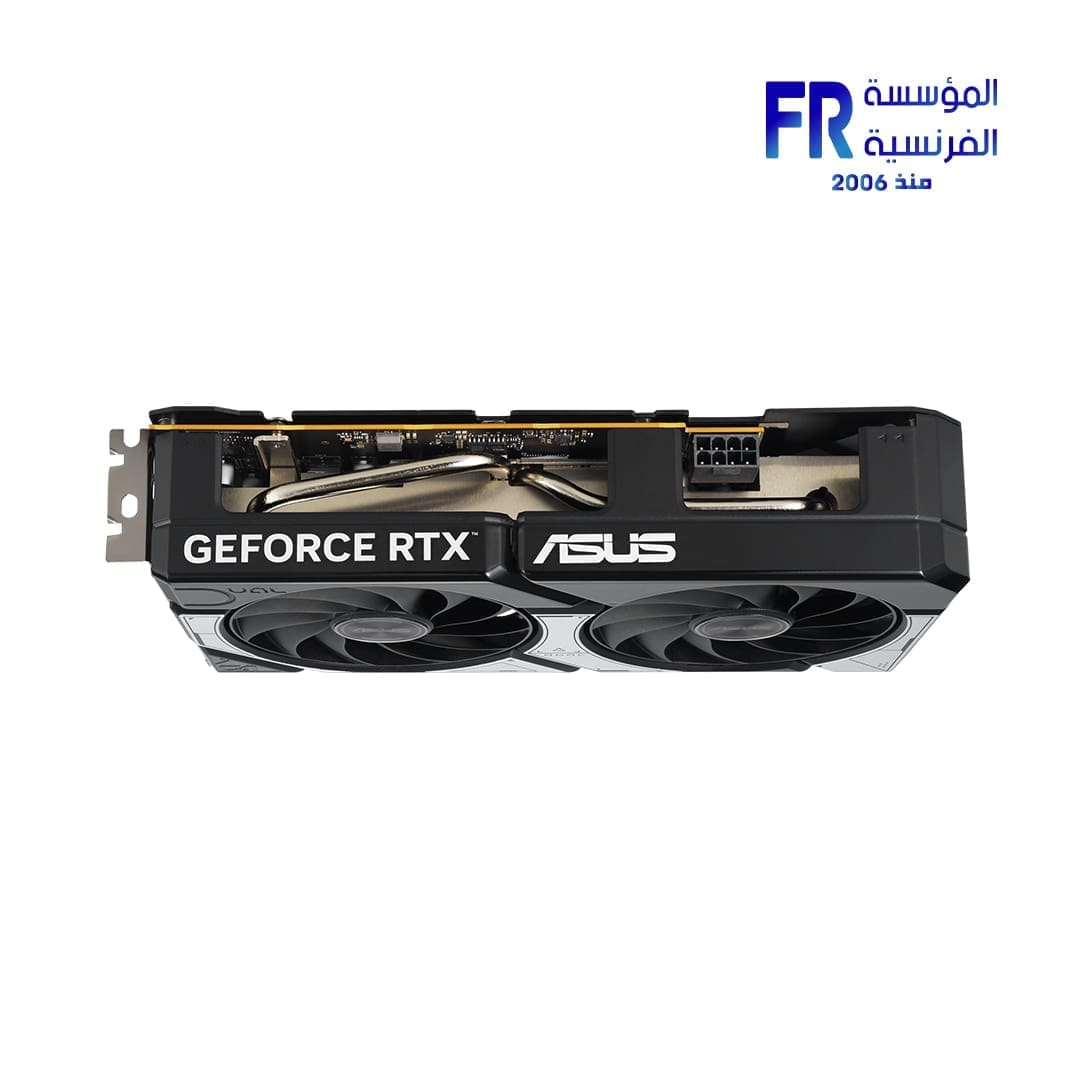

Dual Fan Cooling and Compact Design

The Asus GeForce RTX 5060 Dual is designed with a powerful dual-fan configuration to maintain optimal thermal performance within a compact 2.5-slot form factor. This makes it suitable for a wide variety of PC cases, including smaller builds. Furthermore, its efficient cooling ensures reliable performance under extended gaming sessions.

PCIe 5.0 and GDDR7 Memory Advantage

Leveraging the cutting-edge PCI Express 5.0 standard, this GPU offers unprecedented bandwidth. Coupled with 8GB GDDR7 memory running at 28 Gbps, the card is primed for future high-resolution graphics and AI performance.

Technical Specifications: Asus Dual GeForce RTX 5060

Specification	Detail
SKU	90YV0N12-M0NA00
Model Name	DUAL-RTX5060-O8G
UPC/EAN	199291057890
Graphics Engine	NVIDIA GeForce RTX 5060
Video Memory	8GB GDDR7
CUDA Cores	3840
Engine Clock (Boost)	OC Mode: 2565MHz / Default Mode: 2535MHz
Memory Speed	28 Gbps
Bus Standard	PCI Express 5.0
Recommended PSU	550W
Power Connectors	1 x 8-pin
Output	HDMI 2.1b x1, DisplayPort 2.1b x3
Slot Size	2.5 Slot

💡 Pro Tip:

To maximize the performance of this RTX 5060, ensure your motherboard uses the PCIe 5.0 slot to guarantee maximum bandwidth. Also, utilize the ASUS GPU Tweak III software to activate the full OC Mode (2565MHz) for better frame rates.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

GRAPHICS CARD

MODEL	GeForce RTX 5060 Dual
CHIPSET MANUFACTURERS	NVIDIA
VGA SERIES	RTX 5060
VGA MEMORY SIZE	8GB
Technology	GDDR7
CORE CLOCKS	2535 MHz
Cuda Core	3840
Memory Bus	128 bit
Card Bus	PCI Express 5.0
Vga Cooling	Dual Fan
Recommended PSU	550W
Power Connectors	1 x 8-pin
DirectX	N/A
I/O Ports	HDMI 2.1b, 3x DisplayPort 2.1b
Color	Black
Part Number	90YV0N12-M0NA00
Warranty	3 Years
