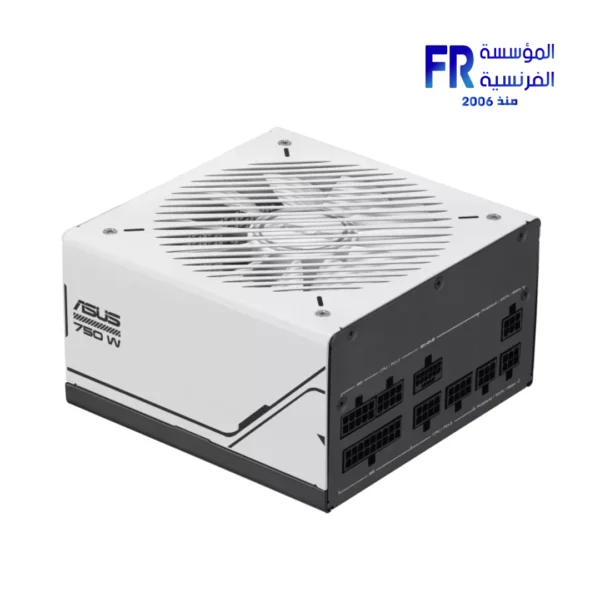

Asus Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
4699 EGP
Wattage 750W
Efficiency 80 PLUS Gold (90%)
Modular Fully Modular
PCIe 5.1 12V-2×6 connector included
+12V Rail Single rail, 62.5A (750W)
Connectors 1x 24-pin ATX, 2x 8-pin EPS, 4x PCIe, 8x SATA, 4x 4-pin
In stock
Price Match GuaranteeASUS Prime 750W 80 PLUS Gold ATX 3.1 PCIe 5.1 Power Supply
The ASUS Prime 750W 80 PLUS Gold delivers next-generation power efficiency with ATX 3.1 and PCIe 5.1 compatibility. Featuring 80 PLUS Gold certification, fully modular cables, and premium Japanese capacitors, this PSU ensures reliable performance for gaming and workstation builds.
Next-Gen Power Efficiency
Advanced Features
- ATX 3.1 compliant with 200% power excursion
- PCIe 5.1 ready with 12V-2×6 connector
- 80 PLUS Gold certification (90% efficiency)
- Fully modular cable design
Premium Components
- 100% Japanese capacitors
- 135mm dual ball bearing fan
- Zero RPM fan mode (under 40% load)
- OVP/OPP/SCP/UVP/OTP protection
Technical Specifications
| Specification | Detail |
|---|---|
| Model | 90YE00U1-B0NA00 (197105192966) |
| Wattage | 750W |
| Efficiency | 80 PLUS Gold (90%) |
| Modular | Fully Modular |
| PCIe 5.1 | 12V-2×6 connector included |
| +12V Rail | Single rail, 62.5A (750W) |
| Connectors | 1x 24-pin ATX, 2x 8-pin EPS, 4x PCIe, 8x SATA, 4x 4-pin |
| Fan | 135mm dual ball bearing |
| Dimensions | 150 x 150 x 86mm |
| Warranty | 10 years |
Cable Configuration
- 1x 24-pin ATX motherboard (600mm)
- 2x 8-pin EPS CPU (650mm)
- 2x PCIe 8-pin (6+2) cables (750mm)
- 1x PCIe 12V-2×6 (12VHPWR) cable (750mm)
- 3x SATA cables (4 connectors each)
- 1x 4-pin peripheral cable (3 connectors)
- All cables sleeved in black
💡 Pro Tip:
This PSU is perfect for mid-range GPUs like RTX 4070 or RX 7800 XT. The ATX 3.1 compatibility ensures stable power delivery during GPU power excursions, while the 80 PLUS Gold rating reduces energy costs.
| MODEL | |
|---|---|
| Psu-Cable-Type | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Part Number | |
| Warranty |
| Fan Size (mm) |
|---|
