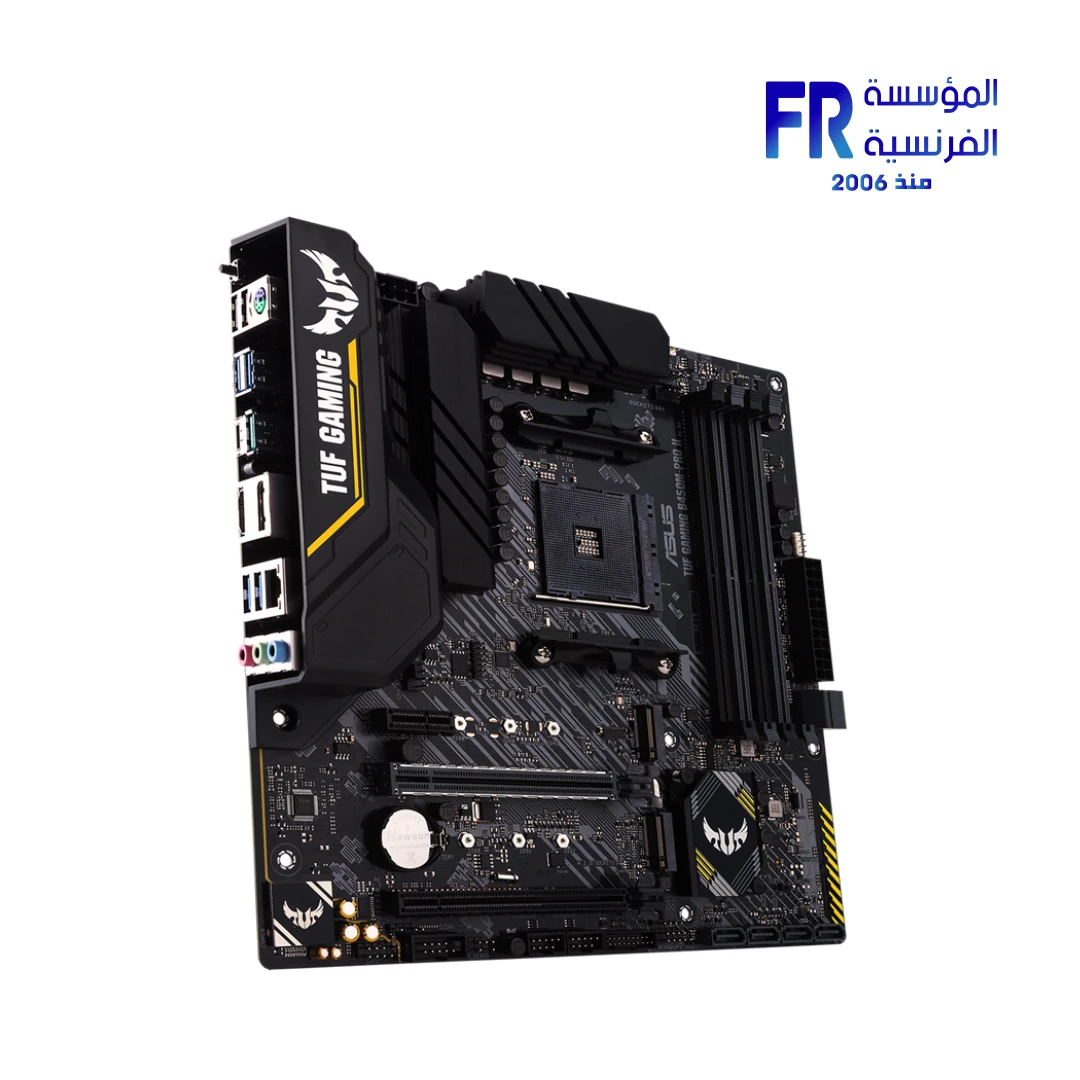

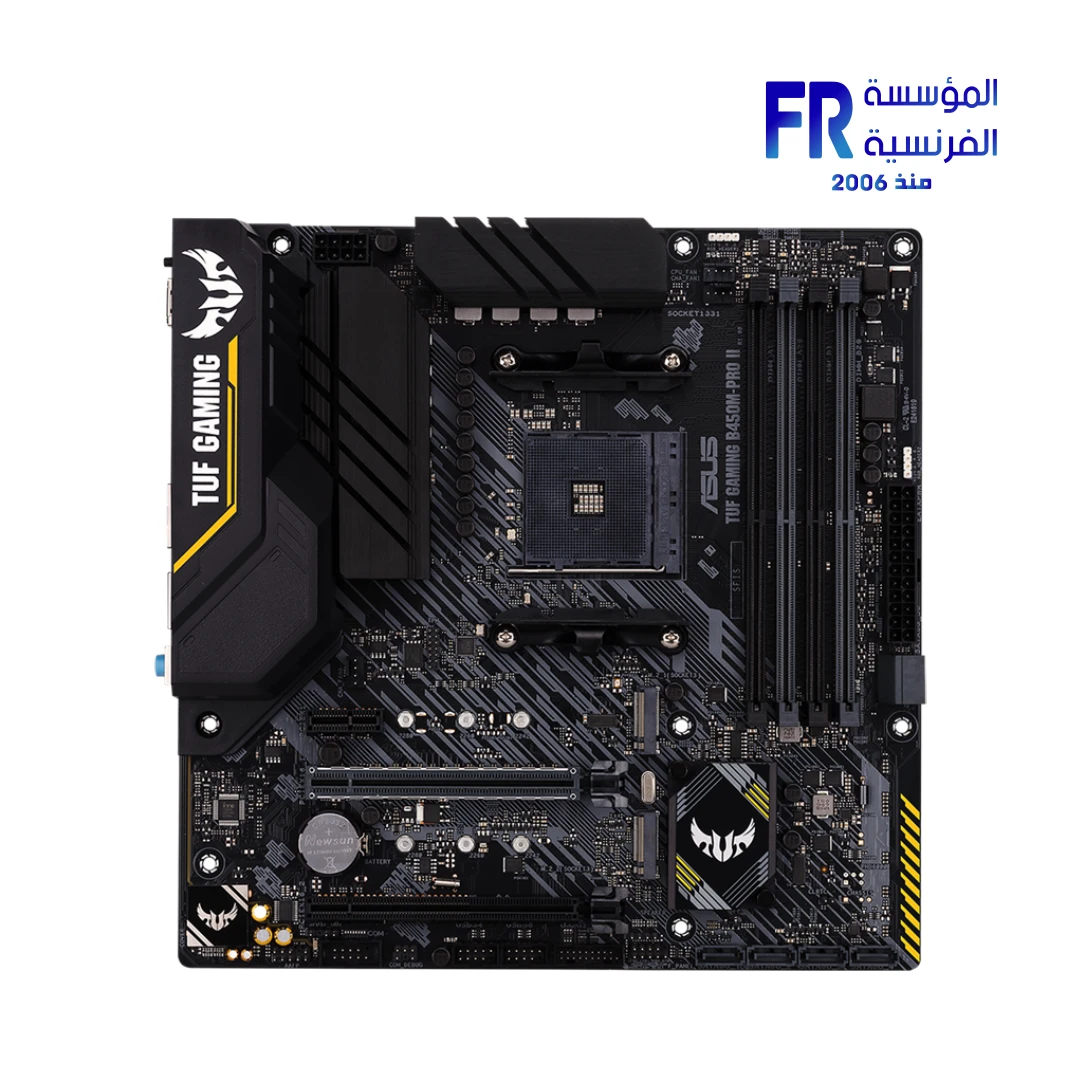

ASUS TUF Gaming B450M PRO II Dual M.2 BIOS FlashBack Socket AM4 Motherboard
5249 EGP
- Part Number 90MB1610-M0EAY0
- CPU Socket AM4 (Ryzen 5000 / 4000 / 3000 Series)
- Chipset AMD B450
- Memory Support 4x DDR4 DIMM, up to 4400(O.C) MHz
- Storage Dual M.2 Slots & 6x SATA 6Gb/s Ports
- Networking Realtek 1Gb Ethernet (TUF LANGuard)
- Form Factor mATX
- Warranty 3 Years
Asus TUF Gaming B450M PRO II AM4 Motherboard
Build a battle-ready system with the ASUS TUF Gaming B450M PRO II. This Micro-ATX powerhouse combines AM4 socket versatility with military-grade TUF protection, dual M.2 speed, and BIOS FlashBack for a reliable and future-ready gaming foundation.
Military-Grade Durability & Modern Speed
TUF Gaming Protection
Engineered with certified military-grade TUF components, this board features a 10-phase power design (8+2) with DrMOS. Combined with TUF LANGuard, ESD Guards, and a reinforced SafeSlot, it provides the ultimate physical and electrical durability for long-term gaming stability.
Dual M.2 & Fast USB
Maximize your storage potential with two M.2 slots, including a primary slot that supports PCIe 3.0 x4 speeds. For external peripherals, the rear I/O provides high-speed USB 3.2 Gen 2 ports (Type-A and Type-C) delivering up to 10Gbps for fast data transfers.
Immersive Gaming Audio
Experience premium sound with the Realtek ALC S1200A codec. It features audio shielding, dedicated PCB layers, and Japanese capacitors for a 108dB signal-to-noise ratio. Plus, exclusive AI Noise-Canceling Microphone software ensures crystal-clear team communication.
Technical Specifications
⚠️ Important: Storage Bandwidth Sharing
- M.2_1 Slot: Shares bandwidth with SATA_5/6 ports. SATA ports 5 and 6 will be disabled if an M.2 device is installed in this slot.
- M.2_2 Slot: Shares bandwidth with SATA_3/4 ports. SATA ports 3 and 4 will be disabled if an M.2 device is installed in this slot.
- BIOS FlashBack: When updating BIOS via FlashBack, ensure the USB drive is formatted to FAT32 and the file is renamed correctly according to the manual.
Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer.
If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.
Copyright © 2026 alfrensia.com. All rights reserved.
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | |
| Technology | |
| Memory Speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 3400 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4400 MHz |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 3.0, PCIe 2.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
