MODEL | |
---|---|
PSU CABLE TYPE | |
PSU WATT | |
ENERGY EFFICIENT | |
Protection | |
PSU Capacitors | |
DC to DC | |
Fan Size | |
Part Number | |
Warranty |

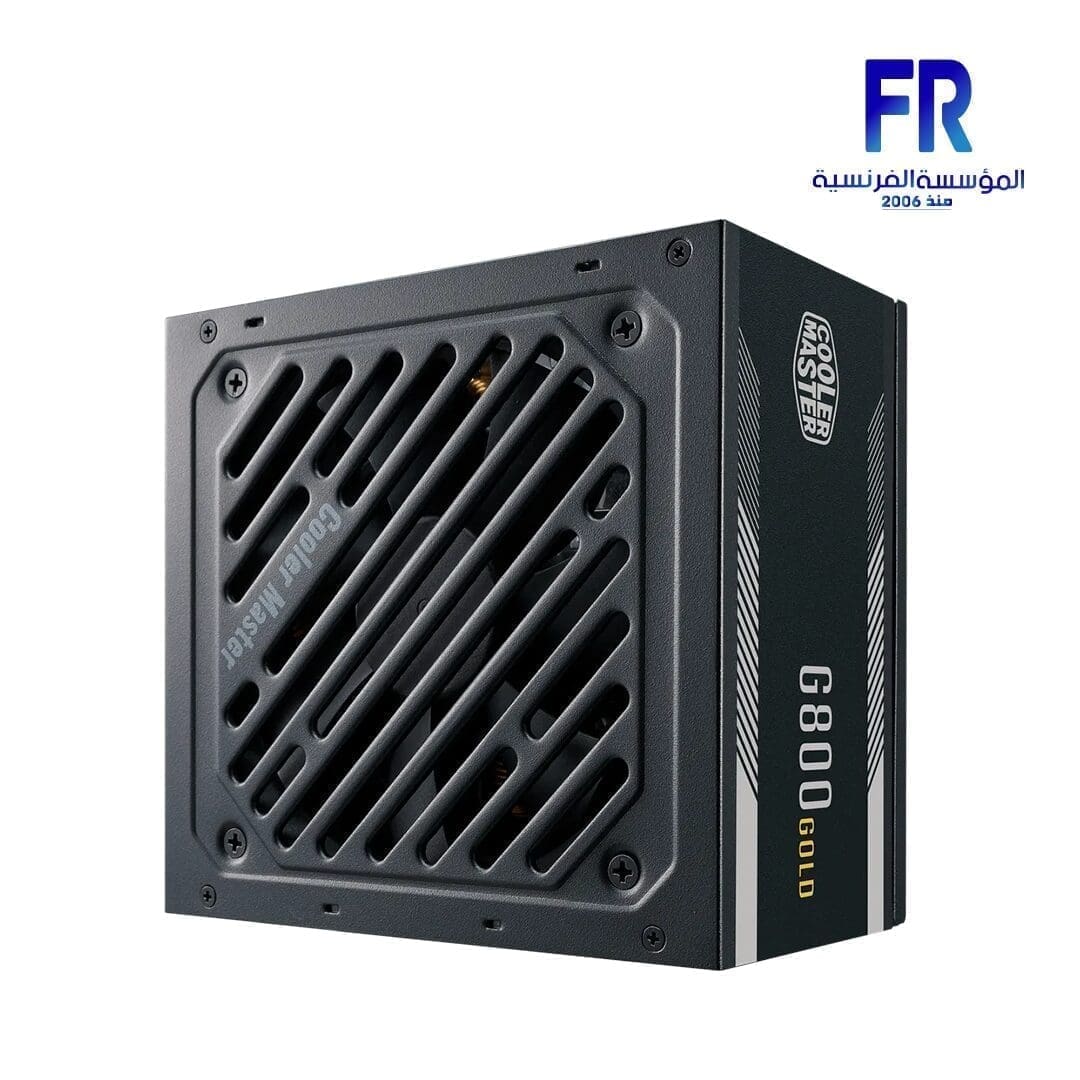

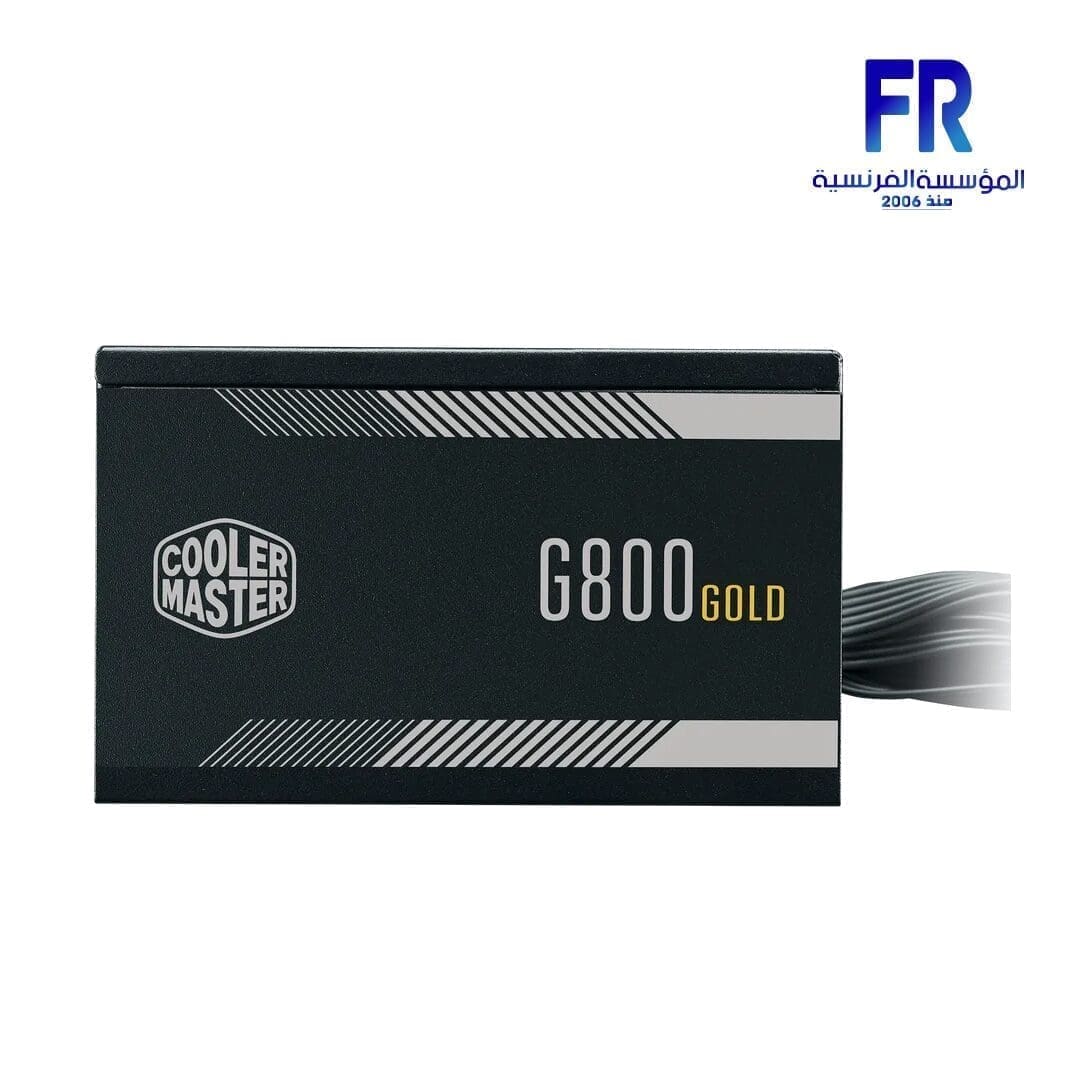

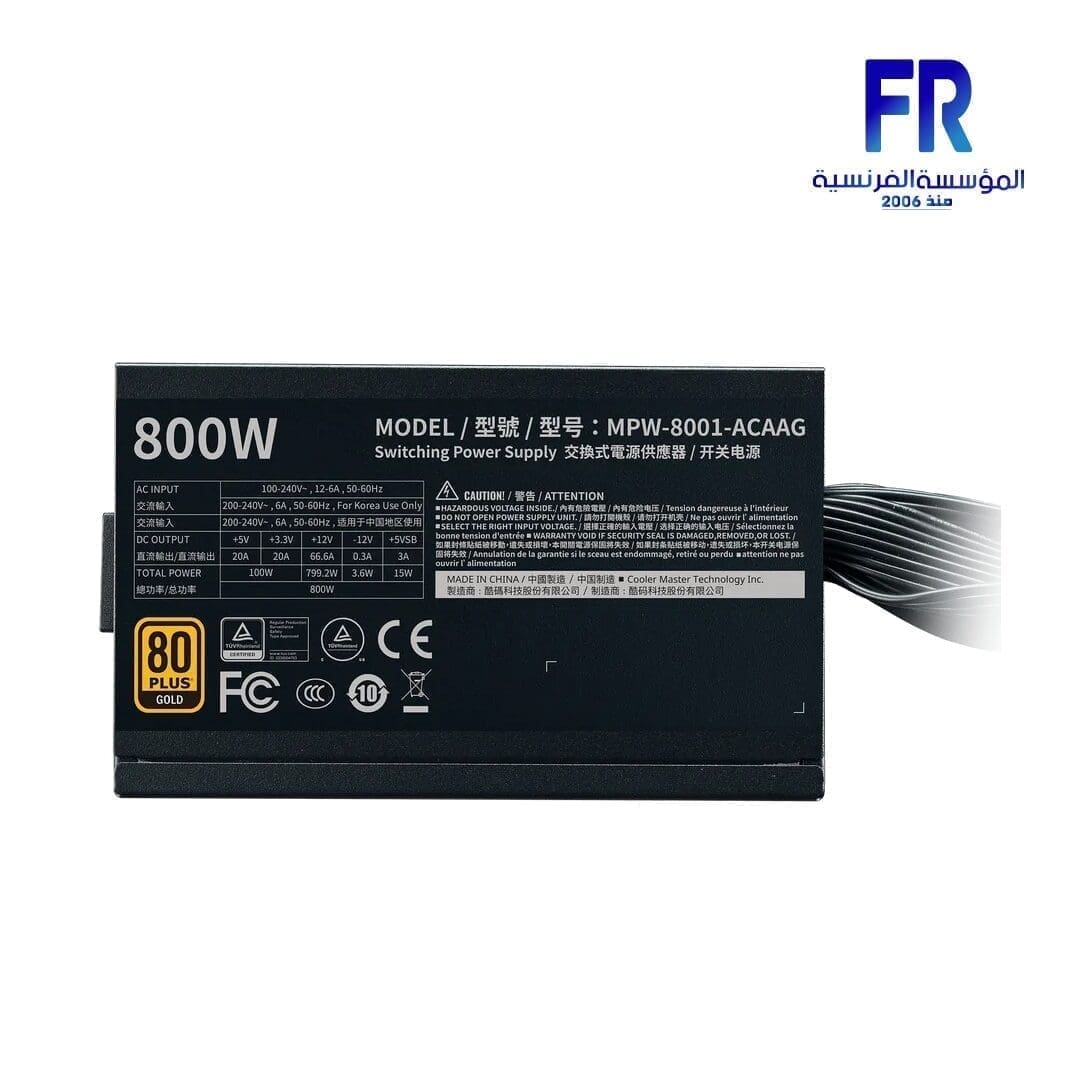

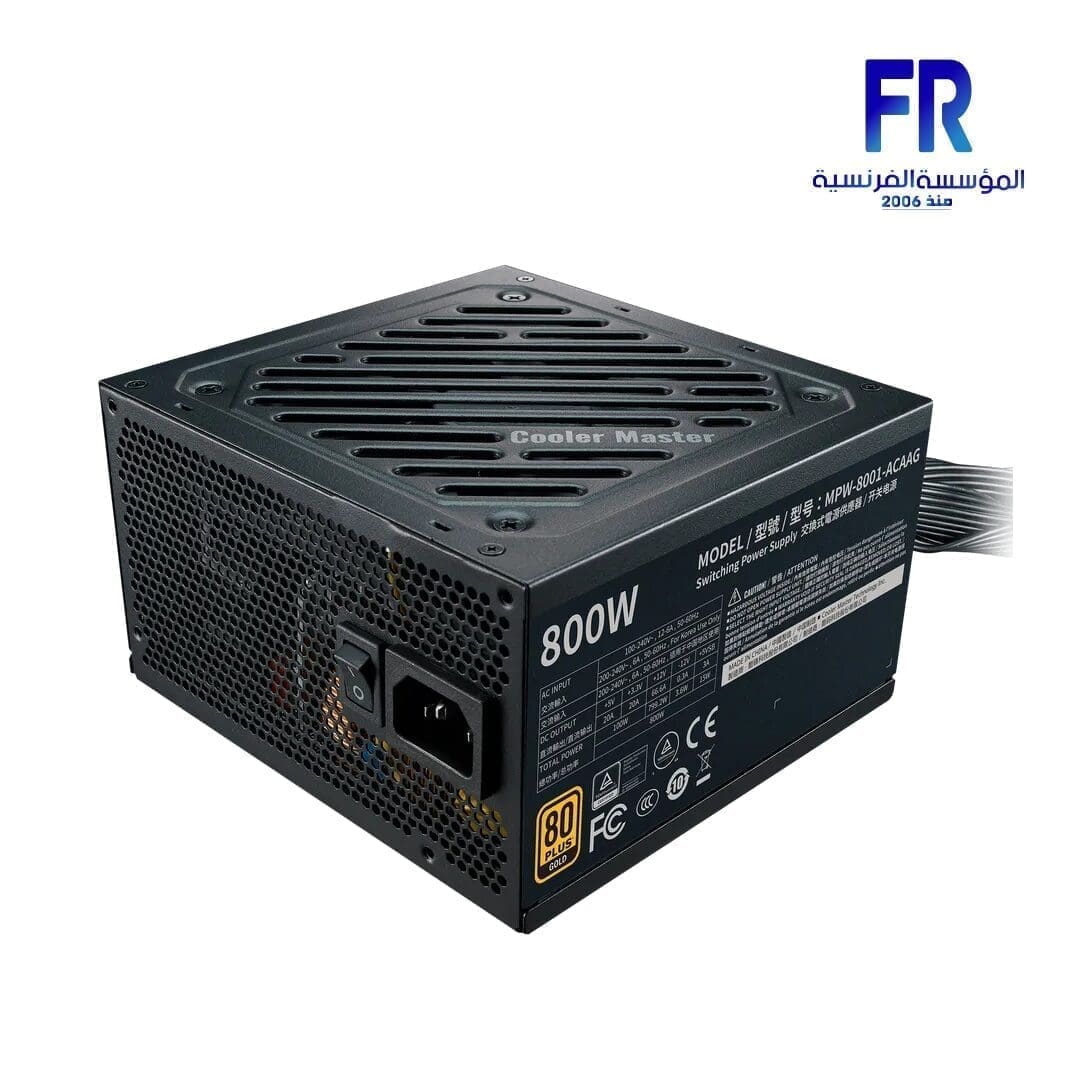

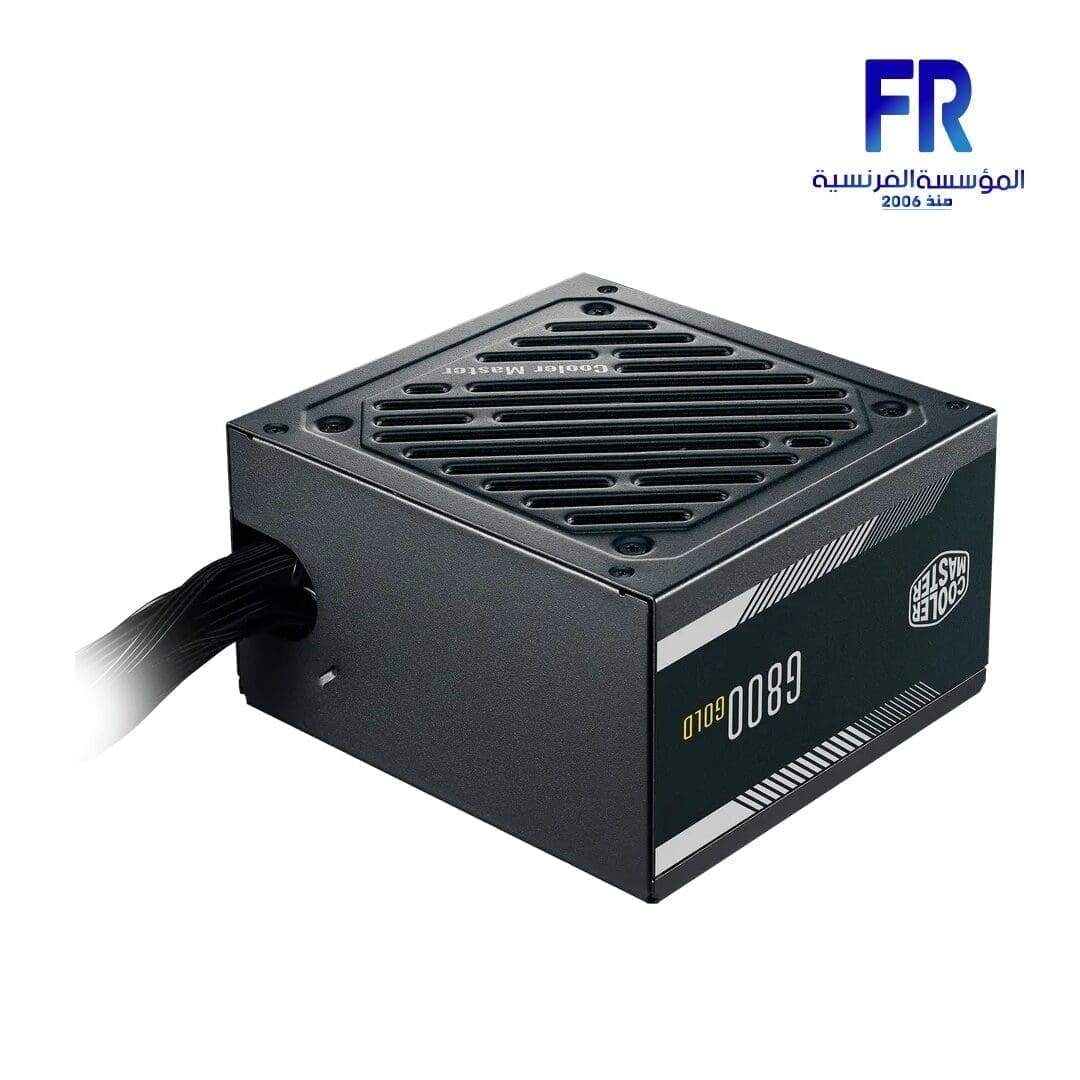

Cooler Master G800 GOLD 800W 80 PLUS Gold Power Supply
4750 EGP
- 80 PLUS Gold Efficiency
- Intel ATX 12V version
- 2.52 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resistance
Views: 720
Out Of Stock.
SKU: 884102086540
Categories: POWER SUPPLY
Tags: 80 PLUS GOLD, 80 PLUS Gold Power Supply, 800W, 800W 80 PLUS Gold Power Supply, COOLER MASTER, G800, G800 GOLD 800W 80 PLUS Gold Power Supply, GOLD, GOLD 800W 80 PLUS Gold Power Supply, POWER SUPPLY
Cooler Master G800 GOLD 800W 80 PLUS Gold Power Supply
Category Above |
750W |
PFC |
Active PFC |
ErP 2014 Lot 3 |
Yes |
Operating Temperature |
0-40°C |
ATX 24 Pin Connectors |
1 |
EPS 4+4 Pin Connectors |
1 |
EPS 8 Pin Connector |
1 |
Power Good Signal |
100 – 150 ms |
80 PLUS Rating |
80 PLUS Gold |
Fan Size |
120mm |
MTBF |
>100,000 Hours |
Input Frequency |
47-63Hz |
80 Plus |
Gold |
Modular |
Non Modular |
Fan Bearing |
HDB |
Input Voltage |
100-240V |
PCI-e 6+2 Pin Connectors |
4 |
SATA Connectors |
6 |
Peripheral 4 Pin Connectors |
3 |
Protections |
OVP |
ATX Version |
ATX 12V V2.52 |
Protections |
OPP |
Protections |
SCP |
Dimensions (L x W x H) |
140 x 150 x 86 mm |
Protections |
UVP |
Protections |
OTP |
Protections |
OCP |
Series |
G Series |
Regulatory |
CCC |
Regulatory |
CE |
Input Current |
12-6A |
Efficiency |
≥90% @ Typical Load |
Regulatory |
EAC |
Regulatory |
cTUVus |
Regulatory |
FCC |
Hold Up Time |
≥15ms at 100% load |
Regulatory |
BSMI |
Regulatory |
CB |
Regulatory |
TUV |
Regulatory |
RoHS2.0 |
Regulatory |
KC+KCC |
Regulatory |
BIS |
Model |
MPW-8001-ACAAG |
Cooler Master G800 GOLD
