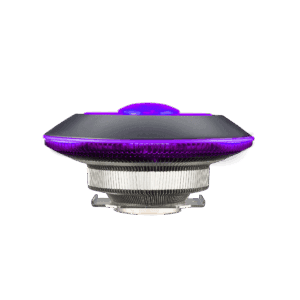

Cooler Master Masterair G100M Air Cpu Cooler

Cooler Master Masterair G100M Air Cpu Cooler

The Cooler Master Masterair G100M Air Cpu Cooler delivers efficient cooling in a unique, low-profile design, perfect for compact builds and HTPCs. Featuring Cooler Master’s exclusive Heat Column Technology, it achieves exceptional heat transfer, ensuring optimal CPU performance. Furthermore, its integrated RGB lighting adds a vibrant aesthetic to any system, allowing for personalized illumination. This cooler offers a compelling blend of compact size, powerful cooling, and stunning visuals.

Innovative Design & Performance

This CPU cooler uniquely features a 41.2mm diameter Heat Column, providing a direct path for heat dissipation and maximizing cooling efficiency. Specifically, the compact design, measuring 145 x 145 x 74.5 mm, makes it an ideal solution for systems with limited clearance. Additionally, the included 92mm fan operates at speeds ranging from 600 to 2400 RPM (PWM), delivering an airflow of 22.63 CFM and an air pressure of 1.6 mmH2O, all while maintaining a quiet operation at a maximum noise level of 30 dBA.

Moreover, the MasterAir G100M boasts broad compatibility across various CPU sockets, supporting a wide range of Intel (LGA2066, LGA2011-v3, LGA2011, LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA775) and AMD (AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1) platforms. The integrated RGB lighting provides vibrant customization options, allowing users to synchronize effects with their system’s aesthetic. Furthermore, Cooler Master backs this cooler with a 2-year warranty, ensuring reliability and peace of mind.

Explore compatible Air CPU Coolers or check Cooler Master Products for other options. Find full details on the official Cooler Master Masterair G100M product page.

Specifications

• Product Name: MasterAir G100M
• Cooler Type: Air Cooler
• LED Color: RGB Ready
• Dimensions (L x W x H): 145 x 145 x 74.5 mm / 5.7 x 5.7 x 2.9 inch
• Heat Sink Dimensions (L x W x H): 143 x 143 x 51.7 mm / 5.6 x 5.6 x 2.0 inch
• Heat Pipe Dimensions: Ø41.2*46.3 mm (Heat Column)
• Heat Sink Material: Heat Column, Aluminum Fins
• Heat Sink Weight: 320g / 0.70lb
• Fan Dimensions (L x W x H): 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
• Fan Speed: 600-2400 RPM (PWM) ± 10%
• Fan Airflow: 22.63 CFM ± 10%
• Fan Air Pressure: 1.6 mmH2O ± 10%
• Fan Noise Level: 30 dBA (Max)
• Fan MTTF: 280,000 Hours
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.34A
• Fan Safety Current: 0.37A
• Fan Power Consumption: 4.08W
• Fan Power Connector: 4-Pin (PWM)
• CPU Socket Support:
  • Intel: LGA2066, LGA2011-v3, LGA2011, LGA1366, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA775
  • AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
• Warranty: 2 years
• Model Number/SKU: MAM-G1CN-924PC-R1
• EAN/UPC: 884102037863
