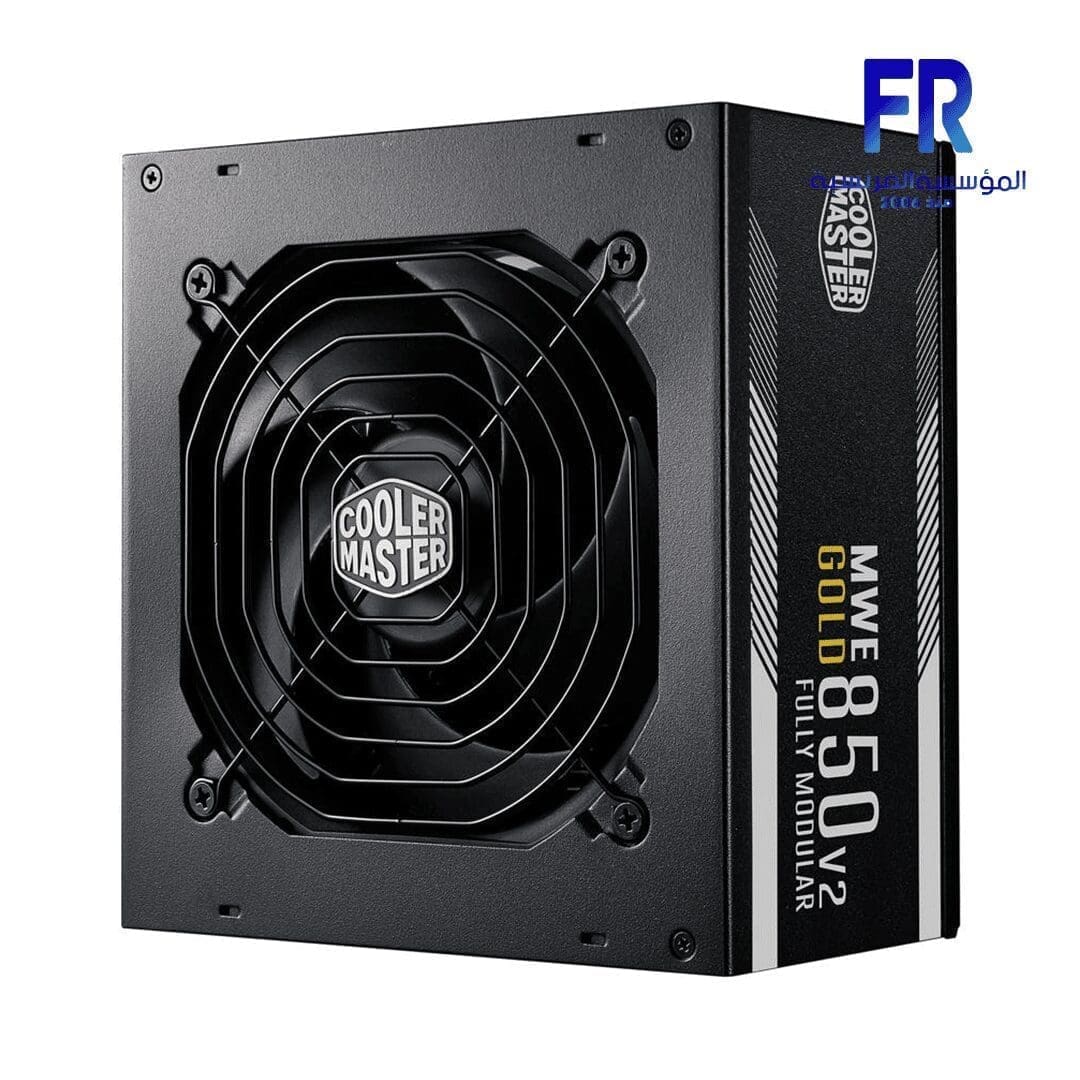

COOLER MASTER MWE850 V2 850W 80 PLUS GOLD FULLY MODULAR POWER SUPPLY

Cooler Master Mwe850 V2 850W 80 PLUS Gold Fully Modular Power Supply

6500 EGP

80 Plus Gold Efficiency
2 EPS Connectors
120mm HDB Fan
High Temperature Resilience
Full Modular Cabling

Out Of Stock.

SKU: 884102078613 Category: POWER SUPPLY Tags: 850W, COOLER MASTER MWE850 V2 850W, MPE-8501-AFAAG-UK, MWE850

MODEL	Mwe850 V2
PSU CABLE TYPE	FULL MODULAR
PSU WATT	850 W
ENERGY EFFICIENT	80 PLUS GOLD
Protection	OCP, OPP, OTP, OVP, SCP, UVP
PSU Capacitors	N/A
DC to DC	N/A
Fan Size	120mm
Part Number	MPE-8501-AFAAG-UK
Warranty	2 year

The MWE Gold – V2 (Full Modular) is the next step in the evolution of Cooler Master’s entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold – V2 improves upon the original version in the places where users will see the most immediate benefit.

80 PLUS GOLD CERTIFIED

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold – V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

Model

MPE-8501-AFAAG

ATX Version

ATX 12V Ver. 2.41

PFC	Active PFC

Input Voltage

100-240V

Input Current

12-6A

Input Frequency

47-63Hz

Dimensions (L x W x H)

160 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

1500 RPM

Noise Level @ 20%

0 dBA

Noise Level @ 50%

17.8 dBA

Noise Level @ 100%

25.9 dBA

Efficiency

≥90% @ Typical Load

80 PLUS Rating

80 PLUS Gold

ErP 2014 Lot 3

Yes

Operating Temperature

0-50°C

Power Good Signal

100 – 150 ms

Hold Up Time

>16ms at 100% Load

MTBF	>100,000 Hours

Protections

OVP, OPP, OTP, SCP, OCP, UVP

Regulatory

TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

ATX 24 Pin Connectors

EPS 4+4 Pin Connectors

EPS 8 Pin Connector

SATA Connectors

Peripheral 4 Pin Connectors

PCI-e 6+2 Pin Connectors

Series

MWE Gold Series

80 Plus

Gold

Modular

Full Modular

Wattage

Above 750W
