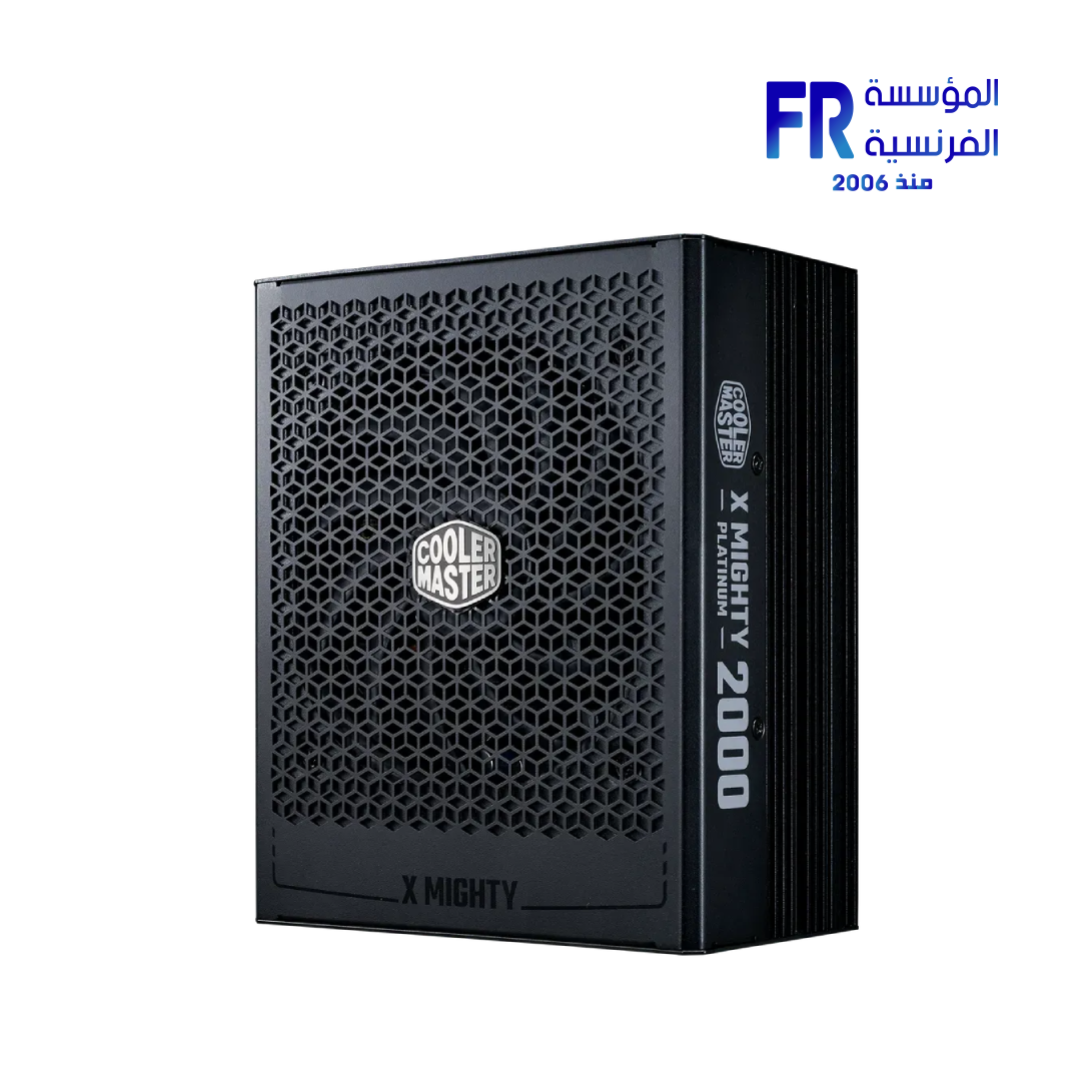

Cooler Master X Mighty 2000W 80 Plus Platinum Fully Modular Power Supply

Cooler Master X Mighty 2000W 80 Plus Platinum Fully Modular Power Supply:

The Cooler Master X Mighty Platinum 2000W Power Supply is an extreme-capacity, fully modular unit engineered to meet the demanding needs of high-performance computing, including server applications, artificial intelligence workloads, and multi-GPU setups. It combines top-tier industrial-grade components with advanced thermal management for unparalleled reliability and efficiency.

Key Features for Unrivaled Power and Efficiency:

The X Mighty Platinum 2000W is certified with 80 PLUS Platinum efficiency, ensuring at least 92% efficiency at typical loads (for 115V) and up to 94% efficiency (for 230V), which significantly reduces power consumption and heat generation. It features an Active Bridge Rectifier with Infineon CoolMOS, a cutting-edge design that boosts power efficiency and stability compared to traditional bridge diodes.

This PSU is fully compliant with the latest ATX 3.1 standard and PCIe 5.1, making it future-proof for next-generation components. It includes two durable 90° 12V-2×6 cables, each capable of delivering up to 600W to your GPU, ideal for supporting dual 40 series GPUs or other power-hungry components. These cables are designed for enhanced reliability, higher electrical durability, and improved safety.

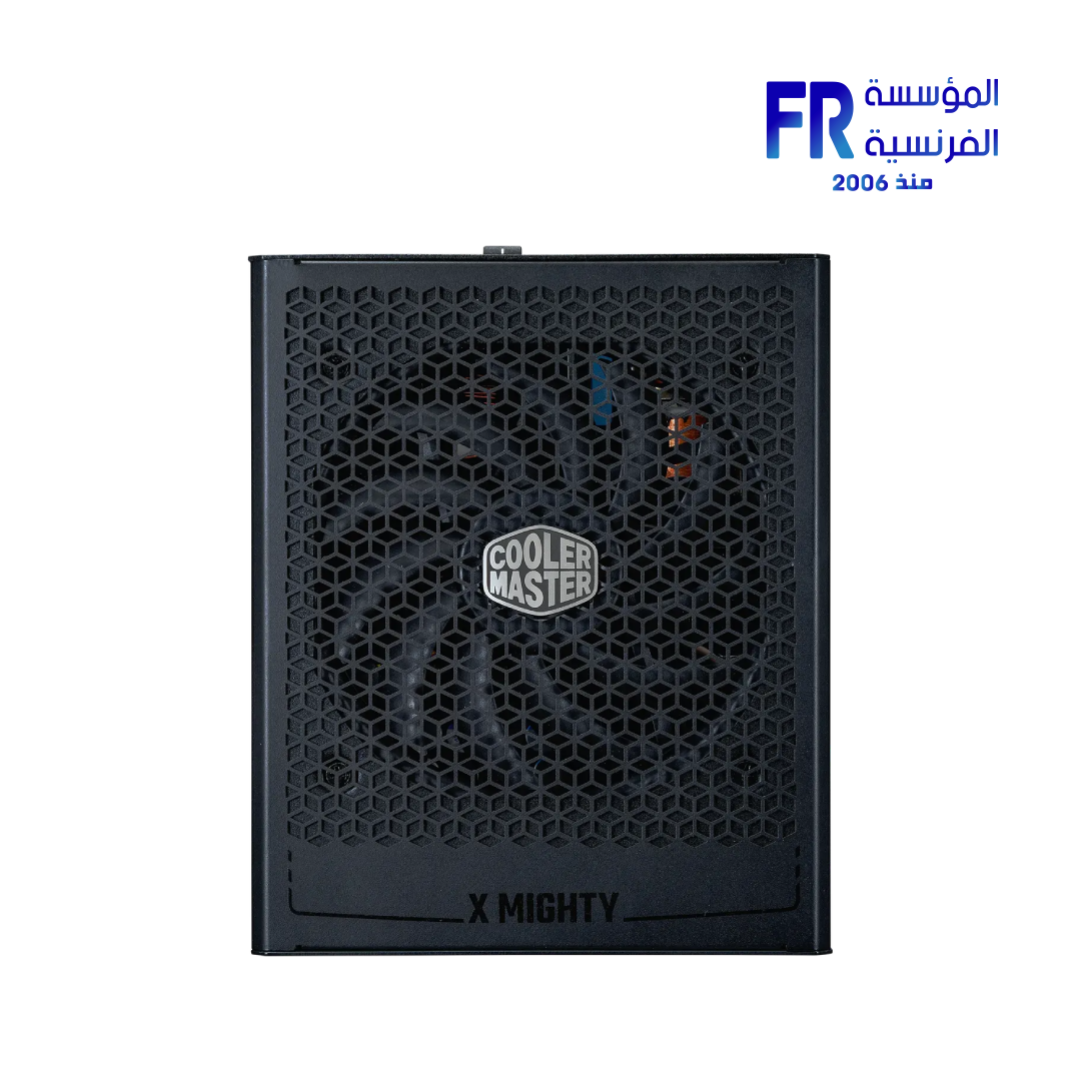

Cooling is managed by Cooler Master’s exclusive aluminum Thermal Mold, which masterfully disperses heat, complemented by a silent 120mm Fluid Dynamic Bearing (FDB) fan. The fan supports a Zero-RPM mode, allowing it to remain off under low loads for silent operation, ensuring effective thermal management while prolonging the PSU’s lifespan.

The X Mighty Platinum features a Digital Power Management System, equipped with high-performance MCUs and integrated with Cooler Master’s MasterCTRL software. This allows for real-time monitoring of temperature, current load, and efficiency, providing precise oversight and ensuring optimal performance and reliability. Its fully modular cabling design minimizes clutter and simplifies installation and cable management within your PC build.

For more details, you can refer to the official Cooler Master X Mighty 2000 product page.

Specifications:

• Model: MPS-K001-AFBP
• ATX Version: ATX 12V Ver. 3.1
• PFC: Active PFC
• Input Voltage: 200-240V
• Input Current: 12A (Max)
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 180 x 150 x 86 mm
• Fan Size: 120mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• Fan Speed: Up to 2000 RPM (with Zero-RPM mode)
• Efficiency: ≥ 94% @ Typical Load (80 PLUS Platinum certified)
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-50°C
• Power Good Signal: 100 – 150 ms
• Hold Up Time: ≥ 16ms
• MTBF: >100,000 Hours
• Protections: OPP (Over Power Protection), OVP (Over Voltage Protection), OTP (Over Temperature Protection), OCP (Over Current Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), Surge and Inrush Protection

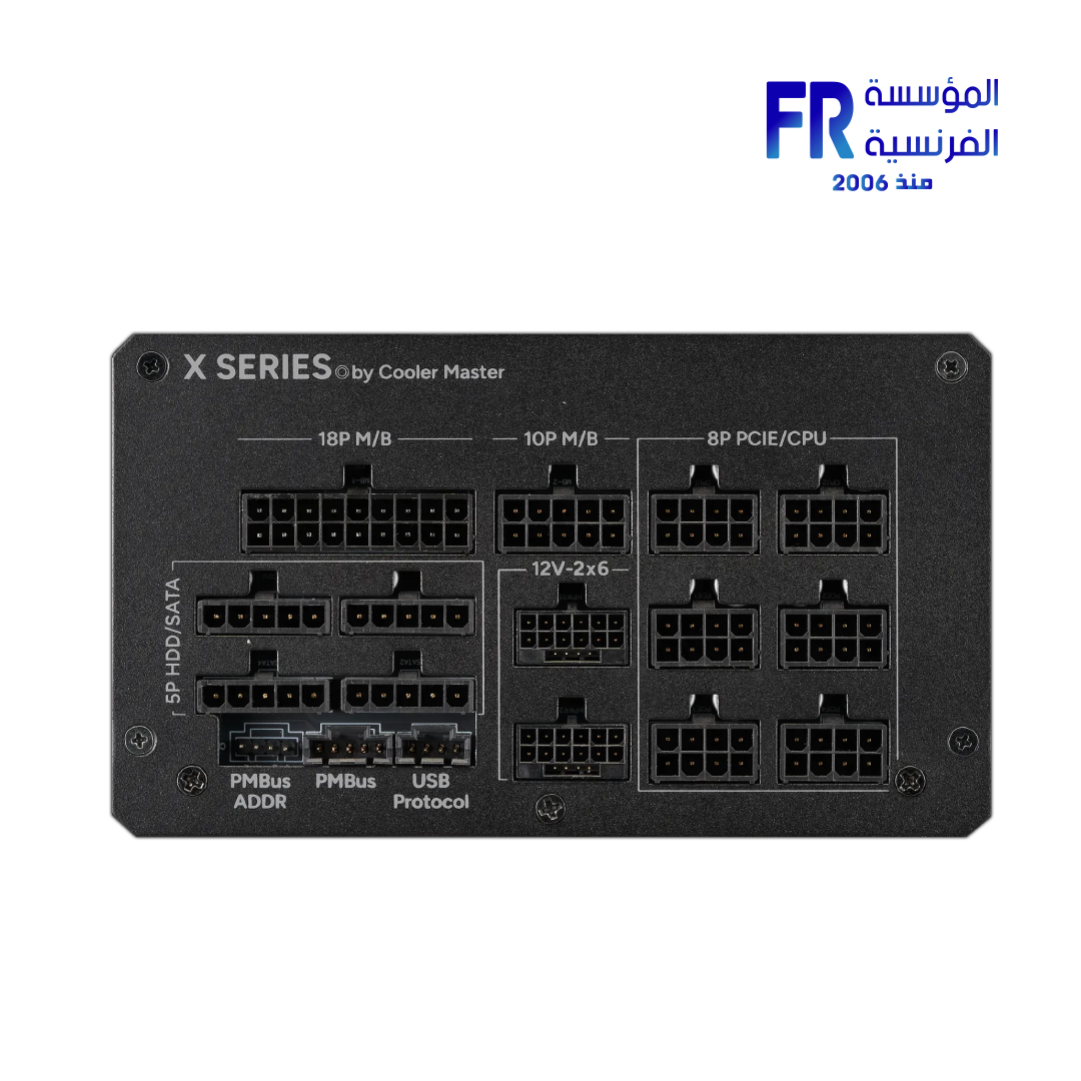

• Modular: Fully Modular
• Connectors:
  • 1x ATX 24 Pin
  • 1x EPS 4+4 Pin
  • 1x EPS 8 Pin
  • 2x 12V-2×6 (90° PCIe 5.1)
  • 4x PCI-e 6+2 Pin
  • 12x SATA
  • 4x Peripheral 4 Pin
  • 1x USB 10P Connector (for MasterCTRL software)
• Regulatory: TUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (depending on regional requirements)
• Part Number/SKU: MPS-K001-AFBP (Example, may vary by region)
• UPC: 884102115622 (Example, may vary by region)
