Corsair CX650 650W 80 Plus Bronze Power Supply

Corsair CX650 650W 80 Plus Bronze Power Supply

3500 EGP

650W Single +12V Rail
120mm Cooling Fan
ATX12V Version 2.31
2 x PCIe Connectors
3 x SATA Connectors
1 x EPS Connector
2 x PATA Connectors
Flat, Sleeved Cables

Out Of Stock.

Price Match Guarantee

SKU: 840006670957 Category: POWER SUPPLY Tags: POWER SUPPLY, 650W, BRONZE, 80 PLUS, CORSAIR, CX650 Brand: CORSAIR

Corsair CX650 650W 80 Plus Bronze Power Supply

Key Specs

Total Connectors	1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex
Cable Design	Flat
Total Wattage	650 W
Number of +12 V Rails	1
Efficiency Rating	80 PLUS Bronze
Form Factor	ATX

Corsair CX650 650W 80 Plus Bronze Power Supply SPECS :

ATX Connector	1
ATX12V Version	v2.31
Cable Type	Type 4
Continuous Power W	650 Watts
EPS Connector	1
Fan Bearing Technology	Sleeve
Fan Size MM	120mm
SATA Connector	3

Modular	No
PCIe Connector	2
MTBF Hours	100,000 hours
PSU Form Factor	ATX
80 PLUS Efficiency	Bronze
Warranty	5 Year
Weight	2.32

80 PLUS BRONZE POWER

Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.

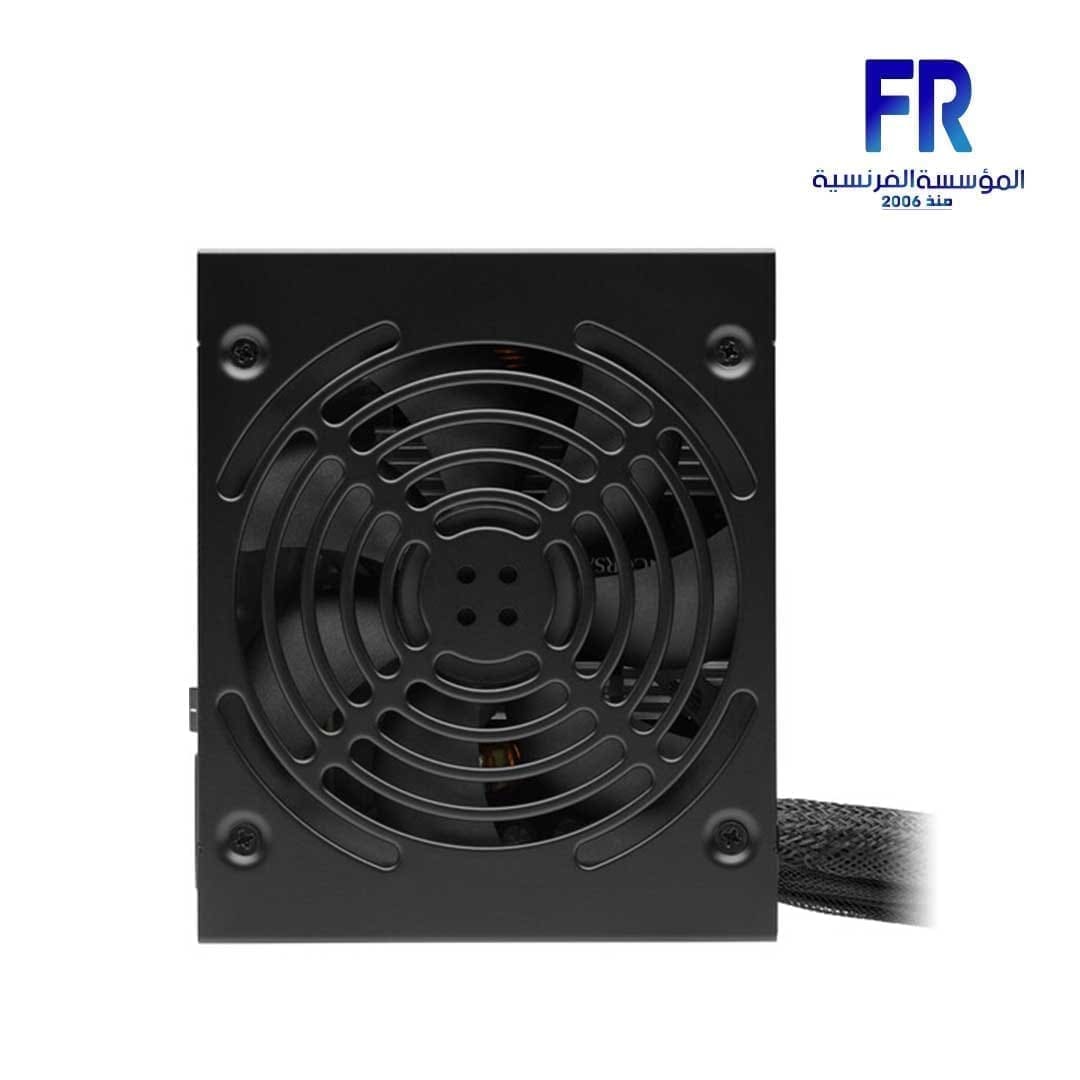

120mm LOW-NOISE FAN

Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.

AN EASY FIT

A compact 125mm-long casing ensures an easy fit in almost all modern PC cases.

—————

————————————–

Connectivity

Total Connectors	1x 24-Pin ATX Motherboard 1x 4+4-Pin EPS CPU 2x 6+2-Pin PCIe 3x 6-Pin SATA / Peripheral 2x 4-Pin Peripheral / Molex
Cable Design	Flat
PCIe Connector Distances	19.7″ / 500 mm 3.9″ / 100 mm
SATA Connector Distances	15.7″ / 400 mm 3.9″ / 100 mm 3.9″ / 100 mm
Peripheral Connector Distances	15.7″ / 400 mm 3.9″ / 100 mm
ATX Connector Distance	23.6″ / 600 mm
EPS Connector Distances	23.6″ / 600 mm

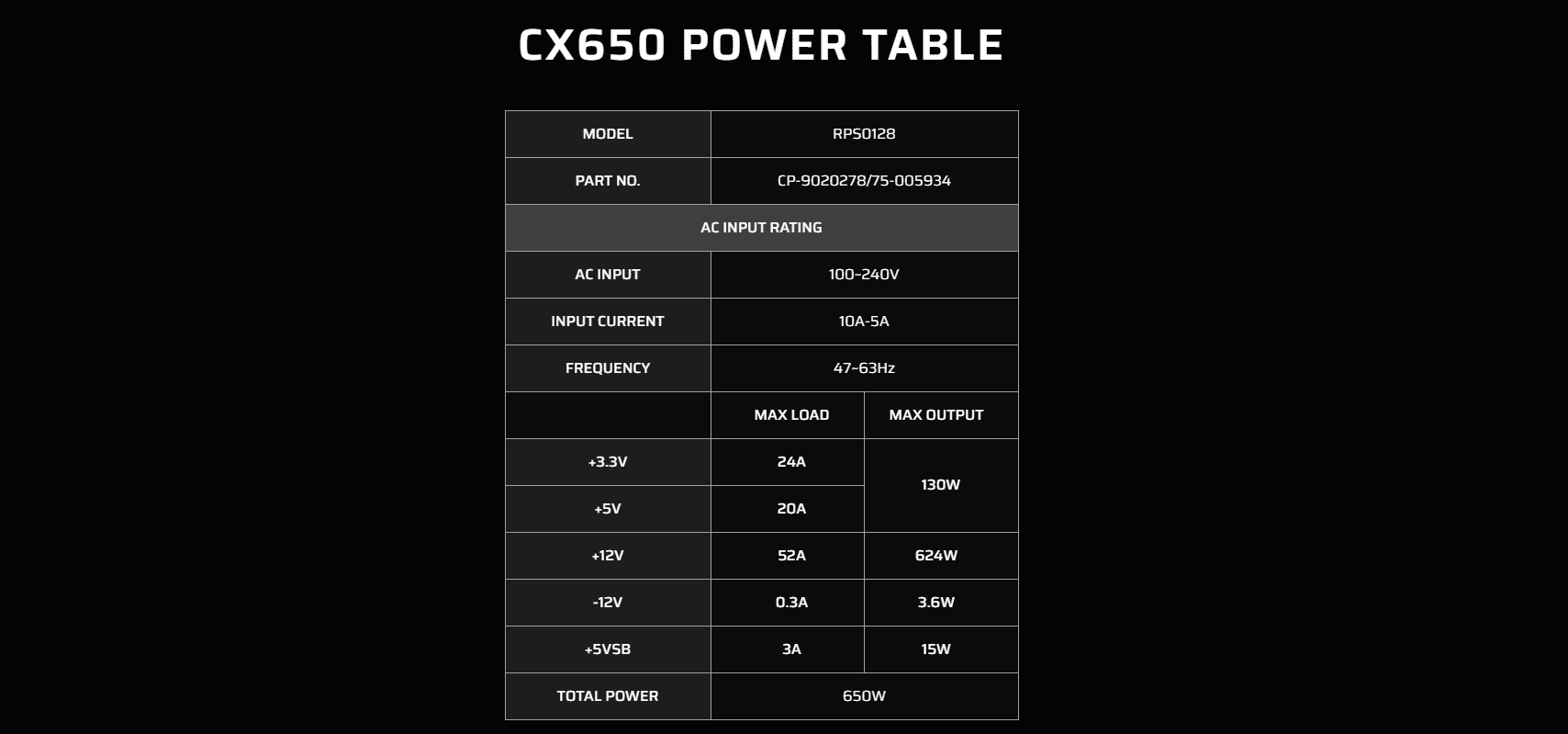

Total Wattage	650 W
Number of +12 V Rails	1
Combined Power for +12 V	624 W
Max Load for +12 V	52 A
Combined Power for +3.3/+5 V	130 W
Max Load for +3.3 V	24 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Efficiency Rating	80 PLUS Bronze
Active Power Factor Correction	No
Efficiency	88%

Fan Size

120 mm

Form Factor	ATX
Mean Time Between Failures (MTBF)	100,000 Hours
Dimensions	4.9 x 3.4″ / 125 x 86 mm

Package Weight	4.81 lb
Box Dimensions (LxWxH)	10.5 x 6.9 x 4″

POWER SUPPLY

MODEL	CX650 650W
Psu-Cable-Type	NON MODULAR
PSU WATT	650 W
ENERGY EFFICIENT	80 PLUS BRONZE
Protection	N/A
PSU Capacitors	N/A
DC to DC	N/A
Fan Size (mm)	120mm
Part Number	Corsair CX650 650W 80 Plus Bronze Power Supply
Warranty	1 Year
