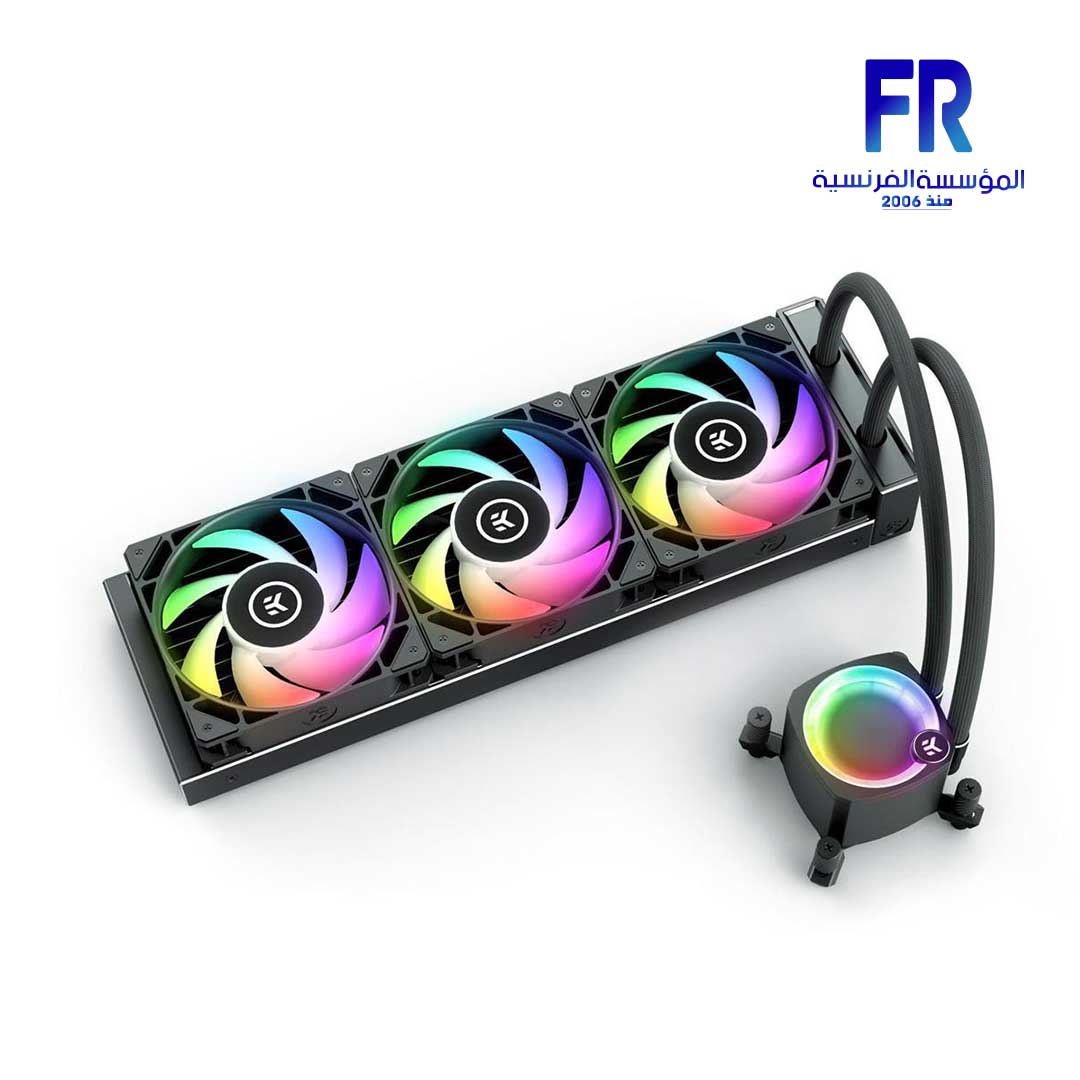

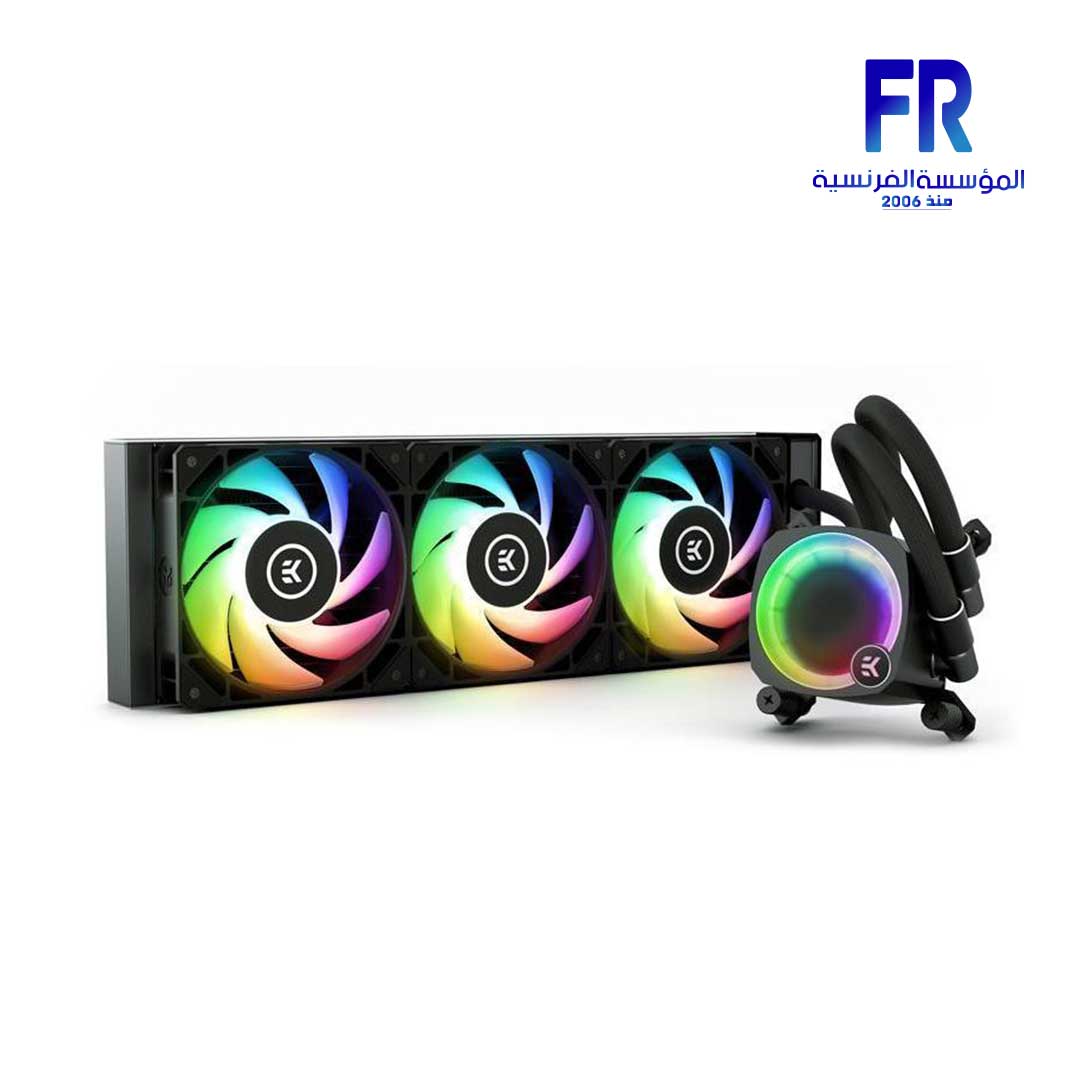

EK Nucleus CR360 Lux DRGB Aio Liquid Cpu Cooler

• Radiator Dimensions:

• 400 x 124 x 27 mm

• Radiator Material:

• Aluminum

• Fan Compatibility:

• 120 mm

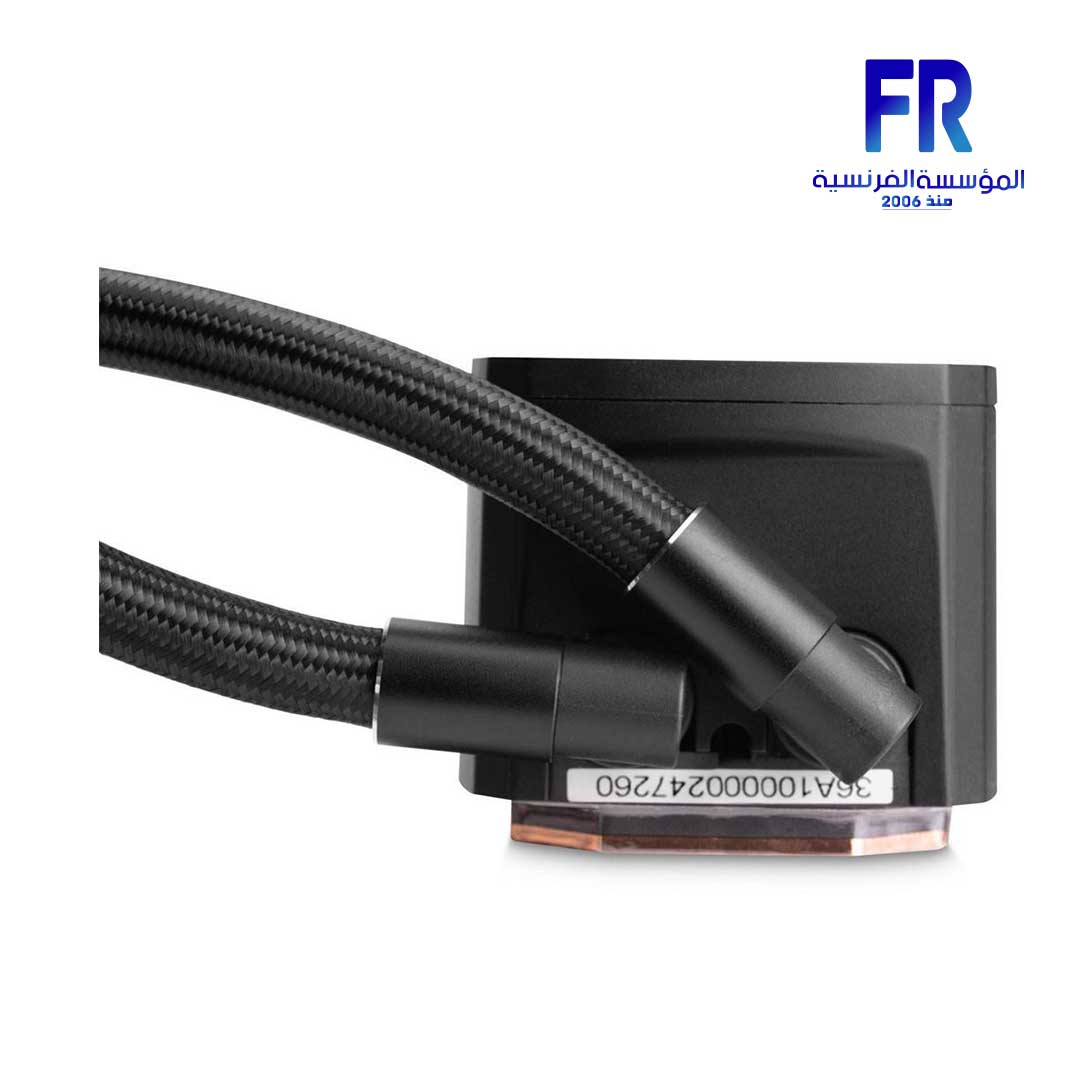

• Pump Unit Dimensions:

• 82.3 x 69.2 x 61.6 mm

• Pump Unit Material:

• ABS housing, ABS top ring

• Pump Speed Range:

• 3100 RPM ± 10%

• Pump PWM Range:

• 20 – 100%

• Pump Unit RGB Type:

• 5V Digital (Addressable)

• Pinout:

• 5V, D, Empty, Ground Pump RGB Cable Length: 500 mm

• Tubing Material:

• Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

• Tubing Length:

• 400 mm

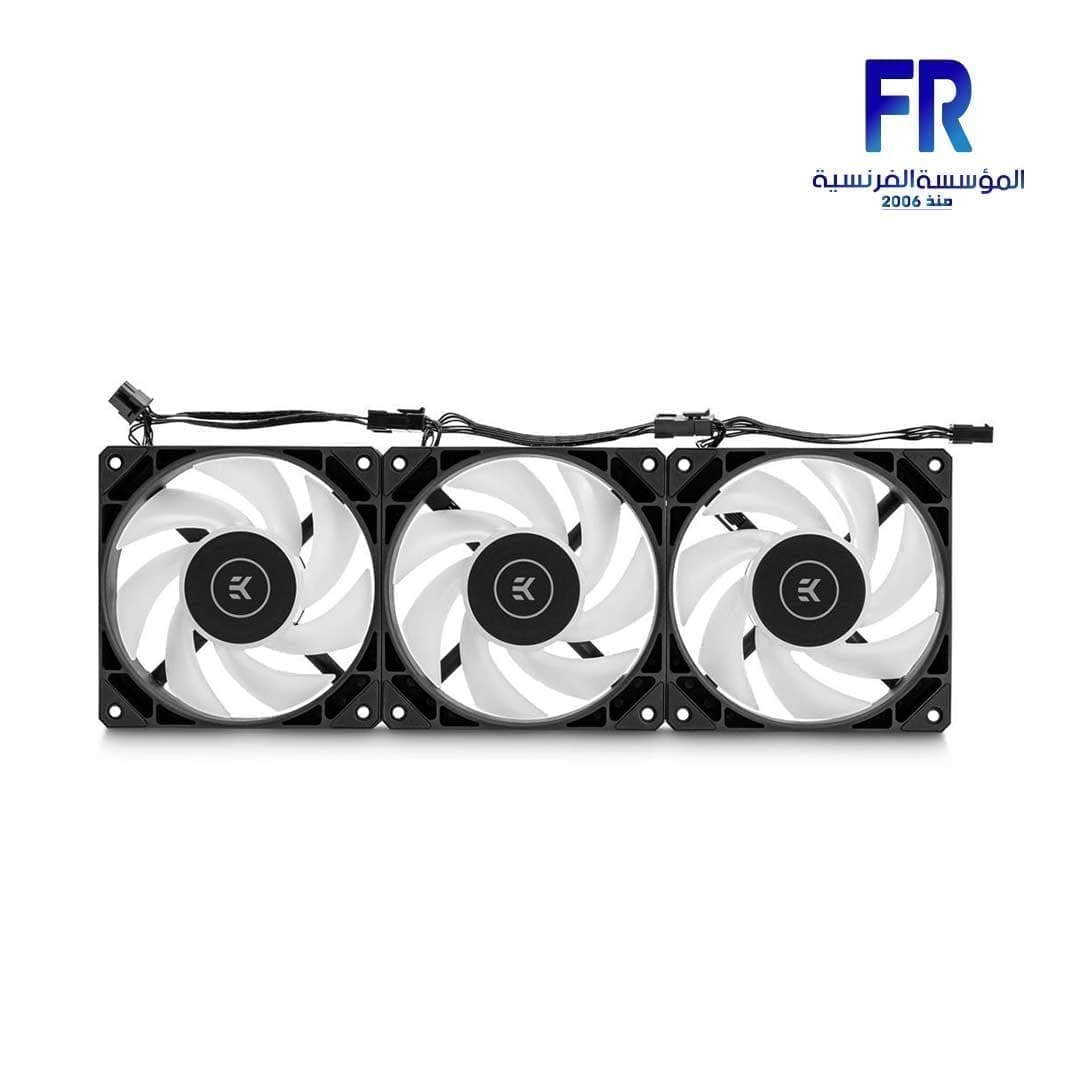

• Fan Dimensions:

• 120 x 120 x 25mm

• Fan Speed Range:

• 550 – 2300 ± 10%

• Fan Noise Level:

• 36 dB (at maximum speed)

• Fan Air Flow:

• 72 CFM = 122,33 m³/h (at maximum speed)

• Fan RGB Type:

• 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground

• System Requirements:

• 4-Pin PWM Header for pump and fan operation
• 3-Pin Addressable 5V D-RGB header

• Enclosed:

• EK-Nucleus AIO CR360 Lux D-RGB unit
• EK-FPT FAN 120 D-RGB Full Pressure Technology Fan (3x)
• Mounting Kit
• User Manual

• Compatible CPU Sockets:

• Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700
• AMD Socket: AM4, AM5

• UNIVERSALLY COMPATIBLE – All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets (LGA 1700 and AM5).
• ADDRESSABLE RGB – Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top.
• NEW POSITIONING OF ROTARY FITTINGS – The AIO CR360 Lux (360mm AIO) comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The improved position of rotary fittings allows the EK-Nucleus AIO to be installed in even the tightest spaces.
• ROTATABLE PUMP TOP – The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed.
• HIGH-STATIC PRESSURE FPT FANS – FPT series fans aim to succeed the EK-Vardar fans completely as they improve upon many aspects while maintaining focus on excellent radiator performance
