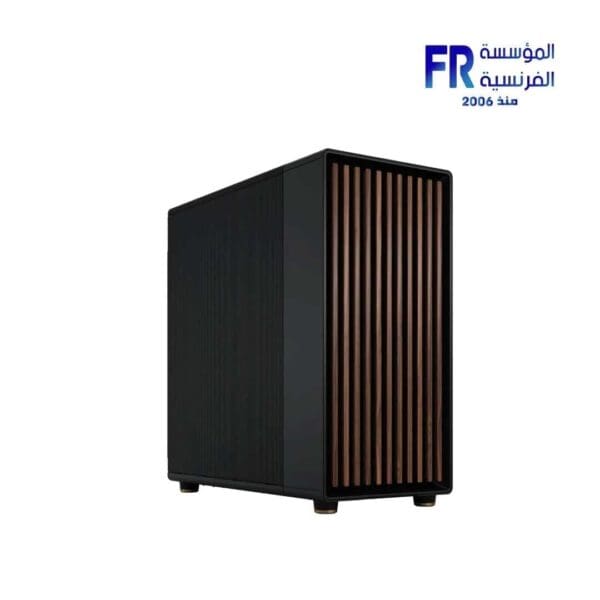

Fractal Design North XL Mesh Full Tower Case

Fractal Design North XL Charcoal Black Mesh Full Tower Case

9699 EGP

E-ATX, ATX, Micro-ATX & Mini-ITX Support
Steel Frame & Mesh Side Panel
2 x 2.5/3.5″ Drive Bays
4 x 2.5″ Drive Mounts
7 x Expansion Slots
USB-C 3.1 Gen 2, 2 x USB-A 3.1 Gen 1
3 x 140mm Fans Included
Support for Liquid Cooling Systems
Supports GPUs up to 16.3″
Supports PSUs up to 11.4″

Not available right now, but we have the alternative

Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.

Talk to our sales team for an alternative

Out of stock

Want to be notified when this product is back in stock?

SKU: 843276106539 Category: Cases Tags: FULL TOWER CASE, Fractal Design, North XL Mesh Brand: Fractal Design

Fractal Design North XL Mesh Full Tower Case

Fractal Design North XL Mesh Full Tower Case specs :

North	North XL
Front radiator	Up to 360 mm	Up to 420/360 mm
Top radiator	Up to 240 mm	Up to 280/360 mm
Included Aspect 140 mm fans	2	3
Total 120 mm fan mounts	8 (Mesh) 6 (TG)	9 (Mesh) 7 (TG)
Total 140 mm fan mounts	6 (Mesh) 4 (TG)	8 (Mesh) 6 (TG)
Graphics card (max length)	Up to 355 mm	Up to 413 mm
Motherboard	ATX	E-ATX (330 mm)

Specifications

Dedicated 2.5″ drive mounts

2
Combined 3.5/2.5” drive mounts

2 included
5.25” drive mounts

0
Expansion slots

7
Front interface

1x USB 3.2 Gen 2×2 Type-C (20 Gbps), 2xUSB 3.0, Audio & Mic
Total fan mounts (TG Version)

7 x 120 mm or 6 x 140 mm
Total fan mounts (Mesh Version)

9 x 120 mm or 8 x 140 mm
Front fan

3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)
Top fan

3 x 120 mm, 2 x 140 mm or 2 x 180 mm
Rear fan

1 x 120/140 mm
Dust filters

Front, PSU
Fixed cable straps

Yes
Cable routing grommets

Yes
Captive thumbscrews

HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
Left side panel

Mesh
Right side panel

Steel

Compatibility

Motherboard compatibility

E-ATX / ATX / mATX / Mini-ITX
Power supply type

ATX
PSU max length

1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm
GPU max length

413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator
CPU cooler max height

155 mm with Fan Bracket (Mesh version) / 185 mm without
Front radiator

Up to 420/360 mm
Top radiator

Up to 280/360 mm
Rear radiator

1 x 120/140 mm
Cable routing space

29 mm

Dimensions

Case dimensions (LxWxH)

503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws

490 x 240 x 490 mm
Net weight

9.7 kg (Mesh) / 9.5kg (TG)
Package dimensions (LxWxH)

604 x 355 x 608 mm
Gross weight

11.9 kg (Mesh) / 11.7kg (TG)

Other

Package contents (Mesh version)

North case, Accessory Box, Fan Bracket Accessory Box, User Manual
Package contents (TG version)

North case, Accessory Box, User Manual
EAN

Charcoal Black: 7340172706533, Charcoal Black TGD: 7340172706540, Chalk White: 7340172706557, Chalk White TGC: 7340172706564
UPC

Charcoal Black: 843276106539, Charcoal Black TGD: 843276106546, Chalk White: 843276106553, Chalk White TGC: 843276106560
JAN

Charcoal Black: 4537694326902, Charcoal Black TGD: 4537694326919, Chalk White: 4537694326926, Chalk White TGC: 4537694326933
Product Code

Charcoal Black: FD-C-NOR1X-01, Charcoal Black TGD: FD-C-NOR1X-02, Chalk White: FD-C-NOR1X-03, Chalk White TGC: FD-C-NOR1X-04
Warranty

2 Years

Case

MODEL	North XL Mesh
CASE SIZE	FULL TOWER
PANEL	Airflow
Motherboard Type	Mini ITX, ATX, E-ATX, m-ATX
FANS INCLUDED	3 FAN
Expansion Slots	7
Fan Support	9 x 120 mm
Radiator Support	420 mm
GPU Length	413 mm
CPU Height	155 mm
PSU SUPPORT	290 mm
Pre-installed PSU	N/A
I/O Ports	HD Audio, Power, USB 3.2 Gen 2 Type C, MIC, 2x USB 3.0
3.5“ Drive Bays	Two 3.5-Inch Drive Bays
2.5 Drive Bays	2-Bay Drive
Color	Charcoal Black
Part Number	FD-C-NOR1X-01
Warranty	2 Years
