What are the benefits of ATX 3.1 compliance?

ATX 3.1 compliance ensures the PSU can handle massive total power excursions required by next-gen GPUs and features the updated 12V-2x6 connector for improved safety and reliability.

Is this PSU suitable for small cases?

Yes, it features a compact 140mm length, which is shorter than many standard 1000W PSUs, making it ideal for space-constrained builds without sacrificing power.

What is the warranty period?

The FSP VITA GM 1000W comes with a comprehensive 10-year warranty, reflecting its high-quality construction and Japanese bulk capacitors.

Filter

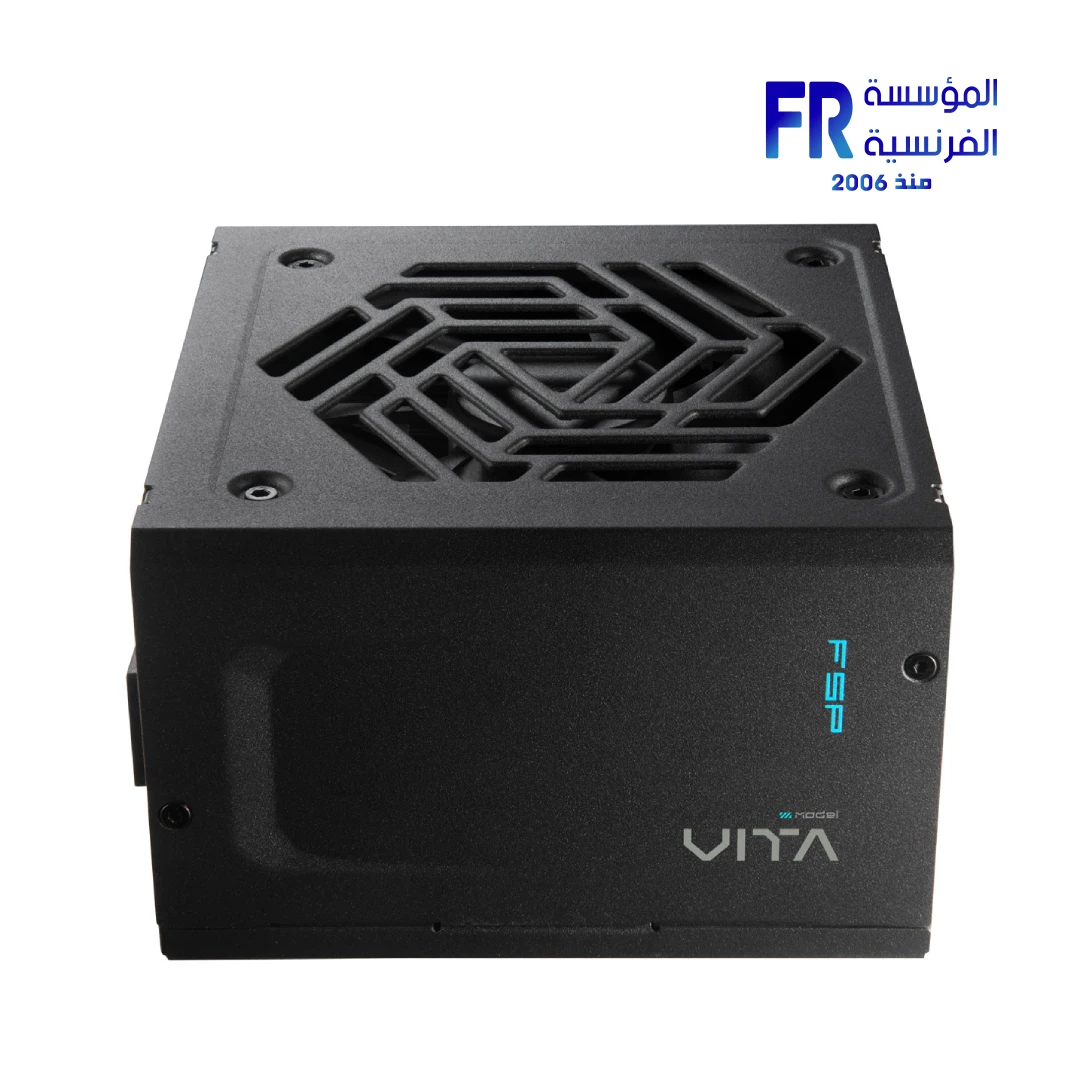

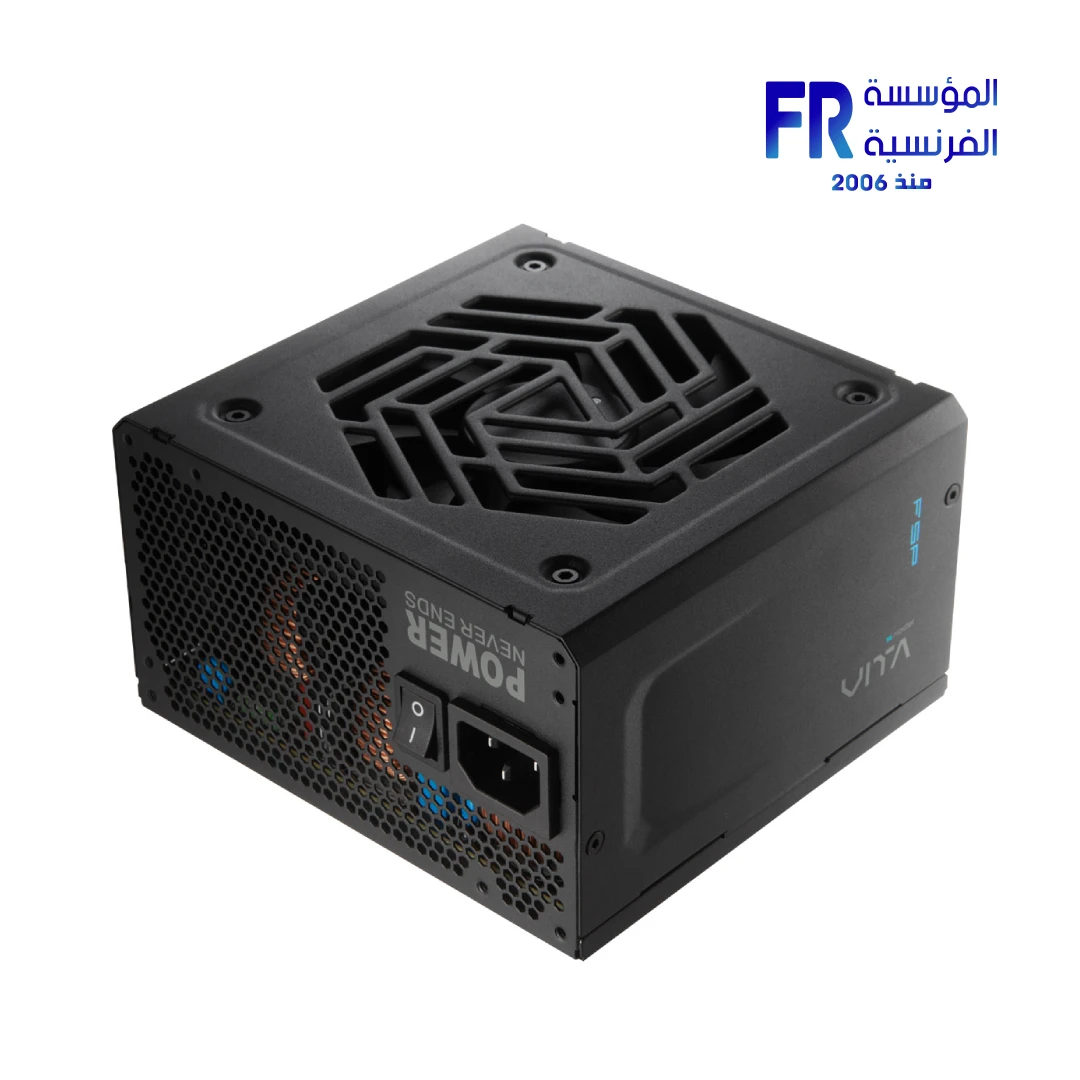

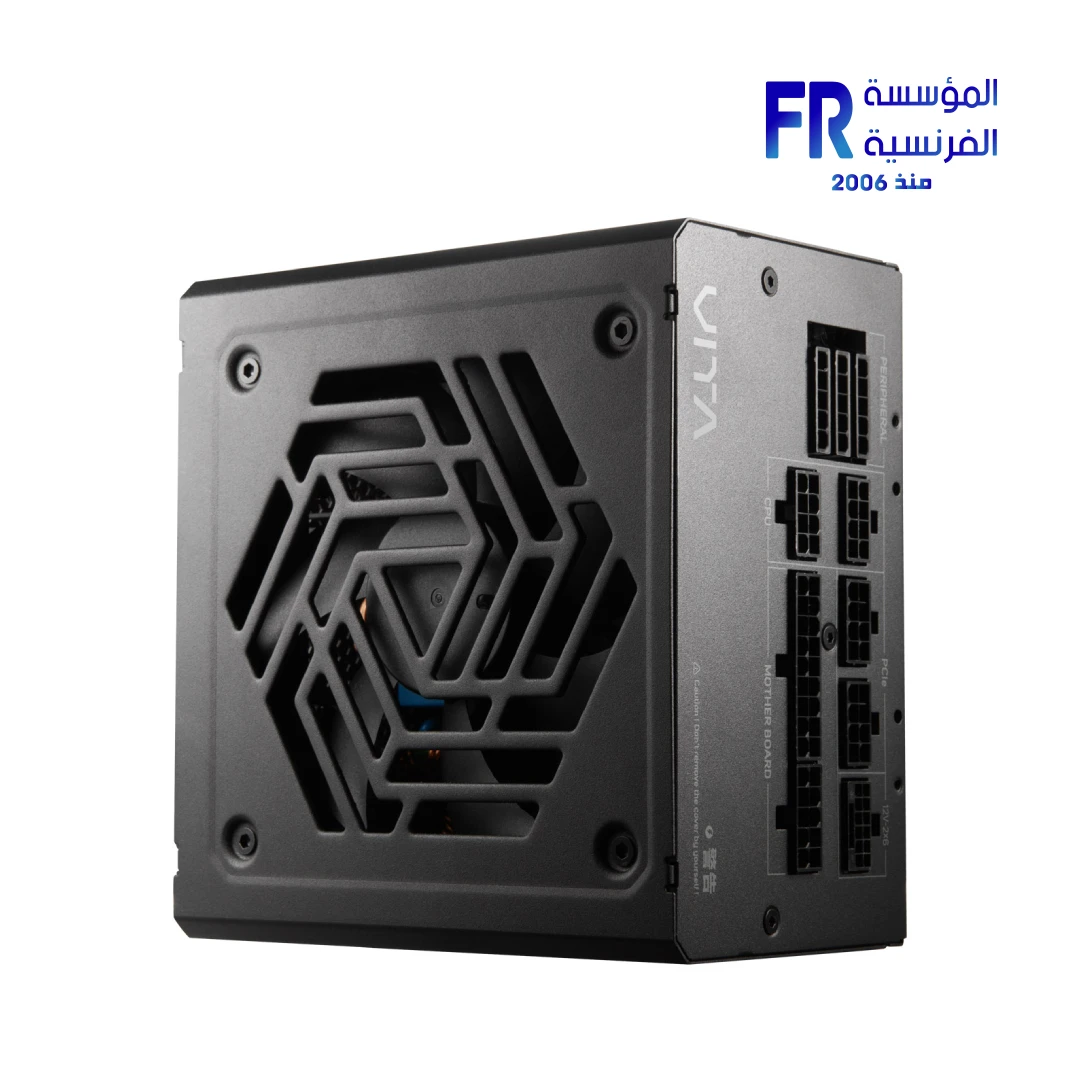

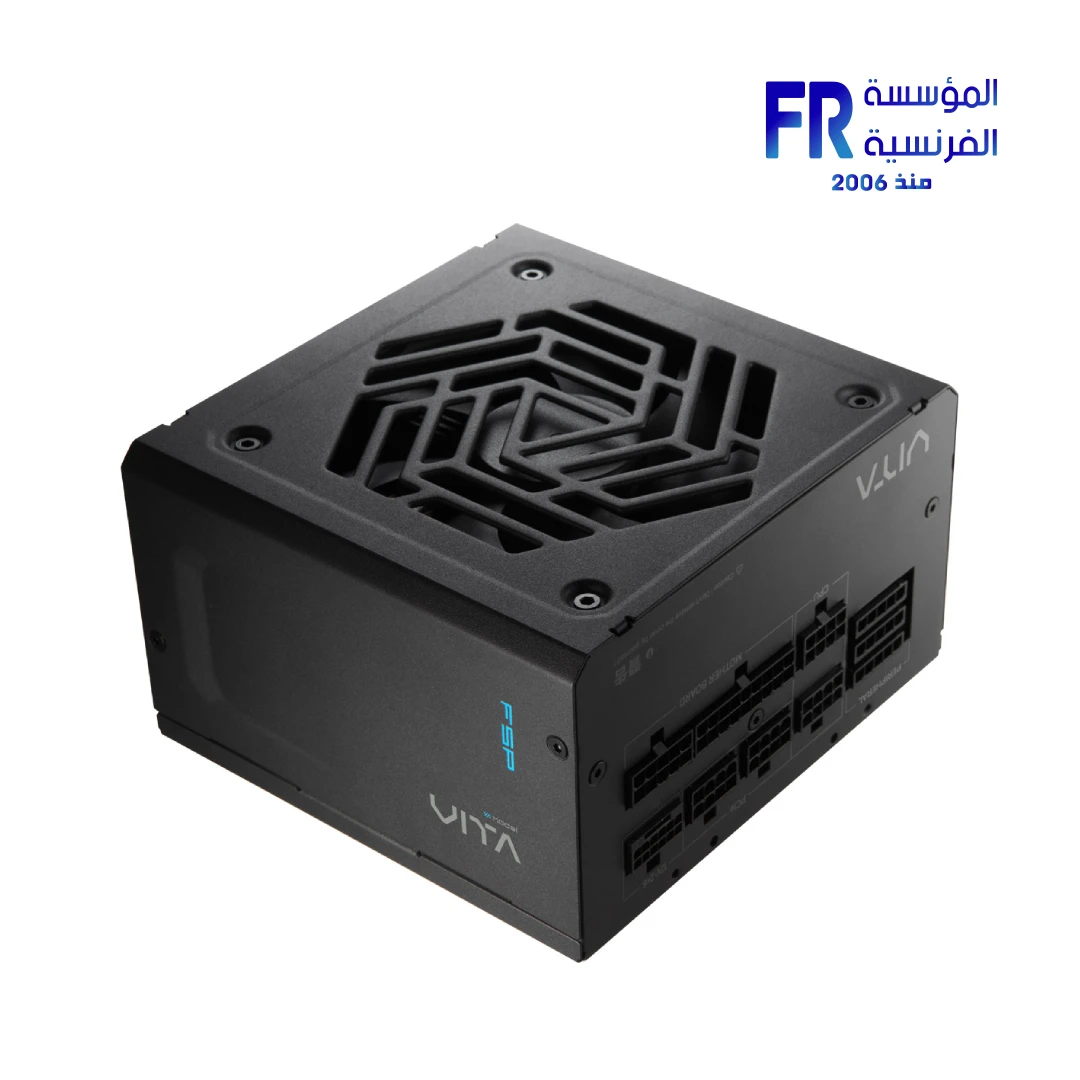

FSP VITA GM 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply

FSP VITA GM 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply

7400 EGP

Part Number PPA10A4000
Wattage & Efficiency 1000W 80 PLUS Gold
Standards Support ATX 3.1 & PCIe 5.1 Ready
Modularity Fully Modular
GPU Connector 1x 12V-2×6 (Native)
Fan Type 120mm Hydraulic Bearing (HYB)
Dimensions 140 x 150 x 86 mm (Compact)
Warranty 1 Year

In stock

Price Match Guarantee

FSP VITA GM 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply

Power the demanding hardware of tomorrow with the FSP VITA GM 1000W. Built to the latest ATX 3.1 and PCIe 5.1 standards, this 80 Plus Gold fully modular PSU delivers reliable, efficient energy in a compact 140mm chassis.

1000W

Total Power

80+ Gold

High Efficiency

ATX 3.1

Next-Gen Ready

1 Year

Long-Term Warranty

Efficient Power for Future Hardware

ATX 3.1 & PCIe 5.1 Support

Engineered for peak performance with future hardware upgrades, the VITA GM series supports the maximum total power excursions required by ATX 3.1. It includes a dedicated 12V-2×6 cable to power high-end NVIDIA and AMD graphics cards without adapters.

Premium Components

Equipped with 105°C Japanese bulk capacitors for maximum reliability and a high-amperage single +12V rail. A 120mm hydraulic bearing (HYB) fan ensures quiet operation while keeping temperatures low under heavy loads.

Modular & Compact

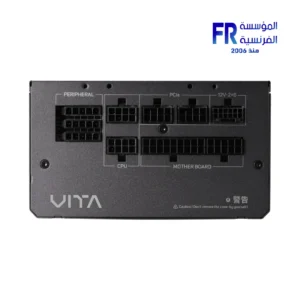

The fully modular design allows you to use only the cables you need, improving airflow and reducing clutter. With a length of just 140mm, it fits easily into compact PC cases without compromising on wattage or cooling performance.

Technical Specifications

Feature	Details
Model	VITA-1000GM
Rated Power	1000W
Efficiency Rating	80 PLUS® Gold (Cybenetics Gold)
Power Standard	ATX12V V3.1 & PCIe 5.1
Modularity	Fully Modular
Fan Type	120mm HYB Fan
Dimensions (LxWxH)	140 x 150 x 86 mm
Protections	OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
Warranty	1 Year

💡 Pro Tip:

If you are using a modern RTX 40 or 50 series graphics card, use the included 12V-2×6 cable. This single-cable solution provides up to 600W directly to the GPU, offering a cleaner look and better connection security than traditional multiple 8-pin adapters.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

POWER SUPPLY

MODEL	VITA GM 1000W
Psu-Cable-Type	FULL MODULAR
PSU WATT	1000 W
ENERGY EFFICIENT	80 PLUS GOLD
Protection	NLO, OCP, OPP, OTP, OVP, SCP, SIP, UVP
PSU Capacitors	Japanese Capacitors
DC to DC	YES
Part Number	PPA10A4000
Warranty	1 Year
