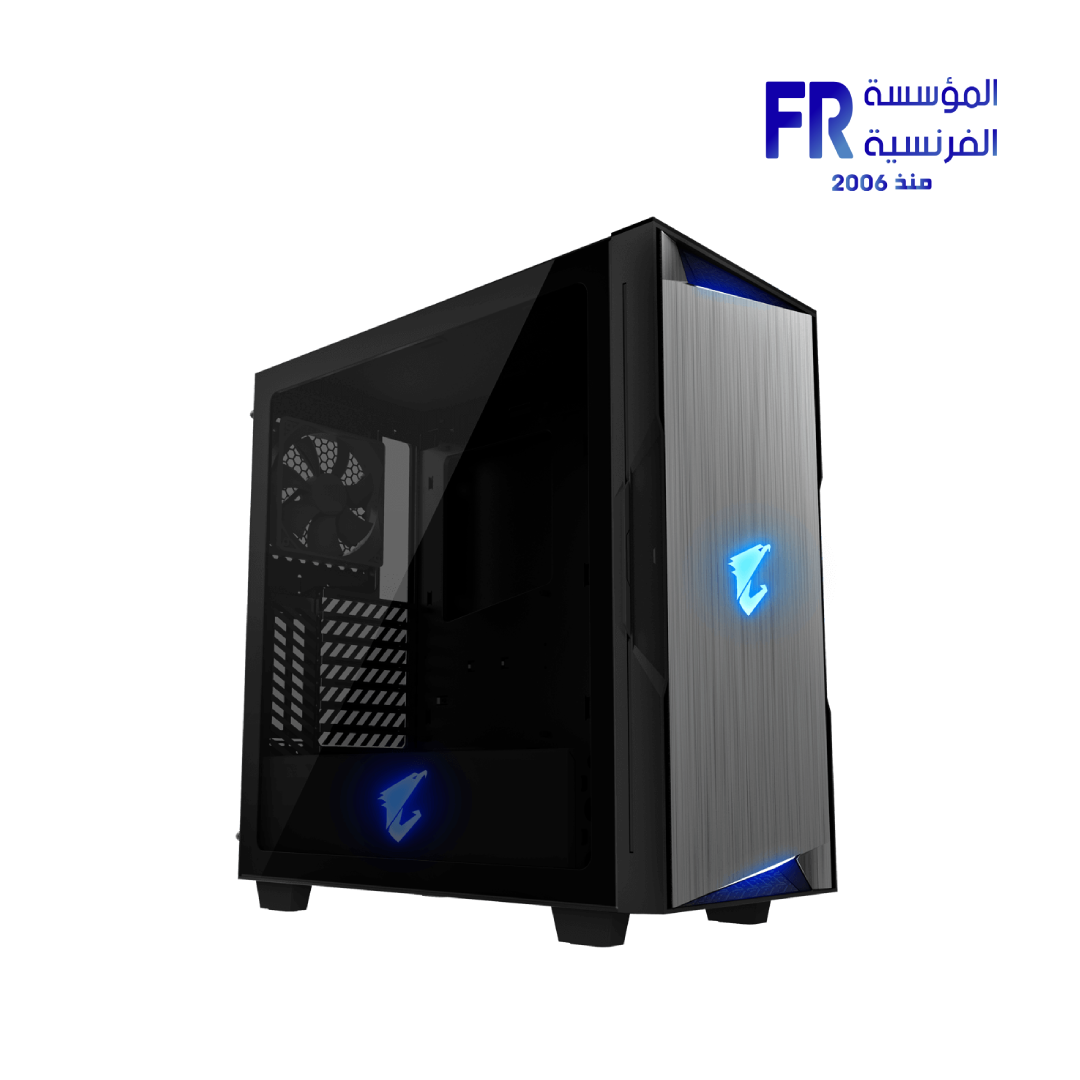

Gigabyte Ac300W Mid Tower Case

Gigabyte AC300W Mid Tower Case:

The Gigabyte AC300W Mid Tower Case is designed for gamers and PC enthusiasts looking for a stylish enclosure that offers good airflow, ample space for high-performance components, and customizable RGB lighting. It features a sleek design with a tempered glass side panel to showcase your build.

Key Features for a Modern Build:

•         Tempered Glass Side Panel: A large, full-sized tempered glass side panel provides a clear view of your internal components, perfect for showing off RGB lighting and clean cable management.
•         RGB Fusion 2.0 Lighting: The case typically comes with integrated RGB lighting on the front panel, which can be synchronized with other Gigabyte Aorus components (like motherboards, graphics cards, and RAM) using Gigabyte’s RGB Fusion 2.0 software. This allows for extensive customization of lighting effects and colors.
•         Optimized Airflow: Designed with airflow in mind, the case supports multiple fans and radiators to ensure efficient cooling for high-performance components. It often includes features like a PSU shroud to help with cable management and improve thermal performance by separating heat sources.
•         Versatile Storage Options: Provides flexible mounting options for both 3.5″ HDDs and 2.5″ SSDs, allowing you to build a system with a mix of storage solutions.
•         Front I/O Connectivity: The top or front I/O panel includes convenient ports such as USB 3.0, USB 2.0, and audio jacks for easy access to peripherals.
•         Removable Dust Filters: Features easily removable dust filters on various intakes to help keep the interior clean and maintain optimal airflow.

Specifications:

• Case Form Factor: Mid Tower
• Motherboard Support: ATX, Micro-ATX, Mini-ITX
• Dimensions (H x W x D): Approximately 468.5mm x 211mm x 458mm (exact dimensions can vary slightly by revision)
• Weight: Around 7-8 kg
• Materials: Steel (body), Plastic (front panel, top panel elements), Tempered Glass (side panel)
• Expansion Slots: 7 (horizontal) + 2 (vertical for GPU mounting)
• Drive Bays:
  • 3.5″ Bays: 2
  • 2.5″ Bays: 3 (can be converted from 3.5″ bays or dedicated mounts)
• Pre-installed Fans: Typically 1x 120mm rear fan (non-RGB) or 1x 120mm RGB rear fan, and 1x 120mm front fan (non-RGB, if any, often just the RGB strip)
• Fan Support:
  • Front: 3x 120mm / 2x 140mm
  • Top: 2x 120mm / 2x 140mm
  • Rear: 1x 120mm
• Radiator Support:
  • Front: Up to 360mm / 280mm
  • Top: Up to 240mm / 280mm (check clearance with RAM)
  • Rear: 120mm
• Max GPU Length: ~380mm
• Max CPU Cooler Height: ~170mm
• Max PSU Length: ~200mm
• I/O Ports: 2x USB 3.0, 2x USB 2.0, 1x Headphone Jack, 1x Microphone Jack, RGB LED Switch/Button
• Lighting: RGB Fusion 2.0 compatible (Front Panel LED)

For the most accurate and up-to-date information, including specific model revisions, it is always recommended to check the official Gigabyte product website.
