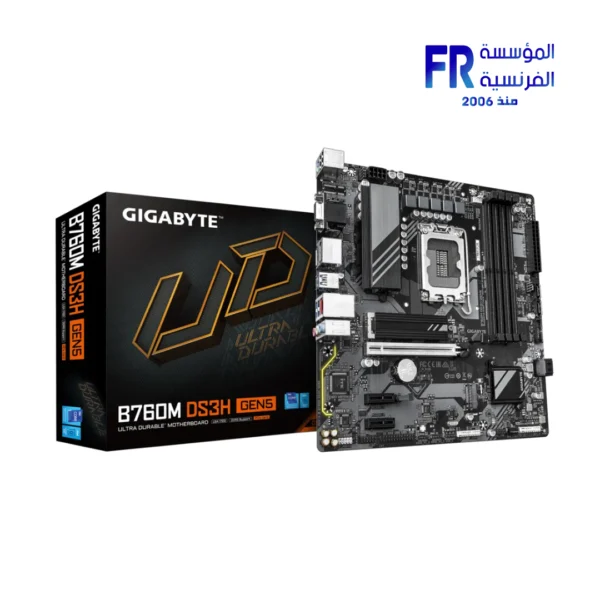

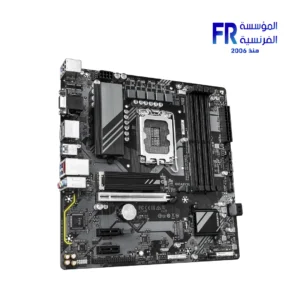

Gigabyte B760M DS3H Gen5 UD LGA1700 Motherboard

Gigabyte B760M DS3H Gen5 UD LGA1700 Motherboard:

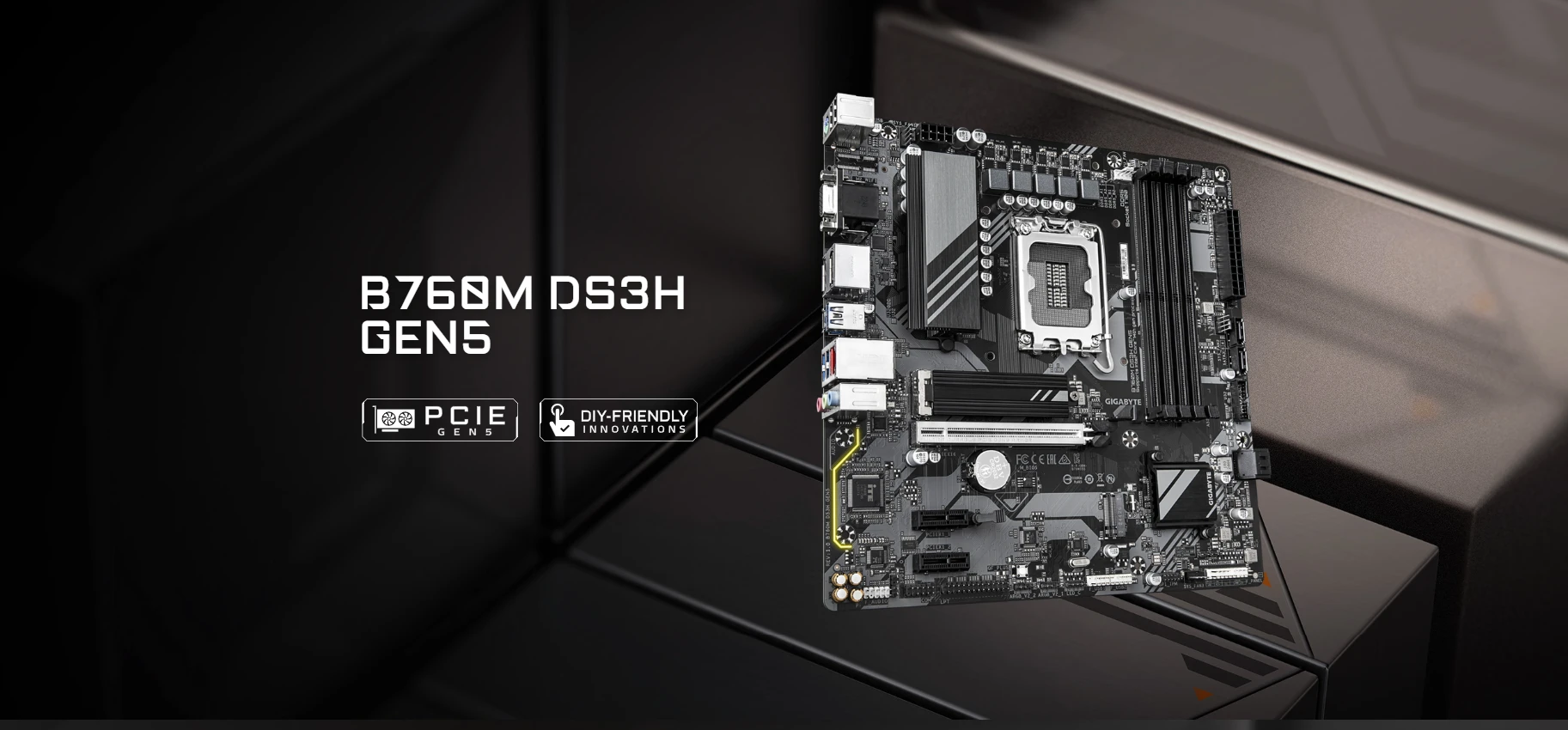

The Gigabyte B760M DS3H Gen5 UD LGA1700 Motherboard provides a robust and future-ready foundation for your PC. It supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. This motherboard features a PCIe 5.0 x16 slot, ensuring blazing-fast performance for the latest graphics cards. Furthermore, its durable design and comprehensive connectivity options make it an excellent choice for building a high-performance system.

Express to PCIe 5.0 Performance:

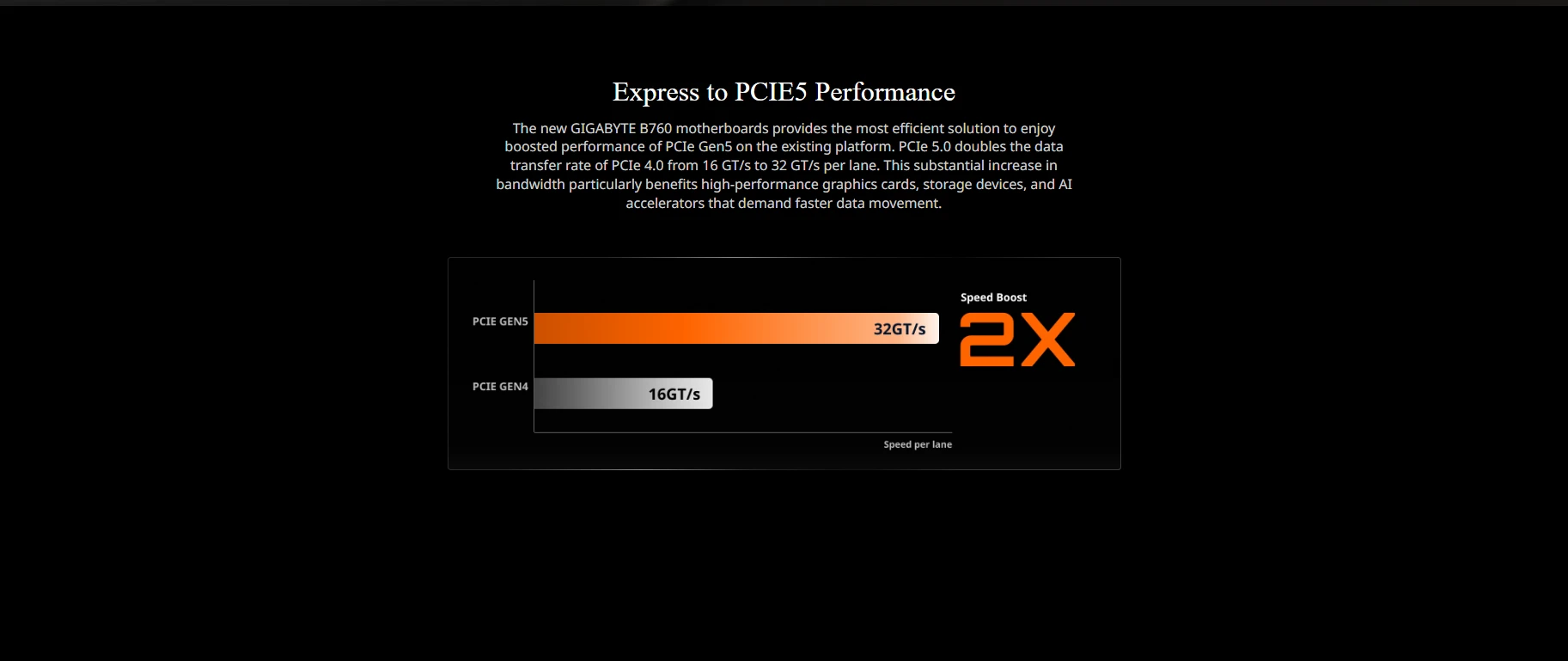

The new GIGABYTE B760 motherboards offer an efficient solution for boosted PCIe Gen5 performance on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0, increasing it from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement. Thus, you gain a significant advantage in demanding applications and gaming.

Durable Performance & Thermal Design:

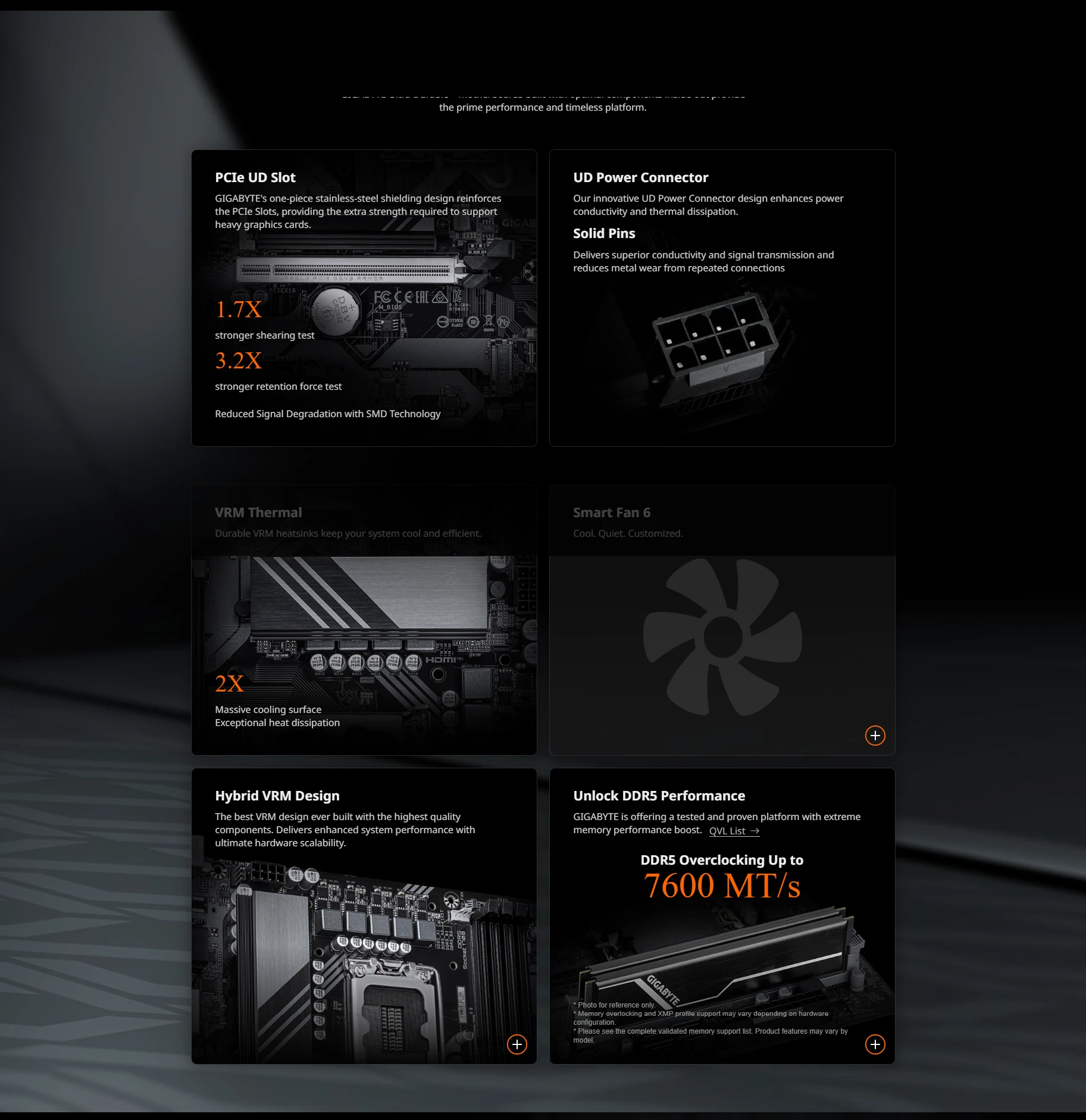

GIGABYTE Ultra Durable™ motherboards are built with optimal components. This ensures prime performance and a timeless platform. The PCIe UD Slot features GIGABYTE’s one-piece stainless-steel shielding design. This reinforces the PCIe Slots, providing the extra strength needed to support heavy graphics cards. This results in 1.7X stronger shearing test results and 3.2X stronger retention force. Furthermore, SMD Technology reduces signal degradation.

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation through solid pins. These deliver superior conductivity and signal transmission while reducing metal wear from repeated connections. Durable VRM heatsinks keep your system cool and efficient. They offer a 2X massive cooling surface for exceptional heat dissipation. Smart Fan 6 also provides cool, quiet, and customized cooling.

Hybrid VRM Design & DDR5 Support:

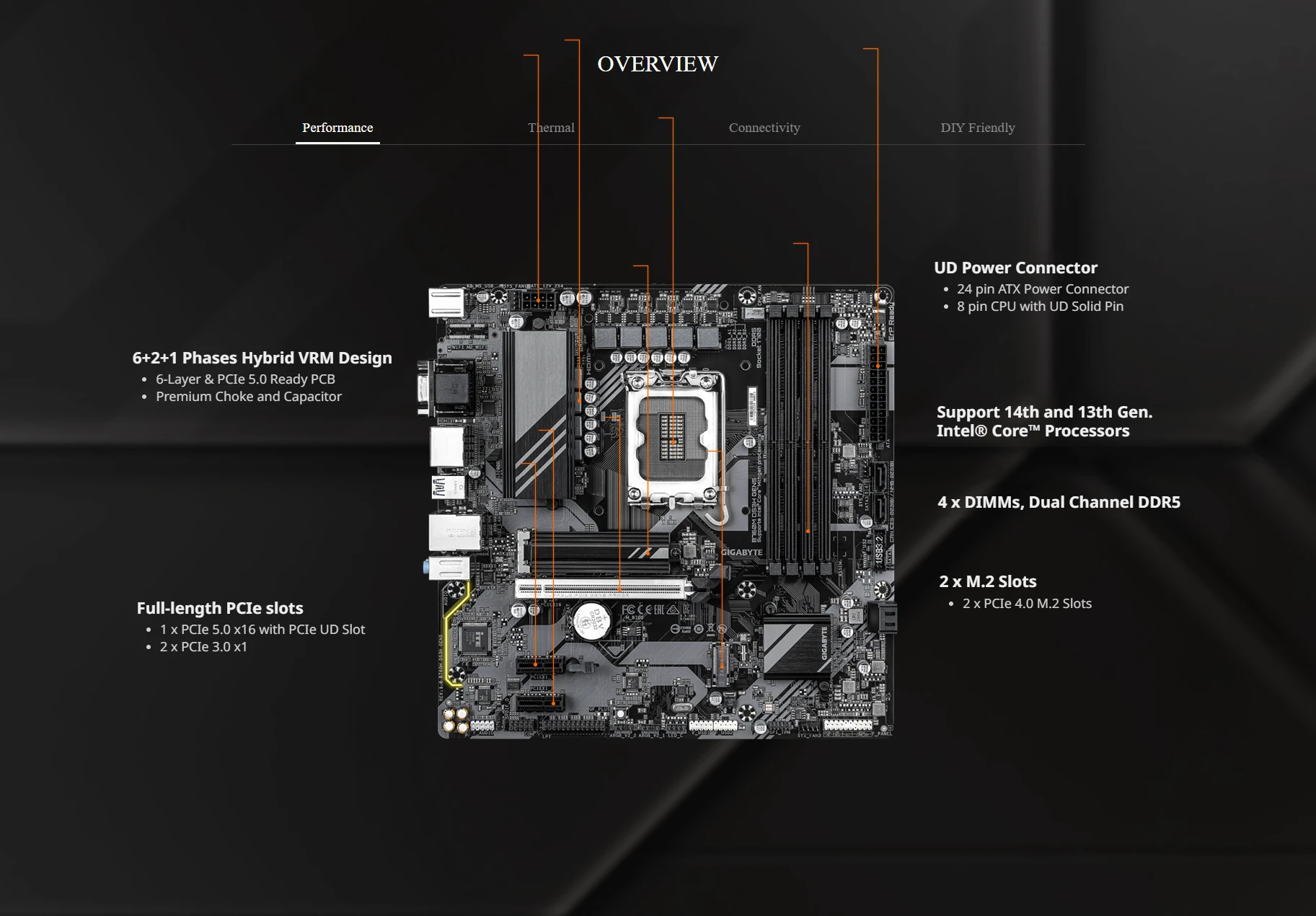

The Gigabyte B760M DS3H Gen5 features a Hybrid 6+2+1 Phases VRM Solution. This design ensures the best power delivery with the highest quality components. It enhances system performance and provides ultimate hardware scalability. The motherboard supports Dual Channel DDR5 memory across four DIMM sockets, allowing up to 256 GB of system memory. It also supports DDR5 5600/5200/4800/4400 MT/s memory modules, depending on the CPU. Furthermore, it supports Extreme Memory Profile (XMP) modules, enabling DDR5 overclocking up to 7600 MT/s for extreme memory performance.

Future Connectivity & Hi-Fi Audio:

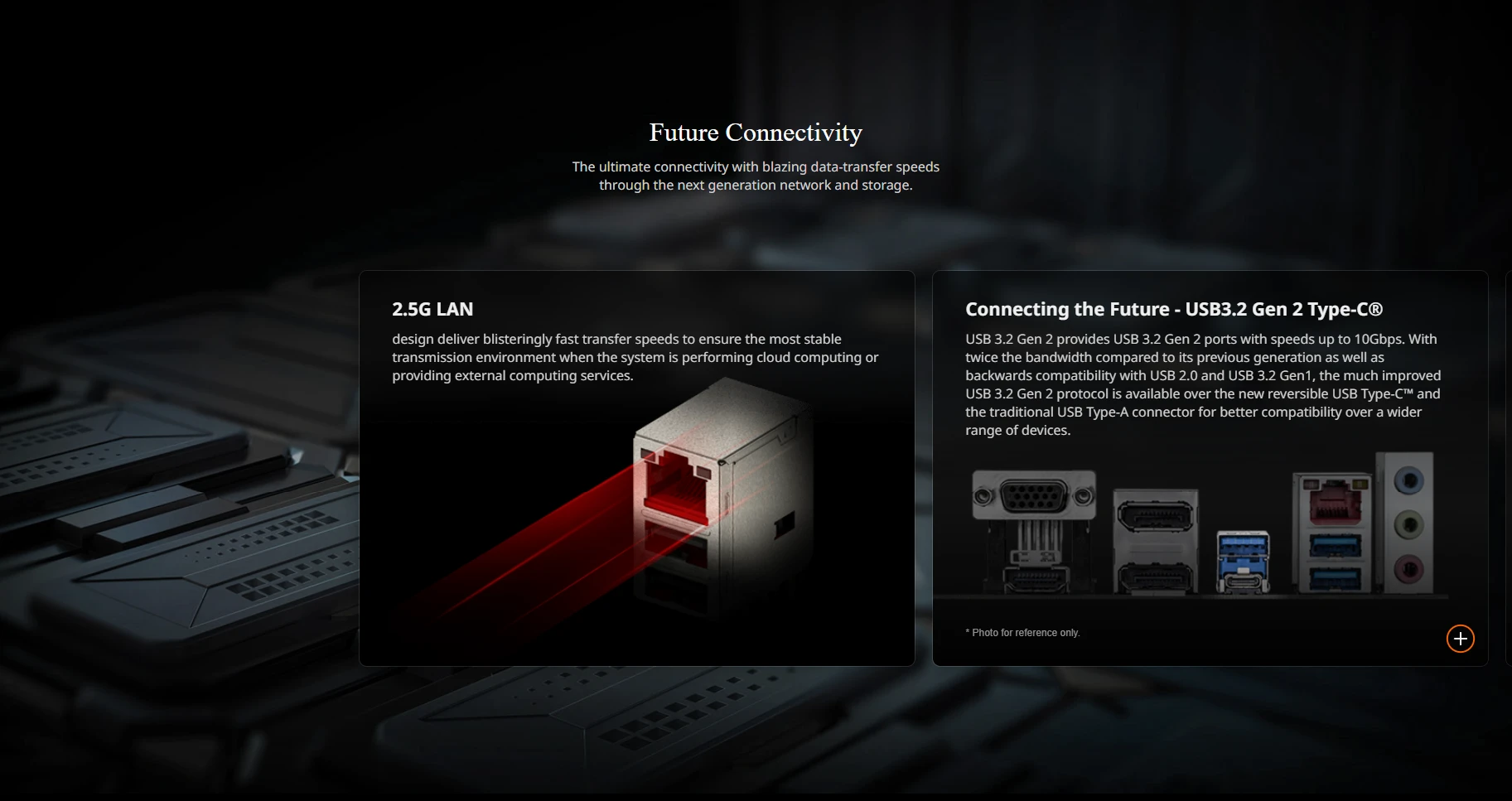

This motherboard offers ultimate connectivity with blazing data-transfer speeds. The Realtek® 2.5GbE LAN chip delivers blisteringly fast transfer speeds. This ensures a stable transmission environment for cloud computing or external services. Connecting the future is easy with USB 3.2 Gen 2 Type-C® ports. These provide speeds up to 10Gbps, doubling the bandwidth of the previous generation. It maintains backwards compatibility with USB 2.0 and USB 3.2 Gen1. This improved protocol is available via the new reversible USB Type-C™ and traditional USB Type-A connectors for broader device compatibility.

Enjoy Hi-Fi Audio with the Realtek® Audio CODEC. This provides High Definition Audio with 2/4/5.1/7.1-channel support. High-End Audio Capacitors and Audio Noise Guard ensure a pristine sound experience.

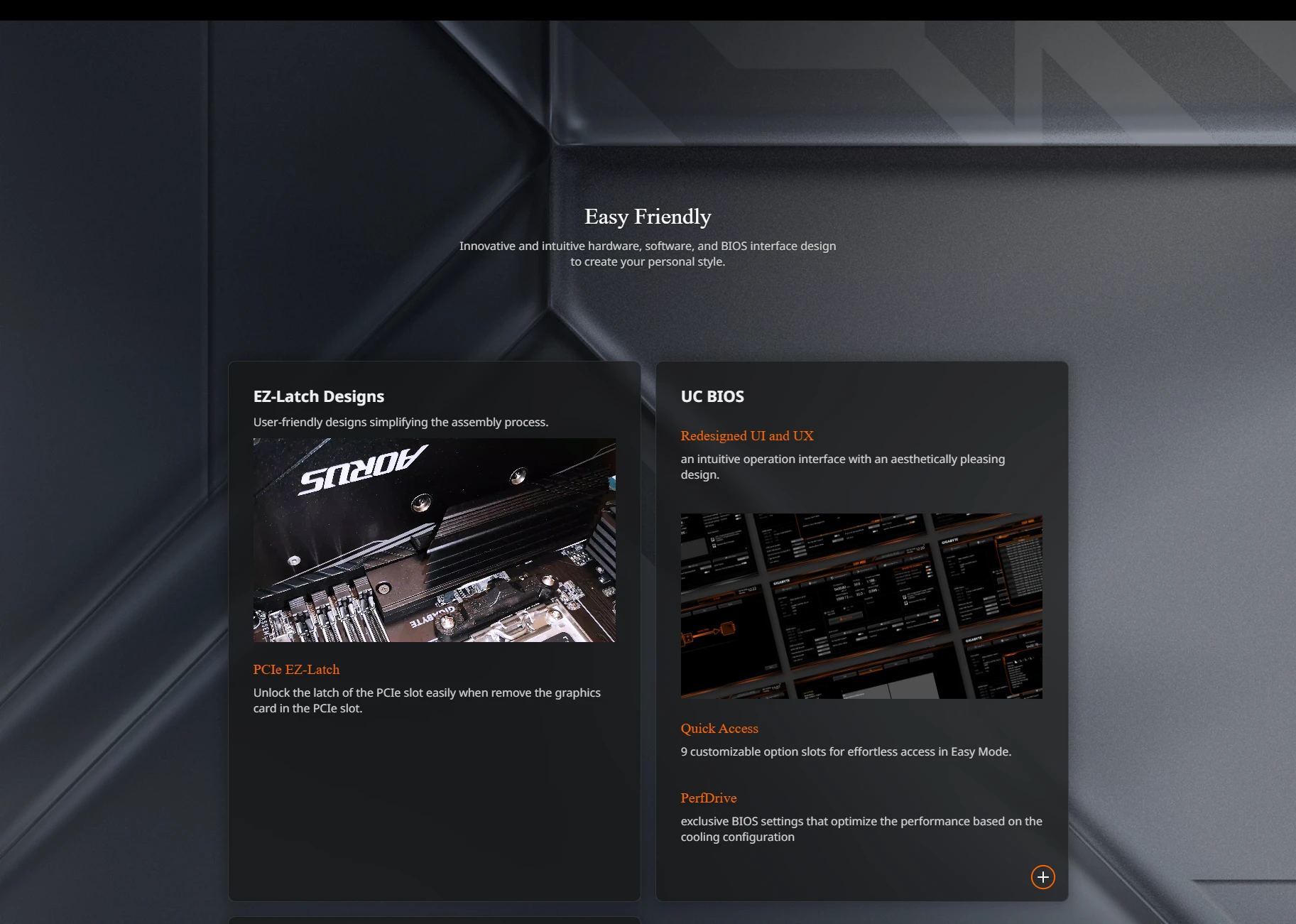

Easy Friendly Features & BIOS:

The Gigabyte B760M DS3H Gen5 integrates innovative and intuitive hardware, software, and BIOS interface designs. This allows you to create your personal style with ease. EZ-Latch Designs simplify the assembly process. PCIe EZ-Latch, for instance, allows you to unlock the latch of the PCIe slot easily when removing a graphics card.

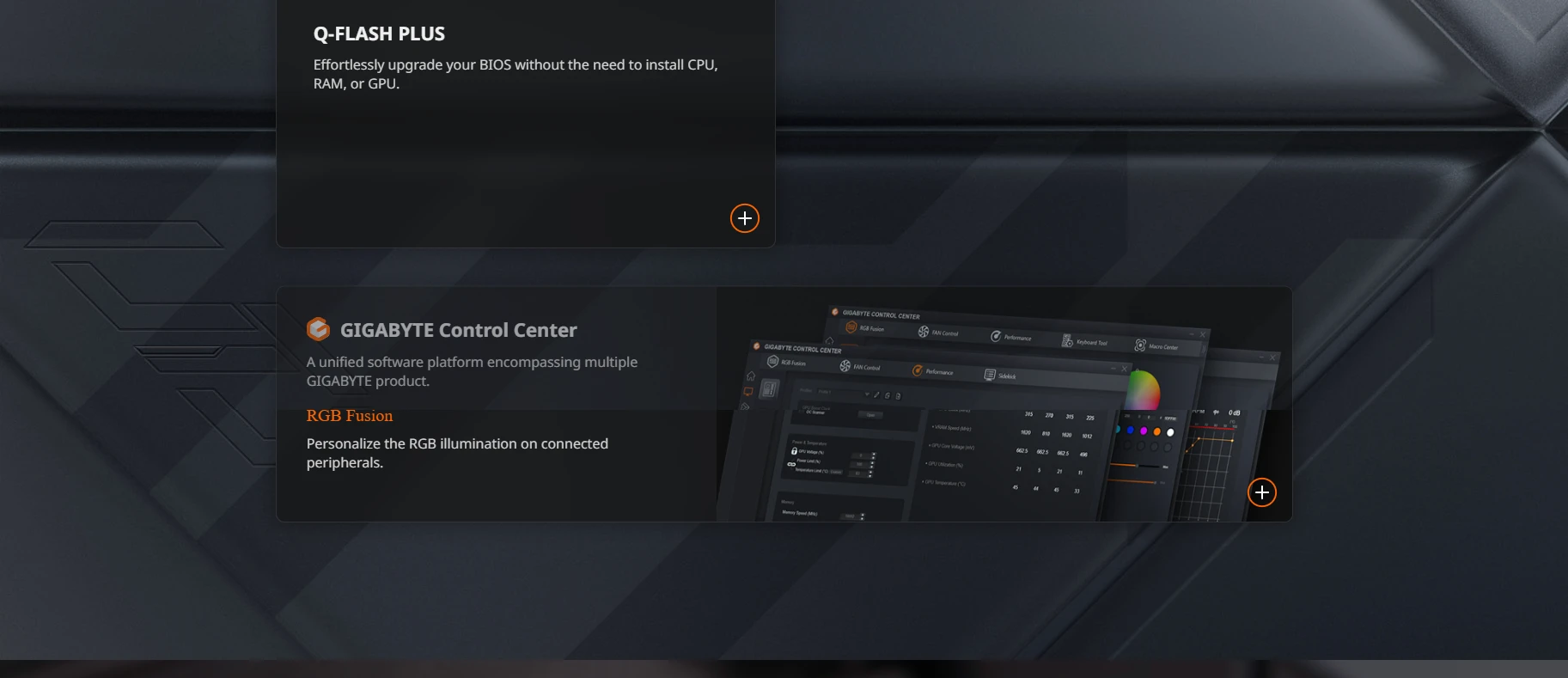

The UC BIOS features a redesigned UI and UX. This provides an intuitive operation interface with an aesthetically pleasing design. Quick Access offers nine customizable option slots for effortless access in Easy Mode. PerfDrive provides exclusive BIOS settings that optimize performance based on your cooling configuration. Q-Flash Plus allows you to effortlessly upgrade your BIOS without needing to install the CPU, RAM, or GPU, simplifying maintenance. Furthermore, the GIGABYTE Control Center is a unified software platform encompassing multiple GIGABYTE products, and RGB Fusion allows you to personalize the RGB illumination on connected peripherals.

Explore compatible Intel Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte B760M DS3H Gen5 product page.

Specifications:

CPU & Chipset:

• CPU Socket: LGA1700 (Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors)
• Chipset: Intel® B760 Express Chipset

Memory:

• Memory Slots: 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB single DIMM capacity)
• Memory Type (14th/13th Gen i9/i7): DDR5 5600/5200/4800/4400 MT/s
• Memory Type (13th Gen i5/i3, 12th Gen): DDR5 4800/4400 MT/s
• Memory Architecture: Dual channel
• ECC Support: ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
• Non-ECC Support: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• XMP Support: Yes

Onboard Graphics:

• Graphics Processor: Integrated Graphics Processor-Intel® HD Graphics support
• D-Sub Port: 1 x D-Sub port, max resolution 1920×1200@60 Hz
• HDMI Port: 1 x HDMI port, max resolution 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)
• DisplayPort: 2 x DisplayPort, max resolution 4096×2304@60 Hz (DisplayPort 1.2, HDCP 2.3)
• Multi-Display Support: Up to quad-display at the same time

Audio & LAN:

• Audio Chip: Realtek® Audio CODEC
• Audio Channels: High Definition Audio, 2/4/5.1/7.1-channel
• S/PDIF Out: Yes
• LAN Chip: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots:

• PCIe x16 Slot (CPU): 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• PCIe x1 Slots (Chipset): 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface:

• M.2 Connector (CPU): 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• M.2 Connector (Chipset): 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• SATA Connectors: 4 x SATA 6Gb/s connectors
• RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Ports:

• Rear USB Type-C: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• Rear USB 3.2 Gen 1: 3 x USB 3.2 Gen 1 ports on the back panel
• Internal USB 3.2 Gen 1: 2 x USB 3.2 Gen 1 ports available through the internal USB header
• Rear USB 2.0/1.1: 2 x USB 2.0/1.1 ports on the back panel
• Internal USB 2.0/1.1: 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header
• 1 x serial port header
• 1 x parallel port header
• 1 x S/PDIF Out header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

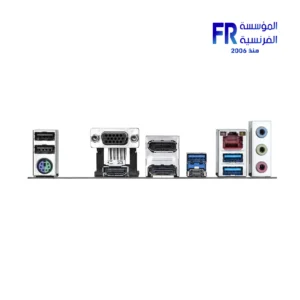

Back Panel Connectors:

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller & BIOS:

• I/O Controller: iTE® I/O Controller Chip
• BIOS: 1 x 128 Mbit flash, licensed AMI UEFI BIOS
• BIOS Features: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hardware Monitoring:

• Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection
• Warnings: Fan fail warning
• Control: Fan speed control (depends on fan installed)

Unique Features & Software:

• GIGABYTE Control Center (GCC) Support: Yes
• Q-Flash Support: Yes
• Q-Flash Plus Support: Yes
• Smart Backup Support: Yes
• Bundled Software: Norton® Internet Security (OEM version)

Operating System & Form Factor:

• OS Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

Product Identifiers:

• Part Number/SKU: 9MB76MS55-00-G10
• EAN/UPC: 889523050484
