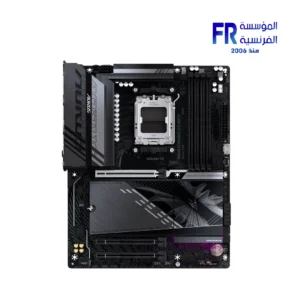

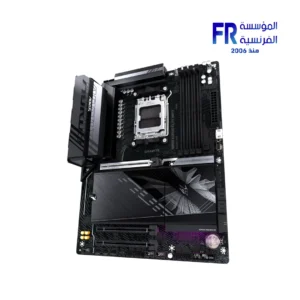

Gigabyte B850 Aorus Elite Wifi 7 Am5 Gaming Motherboard:
The Gigabyte B850 Aorus Elite Wifi 7 Am5 Gaming Motherboard (rev. 1.x) provides an elite foundation for your next-generation gaming rig. This B850 Aorus Elite Motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors on the AM5 socket. It features a robust 14*+2+2 Twin Digital VRM Design. This ensures stable and powerful delivery. Furthermore, with DDR5 memory support up to 8200(O.C.) MT/s and PCIe 5.0 readiness, it offers cutting-edge performance and connectivity.
B850 Aorus Elite Motherboard: Unparalleled Performance & Power:
This B850 Aorus Elite Motherboard boasts a 14*+2+2 Twin Digital VRM Design. This includes 6-Layer and 2X Copper PCB, along with premium chokes and capacitors. This robust power delivery system ensures smooth computing. It also unlocks the full power of multi-core CPUs for unmatched performance. Additionally, it supports DDR5 memory overclocking up to 8200 MT/s. It utilizes advanced AI-enhanced technologies like D5 Bionic Corsa and AORUS AI SNATCH for peak performance.
B850 Aorus Elite Motherboard: Advanced Thermal Design:
The B850 Aorus Elite Motherboard incorporates a comprehensive thermal design. This keeps your system cool and efficient. It features enlarged MOSFET heatsinks with 4X massive cooling surface area. This ensures exceptional heat dissipation. A superior heatpipe and 5 W/mK thermal pads further enhance efficient thermal conductivity. M.2 Thermal Guard Ext. covers all three M.2 slots. This prevents throttling and ensures optimal SSD performance.
B850 Aorus Elite Motherboard: Future Connectivity & Immersive Audio:
This B850 Aorus Elite Motherboard enables the ultimate connection experience. It delivers blazing data-transfer speeds through its next-generation network, storage, and Wi-Fi connectivity. Realtek® 2.5GbE LAN provides lightning-fast wired speeds. Furthermore, Realtek® Wi-Fi 7 RTL8922AE (802.11be) with a directional Ultra-high Gain Antenna offers gigabit wireless performance and Bluetooth 5.4.
B850 Aorus Elite Motherboard: PCIe 5.0 & Storage Options:
The B850 Aorus Elite Motherboard features a PCIe 5.0 x16 slot. This is integrated into the CPU for the latest graphics cards. It also includes three M.2 slots for ultra-fast storage. One supports PCIe 5.0 x4, and two support PCIe 4.0 x4. Additionally, four SATA 6Gb/s connectors are available. RAID 0, 1, 5, and 10 support for NVMe SSDs and SATA storage devices ensures data redundancy and performance.
B850 Aorus Elite Motherboard: DIY-Friendly & Ultra Durable:
This B850 Aorus Elite Motherboard is designed for a hassle-free assembly experience. This makes PC building a delightful and smooth process. Features like WIFI EZ-Plug integrate Wi-Fi antenna plugs into one adapter for easy installation. EZ-Latch Designs, including M.2 EZ-Latch Click and PCIe EZ-Latch Plus, simplify screwless installation for M.2 heatsinks and quick release for PCIe slots. The PCIe UD Slot, with its one-piece stainless-steel shielding, reinforces PCIe slots for heavy graphics cards. UD Power Connectors with solid pins enhance power conductivity and thermal dissipation.
Explore compatible AMD Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte B850 Aorus Elite Wifi 7 product page.
Specifications:
Core Platform:
- Model: B850 AORUS ELITE WIFI7 (rev. 1.x)
- Part Number: 9MB85EL7-00-G11
- UPC: 889523046067
- CPU Support: AMD Socket AM5, support for AMD Ryzen™ 9000/8000/7000 Series Processors
- Chipset: AMD B850
Memory & Onboard Graphics:
- Memory: 4 x DDR5 DIMM sockets, up to 256 GB, Dual channel, DDR5 8200(O.C.) to 4400 MT/s, AMD EXPO™ and Extreme Memory Profile (XMP) support
- Onboard Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support (1x DisplayPort 1.4, 1x Front HDMI 1.4)
Audio & Networking:
- Audio: Realtek® Audio CODEC (rev. 1.0) / Realtek® ALC1220 CODEC (rev. 1.1), High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication: Realtek® Wi-Fi 7 RTL8922AE (802.11a, b, g, n, ac, ax, be, 2.4/5/6 GHz), BLUETOOTH 5.4
Expansion Slots & Storage Interface:
- Expansion Slots:
- 1 x PCI Express x16 slot (PCIe 5.0 x16 mode for Ryzen™ 9000/7000 Series; PCIe 4.0 x8/x4 mode for Ryzen™ 8000 Series) from CPU
- 2 x PCI Express x16 slots (PCIe 3.0 x1) from Chipset
- Storage Interface:
- 1 x M.2 connector (M2A_CPU, PCIe 5.0 x4/x2 SSD support) from CPU
- 1 x M.2 connector (M2B_CPU, PCIe 4.0 x4/x2 SSD support) from CPU
- 1 x M.2 connector (M2C_SB, PCIe 4.0 x4/x2 SSD support) from Chipset
- 4 x SATA 6Gb/s connectors
- RAID 0, 1, 5, 10 support for NVMe SSDs (RAID 5 only on Ryzen™ 9000 Series)
- RAID 0, 1, 10 support for SATA storage devices
USB Connectivity:
- Rear USB Ports:
- 1x USB Type-C® (USB 3.2 Gen 2)
- 2x USB 3.2 Gen 2 Type-A (red)
- 4x USB 2.0/1.1
- Internal USB Headers (from Chipset):
- 1x USB Type-C® (USB 3.2 Gen 2×2)
- 3x USB 3.2 Gen 1 (2 ports via header, 1 on back panel)
- 4x USB 2.0/1.1 (via internal headers)
- Additional USB (from Chipset+USB 3.2 Gen 1 Hub):
- 4x USB 3.2 Gen 1 on back panel
Internal I/O Connectors:
- Power Connectors: ATX main power (1x 24-pin), ATX 12V power (1x 8-pin, 1x 4-pin).
- Fan/Pump Headers: CPU fan (1x), CPU fan/water cooling pump (1x), system fan (3x), system fan/water cooling pump (1x).
- LED Headers: Addressable RGB Gen2 LED (3x), RGB LED (1x).
- Storage Connectors: M.2 Socket 3 (3x), SATA 6Gb/s (4x).
- Front Panel Headers: Front panel (1x), front panel audio (1x), S/PDIF Out (1x).
- USB Headers: USB Type-C® (USB 3.2 Gen 2×2) (1x), USB 3.2 Gen 1 (1x), USB 2.0/1.1 (2x).
- Miscellaneous Headers: Thunderbolt™ add-in card (2x), Trusted Platform Module (1x), HDMI port (1x)*, power button (1x), reset button (1x), reset jumper (1x), Clear CMOS jumper (1x).

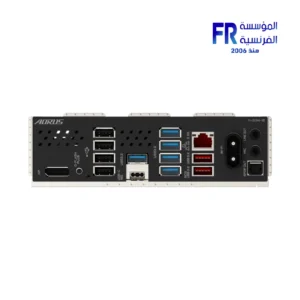

Back Panel I/O Connectors:
- Display & USB Ports: DisplayPort (1x)*, Q-Flash Plus button (1x), USB 2.0/1.1 ports (4x), USB Type-C® port (USB 3.2 Gen 2) (1x), USB 3.2 Gen 1 ports (5x), USB 3.2 Gen 2 Type-A ports (red) (2x).
- Network & Audio: RJ-45 port (1x), antenna connectors (2x 2T2R), audio jacks (2x), optical S/PDIF Out connector (1x).
Monitoring & BIOS:
- I/O Controller: iTE® I/O Controller Chip
- H/W Monitoring: Voltage, Temperature, Fan speed, Water cooling flow rate detection; Fan fail warning, Fan speed control
- BIOS: 1 x 256 Mbit flash, AMI UEFI BIOS
Unique Features & Software:
- Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup, X3D Turbo Mode, D5 Bionic Corsa, WIFI EZ-Plug, EZ-Latch Designs, Sensor Panel Link, UC BIOS, HWiNFO Exclusive Partnership
- Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software
- Operating System Support: Windows 11 64-bit
Physical & Accessories:
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
