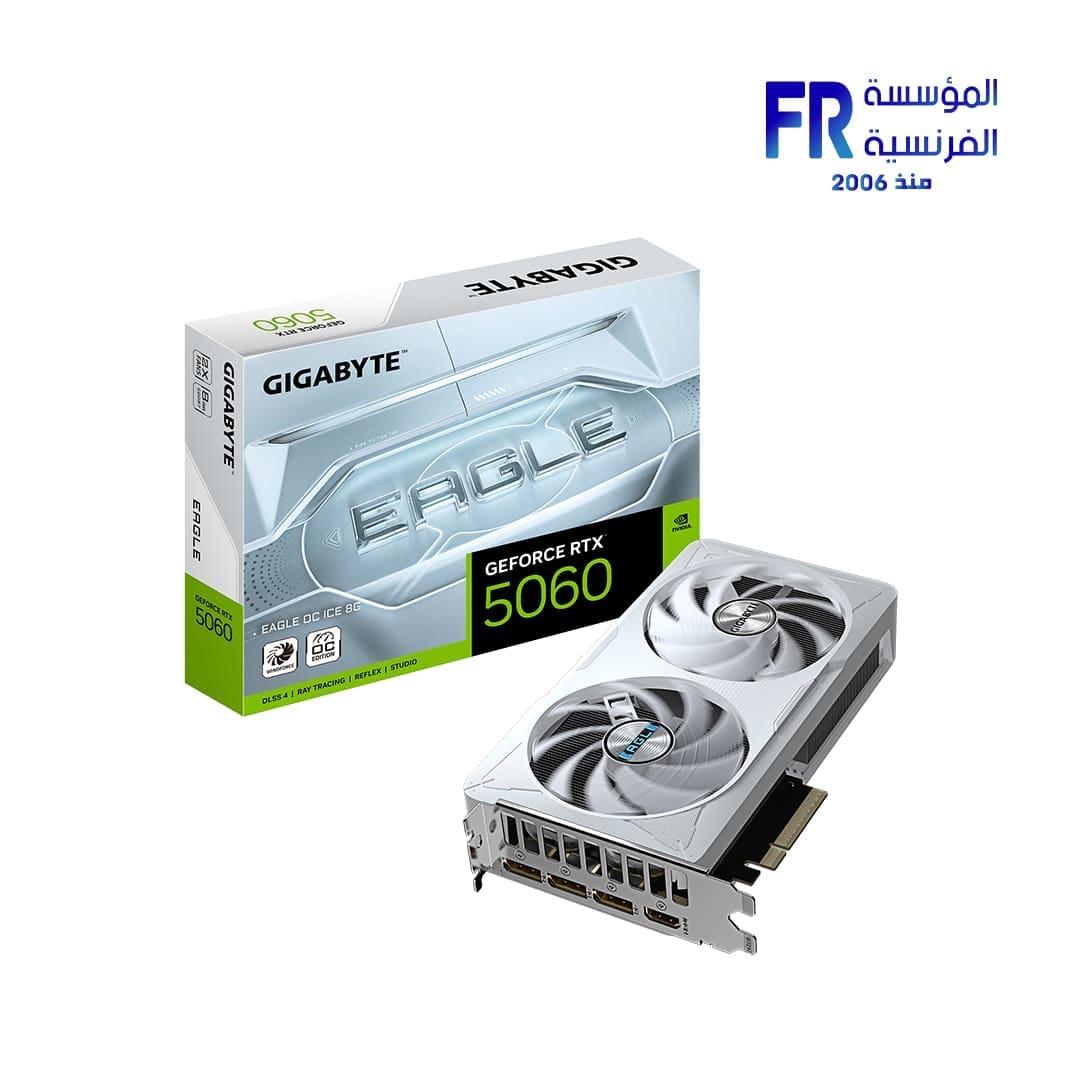

Gigabyte GeForce RTX 5060 EAGLE OC ICE 8GB Graphic Card

gigabyte GeForce RTX 5060 EAGLE OC ICE 8GB Graphic Card

The Gigabyte GeForce RTX™ 5060 EAGLE OC ICE 8G is powered by the NVIDIA Blackwell architecture and DLSS 4, integrated with an 8GB GDDR7 128-bit memory interface. It features the WINDFORCE cooling system for exceptional thermal performance. Furthermore, its design inspiration stems from the fusion of aerospace battleships and sci-fi elements, giving it a unique and futuristic aesthetic.

Key Features and Cooling System

This product features the advanced WINDFORCE cooling system. Specifically, this system includes innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, screen cooling, and server-grade thermal conductive gel for superior heat dissipation. Additionally, the card boasts a reinforced structure with a backplate that has a bent edge for exceptional structural integrity and a friendly PCB design from a fully automated production process.

The EAGLE series design incorporates aerospace and sci-fi elements, with unique curved contours and segmented lines resembling spaceship components. Moreover, it is built on the NVIDIA Blackwell Architecture, offering Fifth-Gen Tensor Cores for max AI performance, New Streaming Multiprocessors, and Fourth-Gen Ray Tracing Cores. It also supports NVIDIA DLSS 4, Reflex 2, and NVIDIA ACE for enhanced gaming and creative experiences.

Explore compatible [Graphics Cards] or check [Gigabyte Products] for other options. Find full details on the official [Gigabyte GeForce RTX™ 5060 EAGLE OC ICE 8G product page].

Specifications

• Graphics Processing: GeForce RTX™ 5060
• Core Clock: 2550 MHz (Reference card: 2497MHz)
• CUDA® Cores: 3840
• Memory Clock: 28 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR7
• Memory Bus: 128 bit
• Card Bus: PCI-E 5.0
• Digital max resolution: 7680×4320
• Multi-view: 4
• Card size: L=208 W=120 H=40 mm
• PCB Form: ATX
• DirectX: DirectX 12 API
• OpenGL: 4.6
• Recommended PSU: 450W
• Power Connectors: 8 Pin*1

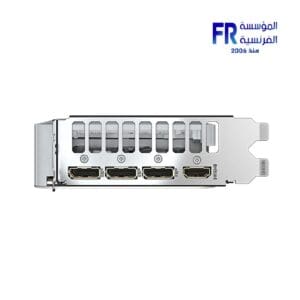

• Output: DisplayPort 2.1b *3, HDMI 2.1b *1
• Accessories: Quick guide
• Model Number/SKU: GV-N5060EAGLEOC ICE-8GD
• EAN/UPC: 889523050712
