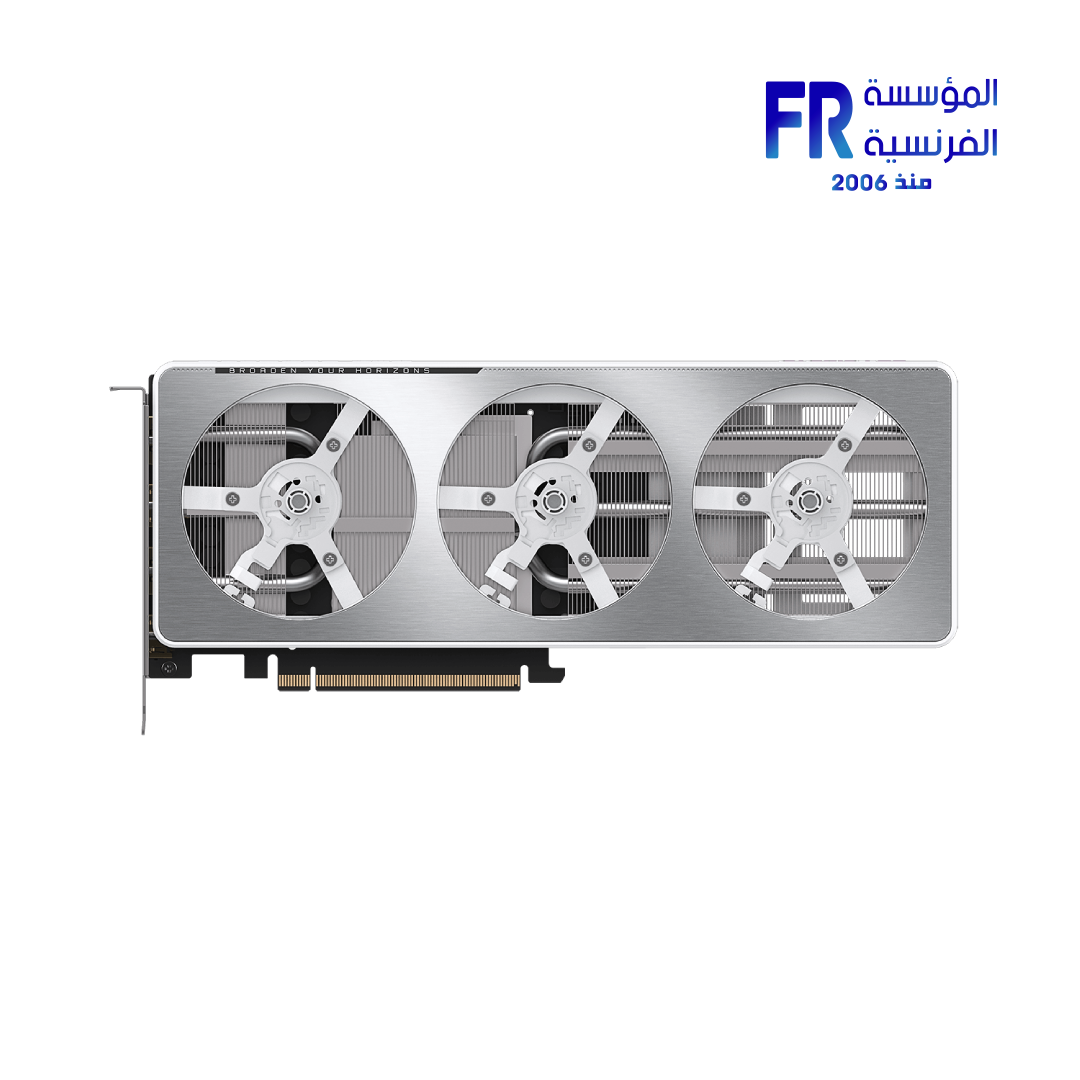

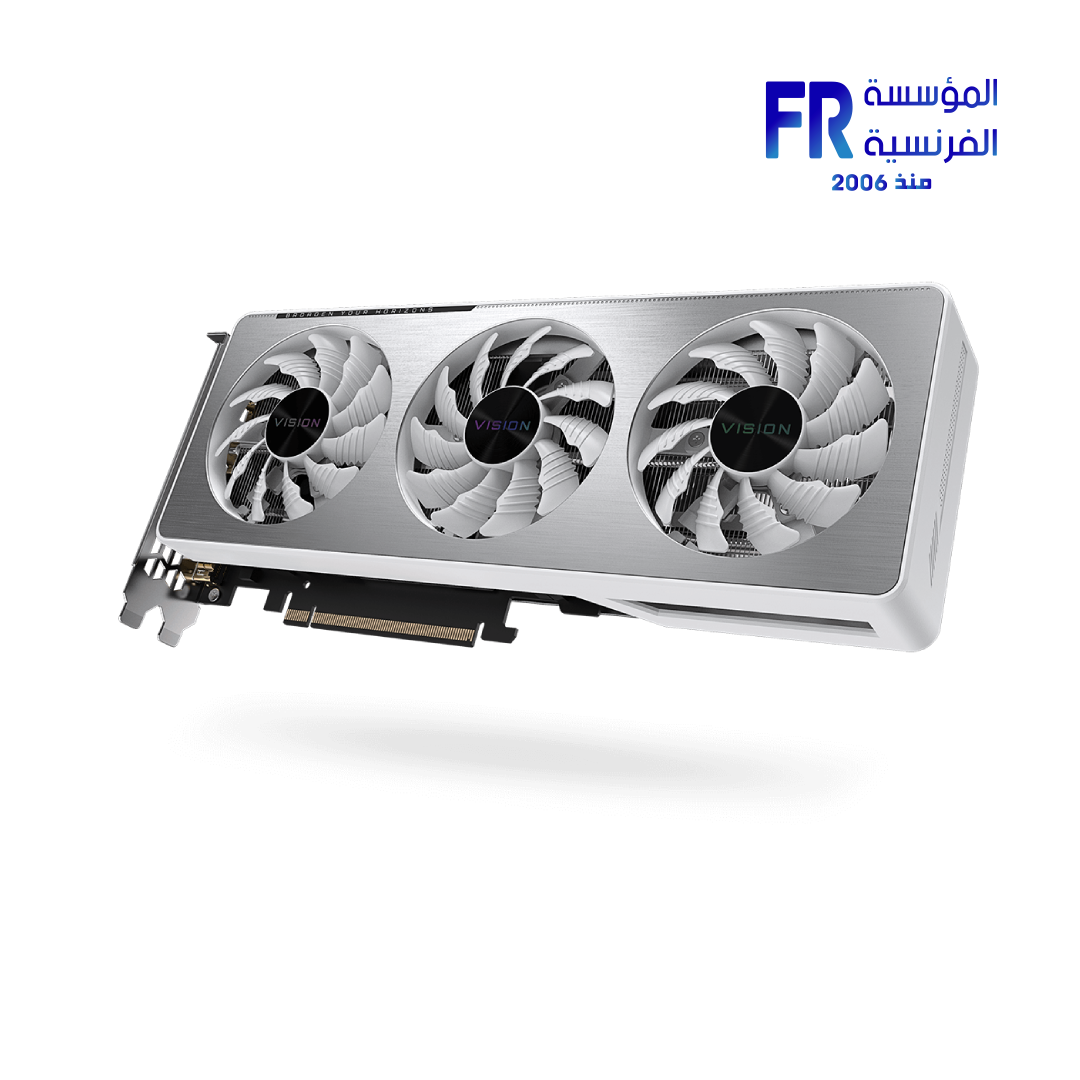

Gigabyte RTX 3060 Vision OC 12GB Graphics Card:
The Gigabyte GeForce RTX™ 3060 VISION OC 12G Graphics Card is designed for creators and gamers who appreciate a clean, minimalist aesthetic combined with robust performance. It’s powered by the NVIDIA Ampere architecture, offering advanced ray tracing and AI capabilities. The “VISION OC” series from Gigabyte is known for its distinctive white and silver design, appealing to users building visually cohesive systems.
Key Features for Creation and Gaming:
This graphics card features the NVIDIA Ampere architecture, including 3584 CUDA® Cores, 2nd Generation RT Cores, and 3rd Generation Tensor Cores. This allows for realistic real-time ray tracing and AI-powered DLSS (Deep Learning Super Sampling), which significantly boosts frame rates and image quality in supported applications and games.
The Gigabyte RTX 3060 Vision OC is equipped with the WINDFORCE 3X Cooling System. This system typically includes three 80mm unique blade fans with alternate spinning technology to reduce air turbulence and enhance airflow pressure. It features 3 composite copper heat pipes that directly touch the GPU and an extended heatsink design for efficient heat dissipation. The 3D Active Fan provides semi-passive cooling, meaning the fans remain off during low load or low-power tasks for a quieter experience. The fans also incorporate Graphene Nano Lubricant for extended lifespan.
With a substantial 12GB of GDDR6 RAM on a 192-bit memory interface, this card is well-suited for demanding creative applications like video editing, 3D animation, graphic design, and architectural visualization, as well as high-resolution gaming. It supports DirectX 12 Ultimate and OpenGL 4.6. NVIDIA Reflex provides low latency for competitive gaming, and it’s compatible with NVIDIA® G-SYNC® monitors for smooth visuals.
The card boasts a clean and stylish white and silver design, complemented by RGB Fusion 2.0 lighting. This allows for 16.7 million customizable color options and various lighting effects, which can be synchronized with other AORUS devices. A protective metal back plate not only adds to the aesthetic but also enhances the structural integrity and durability of the card. It’s built with Ultra Durable components for long-term reliability.
For more details, you can refer to the official Gigabyte GeForce RTX™ 3060 VISION OC 12G (rev. 2.0) product page.
Specifications:
- Graphics Processing: GeForce RTX™ 3060
- Core Clock: 1837 MHz (Reference Card: 1777 MHz)
- CUDA® Cores: 3584
- RAM Clock: 15000 MHz
- RAM Size: 12 GB
- RAM Type: GDDR6
- RAM Bus: 192 bit
- RAM Bandwidth: 360 GB/s
- Card Bus: PCI-E 4.0 x 16
- Digital Max Resolution: 7680×4320
- Multi-view: 4
- Card Size: L=280 W=116 H=41 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 550W
- Power Connectors: 8 pin*1
- Output:
- DisplayPort 1.4a *2
- HDMI 2.1 *2
- Part Number/SKU: GV-N3060VISION OC-12GD (various revisions like rev. 1.0, 2.0)
- UPC: 889523027240 (Example)
