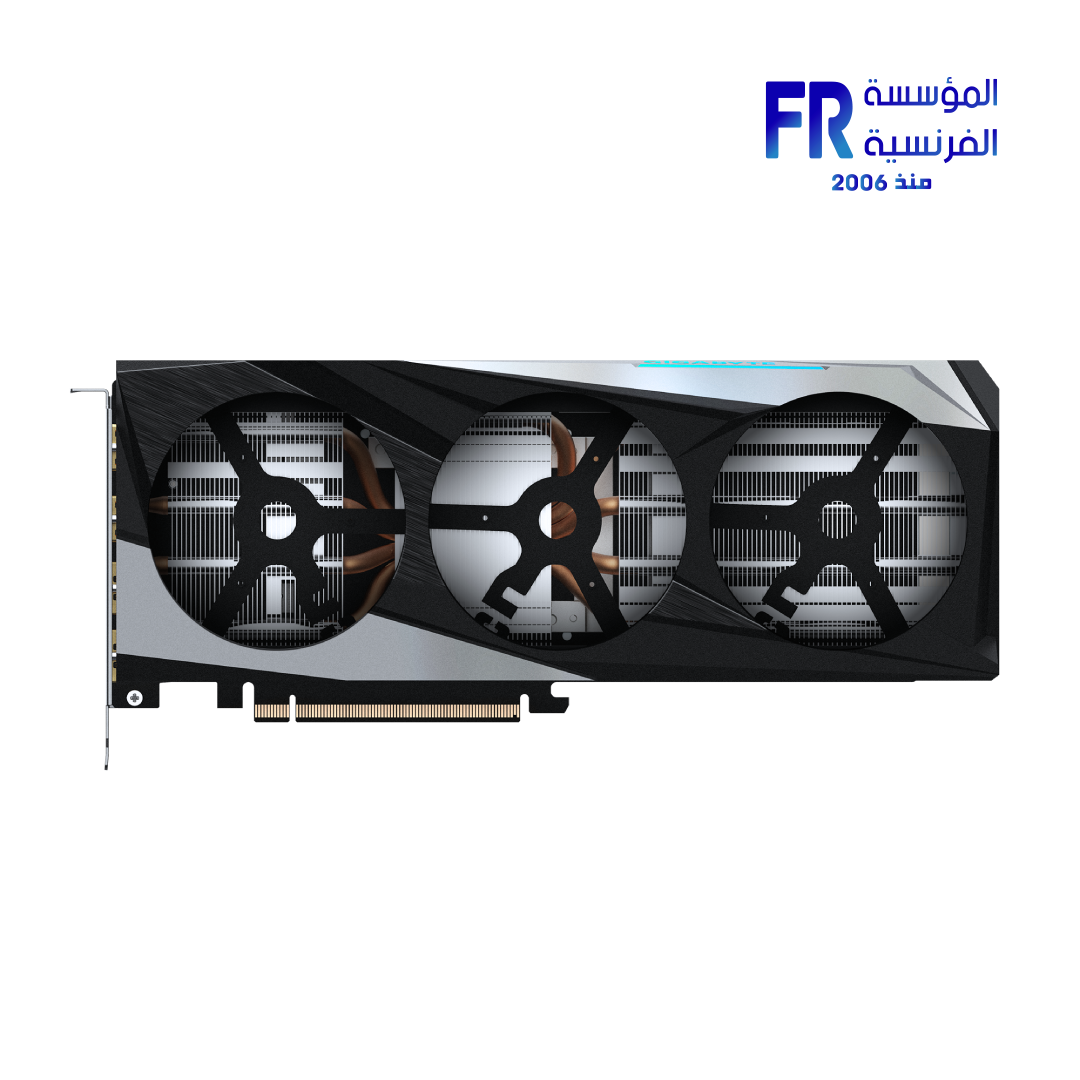

Gigabyte RX 6700 XT Gaming OC 12GB Graphics Card:
The Gigabyte Radeon RX 6700 XT Gaming OC 12G Graphics Card is built on the AMD RDNA™ 2 architecture, specifically engineered to deliver an ultimate 1440p gaming experience with high frame rates and immersive visuals. This model is part of Gigabyte’s GAMING OC series, featuring enhanced cooling and factory overclocking for superior performance.
Key Features for High-Performance Gaming:
The graphics card is equipped with the WINDFORCE 3X Cooling System, which includes three 80mm unique blade fans with alternate spinning technology. This innovative design reduces air turbulence and maximizes airflow pressure for highly efficient heat dissipation. It also features 5 composite copper heat pipes that directly touch the GPU and a large metal plate covering the VRAM for optimal cooling. The 3D Active Fan provides semi-passive cooling, meaning the fans remain off when the GPU is under a low load or in a low-power gaming scenario, ensuring quieter operation. The use of Graphene Nano Lubricant in the fan bearings extends their lifespan significantly while maintaining quiet performance.
With 12GB of GDDR6 RAM on a 192-bit memory interface, this card delivers powerhouse performance for 1440p gaming and ultra-high frame rates. It supports advanced gaming technologies like DirectX® 12 Ultimate, which includes DirectX® Raytracing (DXR), Variable Rate Shading (VRS), and AMD FidelityFX features. These technologies, optimized for the AMD RDNA™ 2 architecture, provide realistic lighting, shadows, and reflections, drawing you deeper into the action.
The card enhances the gaming experience with low-latency technologies such as AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. When paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology allows the CPU to directly access the GPU’s RAM, further boosting system performance. It also supports the latest HDMI™ 2.1 VRR technology and is compatible with over 1300 AMD FreeSync™ gaming displays for tear-free and smooth gameplay.
In terms of build quality, the card features a protection metal back plate that not only adds to its aesthetic appeal but also reinforces the structure for complete protection. It is designed for extreme durability and overclocking, utilizing a robust power phase design and Ultra Durable certified components. The RGB Fusion 2.0 lighting system allows for extensive customization with 16.7 million colors and various lighting effects, enabling users to personalize their gaming setup and synchronize with other AORUS devices.
For more details, you can refer to the official Gigabyte Radeon™ RX 6700 XT GAMING OC 12G product page.
Specifications:
- Graphics Processing: Radeon™ RX 6700 XT
- Core Clock:
- Boost Clock*: up to 2622 MHz (Reference card: 2581 MHz)
- Game Clock*: up to 2514 MHz (Reference card: 2424 MHz)
- Stream Processors: 2560
- RAM Clock: 16000 MHz
- RAM Size: 12 GB
- RAM Type: GDDR6
- RAM Bus: 192 bit
- RAM Bandwidth: 384 GB/s
- Card Bus: PCI-E 4.0 x 16
- Digital Max Resolution: 7680×4320
- Multi-view: 4
- Card Size: L=281 W=115 H=49 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 650W
- Power Connectors: 8 pin1, 6 pin1
- Output:
- DisplayPort 1.4a *2
- HDMI 2.1 *2
- Part Number/SKU: GV-R67XTGAMING OC-12GD
- UPC: 889523027271 (Example)
