ID-COOLING FX240 PRO Gen 7 Pump AIO Liquid Cpu Cooler
2300 EGP
- Part Number: FX240 PRO / 6931393306834
- Form Factor & Compatibility: Intel LGA2066/2011/1851/1700/1200/115X Series | AMD AM5/AM4
- Cooling Performance: 300W TDP Support | 276 x 120 x 27 mm Aluminum Radiator | Copper Cold Plate | 400mm Premium Sleeved Tubing
- Pump Specifications: Gen 7 Pump Design | 2900±10% RPM | Ceramic Bearing | 25 dB(A) Noise Level
- Fan Specifications: 2x 120mm TF-12025-PRO BLACK Hydraulic Bearing Fans | 500 ~ 1800±10% RPM | 82.5 CFM Max Air Flow | 2.55 mmH₂O Max Static Pressure | 35.2 dB(A) Max Noise Level
- Power & Connectivity: 12VDC Rated Voltage | 3W Power Input (per fan) | 4-Pin PWM Connector for precise speed control
- Warranty: 2 years
In stock
Price Match Guarantee

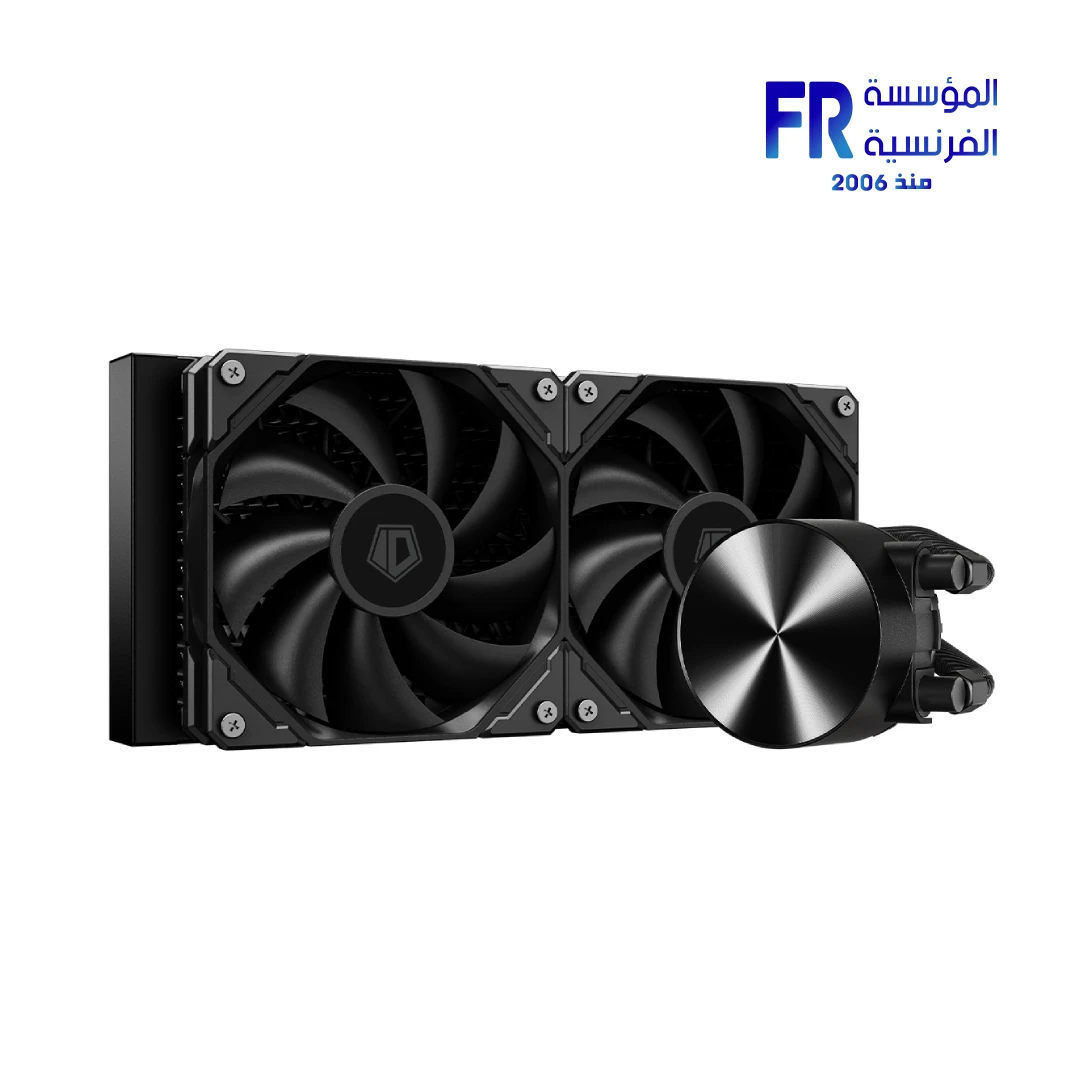

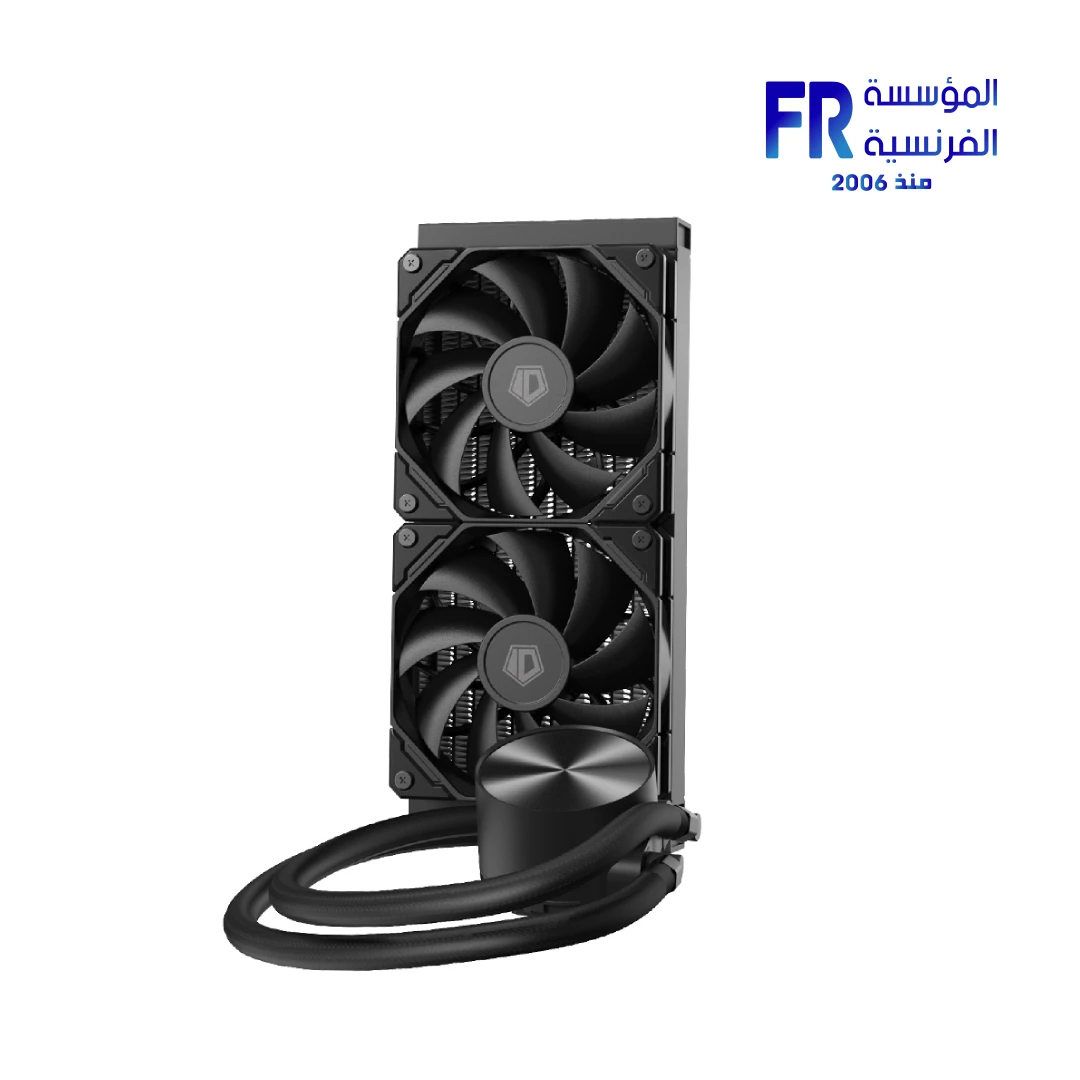

ID-COOLING FX240 PRO
240mm AIO Liquid Cooler · Gen 7 Pump
300W TDP. Gen 7 pump at 2900 RPM with ceramic bearing. Copper cold plate, aluminum radiator, 400mm sleeved tubing. Two TF-12025-PRO 120mm hydraulic PWM fans.
300W TDP
Gen 7 Pump
2× 120mm PWM
300W TDP
Gen 7 Pump
82.5 CFM per fan
Ceramic Bearing Pump
Gen 7 pump. High-TDP headroom.
The FX240 PRO is a 240mm AIO liquid cooler built around ID-COOLING’s Gen 7 pump. Running at 2900 RPM with a ceramic bearing, the pump is rated for a low 25 dB(A) noise level — delivering consistent coolant circulation without dominating your build’s sound signature.
The loop runs through a 276 × 120 × 27 mm aluminum radiator, connected by 400mm premium sleeved tubing and anchored by a copper cold plate. Two TF-12025-PRO BLACK 120mm PWM fans push up to 82.5 CFM each at 2.55 mmH₂O static pressure, scaling from 500 up to 1800 RPM. Overall TDP support: 300W, covering Intel LGA2066 / 2011 / 1851 / 1700 / 1200 / 115X and AMD AM5 / AM4.
300W
276 × 120 × 27 mm
2900 ±10% RPM
2× TF-12025-PRO BLACK
2 Years
2900 RPM Ceramic Bearing Pump
The Gen 7 pump runs at 2900 RPM (±10%) with a ceramic bearing, engineered for quiet, reliable circulation at a rated 25 dB(A). Ceramic bearings resist wear better than traditional sleeve designs — meaningful on an AIO that runs continuously for years. The copper cold plate transfers CPU heat directly to the coolant loop.
Engineered for High-TDP CPUs
300W TDP Support
Headroom for mainstream through high-end desktop CPUs under load.
Copper Cold Plate
Copper base for efficient CPU-to-coolant heat transfer.
27mm Aluminum Radiator
276×120×27 mm with two 120mm fans in push or pull configuration.
Sleeved 400mm Tubing
Premium sleeved tubing supports clean routing in mid and full towers.
82.5 CFM Airflow
Each fan moves up to 82.5 CFM with 2.55 mmH₂O static pressure.
4-Pin PWM Control
Fan speed scales automatically from 500 to 1800 RPM via motherboard PWM.
Intel LGA2066 / 2011 / 1851 · AMD AM5 / AM4
Intel: LGA2066 · 2011 · 1851 · 1700 · 1200 · 115X
AMD: AM5 · AM4
Whether you’re running a high-end HEDT platform like LGA2066/2011, a current-gen LGA1851 or AM5 system, or an older mainstream platform, the FX240 PRO ships with the universal mounting hardware needed to install cleanly.
Flexible AIO Mounting
The 276 mm radiator fits the standard 240 mm mount pattern found in most mid-tower and full-tower cases. 400 mm sleeved tubing gives enough slack for front or top radiator placement without kinks or strain. Fans can be configured in push or pull depending on your case airflow direction.

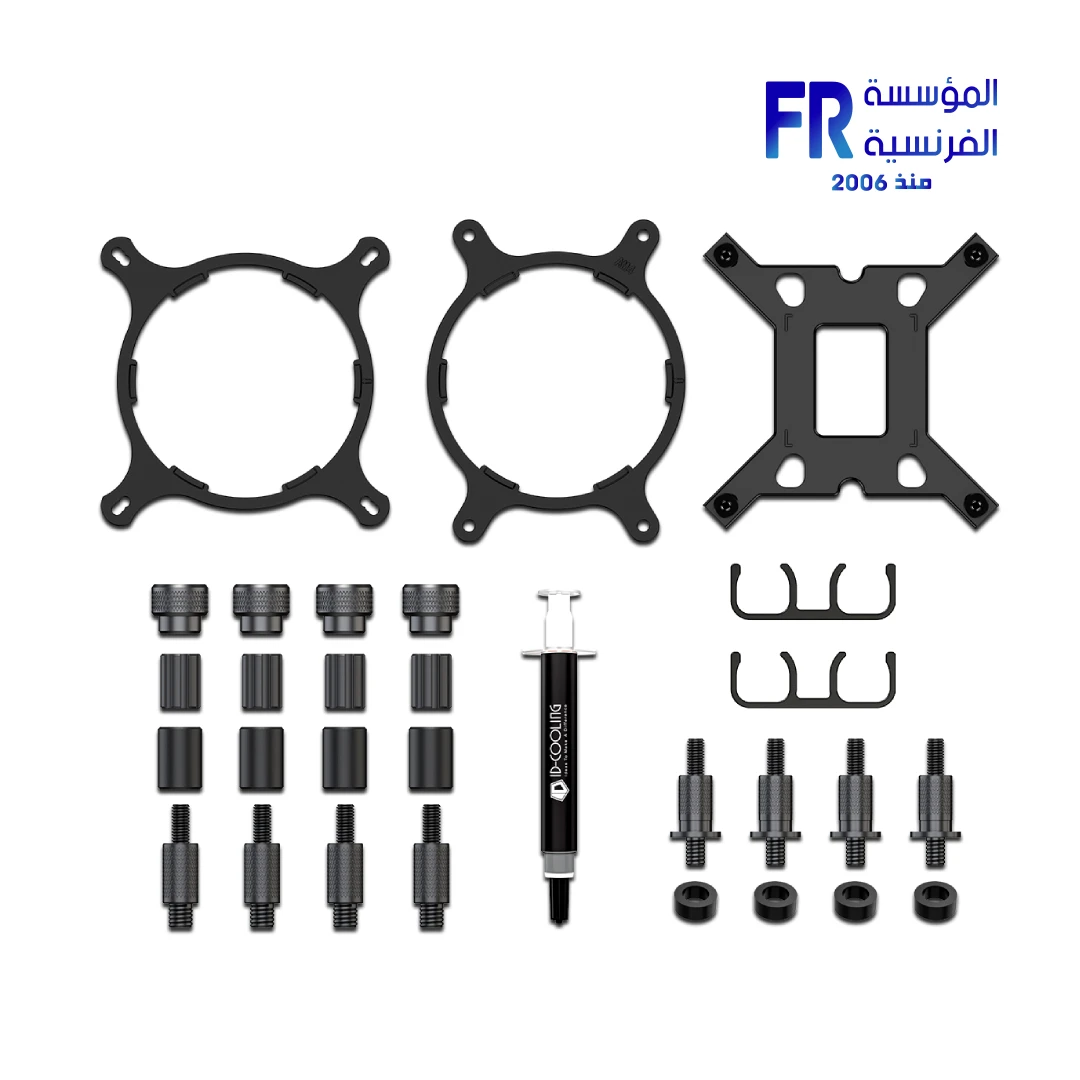

What’s in the Box
Pump, cold plate, radiator, tubing
120mm hydraulic bearing PWM
Intel & AMD brackets
Installation guide
Technical Specifications
| Model | ID-COOLING FX240 PRO |
|---|---|
| Compatibility | Intel LGA2066/2011/1851/1700/1200/115X · AMD AM5/AM4 |
| TDP | 300W |
| Radiator Dimensions | 276 × 120 × 27 mm |
| Radiator Material | Aluminum |
| Tube Material | Premium Sleeved Tubing |
| Tube Length | 400 mm |
| Waterblock Dimensions | 72 × 72 × 50 mm |
| Cold Plate Material | Copper |
| Pump Current | 0.45 A |
| Pump Speed | 2900 ±10% RPM |
| Pump Bearing | Ceramic Bearing |
| Pump Noise Level | 25 dB(A) |
| Fan Model | TF-12025-PRO BLACK (2 units included) |
| Fan Dimensions | 120 × 120 × 25 mm (each) |
| Fan Speed | 500 – 1800 ±10% RPM |
| Max. Air Flow | 82.5 CFM |
| Max. Static Pressure | 2.55 mmH₂O |
| Fan Noise | 35.2 dB(A) Max. |
| Rated Voltage | 12 VDC |
| Rated Current | 0.25 A |
| Power Input | 3 W |
| Fan Bearing Type | Hydraulic Bearing |
| Fan Connector | 4-Pin PWM |
| Warranty | 2 Years |
Frequently Asked Questions
What CPU sockets does the FX240 PRO support?
+
The FX240 PRO supports Intel LGA2066, LGA2011, LGA1851, LGA1700, LGA1200, LGA115X, and AMD AM5, AM4 sockets.
What makes the Gen 7 pump different?
+
The Gen 7 pump uses a ceramic bearing — durable against wear and quiet at 25 dB(A) — running at 2900 RPM (±10%). It pairs with a copper cold plate for efficient heat transfer from CPU to coolant.
What is the TDP rating of this AIO?
+
The FX240 PRO is rated for up to 300W TDP, covering mainstream through high-end desktop CPUs under load.
How many fans are included and how fast do they spin?
+
Two TF-12025-PRO BLACK 120mm PWM fans are included. Each scales from 500 to 1800 RPM (±10%), delivering up to 82.5 CFM with 2.55 mmH₂O static pressure.
What warranty is included?
+
The ID-COOLING FX240 PRO is covered by a 2-year warranty against manufacturing defects. Please contact your local retailer for warranty support.
Cool Your Build with Liquid Precision
Gen 7 ceramic-bearing pump · 300W TDP · 240mm aluminum radiator · 2× TF-12025-PRO PWM fans · sleeved 400mm tubing — backed by a 2-year warranty.
✓ 2-Year Warranty
✓ 300W TDP · AIO
