ID-COOLING FX360 TD Digital Screen Gen 7 Pro Pump ARGB AIO Liquid Cpu Cooler
3400 EGP
- Part Number: FX360 TD / 6931393308333
- Form Factor & Compatibility: Intel LGA1851/1700/1200/115X Series | AMD AM5/AM4
- Cooling Performance: 350W TDP Support | 396 x 120 x 27 mm Aluminum Radiator | Copper Cold Plate | 420mm Premium Sleeved Tubing
- Pump Specifications: Gen 7 Pro Pump with Digital Screen | 2900 RPM ±10% (PWM) | Ceramic Bearing | 50,000 Hrs Life Expectancy | 25 dB(A) Noise Level
- Fan Specifications: 3x 120mm AS-120-ARGB V2 Hydraulic Bearing Fans | 300 ~ 2000±10% RPM | 58 CFM Max Air Flow | 1.94 mmH₂O Max Static Pressure | 27.2 dB(A) Max Noise Level
- Power & Connectivity: 12VDC Rated Voltage | 1.8W Power Input (per fan) | 7-pin Connector (4-pin PWM + 5V 3-pin ARGB) for precise speed and lighting control
- Warranty: 2 years
In stock
Price Match Guarantee
ID-COOLING FX360 TD
360mm ARGB AIO · Digital Screen · Gen 7 Pro Pump
350W TDP. Digital display on waterblock. Gen 7 Pro ceramic pump at 2900 RPM. 396mm aluminum radiator. 3× AS-120-ARGB V2 120mm hydraulic PWM fans.
350W TDP
Digital Screen
ARGB
350W TDP
Digital Screen
Gen 7 Pro Pump
3× ARGB Fans
Gen 7 Pro pump. Live digital display.
The FX360 TD pairs a 360mm aluminum radiator with ID-COOLING’s Gen 7 Pro PWM pump running at 2900 RPM with a ceramic bearing rated for 50,000 hours of service. Pump noise sits at a quiet 25 dB(A). A digital screen on the waterblock turns live system information into a visible part of your build.

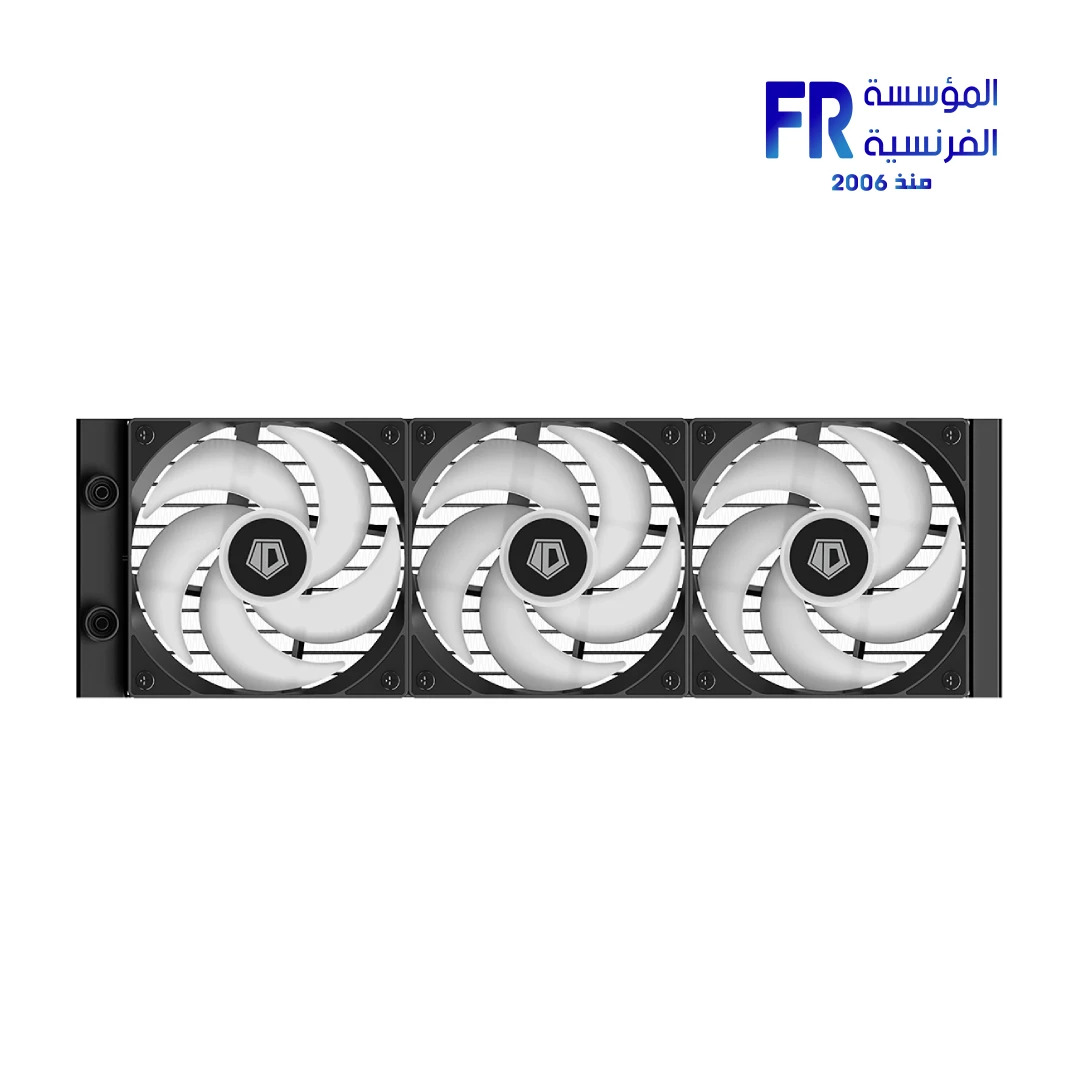

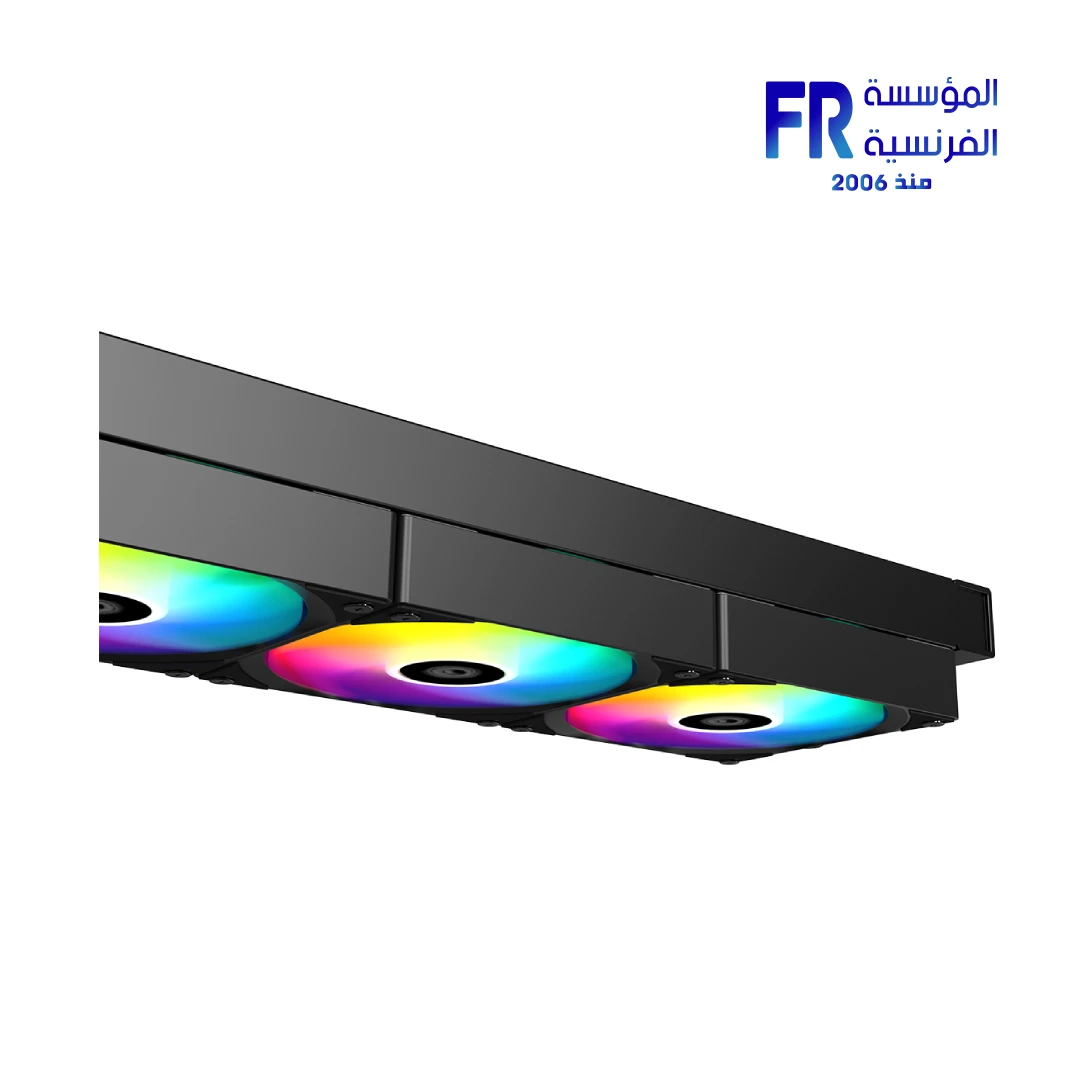

Three AS-120-ARGB V2 120mm hydraulic bearing PWM fans move air through the 396mm radiator, each pushing 58 CFM at 1.94 mmH₂O. The 420mm sleeved tubing gives generous slack for top or front mounting, and the copper cold plate handles the heat transfer. Overall TDP support: 350W, covering Intel LGA1851 / 1700 / 1200 / 115X and AMD AM5 / AM4.
350W
396 × 120 × 27 mm
2900 ±10% RPM (PWM)
3× AS-120-ARGB V2
2 Years
Live System Information On The Waterblock

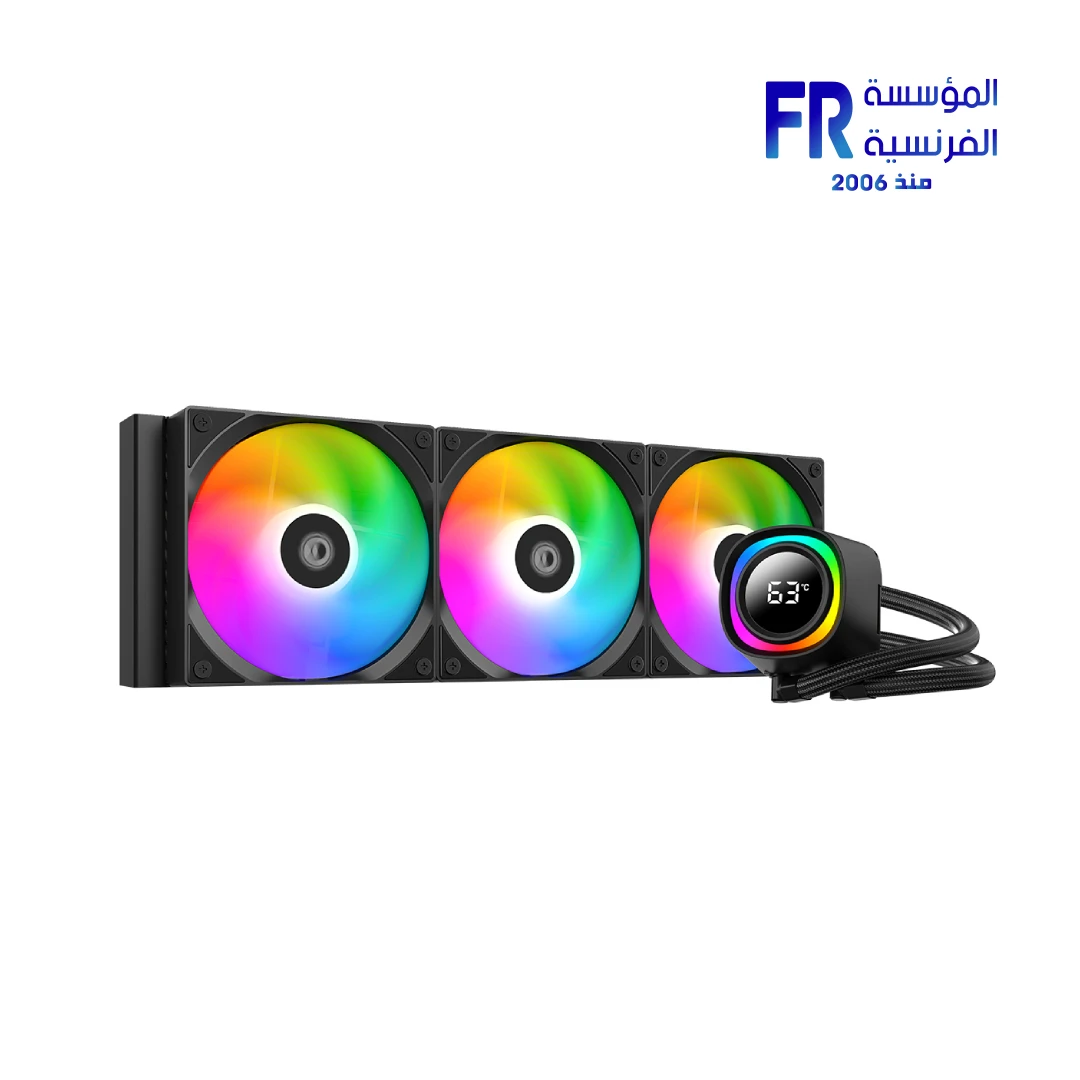

A digital screen built into the 73 × 69 × 57 mm waterblock shows real-time system information — turning the AIO into a visible part of your build’s telemetry. It pairs with the ARGB lighting on both the pump and fans for a cohesive, high-signal display.
Engineered for Demanding CPUs
350W TDP Support
Headroom for high-end mainstream and enthusiast desktop CPUs under load.
50,000-Hour Pump
Ceramic bearing Gen 7 Pro pump rated for long-term continuous operation.
360mm Radiator

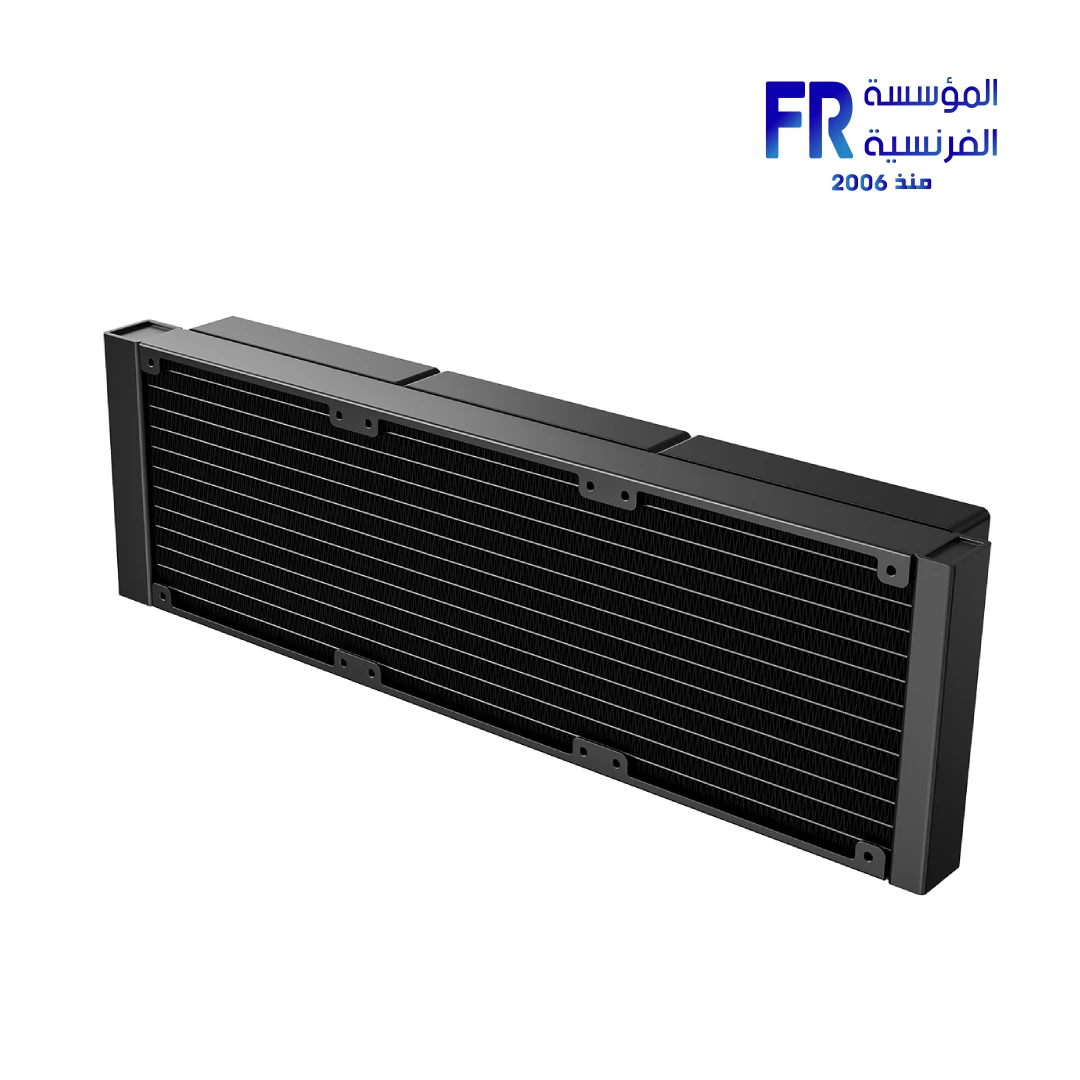

396 × 120 × 27 mm aluminum radiator with triple-fan coverage.
3× ARGB PWM Fans
AS-120-ARGB V2 hydraulic bearing fans with addressable lighting.
58 CFM · 1.94 mmH₂O
Per-fan airflow and static pressure tuned for dense radiator fins.
Sleeved 420mm Tubing
Flexible routing for top or front mounting in mid and full towers.
5V 3-Pin ARGB Lighting On Pump & Fans
Both the waterblock and the three AS-120-ARGB V2 fans use the 5V 3-pin ARGB standard, allowing the lighting to synchronize with your motherboard’s RGB software — for example ASUS Aura Sync, MSI Mystic Light, or Gigabyte RGB Fusion depending on the platform. Combined with the digital screen on the pump, the FX360 TD becomes both a cooling solution and a live-status display.
Intel LGA1851 / 1700 · AMD AM5 / AM4
Intel: LGA1851 · 1700 · 1200 · 115X
AMD: AM5 · AM4
From current-generation LGA1851 and AM5 builds to older LGA1200 and AM4 systems, the FX360 TD ships with universal mounting hardware for a clean install across platforms.

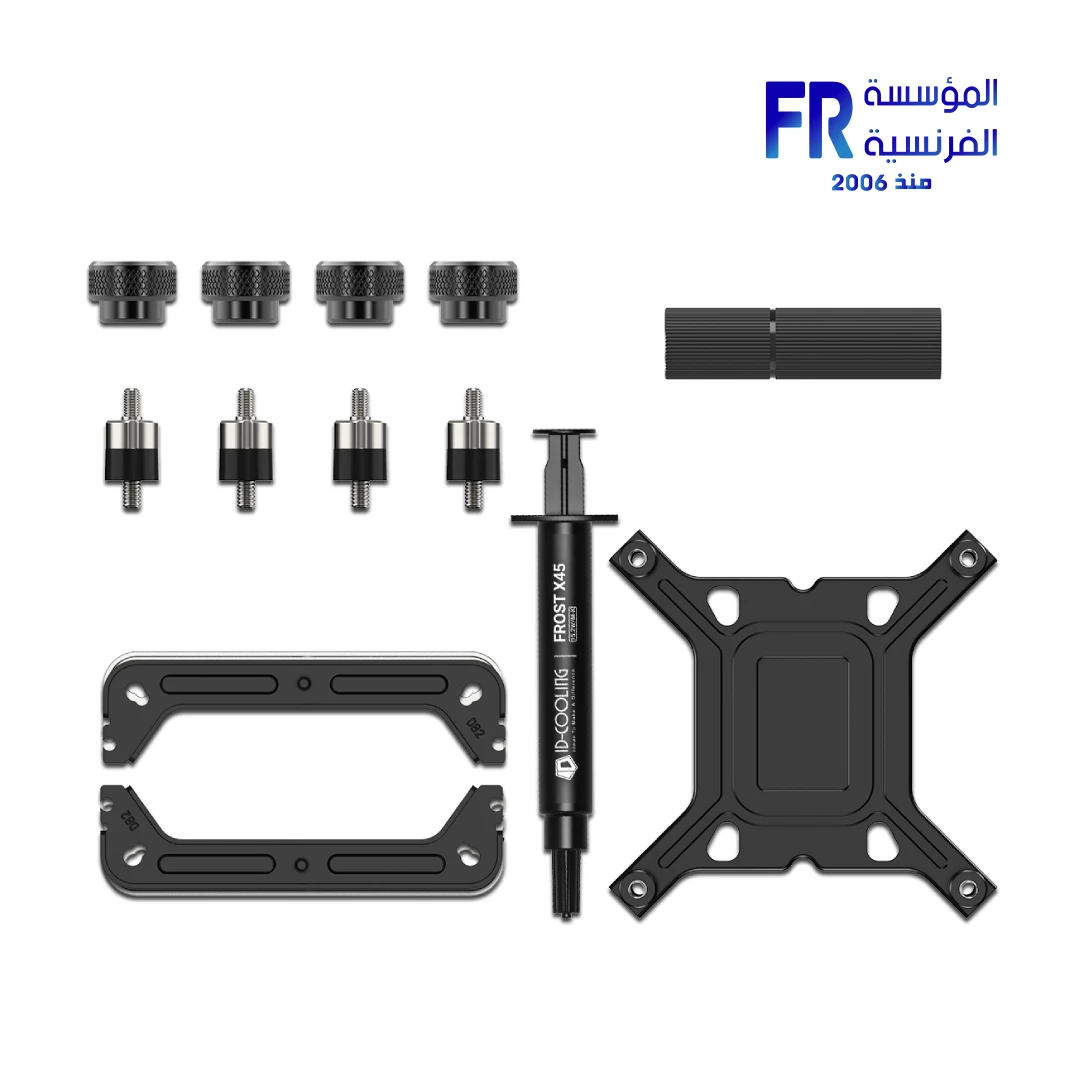

What’s in the Box
360mm radiator · digital waterblock
120mm hydraulic PWM · ARGB
Intel & AMD brackets
Installation guide
Technical Specifications
| Model | ID-COOLING FX360 TD |
|---|---|
| Compatibility | Intel LGA1851/1700/1200/115X · AMD AM5/AM4 |
| TDP | 350W |
| Radiator Dimensions | 396 × 120 × 27 mm |
| Radiator Material | Aluminum |
| Tube Material | Premium Sleeved Tubing |
| Tube Length | 420 mm |
| Waterblock Dimensions | 73 × 69 × 57 mm · Digital Screen |
| Cold Plate Material | Copper |
| Pump Current | 0.45 A Max. |
| Pump Speed | 2900 RPM ±10% (PWM) |
| Pump Bearing | Ceramic Bearing |
| Pump Life Expectancy | 50,000 Hours |
| Pump Noise Level | 25 dB(A) |
| Fan Model | AS-120-ARGB V2 (3 units included) |
| Fan Dimensions | 120 × 120 × 25 mm (each) |
| Fan Speed | 300 – 2000 ±10% RPM |
| Max. Air Flow | 58 CFM |
| Max. Static Pressure | 1.94 mmH₂O |
| Fan Noise | 27.2 dB(A) Max. |
| Rated Voltage | 12 VDC |
| Operating Voltage | 10.8 – 13.2 VDC |
| Started Voltage | 7 VDC |
| Rated Current | 0.15 A |
| Power Input | 1.8 W |
| Fan Bearing Type | Hydraulic Bearing |
| Fan Connector | 7-Pin (4-Pin PWM + 5V 3-Pin ARGB) |
| Warranty | 2 Years |
Frequently Asked Questions
What CPU sockets does the FX360 TD support?
+
The FX360 TD supports Intel LGA1851, LGA1700, LGA1200, LGA115X, and AMD AM5, AM4 sockets.
What does the digital screen on the waterblock show?
+
The waterblock features a digital screen that displays real-time system information — turning the AIO into a live telemetry display on your build. The screen combines with ARGB lighting on both pump and fans for a coordinated visual effect.
How long is the Gen 7 Pro pump rated for?
+
The Gen 7 Pro pump uses a ceramic bearing rated for 50,000 hours of operation, running at 2900 RPM (±10%) with a rated noise level of 25 dB(A).
Is the ARGB lighting compatible with my motherboard?
+
Both the waterblock and the three AS-120-ARGB V2 fans use the 5V 3-pin ARGB standard, so lighting can synchronize with mainstream motherboard RGB software like ASUS Aura Sync, MSI Mystic Light, or Gigabyte RGB Fusion (depending on platform).
What warranty is included?
+
The ID-COOLING FX360 TD is covered by a 2-year warranty against manufacturing defects. Please contact your local retailer for warranty support.
Cool Your Build with Gen 7 Pro Precision
360mm AIO · Gen 7 Pro ceramic pump · digital screen · 350W TDP · 3× ARGB PWM fans · 420mm sleeved tubing — backed by a 2-year warranty.
✓ 2-Year Warranty
✓ 350W TDP · ARGB
