Lian Li Edge Gold EG1200G 1200W 80 Plus Gold ATX 3.1 Full Modular Power Supply

Lian Li Edge Gold 1200W 80 Plus Gold ATX 3.1 Full Modular Power Supply

The Lian Li Edge Gold 1200W is a fully modular, 80 Plus Gold certified ATX 3.1 power supply, designed with a unique L-shape and detachable USB/PWM hub. This PSU is particularly well-suited for dual-chamber PC builds, offering streamlined cable management and versatile connectivity.

Discover the Lian Li Edge Gold 1200W

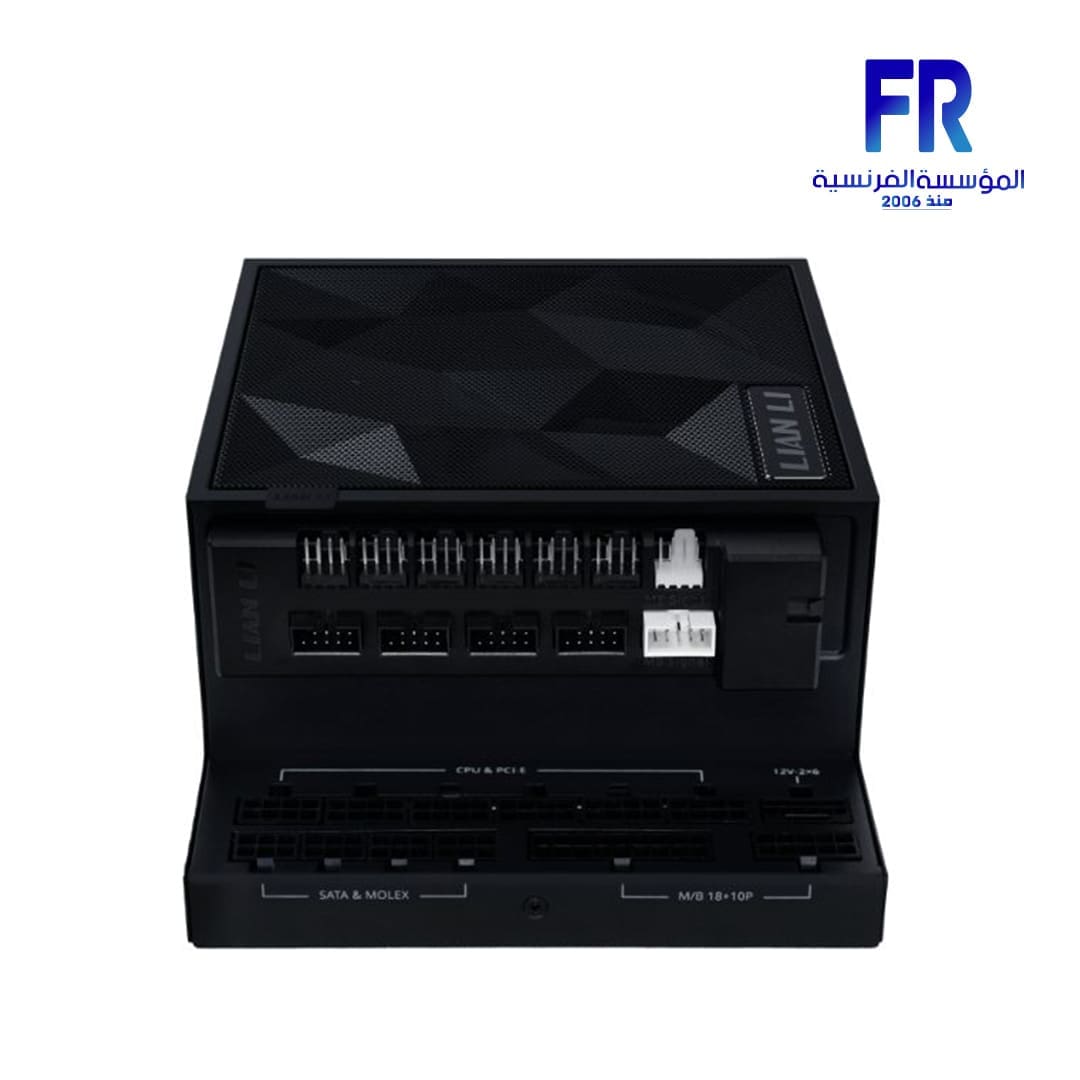

The Lian Li Edge Gold series introduces an innovative L-shape design, a detachable USB and fan PWM hub, longer modular cables, and a removable dust filter. This power supply is engineered to deliver efficient power and simplify cable management in both dual-chamber and tower chassis. For more information, visit the specifications section.

Key Features and Benefits of the Lian Li Edge Gold 1200W:

• L-Shape Design: Optimizes cable management in dual-chamber cases.
• 80 PLUS Gold Certified: Ensures high energy efficiency, reducing heat and power consumption.
• PCIe 5.1 Ready: Features in-house R&D 12V-2×6 alloy copper soldered terminals for next-gen GPUs.
• Detachable USB/PWM Hub: Offers 4 internal USB 2.0 headers and 6 PWM headers for expanded connectivity.
• Removable Magnetic Dust Filter: Allows for easy maintenance and dust-free operation.
• Fully Modular Design: Includes braided-texture cables with pre-installed cable combs for a clean build.
• 10-Year Warranty: Provides long-term reliability and peace of mind.

Specifications

• Model: EG1200G
• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• Color: Black/White
• Form Factor: ATX 3.1
• Certification: 80 PLUS GOLD / Cybenetics PLATINUM / PPLP GOLD
• Max. DC Output: 1200W
• Combined +3.3V & +5V: 120W
• Combined +12V: 1200W
• Input Voltage: 100-240Vac
• Input Frequency Range: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 91.64%MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP
• Fan Type: 120mm FDB Fan
• Fan Speed: 2000RPM
• Fan Noise Level: 30.9dBA
• Warranty: 10 Years (Hub 2 Years)

Q&A

Who is this power supply for?

The Lian Li Edge Gold 1200W is ideal for PC enthusiasts, gamers, and professionals building high-performance systems, especially those using dual-chamber cases. It is designed for users who prioritize efficient power delivery, clean aesthetics, and flexible connectivity.

Why choose this power supply?

This power supply stands out due to its innovative L-shape design, which optimizes cable management in dual-chamber cases. It also features an 80 PLUS Gold certification, a detachable USB/PWM hub, and a 10-year warranty, offering a combination of performance, convenience, and reliability.

Pros:

• Innovative L-shape design
• 80 PLUS Gold certified
• Detachable USB/PWM hub
• Longer modular cables
• 10-year warranty

Cons:

• L-shape design may not be optimal for all case layouts.

Verdict

The Lian Li Edge Gold 1200W power supply is a great choice for high-performance PC builds, particularly those using dual-chamber cases. Its unique design and comprehensive features make it a reliable and efficient foundation for demanding systems.
