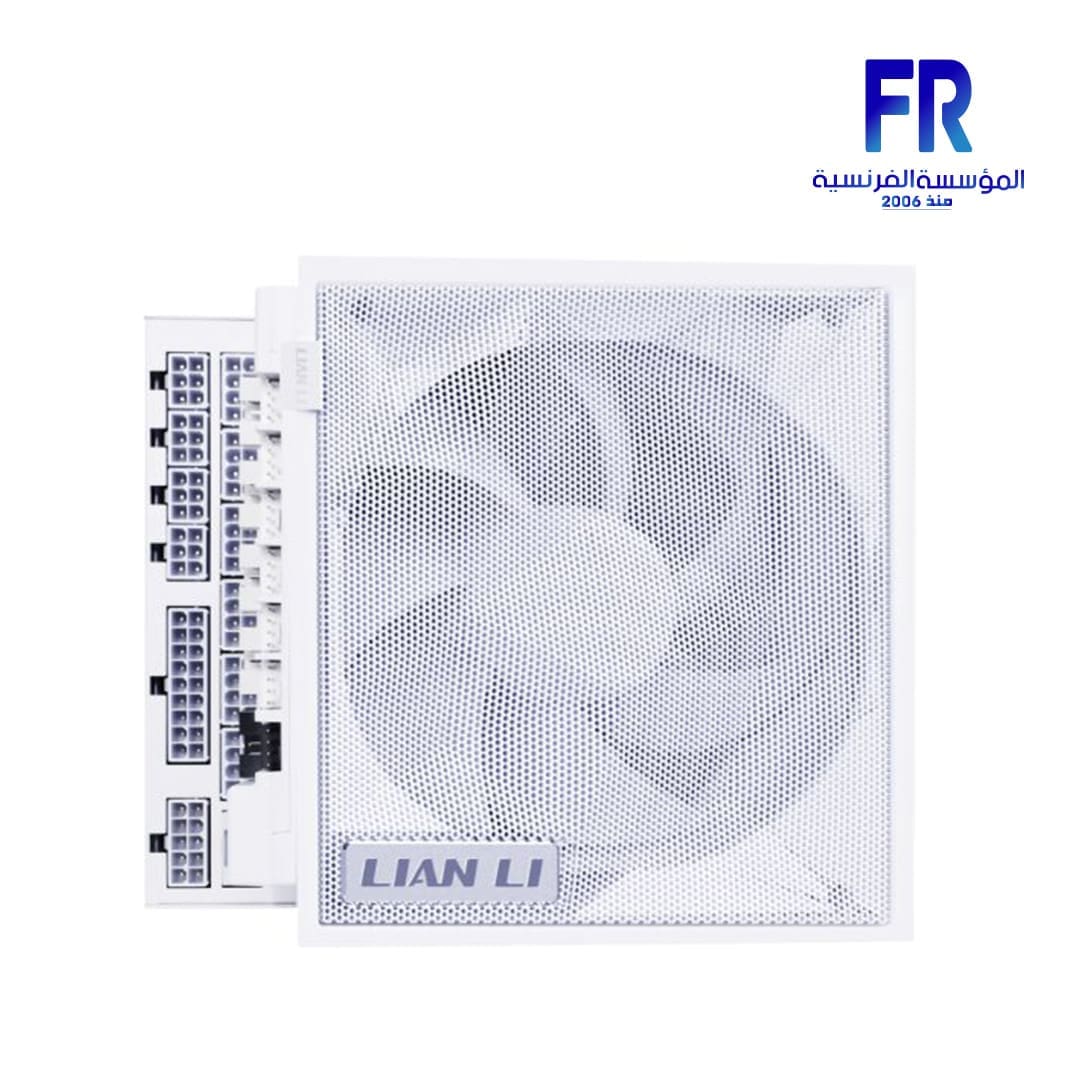

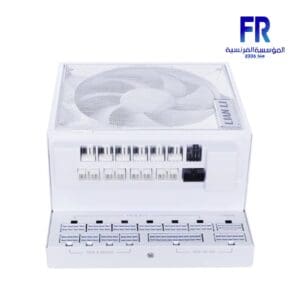

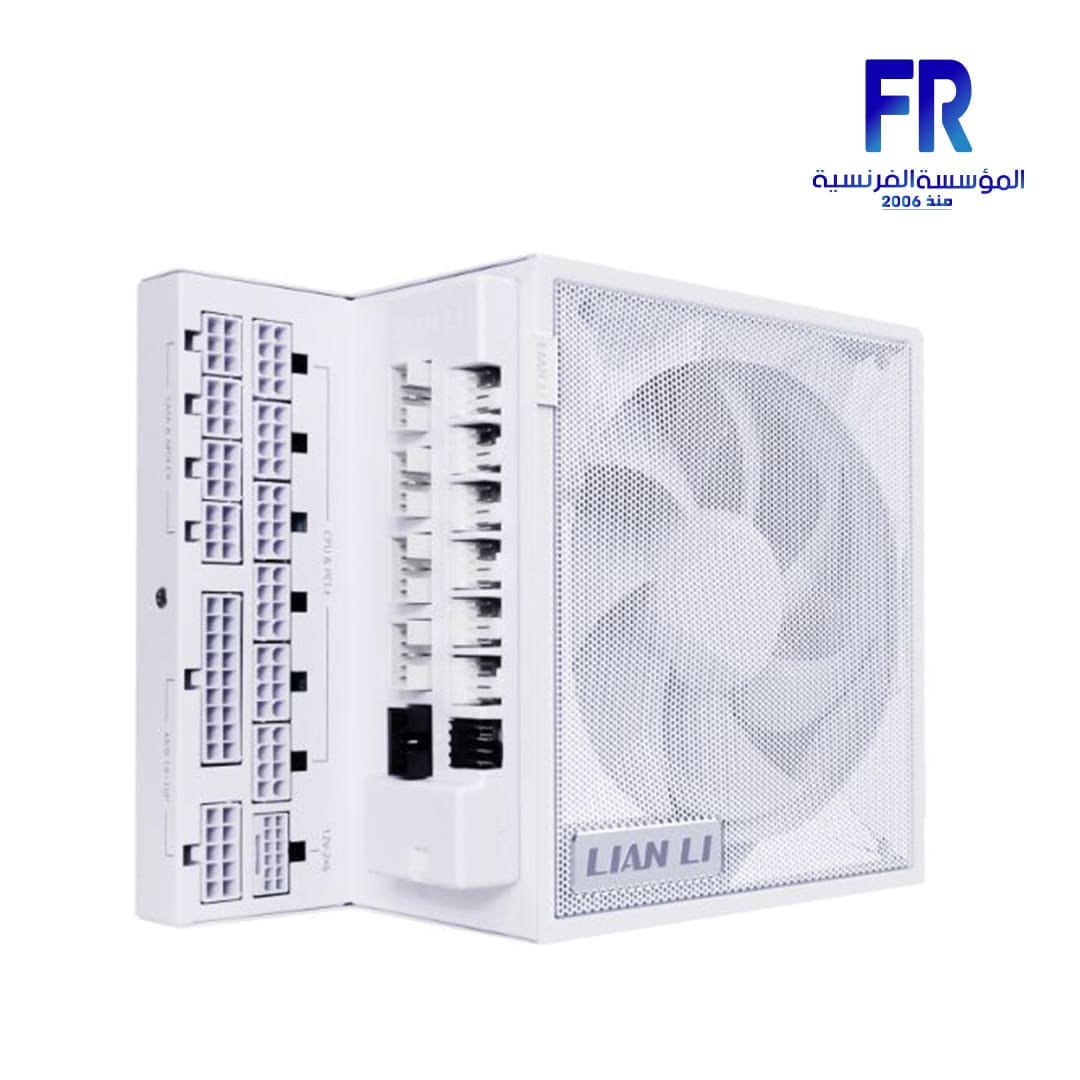

Lian Li Edge Gold EG1200G 1200W 80 Plus Gold ATX 3.1 Full Modular White Power Supply

Lian Li Edge Gold EG1200G 1200W 80 Plus Gold ATX 3.1 Full Modular White Power Supply

Deliver massive, efficient power to your most demanding build with the innovative Lian Li Edge Gold 1200W PSU, presented in a clean white finish. Designed for dual-chamber cases but also compatible with larger towers, this high-capacity 1200W unit features the unique **L-shape design** for superior cable management. Furthermore, it boasts efficient **80 PLUS Gold** certification (also achieving Cybenetics Platinum) and includes the versatile **detachable USB and PWM fan hub**. Consequently, the Lian Li Edge Gold 1200W White offers an exceptional combination of extreme power, smart features, and striking aesthetics.

Discover the Edge Gold 1200W: High Power & Hub Convenience

The Edge Gold series utilizes the innovative **L-shape form factor**. This is particularly ideal for vertical mounting in dual-chamber cases like the Lian Li O11 series. This design cleverly orients the modular connectors outwards, thus making cable connections significantly easier and promoting a cleaner build. Additionally, this powerful 1200W model achieves high efficiency. It’s certified **80 PLUS Gold** and also rated Platinum by Cybenetics, minimizing wasted heat and energy consumption even under heavy loads.

A key feature is the **detachable Edge Hub**. Specifically, this magnetic module provides **four internal USB 2.0 headers** (supporting up to 8 devices) and **six PWM fan headers**. It can attach directly to the PSU or be placed elsewhere in the case using PCIe power. This offers great flexibility for connecting controllers and fans while freeing up motherboard headers. Moreover, the unit is fully compliant with **ATX 3.1 and PCIe 5.1 standards**. This includes two **12V-2×6 connectors** (one native, one dual 8-pin adapter) ready for power-hungry GPUs. It also features fully modular, white braided-texture cables (with longer lengths), a removable magnetic dust filter, and high-quality capacitors. Finally, the 120mm FDB fan ensures quiet operation, featuring a zero RPM mode under low loads.

Lian Li Edge Gold 1200W White Specifications

• Wattage: 1200W
• Color: White
• Efficiency: 80 PLUS Gold, Cybenetics Platinum, PPLP Gold
• Form Factor: ATX (L-Shape Design: 182mm(D) x 86mm(W) x 150mm(H))
• Modularity: Fully Modular
• ATX Standard: ATX 3.1 / PCIe 5.1 Compliant
• Connectors: 1x 24-pin ATX, 2x 8/4+4 pin CPU, 4x 8/6+2 pin PCIe, 1x 12V-2×6 (600W), 1x 12V-2×6 to 2×8-pin Adapter (600W), 12x SATA, 4x Peripheral (Molex), Edge Hub Connectors (USB/PWM)
• Cables: White Braided-Texture Sleeved (Longer Length), Pre-installed Combs (MB/CPU/GPU/12V-2×6)
• Fan: 120mm Fluid Dynamic Bearing (FDB) Fan (Zero RPM Mode)
• Dust Filter: Removable Magnetic Fan Filter
• Capacitors: German EPCOS / Japanese Capacitors
• Protections: OCP, OVP, OTP, OPP, SCP, UVP, SIP, NLO, Inrush Current Limiter
• Warranty: 10 Years (PSU), 2 Years (Edge Hub)
• Special Features: L-Shape Design, Detachable USB & PWM Fan Hub (Edge Hub), 1200W Capacity, 80 Plus Gold / Cybenetics Platinum Efficiency, ATX 3.1 / Dual 12V-2×6 Ready, Fully Modular White Braided-Texture Cables, Removable Dust Filter

Q&A

Who is the Lian Li Edge Gold 1200W White for?

This high-capacity power supply targets builders of extreme performance systems, especially those using dual-chamber cases and aiming for a clean white aesthetic. It’s ideal for users with top-tier, power-hungry GPUs and CPUs, multiple internal USB devices and fans who need the flexibility of the Edge Hub and the convenience of the L-shape design.

Why choose the Lian Li Edge Gold 1200W White?

Its massive **1200W capacity** reliably powers the most demanding components. The unique **L-shape design** greatly simplifies cable management in compatible cases. Additionally, the **detachable USB/PWM hub** offers unparalleled connectivity convenience. Furthermore, its high **Gold/Platinum efficiency**, **ATX 3.1 compliance** (with dual 12V-2×6 support), fully modular white cables, and **10-year PSU warranty** make the Lian Li Edge Gold 1200W White a premium choice for high-end builds.

What are the Pros?

Pros: Massive 1200W capacity; L-shape design aids cable management; Detachable & versatile USB/PWM hub; Excellent Gold/Platinum efficiency; ATX 3.1 / Dual 12V-2×6 support; Fully modular with longer white braided-texture cables; Removable magnetic dust filter; Quiet FDB fan with zero RPM mode; 10-year PSU warranty.

What are the Cons?

Cons: L-shape might be less ideal for some standard case layouts; High wattage may be overkill for many systems; Edge Hub warranty is shorter (2 years); USB hub is USB 2.0 speed; Premium price point.

Verdict

The Lian Li Edge Gold 1200W White PSU delivers extreme power with innovative design, perfect for ambitious white-themed builds. The **1200W Gold/Platinum-rated** output handles the most demanding hardware, while the **L-shape design** and **detachable hub** significantly enhance the building experience, especially in dual-chamber cases. With full **ATX 3.1** support and premium components, it’s built for longevity and performance. Therefore, if you require massive power, appreciate builder-friendly innovations, and desire a clean white aesthetic, this power supply is an outstanding, albeit premium, choice. Find complete specifications on the official Lian Li product page.
