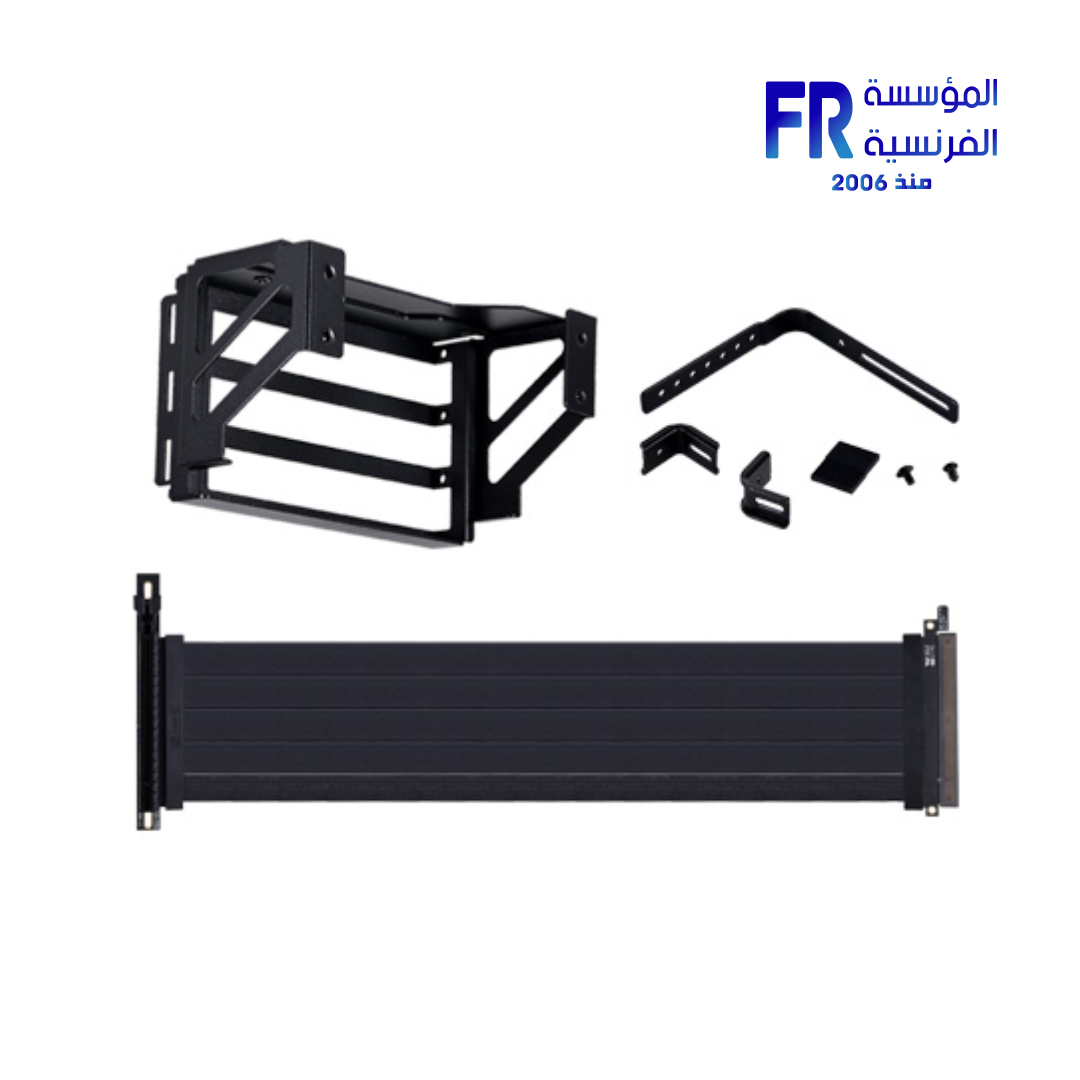

Lian Li O11D EVO PCIe4.0 Upright GPU Kit
4000 EGP
- Upright graphics card accessories for O11D EVO
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
- For O11D EVO Case
- Upright GPU Position

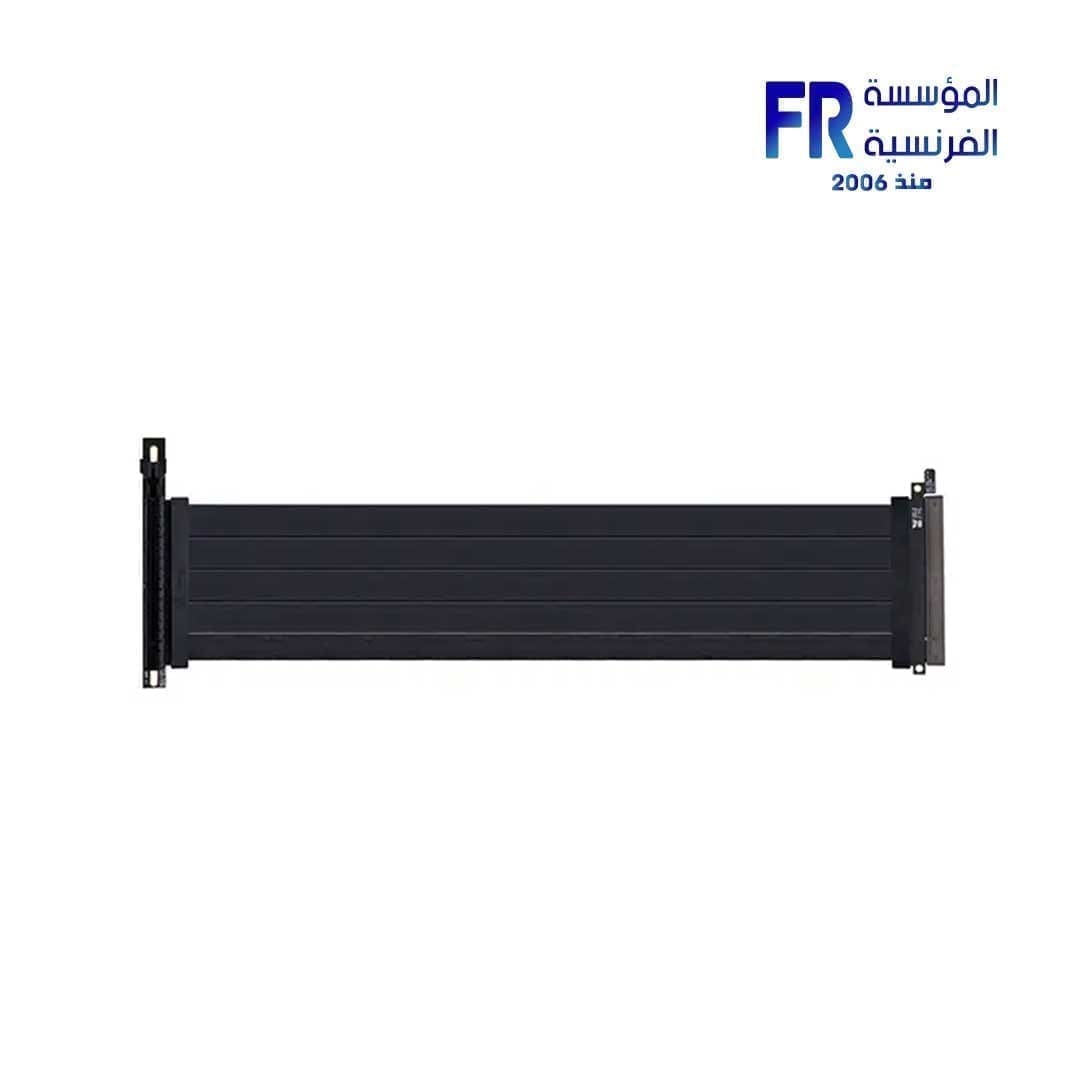

- PCIe 4.0 Riser Cable Included
Only 1 left in stock
Estimated delivery : 25th Jan - 28th Jan
Lian Li O11D EVO PCIe4.0 Upright GPU Kit
| Model | Bracket Dimension | Material | PCIE Riser Cable | Cable Length | Cable Interface | Expansion Slot | GPU Compatibility | Warranty |
|---|---|---|---|---|---|---|---|---|

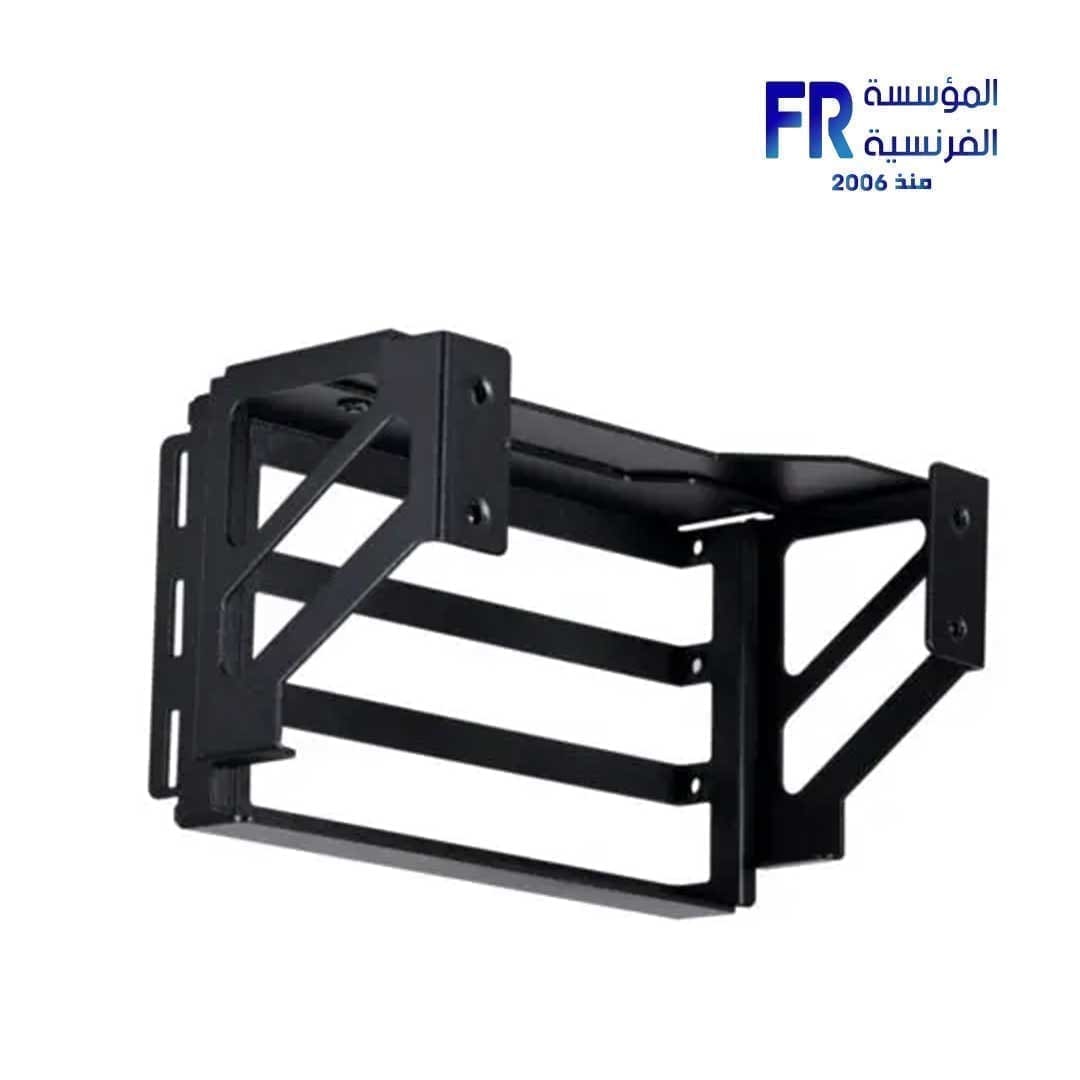

| O11DE-2X | Mounting frame: 71.8mm(L) x 128mm(D) x 67.58 mm(H) Support frame: 70mm(L) x 81mm(D) x 10 mm(H) |

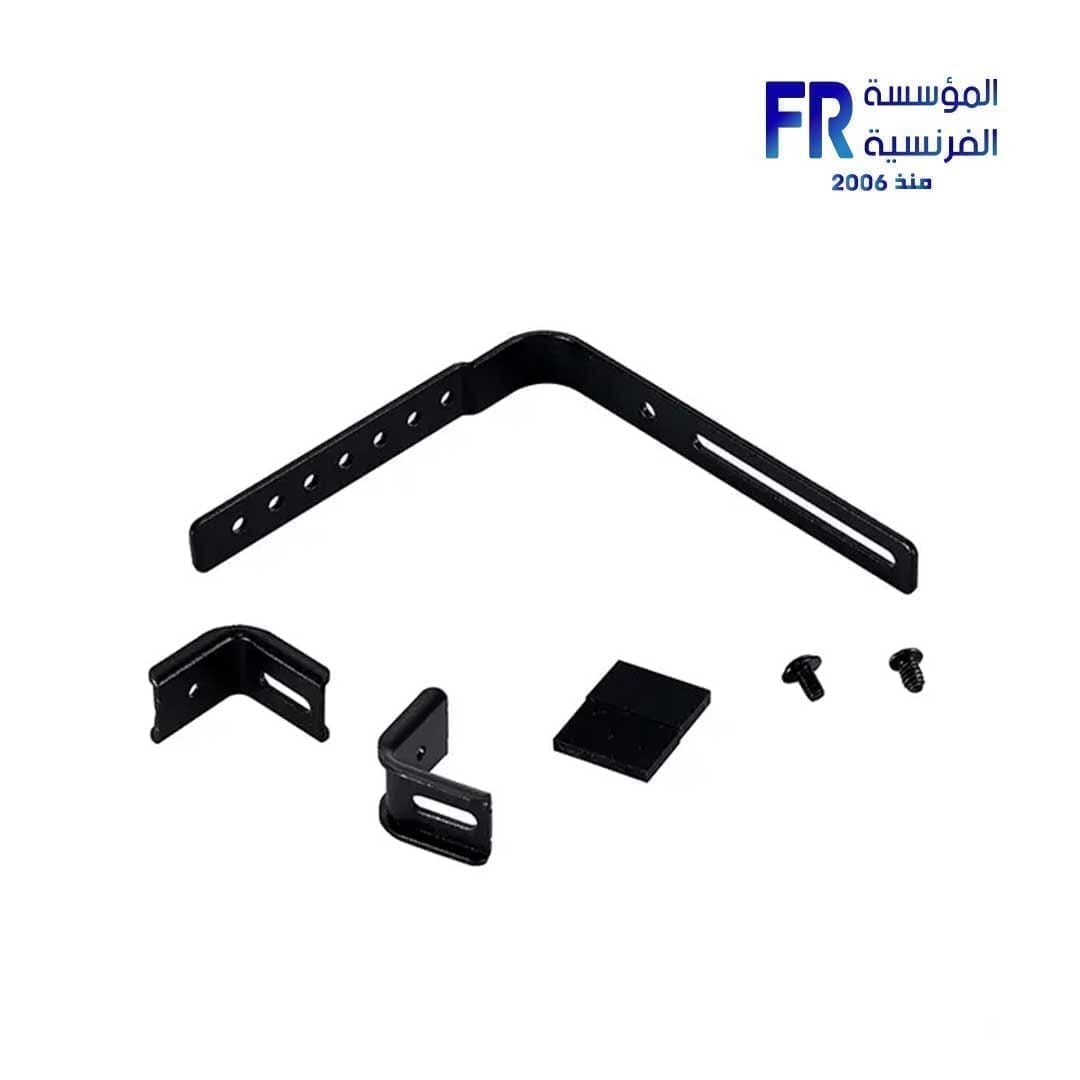

1mm STEEL | Gen 4.0 | 380mm | PCI-E X 16 | 3 slots | Length: Maximum 356MM Thickness: Maximum 62MM thick (with the big L-type support bracket) Width HDD Tray Panel Scenario: 100MM ~ 150MM Fan Bracket Scenario: 121MM~150MM Water block GPU: Maximum 158MM |
1 year |
Lian Li O11D EVO PCIe4.0 Upright GPU Kit
-
O11D EVOUpright GPU Kit
- Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.
-
TWO MOUNTING WAYS WORK ON BOTH MODES
- Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode.
-
HDD TRAY PANEL SCENARIO
- Supreme Water-Cooling Configuration
-
Normal Mode with HDD Tray Panel Scenario
- Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.
-
Normal Mode with HDD Tray Panel Scenario
- Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.
NOTE: Recommend Set-up for some GPUs
Due to GPU cooler design, some GPUs have been found to perform significantly better with GPU IO facing down when using upright GPU kit. Test result as follow :
| GPU MODEL | REVERSE MODE | NORMAL MODE |
| ROG STRIX RTX 30 Series | O | X |
| ASUS TUF GAMING 30 Series | O | X |
| ASUS TUF GAMING AMD 68/69 series | O | X |
| AORUS 2080 Super | O | O |
| MSI 6800XT | O | O |
O ： compatible
X ： not compatible
