What CPUs does the MSI B840M Gaming Plus Motherboard support?

This motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors for the Socket AM5 platform.

What kind of RAM does this motherboard use?

It uses 4x DDR5 UDIMM slots and supports a maximum capacity of 256GB. It also supports overclocking speeds up to 8000+ MT/s and features AMD EXPO™ support.

Does this motherboard have built-in WiFi?

Yes, it includes a pre-installed Wi-Fi 6E solution, which also supports Bluetooth® 5.3 for fast and reliable wireless connectivity.

Filter

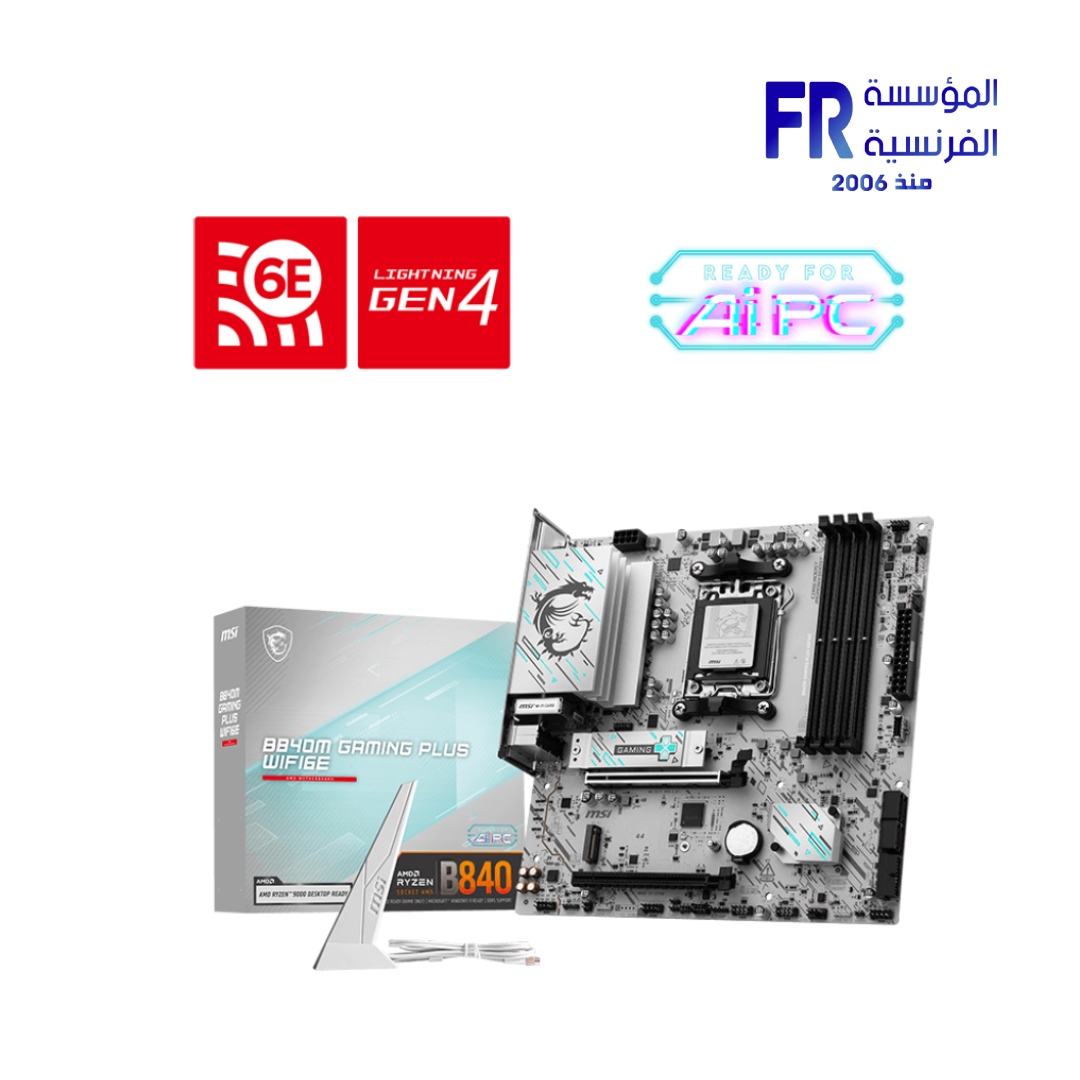

MSI B840M Gaming Plus WIFI6E AM5 Motherboard

MSI B840M Gaming Plus WIFI6E AM5 Motherboard

7500 EGP

Chipset: AMD B840
CPU Socket: AM5
CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series
Memory Support: 4x DDR5, Max 256GB, up to 8000+ (OC) MT/s
Primary Expansion Slot: 1x PCIe 4.0 x16
Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6G
Networking: Realtek® 2.5G LAN, Wi-Fi 6E & Bluetooth® 5.3
Form Factor: mATX (243.84mm x 243.84mm)
Warranty: 3 Years

Out Of Stock.

Price Match Guarantee

MSI B840M Gaming Plus WIFI6E AM5 Motherboard

The MSI B840M Gaming Plus Motherboard delivers next-gen performance for AM5 processors. To begin with, it features blazing-fast DDR5 memory support, PCIe 4.0, and built-in Wi-Fi 6E.

Ryzen 9000 Ready

Memory Support

GPU Slot

Connectivity

Power Your Next Build with the MSI B840M Gaming Plus Motherboard

Next-Gen CPU & Memory Support

Built on the new AMD B840 chipset, this motherboard is ready for AMD Ryzen™ 9000, 8000, and 7000 series processors. Furthermore, it leverages the full power of DDR5 memory, supporting overclocking speeds up to 8000+ MT/s and AMD EXPO™ profiles for optimized performance.

Fast & Reliable Connectivity

This MSI B840M Gaming Plus Motherboard features a Realtek® 2.5G LAN port for high-speed wired connections. In addition, the pre-installed Wi-Fi 6E and Bluetooth® 5.3 module offers low-latency wireless gaming and seamless peripheral connectivity. Also, high-speed USB 10Gbps ports provide rapid data transfer.

MSI B840M Gaming Plus Motherboard Specifications

Specification	Detail
Chipset	AMD B840
CPU Socket	AM5
CPU Support	Ryzen™ 9000 / 8000 / 7000 Series
Form Factor	mATX (243.84mm x 243.84mm)
Memory	4x DDR5, up to 256GB, 8000+ (OC) MT/s
Expansion Slot	1x PCIe 4.0 x16, 1x PCIe 3.0 x4
Storage	2x M.2 (PCIe 4.0 x4), 4x SATA 6G
Networking	Realtek® 2.5G LAN
Wireless	Wi-Fi 6E & Bluetooth® 5.3
Rear USB	1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0

💡 Pro Tip:

To unlock the full potential of your MSI B840M Gaming Plus Motherboard, install your DDR5 RAM in the recommended slots (A2 and B2 for a 2-stick kit). After that, boot into the BIOS and enable the AMD EXPO™ profile to instantly overclock your memory to its advertised 8000+ MT/s speed.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

MOTHERBOARD

MODEL	B840M Gaming Plus WIFI6E
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	B840
Motherboard Type	mATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	8000MHZ
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 4.0
PCI-E Slots (M.2)	2
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth, Wi-Fi
Part Number	911-7E77-003
Warranty	3 Years
